TRUNK LID

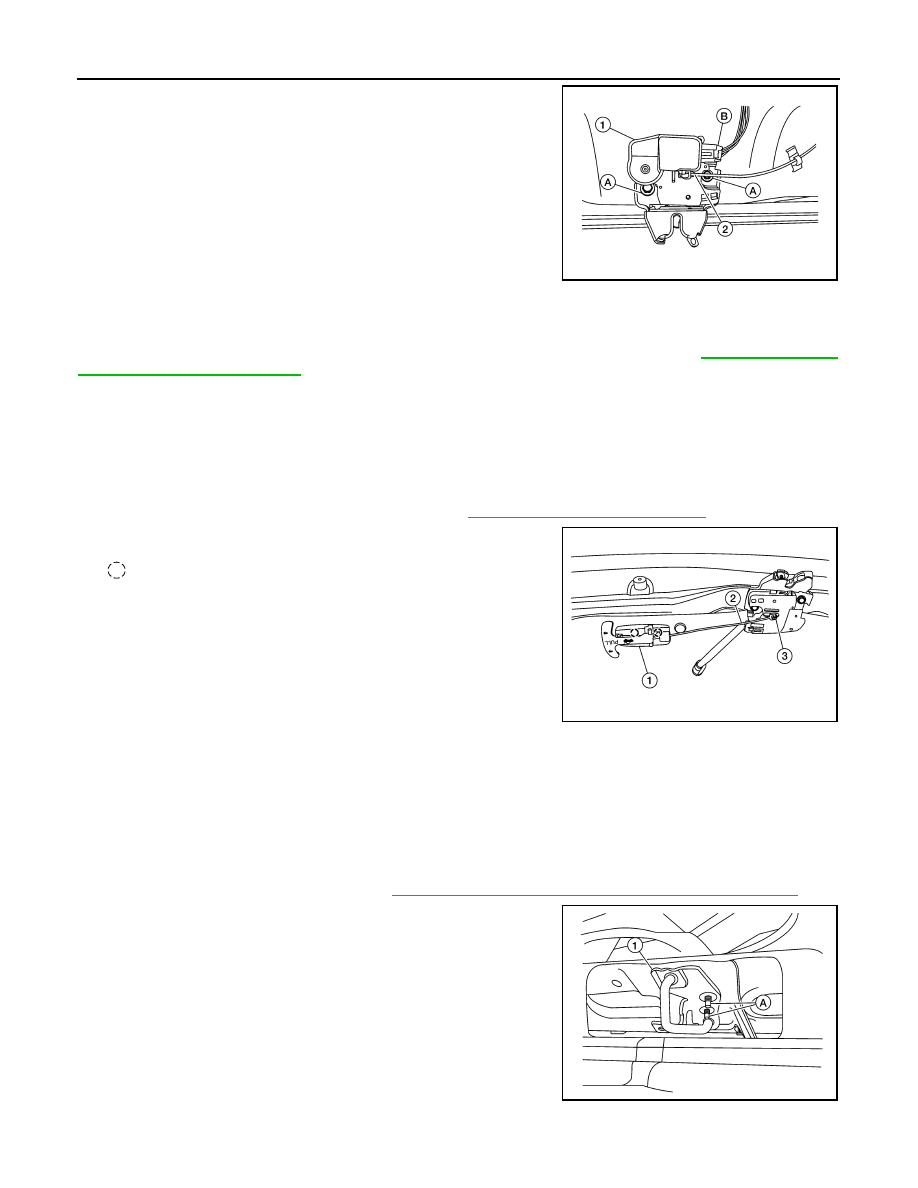

2. Disconnect the harness connector (B) and emergency release

handle (2) from the trunk lid lock (1).

3. Remove the trunk lid lock bolts (A) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, perform the trunk lid assembly adjustment procedure. Refer to

DLK-185, "TRUNK

LID ASSEMBLY : Adjustment"

.

EMERGENCY LEVER
EMERGENCY LEVER : Removal and Installation

INFOID:0000000009756500

REMOVAL

1. Remove the trunk lid finisher (if equipped). Refer to

INT-45, "Removal and Installation"

.

2. Using a suitable tool release the pawls and remove emergency

release handle (1) from trunk lid assembly.

: Pawl

3. Disconnect emergency release handle cable (2) from trunk lid

lock assembly (3).

INSTALLATION

Installation is in the reverse order of removal.

TRUNK LID STRIKER
TRUNK LID STRIKER : Removal and Installation

INFOID:0000000009756501

REMOVAL

1. Remove the trunk kicking plate. Refer to

INT-42, "TRUNK REAR PLATE : Removal and Installation"

.

2. Remove bolts (A) and striker (1).

INSTALLATION

ALKIA2736ZZ

ALKIA2310ZZ

ALKIA2737ZZ

TRUNK LID

DLK-189

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Installation is in the reverse order of removal.

CAUTION:

After installation, perform the trunk lid assembly adjustment procedure. Refer to

DLK-185, "TRUNK

LID ASSEMBLY : Adjustment"

.

DLK-190

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

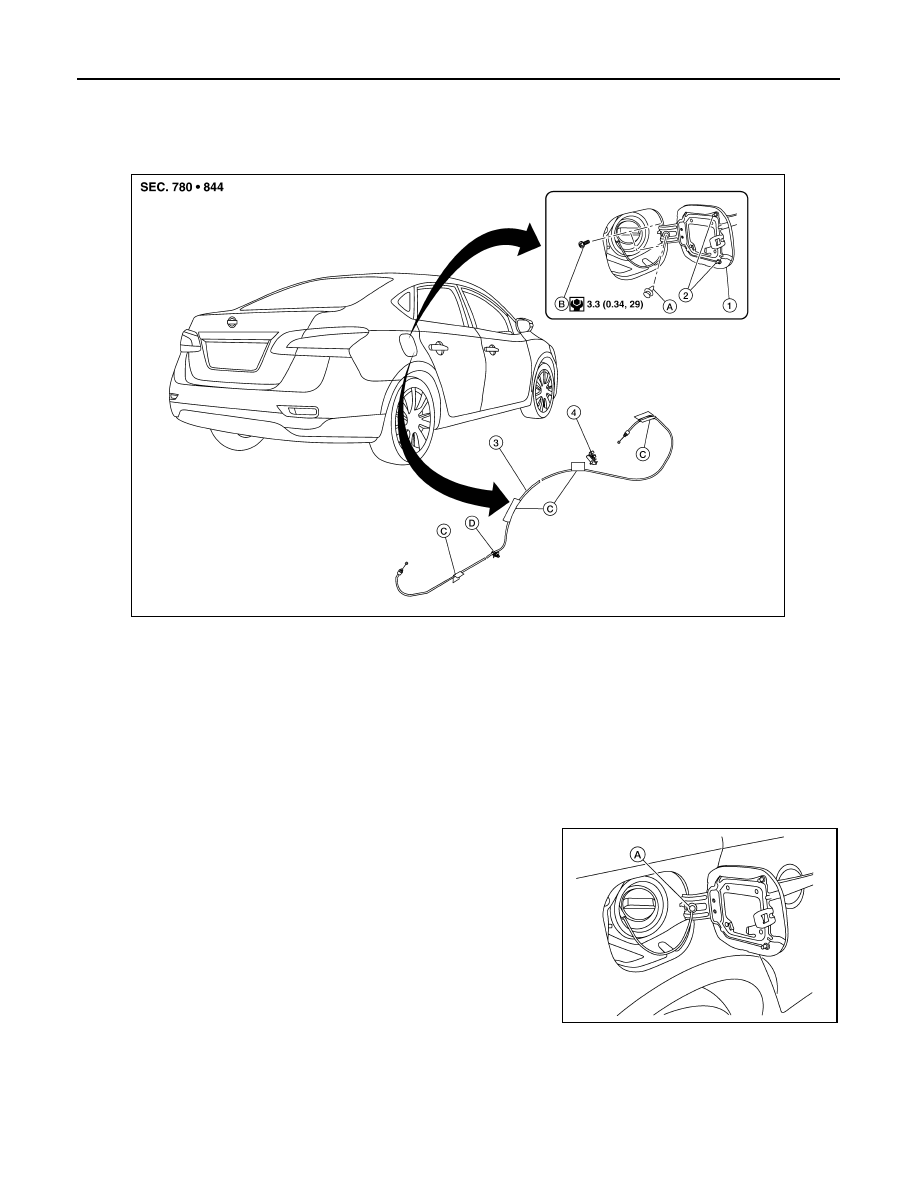

Exploded View

INFOID:0000000009756502

FUEL FILLER LID
FUEL FILLER LID : Removal and Installation

INFOID:0000000009756503

REMOVAL

1. Fully open fuel filler lid.
2. Remove fuel cap clip (A).

1.

Fuel filler lid

2.

Bumper rubber

3.

Fuel filler lid opener cable

4.

Fuel filler lid lock

A. Clip

B. Bolt

C. Cable protector

ALKIA2919ZZ

ALKIA2921ZZ

FUEL FILLER LID OPENER

DLK-191

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

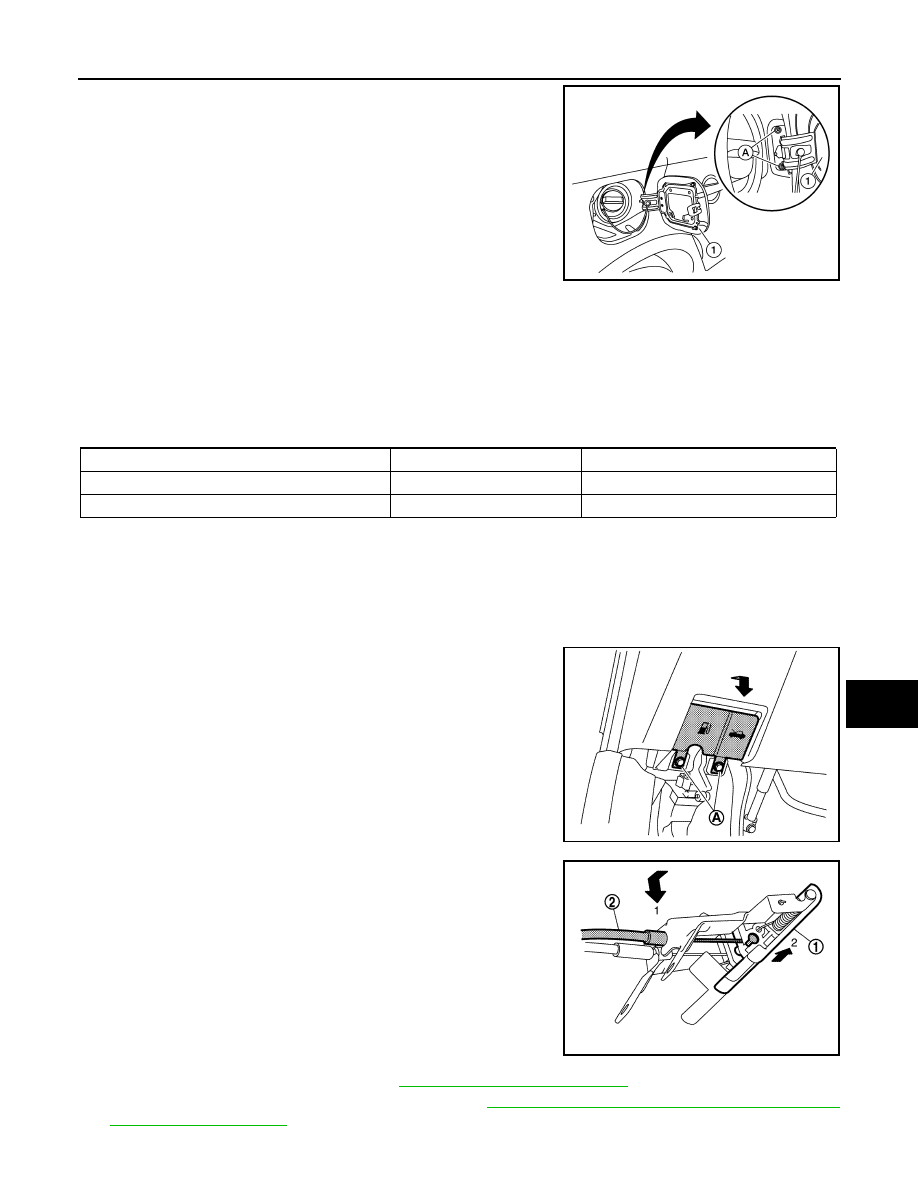

3. Remove fuel filler lid screws (A) and fuel filler lid (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

NOTE:

• The following table shows the specifications for a correctly installed fuel filler lid.

• Fitting adjustment cannot be performed.

Unit: mm (in)

FUEL FILLER OPENER CABLE
FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000009756504

REMOVAL

1. Remove hood and fuel filler handle assembly bolts (A).

2. Release fuel filler lid opener cable (2) by pulling downward and

then sliding cable end to the side to remove from hood and fuel

filler handle assembly (1).

3. Remove dash side finisher (LH). Refer to

IP-14, "Removal and Installation"

.

4. Remove center pillar lower finisher (LH). Refer to

INT-27, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

ALKIA2929ZZ

Portion

Measurement

Standard

Fuel filler lid – Body side outer

Clearance

5.1

±1.0 (0.20 ±0.04)

Fuel filler lid – Body side outer

Surface height

0.0

±1.0 (0.0 ±0.04)

JMKIA7998ZZ

JMKIA7999ZZ
