REAR DOOR

1. Fully close the rear door glass.
2. Remove rear door speaker (if equipped). Refer to

AV-61, "Removal and Installation"

 (BASE AUDIO),

AV-

206, "Removal and Installation"

 (DISPLAY AUDIO WITH BOSE),

AV-125, "Removal and Installation"

(DISPLAY AUDIO WITHOUT BOSE)

AV-409, "Removal and Installation"

 (NAVIGATION WITH BOSE) and

AV-301, "Removal and Installation"

 (NAVIGATION WITHOUT BOSE).

3. Remove door check link bolt from body.
4. Remove door check link bolts on door panel.

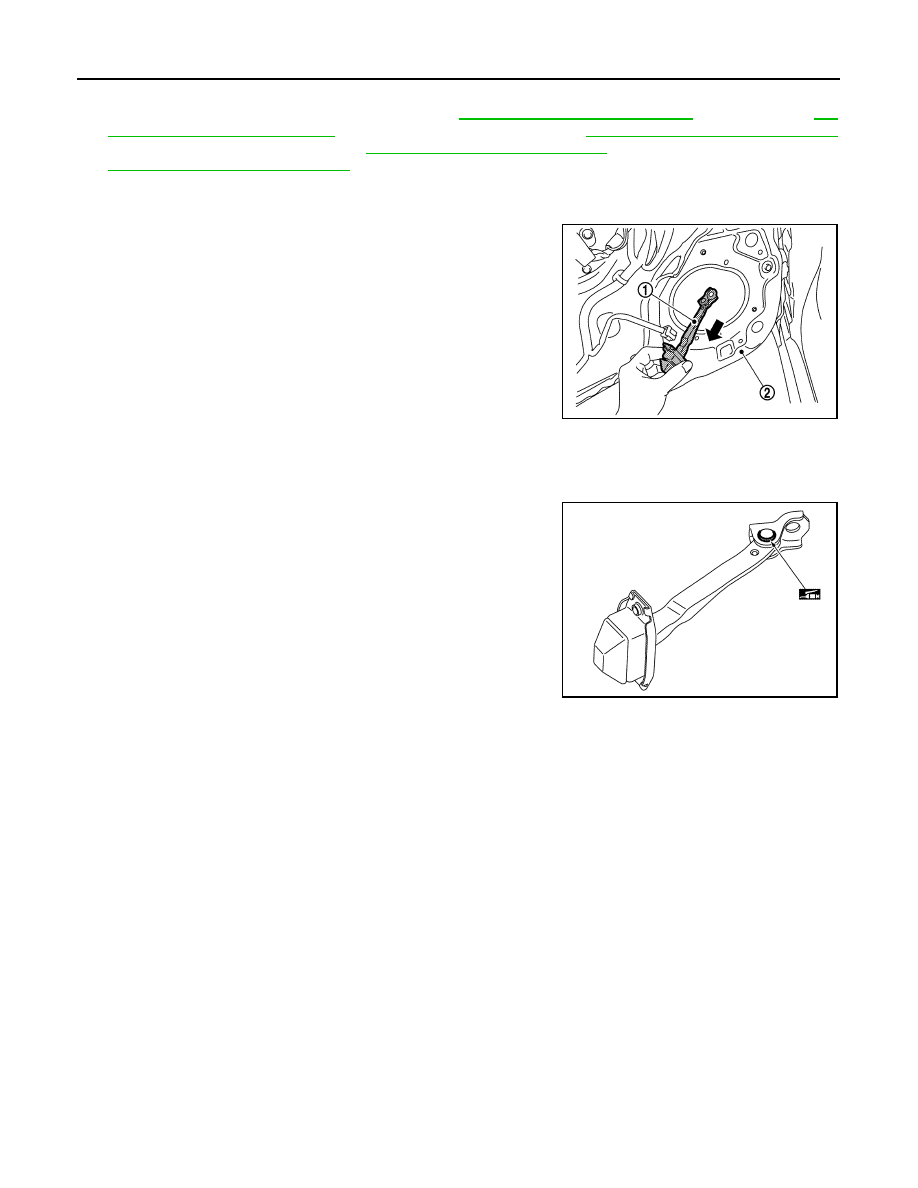

5. Remove door check link (1) through the hole in door panel (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, check rear door open/close, lock/unlock operation.

• Check rear door check link rotating point for poor lubrication.

If necessary, apply a suitable multi-purpose grease.

JMKIA8073ZZ

JMKIA8074ZZ

DOOR HANDLE

DLK-173

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR HANDLE

FRONT DOOR HANDLE

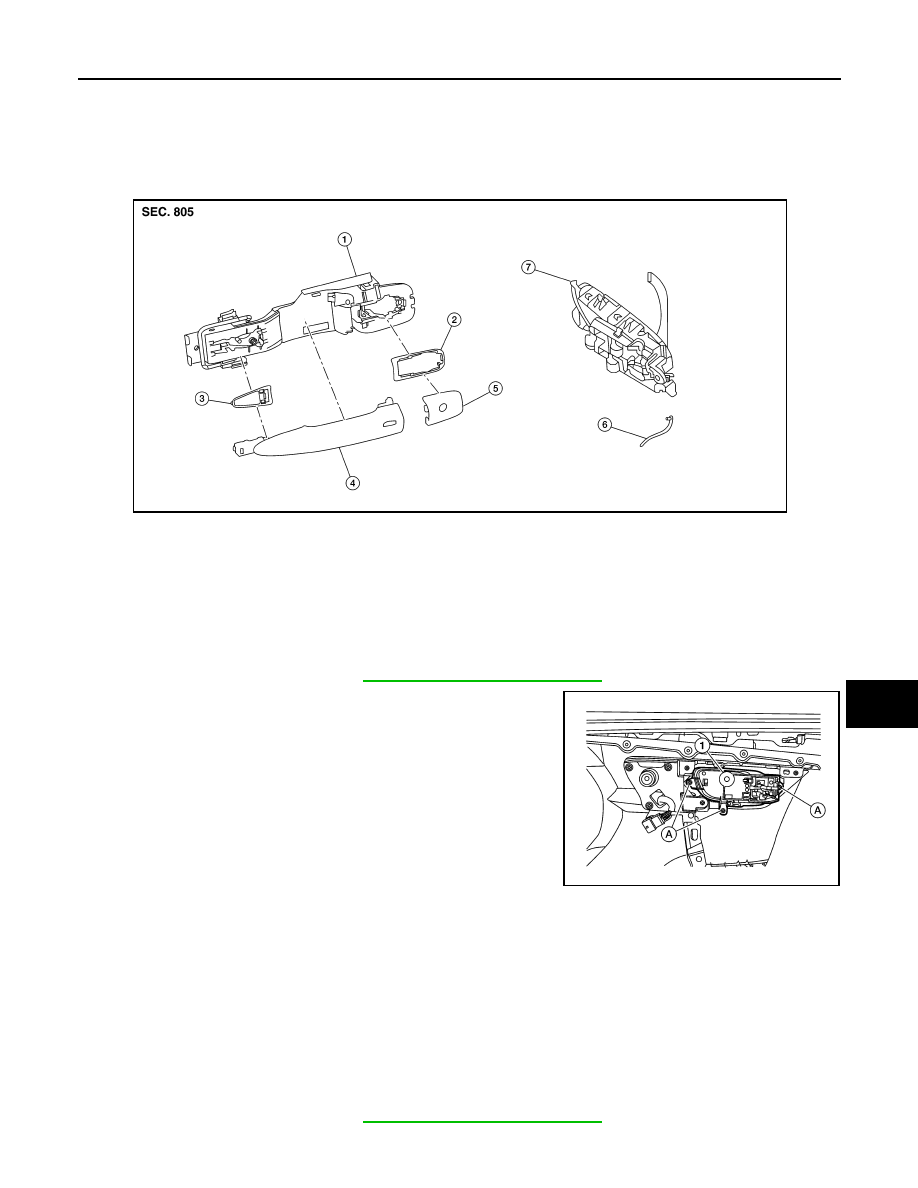

FRONT DOOR HANDLE : Exploded View

INFOID:0000000009756484

FRONT DOOR HANDLE : Removal and Installation - Inside Handle

INFOID:0000000009756485

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove screws (A) and inside handle assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Check front door lock cables are properly engaged to inside handle.

• After installation, check front door open/close, lock/unlock operation.

FRONT DOOR HANDLE : Removal and Installation - Outside Handle

INFOID:0000000009756486

REMOVAL

1. Fully close front door glass.
2. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

3. Remove front door vapor barrier.

1.

Outside handle bracket

2.

Front gasket

3.

Outside handle

4.

Intelligent key button

5.

Door key cylinder rod

6.

Inside handle assembly

7.

Rear gasket

AWKIA2888ZZ

ALKIA2715ZZ

DLK-174

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

DOOR HANDLE

4. Remove front door glass channel rear.
5. Disconnect the harness connectors from the door antenna and door request switch and then remove har-

ness clamp on outside handle bracket.

6. Remove door side grommet, and loosen screw (

) that retains

the front door outside handle bracket.

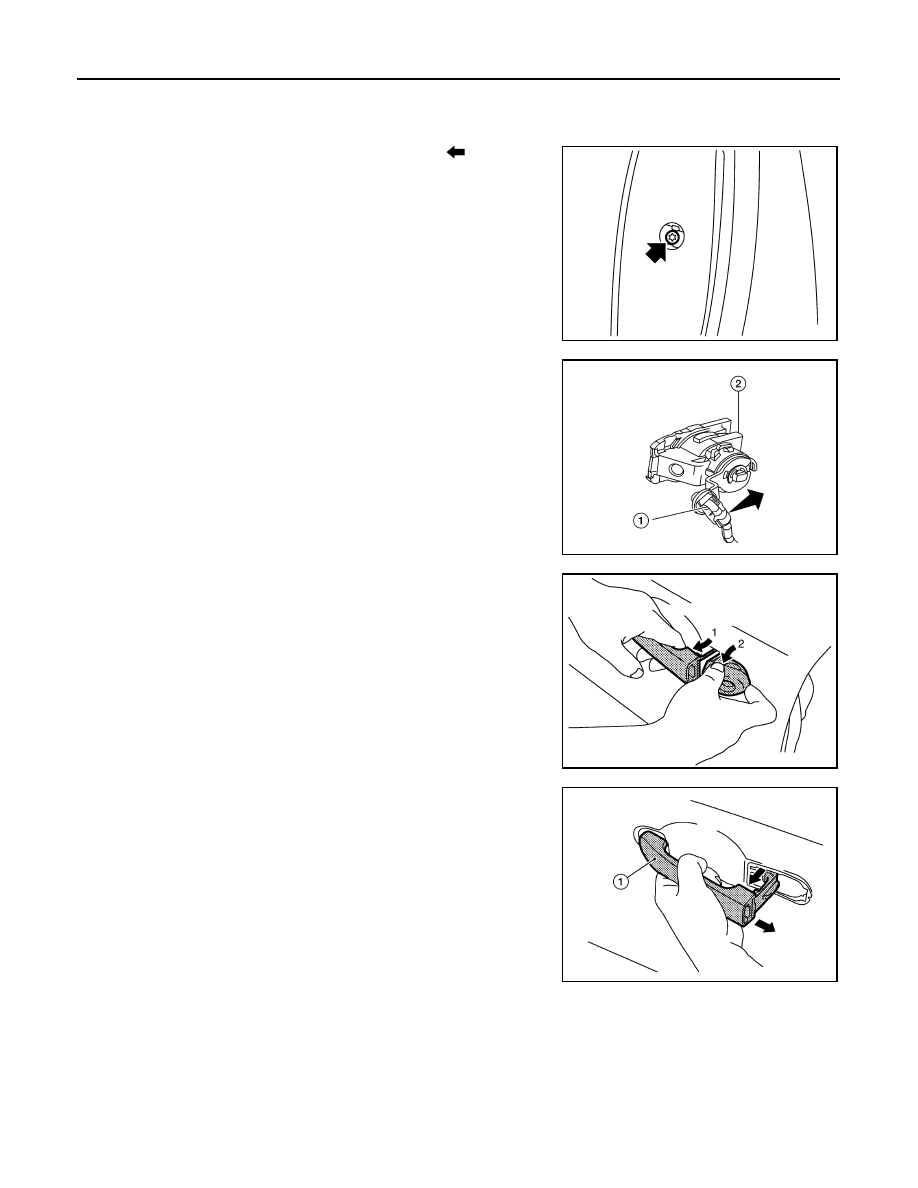

7. Reach in to separate door key cylinder rod (LH side) (1) from

door key cylinder assembly (LH side) (2).

8. While pulling (1) outside handle, remove (2) door key cylinder

assembly (LH side) or outside handle escutcheon (RH side).

9. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

JMKIA0025ZZ

ALKIA2487ZZ

JMKIA0560ZZ

AWKIA1997ZZ

DOOR HANDLE

DLK-175

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

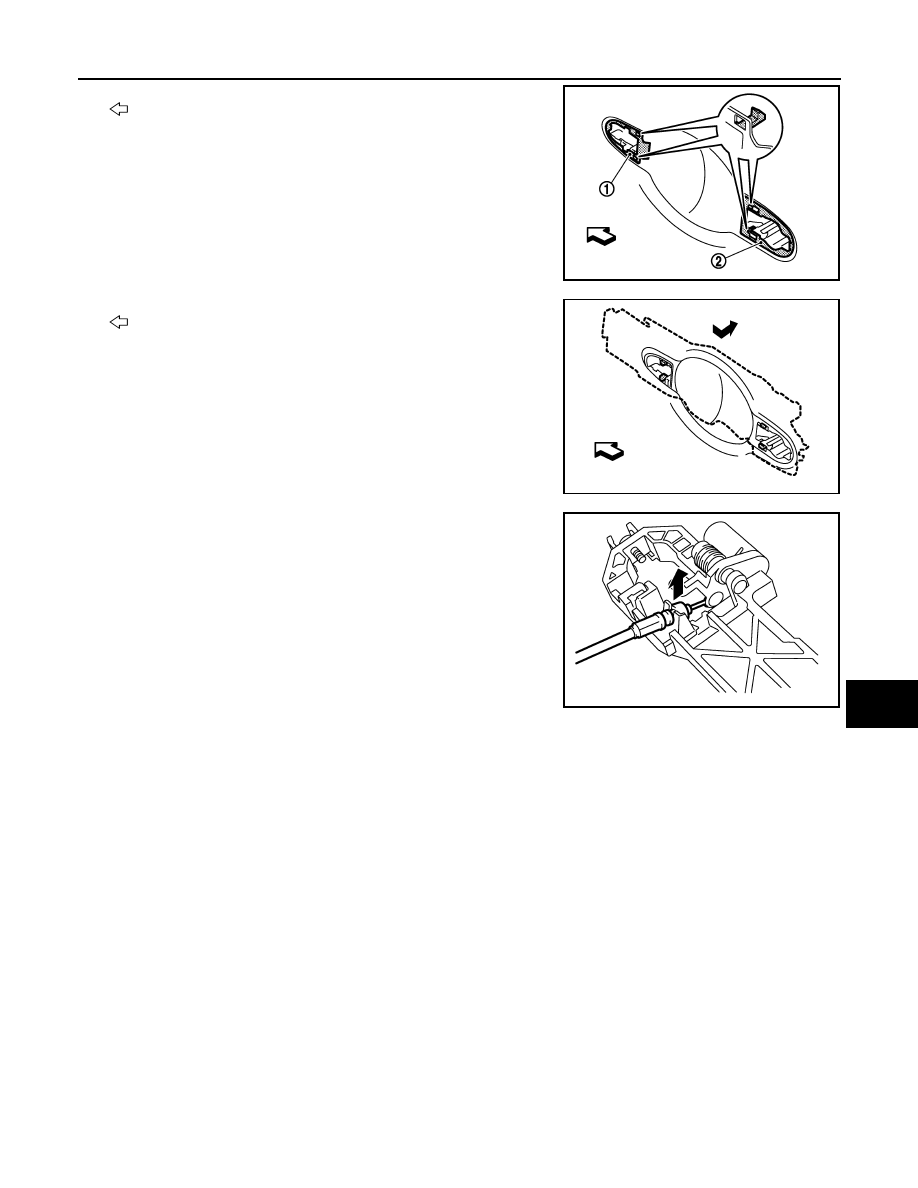

10. Remove front gasket (1) and rear gasket (2).

: Front

11. Slide outside handle bracket toward rear of vehicle to remove.

: Front

12. Disconnect the outside handle cable from the outside handle

bracket connection.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing door key cylinder rod on the (LH) front door, be sure to rotate door key cylinder rod

holder until a click is felt.

• Check front door lock cable is properly engaged to outside handle bracket.

• After installation, check front door open/close, lock/unlock operation.

REAR DOOR HANDLE
