CLUTCH DISC AND CLUTCH COVER

CL-17

< REMOVAL AND INSTALLATION >

CLUTCH DISC AND CLUTCH COVER

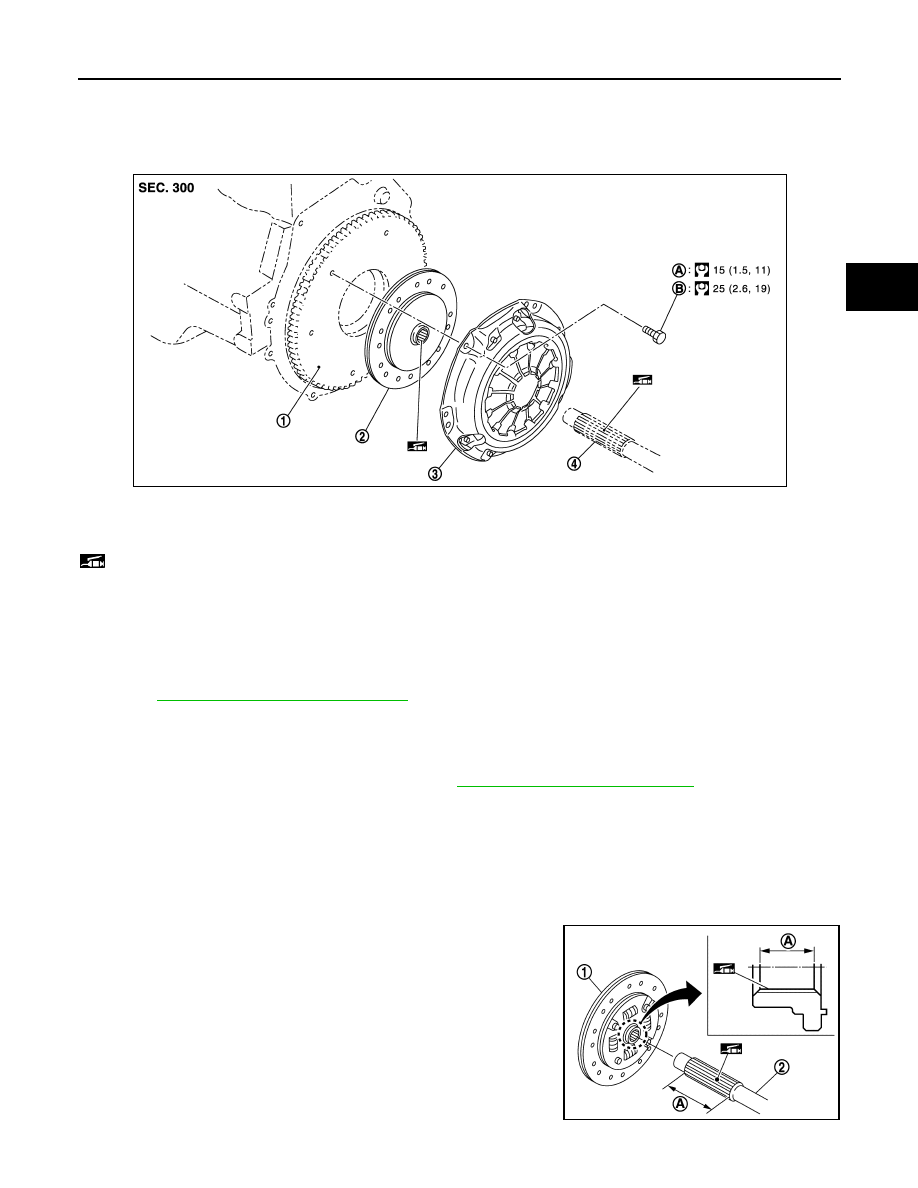

Exploded View

INFOID:0000000009757038

: Apply lithium-based grease including molybdenum disulphide.

Removal and Installation

INFOID:0000000009757039

CAUTION:

• Do not reuse CSC (Concentric Slave Cylinder). The CSC slides back to the original position every

time the transaxle assembly is removed. This action may allow dust or contaminants to gather on

the sliding parts and damage a seal of CSC causing clutch fluid leakage.

Refer to

CL-16, "Removal and Installation"

• Do not allow any grease to contact the clutch disc facing, pressure plate surface or flywheel surface.

• Do not clean clutch disc using solvent.

REMOVAL

1. Remove engine and transaxle assembly. Refer to

TM-28, "Removal and Installation"

2. Loosen clutch cover bolts evenly while holding clutch cover.
3. Remove clutch cover and clutch disc.

CAUTION:

Do not drop clutch disc.

INSTALLATION

1. Clean clutch disc and input shaft splines to remove grease and dust caused by abrasion.
2. Apply recommended grease to clutch disc (1) and input shaft (2)

splines area (A).

CAUTION:

Be sure to apply grease to the points specified. Otherwise,

noise, poor disengagement, or damage to the clutch may

result. Excessive grease may cause slip or shudder. And if

it adheres to seal of CSC, it may cause clutch fluid leakage.

Wipe off excess grease. Wipe off any grease oozing from

the parts.

Flywheel

Clutch disc

Clutch cover

Input shaft

First step

Final step

JPDIB0049GB

JSDIA3617ZZ

CL-18

< REMOVAL AND INSTALLATION >

CLUTCH DISC AND CLUTCH COVER

3. Install clutch disc, using a suitable tool (A).

4. Install clutch cover, and then temporarily tighten clutch cover bolts.

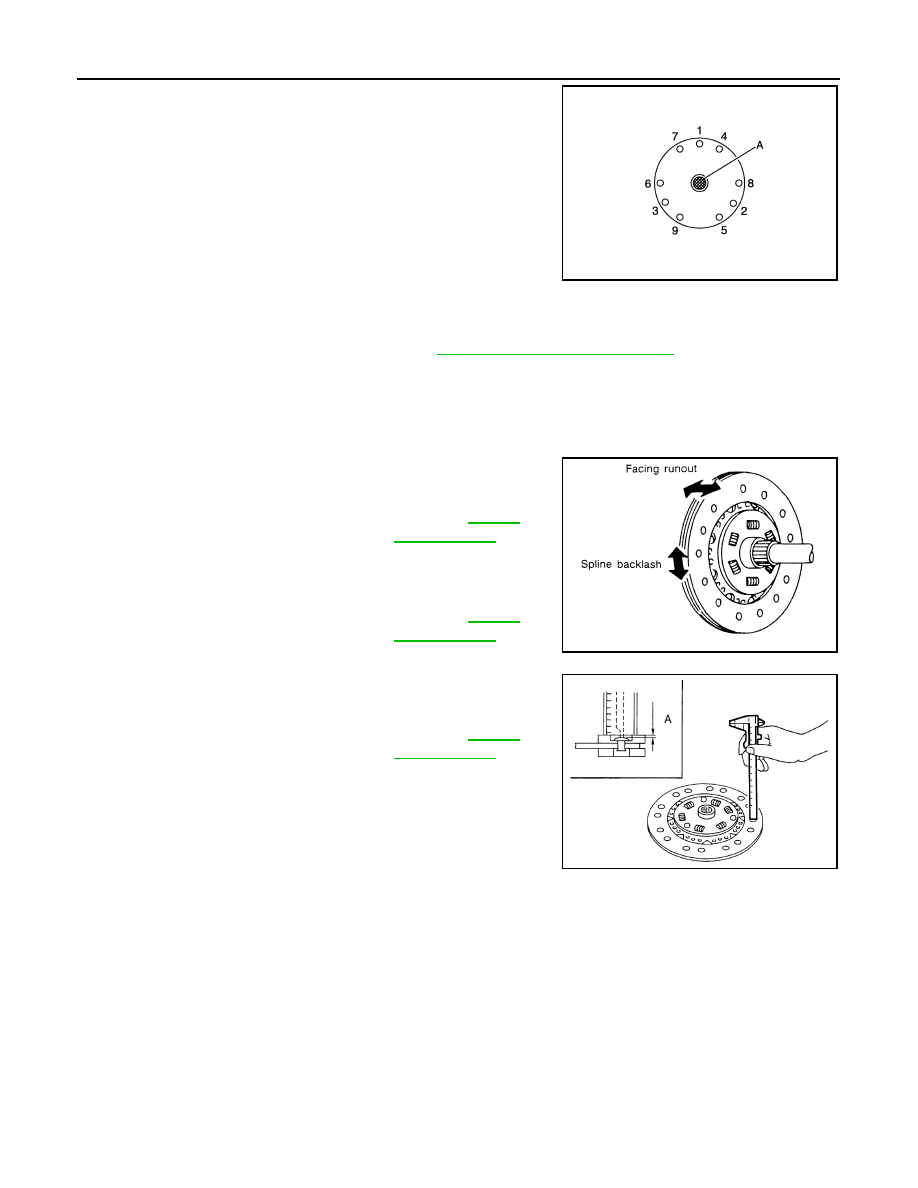

5. Tighten clutch cover bolts to the specified torque evenly in two steps in the numerical order as shown.
6. Install engine and transaxle assembly. Refer to

TM-28, "Removal and Installation"

Inspection

INFOID:0000000009757040

INSPECTION AFTER REMOVAL

Clutch Disc

• Measure clutch facing runout. If it is outside the specification,

replace clutch disc.

• Measure spline backlash at outer edge of clutch disc. If it is outside

the specification, replace clutch disc.

• Measure the depth “A) to clutch disc facing rivet heads, using suit-

able tool. If it exceeds the allowable wear limit, replace clutch disc.

Clutch Cover

• Check clutch cover thrust ring for wear or damage. If wear or damage is found, replace clutch cover.

NOTE:

• Worn thrust ring will generate a beating noise when tapped at the rivet using suitable tool.

• Broken thrust ring will make a clinking sound when cover is shaken up and down.

• If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface,

repair the surface with sandpaper. If surface is damaged or distorted, replace clutch cover.

INSPECTION AFTER INSTALLATION

Clutch Cover

JPDIB0141ZZ

Runout limit/diameter of the area
to be measured

: Refer to

CL-20,

"Clutch Disc"

Maximum allowable spline back-
lash (at outer edge of disc)

: Refer to

CL-20,

"Clutch Disc"

SCL221

Facing wear limit (depth to the
rivet head) “A”

: Refer to

CL-20,

"Clutch Disc"

JPDIB0026ZZ

CLUTCH DISC AND CLUTCH COVER

CL-19

< REMOVAL AND INSTALLATION >

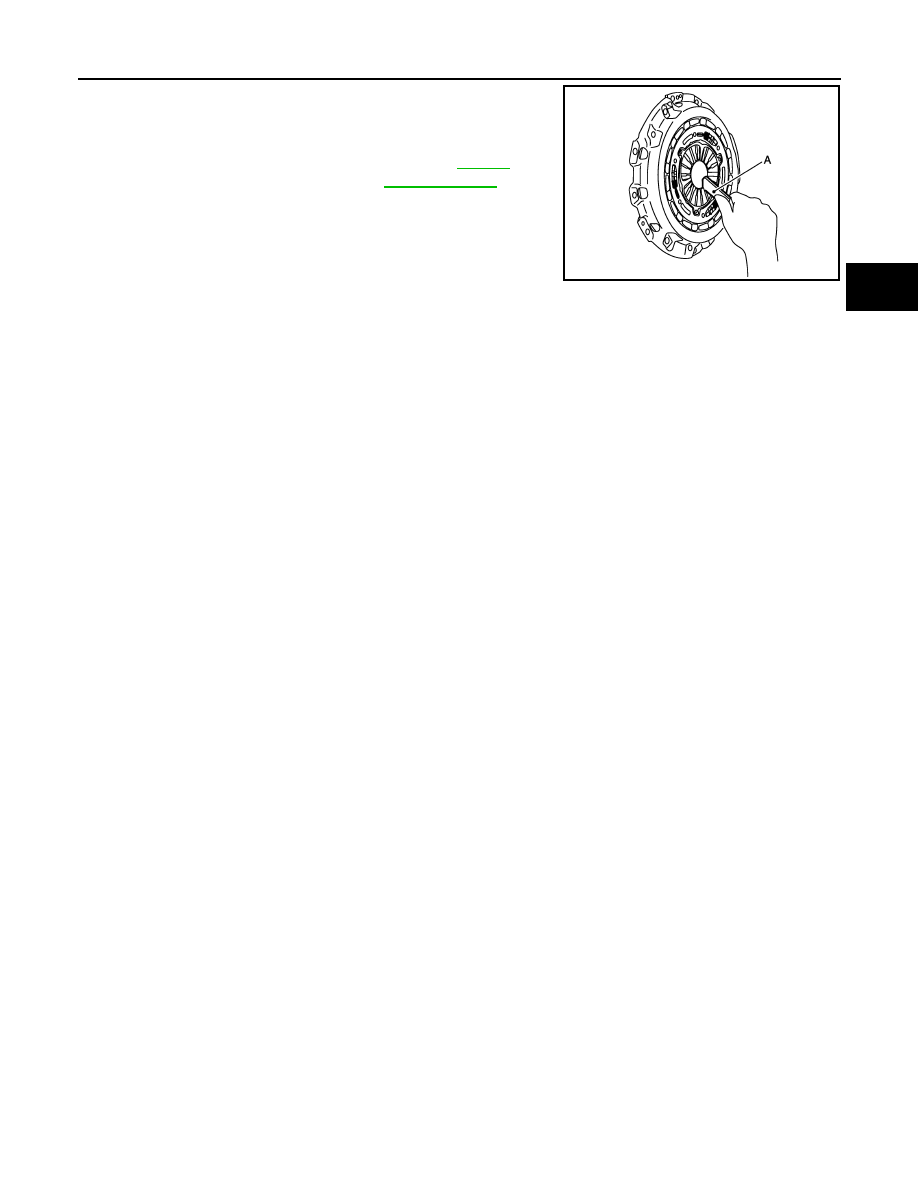

Check diaphragm spring lever claws for unevenness with the clutch

cover installed on the engine. If they exceed the tolerance, adjust

diaphragm spring lever using Tool (A).

Tolerance for diaphragm spring
lever unevenness

: Refer to

CL-20,

"Clutch Cover"

Tool number

: ST20050240 ( — )

JPDIB0160ZZ

CL-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000009757041

Unit: mm (in)

Clutch Pedal

INFOID:0000000009757042

Unit: mm (in)

Clutch Disc

INFOID:0000000009757043

Unit: mm (in)

Clutch Cover

INFOID:0000000009757044

Unit: mm (in)

Type of clutch control

Hydraulic

Recommended clutch fluid

Refer to

MA-11, "Fluids and Lubricants"

Clutch pedal height

171.6 – 181.6

(6.76 – 7.15)

Clearance between stopper rubber and clutch interlock switch threaded
end while clutch pedal is fully depressed

0.74 – 1.96 (0.0291 – 0.0772)

Clearance between clutch pedal and clutch pedal position switch thread-
ed end while clutch pedal is fully released

0.74 – 1.96 (0.0291 – 0.0772)

Facing size (Outer dia. x Inner dia. x Thickness)

225 x 160 x 3.2

(8.86 x 6.30 x 0.126)

Runout limit/diameter of the area to be measured

1.0 (0.039) / 215 (8.46) dia.

Maximum allowable spline backlash (at outer edge of disc)

1.0 (0.039)

Facing wear limit (depth to the rivet head)

0.3 (0.012)

Tolerance for diaphragm spring lever unevenness

0.7 (0.028) or less
