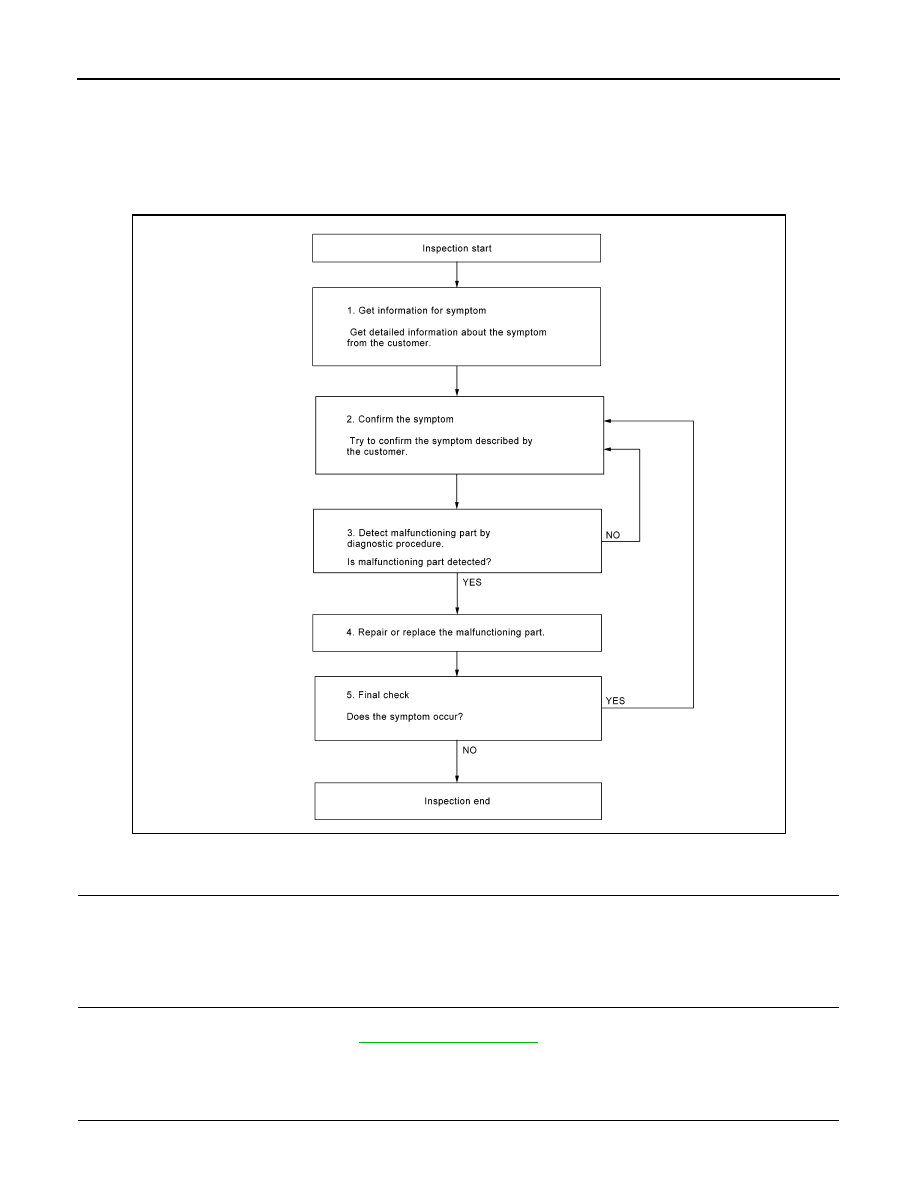

AV-248 < BASIC INSPECTION > [NAVIGATION WITHOUT BOSE] DIAGNOSIS AND REPAIR WORKFLOW BASIC INSPECTION DIAGNOSIS AND REPAIR WORKFLOW Work Flow INFOID:0000000009758943 OVERALL SEQUENCE DETAILED FLOW 1. GET INFORMATION FOR SYMPTOM Get detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurred). >> GO TO 2 2. CONFIRM THE SYMPTOM Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition when the symptom is detected. Refer to >> GO TO 3 3. DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE Inspect according to Diagnostic Procedure of the system. AWNIA2404GB |
