Nissan Sentra. Manual - part 37

AV-140

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITH BOSE]

COMPONENT PARTS

Component Description

INFOID:0000000009758884

1. Front tweeter LH

2. Steering switches

3. Audio unit

4. Front tweeter RH

5. Microphone

6. Front door speaker LH

7. Front door speaker RH

8. Rear door speaker LH

9. Rear door speaker RH

10. Rear woofer RH

11. Rear woofer LH

12. Antenna amp.

13. Satellite antenna

14. Window antenna

15. Bose speaker amp.

16. USB interface

17. Bluetooth

control unit

18. Bluetooth

antenna

Part name

Description

Audio unit

• Controls audio, hands-free phone, USB connection, AUX IN connection and satellite

radio and functions.

• Display unit is built in to audio unit.

Bose speaker amp.

Receives audio signals from audio unit and outputs audio signals to each speaker.

Front tweeters

Outputs high, mid and low range audio signals from Bose speaker amp.

Front door speakers

Rear door speakers

Rear woofers

Steering switches

• Operations for audio, hands-free phone and voice recognition are possible.
• Steering switch signal is output to Bluetooth

control unit.

• Bluetooth

control unit outputs steering switch signal to audio unit.

Microphone

• Used for hands-free phone operations.
• Microphone signal is transmitted to Bluetooth

control unit.

• Power is supplied from Bluetooth

control unit.

USB interface

USB sound and data input signals are transmitted to audio unit.

Bluetooth

control unit

• Inputs TEL voice signal from Bluetooth

antenna and outputs it to audio unit.

• Controlled via AV communication by audio unit.

Bluetooth

antenna

Receives TEL voice signal and outputs it to Bluetooth

control unit.

Satellite antenna

Satellite radio signal is received and transmitted to audio unit.

Antenna amp.

• AM/FM signal received by window antenna is amplified and transmitted to audio unit.
• Power is supplied from audio unit.

Window antenna

AM/FM signal is received and transmitted to antenna amp.

SYSTEM

AV-141

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITH BOSE]

SYSTEM

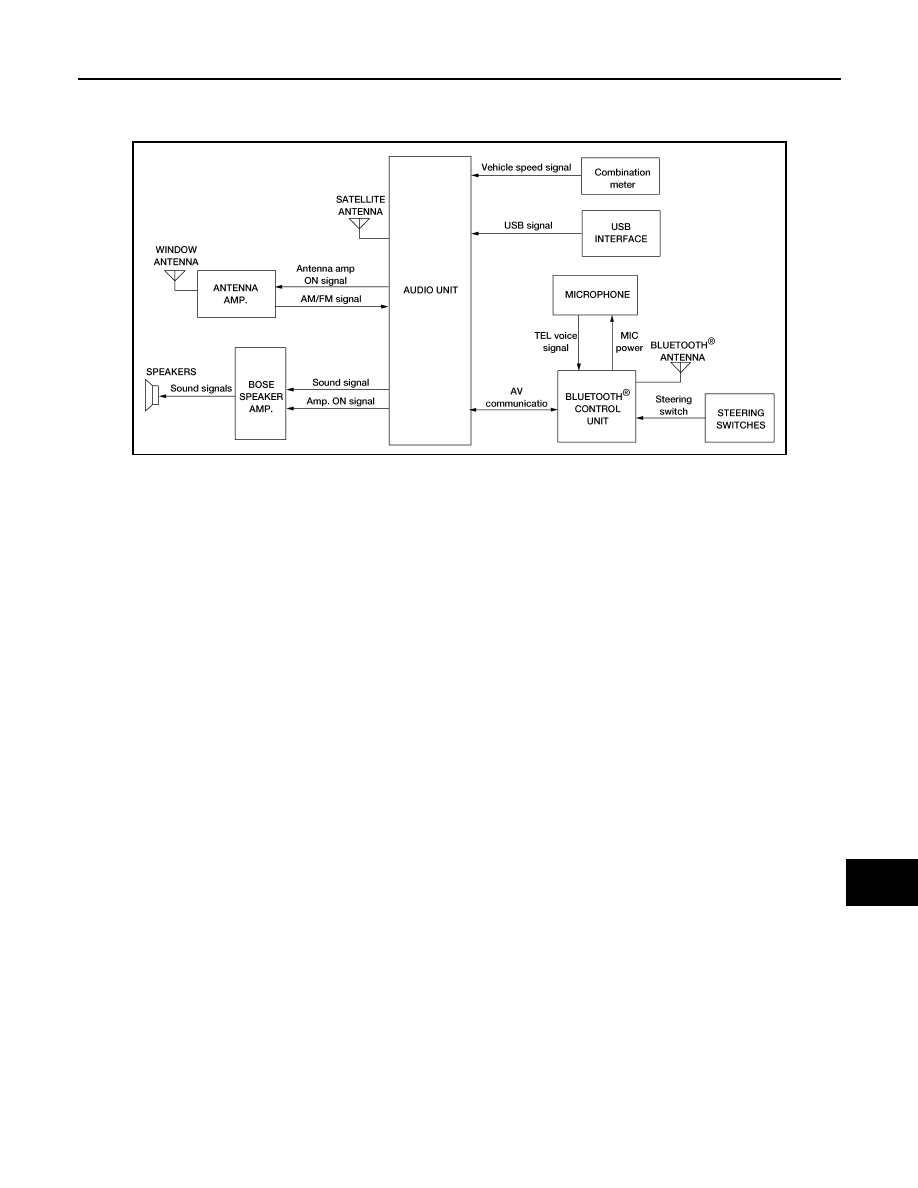

System Diagram

INFOID:0000000009758885

System Description

INFOID:0000000009758886

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Bose speaker amp.

• Front tweeters

• Front door speakers

• Rear door speakers

• Rear woofers

• Steering switches

• USB interface

• satellite antenna

• Antenna amp.

• Window antenna

When the audio system is on, AM/FM signals received by the window antenna are amplified by the antenna

amp. and sent to the audio unit. The audio unit then sends audio signals to the Bose speaker amp. The Bose

speaker amp. then sends audio signals to the front tweeters, front door speakers, rear door speakers and rear

woofers.

Refer to Owner's Manual for audio system operating instructions.

HANDS-FREE PHONE SYSTEM

System Operation

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

telephone

system.
The Bluetooth

telephone system allows users who have a Bluetooth

cellular telephone to make a wireless

connection between their cellular telephone and the Bluetooth

control unit. Hands-free cellular telephone

calls can be sent and received. Some Bluetooth

cellular telephones may not be recognized by the Bluetooth

control unit. When a cellular telephone or the Bluetooth

control unit is replaced, the telephone must be paired

with the Bluetooth

control unit. Different cellular telephones may have different pairing procedures, refer to

the cellular telephone operating manual.
Refer to the Owner's Manual for Bluetooth

telephone system operating instructions.

Bluetooth

Control Unit

AWNIA3368GB

AV-142

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITH BOSE]

SYSTEM

When the ignition switch is turned to ACC or ON, the Bluetooth

control unit will power up. During power up,

the Bluetooth

control unit is initialized and performs various self-checks. Initialization may take up to 20 sec-

onds. If a phone is present in the vehicle and paired with the Bluetooth

control unit, Nissan Voice Recognition

will then become active. Bluetooth

telephone functions can be turned off using the Nissan Voice Recognition

system.

Steering Switches

When buttons on the steering switches are pushed, the resistance in steering wheel audio control switch cir-
cuit changes, depending on which button is pushed. The Bluetooth

control unit uses this signal to perform

various functions while navigating through the voice recognition system.

The following functions can be performed using the steering switches:
• Initiate self-diagnosis of the Bluetooth

telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

Microphone

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth

control unit. The microphone can be actively tested during self-diagnosis.

Audio Unit

The audio unit receives signals from the Bluetooth

control unit and sends audio signals to the Bose speaker

amp. The Bose speaker amp. then sends the audio signals to the speakers.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

DIAGNOSIS SYSTEM (AUDIO UNIT)

AV-143

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO WITH BOSE]

DIAGNOSIS SYSTEM (AUDIO UNIT)

Description

INFOID:0000000009758887

The audio unit on board diagnosis performs the functions listed in the table below:

On Board Diagnosis Function

INFOID:0000000009758888

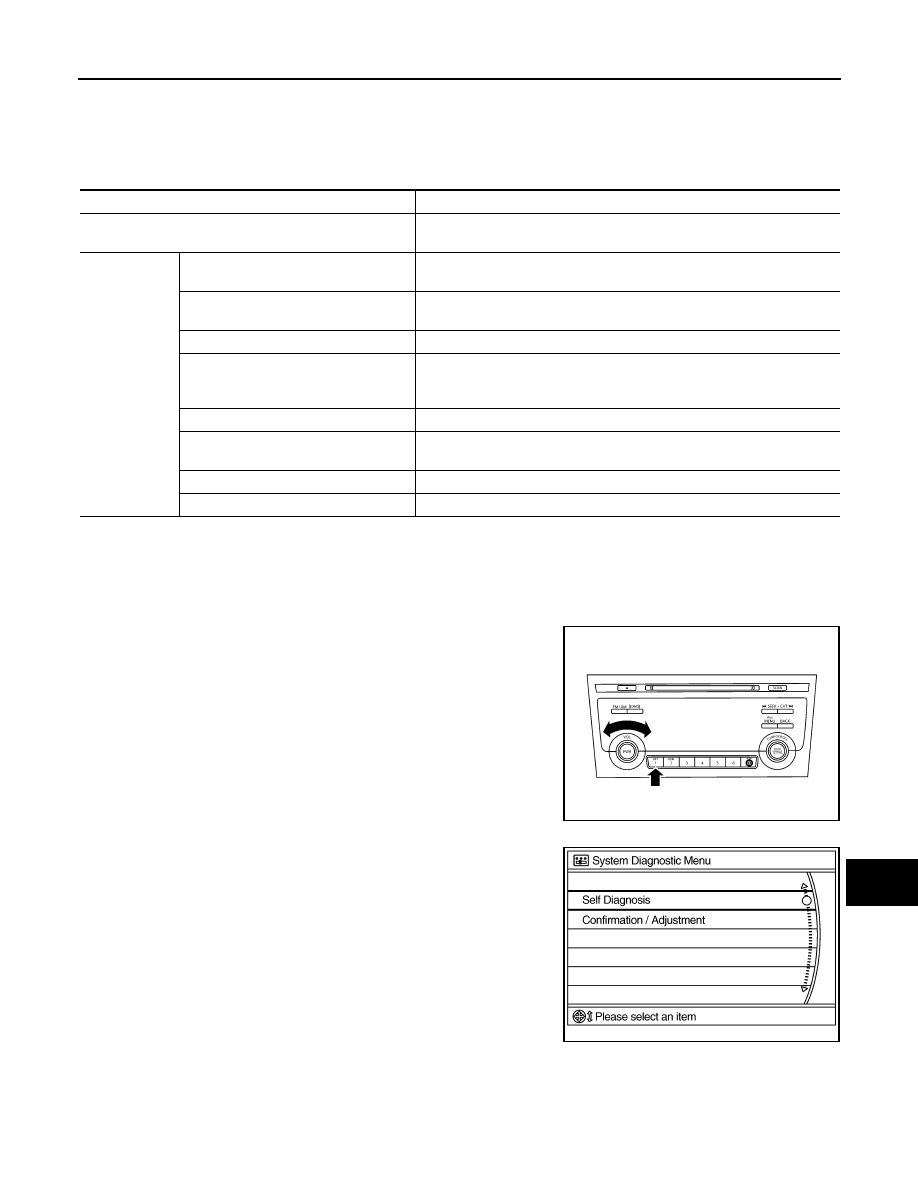

METHOD OF STARTING

1. Turn the ignition ON.

2. Turn the audio system OFF.

3. While pressing the preset 1 button, turn the volume control dial

clockwise or counterclockwise for 40 clicks or more. Shifting

from current screen to previous screen is performed by pressing

BACK button.

4. The trouble diagnosis initial screen is displayed, and Self Diag-

nosis or Confirmation/Adjustment can be selected.

SELF DIAGNOSIS MODE

Audio Unit Self Diagnosis

1. Select Self Diagnosis.

Mode

Description

Self Diagnosis

• Audio unit diagnosis.
• Diagnoses the connections across system components.

Confirmation/

Adjustment

Display Diagnosis

The following check functions are available: color tone check by color bar
display and white display, light and shade check by gray scale display.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, lights, reverse,
EQ pin, destination and camera type.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Error History

The system malfunction and the frequency when occurring in the past are
displayed. When the malfunctioning item is selected, the time and place
that the selected malfunction last occurred are displayed.

Camera System

Displayed but not used.

AV COMM Diagnosis

The communication condition of each unit of display audio system can be
monitored.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Initialize Setting

Initializes the audio unit memory.

ALNIA1376ZZ

JSNIA0138GB
