2. Disengage luggage room lamp fixing pawl with a remover tool

(A).

3. Disconnect harness connector, and then remove luggage room lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010122291

CAUTION:

• Disconnect the 12V battery negative terminal or remove power circuit fuse while performing the

operation to prevent electric leakage. Refer to

INL-3, "Precaution for Removing 12V Battery"

.

• Never touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

• Never touch the glass surface of the bulb with bare hands because the surface is very hot just after

the lamp is turned OFF to prevent a burns.

• Leaving the bulb removed from housing for a long period of time can deteriorate performance of the

lens and reflector (causing dirty or clouding). Always prepare a new bulb and have it on hand when

replacing the bulb.

LUGGAGE ROOM LAMP BULB

1. Remove luggage room lamp assembly. Refer to

INL-56, "Removal and Installation"

.

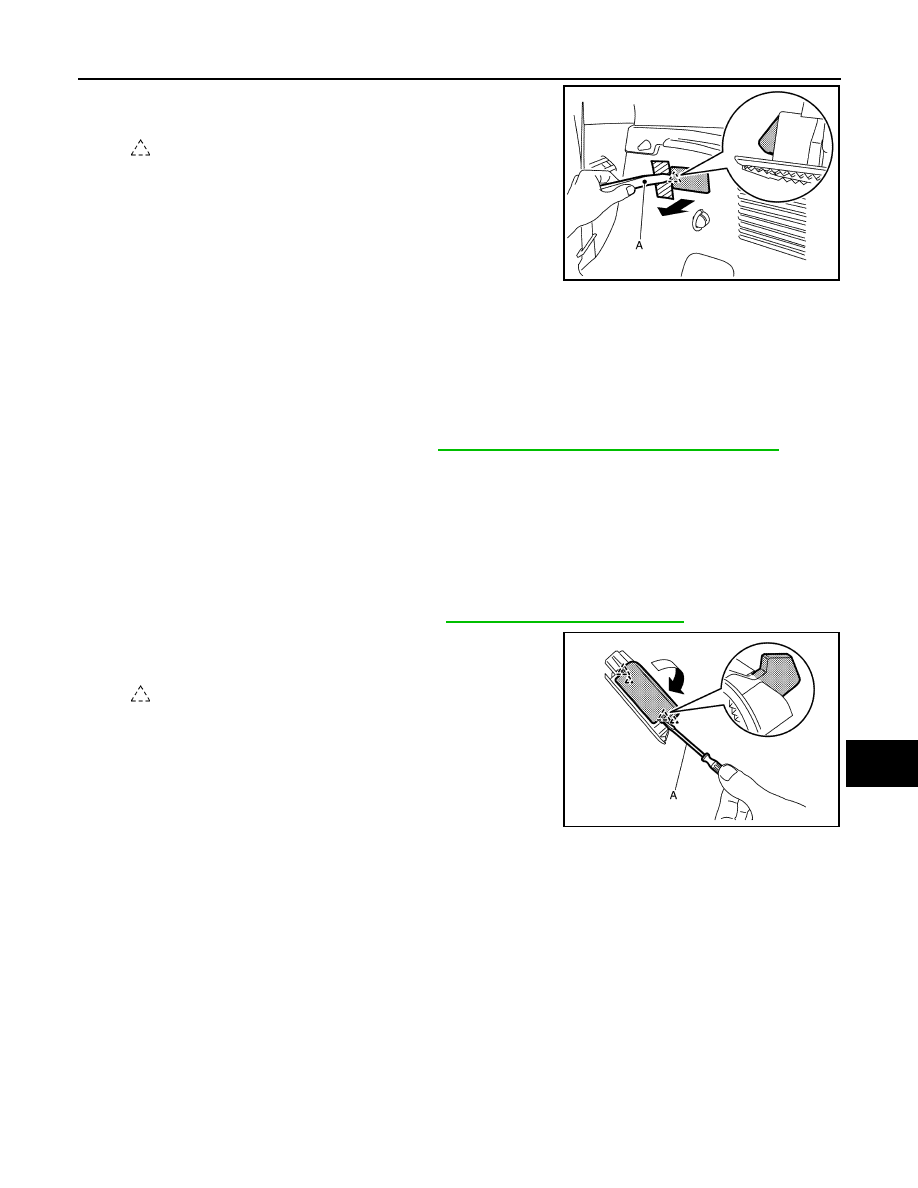

2. Disengage shade fixing pawls using a remover tool (A), and

then remove shade.

3. Remove the bulb.

: Pawl

JMLIA2603ZZ

: Pawl

JMLIA1700ZZ

INL-58

< REMOVAL AND INSTALLATION >

CHARGE PORT LIGHT

CHARGE PORT LIGHT

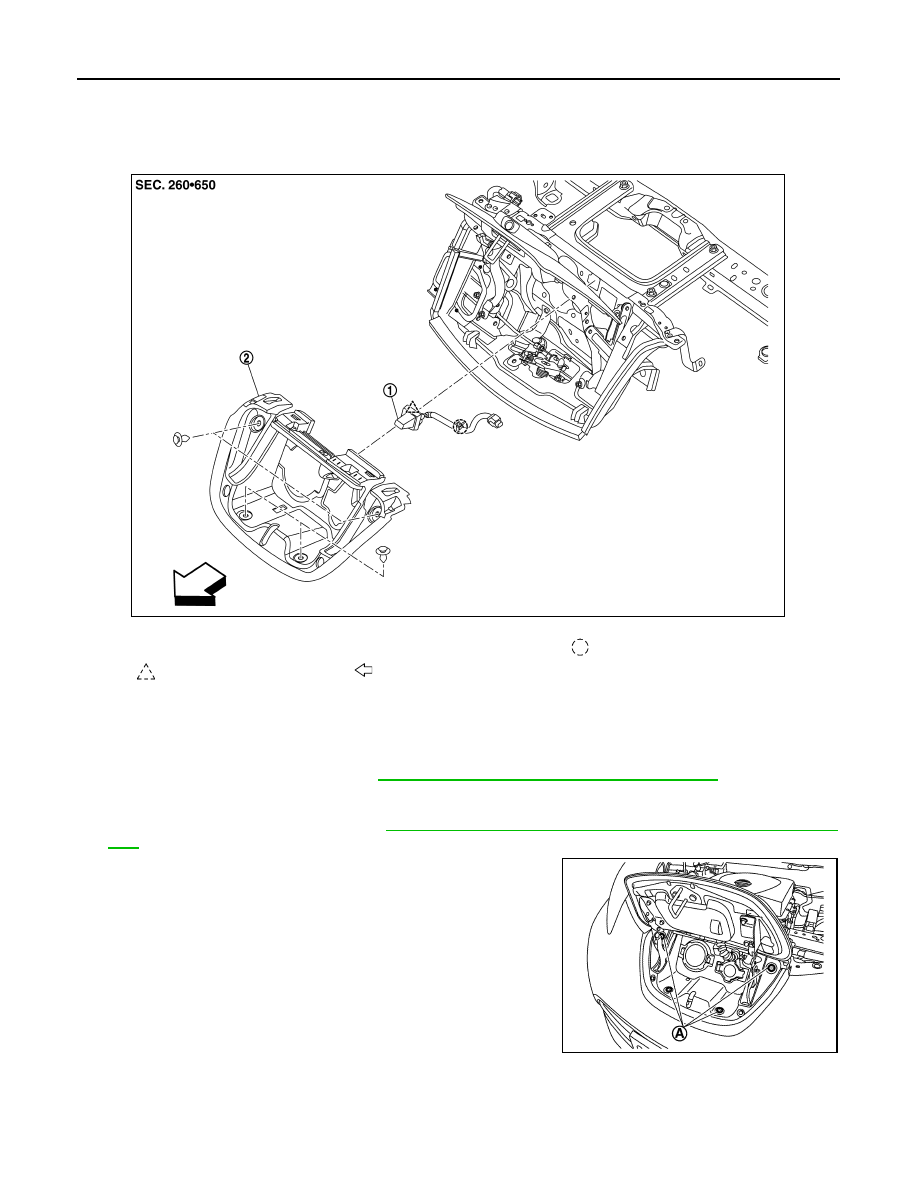

Exploded View

INFOID:0000000010122292

Removal and Installation

INFOID:0000000010122293

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation

for preventing electric leakage. Refer to

INL-3, "Precaution for Removing 12V Battery"

.

REMOVAL

1. Remove radiator upper grille. Refer to

DLK-165, "RADIATOR UPPER GRILLE : Removal and Installa-

tion"

.

2. Remove charge port cover clips (A).

1.

Charge port light

2.

Charge port cover

Clip

Pawl

Front

JMLIA3510ZZ

JMLIA3501ZZ

CHARGE PORT LIGHT

INL-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

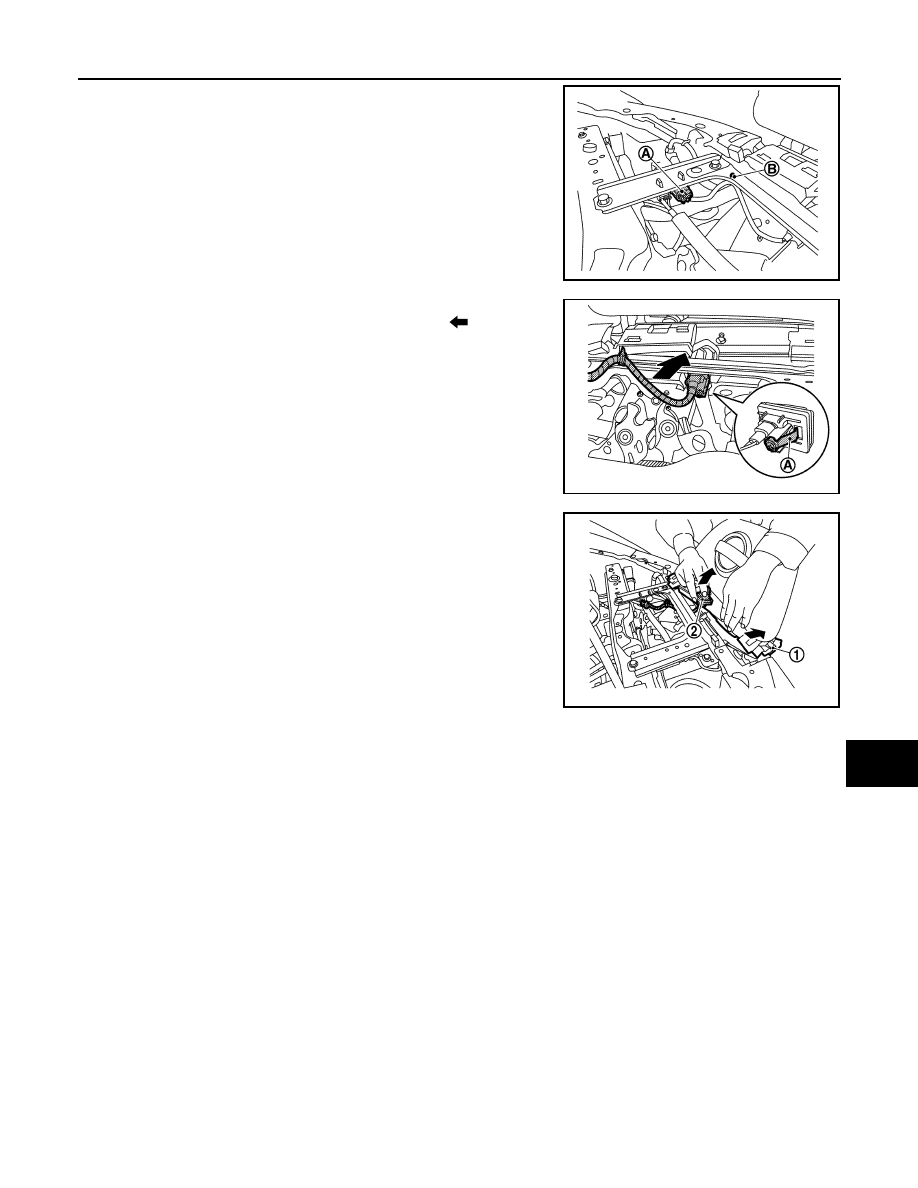

3. Disconnect the harness connector (A) and harness fixing clip

(B).

4. Disengage charge port light assembly fixing portion (A), and

then push charge port light assembly, as shown (

.).

5. Pull charge port cover (1) toward vehicle front and remove

charge port light assembly (2) from between charge port cover

and charge port bracket.

INSTALLATION

Installation is in the reverse order of removal.

Replacement

INFOID:0000000010122294

CAUTION:

Replacement of a single part is not possible due to the adoption of LED. For replacement, replace

charge port light assembly as a set.

JMLIA3502ZZ

JMLIA3503ZZ

JMLIA3504ZZ

INL-60

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000010122295

*: Always check with the Parts Department for the latest parts information.

Item

Type

Wattage (W)*

Map lamp

LED

—

Room lamp

—

8

Luggage room lamp

—

5
