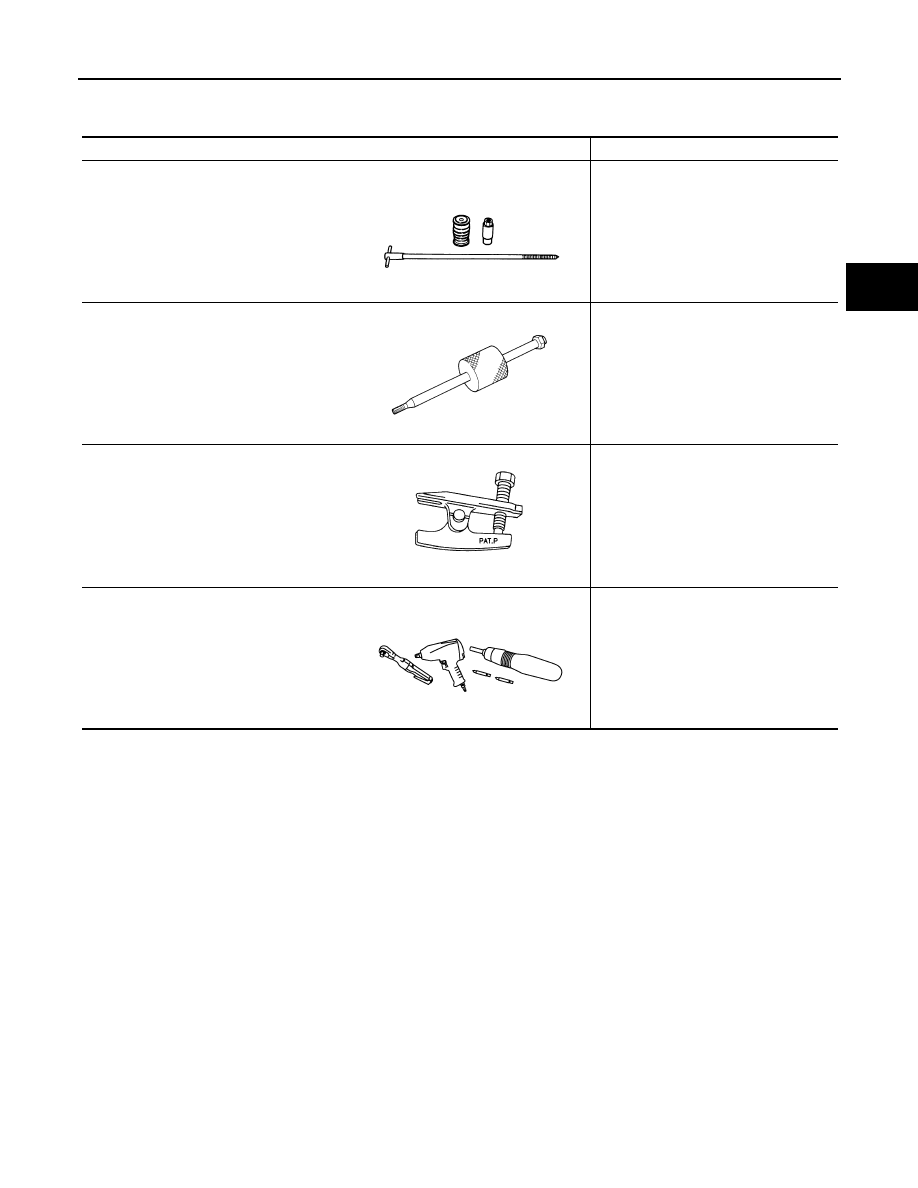

Commercial Service Tools

INFOID:0000000010121655

Tool name

Description

Drive shaft puller

Removing drive shaft joint sub assembly

Sliding hammer

Removing drive shaft

Ball joint remover

Removing hub bolt

Power tool

Loosening nuts, screws and bolts

JPDIG0152ZZ

ZZA0023D

NT146

PIIB1407E

FAX-6

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000010121656

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference

—

F

AX-31

—

F

AX-9

—

F

AX-7

FSU-9

—

WT

-42

WT

-42

—

BR-479

ST

-31

Possible cause and SUSPECTED PARTS

Ex

ce

ss

iv

e jo

int

 an

gl

e

Jo

in

t s

lid

in

g

re

si

st

an

ce

Im

ba

la

nc

e

Imp

rop

er i

nst

al

la

tio

n,

 lo

os

en

es

s

Part

s interf

erence

Whe

e

l be

ari

n

g da

ma

ge

FRONT SUSPENSION

FRONT AXLE

TI

RE

ROAD WHEE

L

DRIVE

 SHAFT

BRAK

E

ST

EERING

Symptom

DRIVE
SHAFT

Noise

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

FRONT
AXLE

Noise

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

Shudder

×

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

FRONT WHEEL HUB AND KNUCKLE

FAX-7

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

PERIODIC MAINTENANCE

FRONT WHEEL HUB AND KNUCKLE

Inspection

INFOID:0000000010121657

COMPONENT PART

Check that the mounting conditions (looseness, backlash) of each component and component conditions

(wear, damage) are normal.

WHEEL HUB ASSEMBLY (BEARING-INTEGRATED TYPE)

Check the following items, and replace the part if necessary.

• Move wheel hub assembly in the axial direction by hand. Check there is no looseness of wheel bearing.

• Rotate wheel hub assembly and check there is no unusual noise or other irregular conditions. If there is any

of irregular conditions, replace wheel hub assembly.

Axial end play

: Refer to

FAX-32, "Wheel Bearing"

.

FAX-8

< PERIODIC MAINTENANCE >

FRONT DRIVE SHAFT

FRONT DRIVE SHAFT

Inspection

INFOID:0000000010121658

Check the following items, and replace the part if necessary.

• Check drive shaft mounting point and joint for looseness and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occurs from drive shaft.

• Check boot for cracks and other damage.
