Nissan Leaf. Manual - part 520

EVC-104

< ECU DIAGNOSIS INFORMATION >

VCM

P3176

INVERTER CONDENSER

×

1

EVC-262

P3177

ECU ACTIVATION ERROR

—

1

EVC-267

P3178

ECU ACTIVATION ERROR

×

1

EVC-271

P3179

MOTOR SYSTEM

×

1

EVC-273

P317A

MOTOR SYSTEM

×

1

EVC-273

P317B

MOTOR SYSTEM

×

1

EVC-273

P317D

MOTOR SYSTEM

×

1

EVC-274

P317E

HV BATTERY SYSTEM

—

1

EVC-276

P3180

HV BATTERY SYSTEM

×

1

EVC-276

P3182

HV BATTERY SYSTEM

—

1

EVC-276

P3183

HV BATTERY SYSTEM

×

1

EVC-277

P3187

ELECTRIC SHIFT SYSTEM

×

1

EVC-278

P3188

ELECTRIC SHIFT SYSTEM

×

1

EVC-279

P3189

ELECTRIC SHIFT SYSTEM

—

1

EVC-280

P318A

ELECTRIC SHIFT SYSTEM

×

1

EVC-281

P318B

ELECTRIC SHIFT SYSTEM

×

1

EVC-283

P318C

ELECTRIC SHIFT SYSTEM

×

1

EVC-284

P318D

COMMUNICATION ERROR

×

1

EVC-286

P3191

COMMUNICATION ERROR

× or —

1

EVC-287

P3193

COMMUNICATION ERROR

× or —

1

EVC-289

P3194

COMMUNICATION ERROR

—

1

EVC-291

P3195

COMMUNICATION ERROR

—

1

EVC-293

P3196

COMMUNICATION ERROR

×

1

EVC-295

P3197

COMMUNICATION ERROR

×

1

EVC-297

P319C

COMMUNICATION ERROR

×

1

EVC-287

P319E

COMMUNICATION ERROR

×

1

EVC-289

P319F

COMMUNICATION ERROR

—

1

EVC-291

P31A0

COMMUNICATION ERROR

—

1

EVC-293

P31A1

COMMUNICATION ERROR

×

1

EVC-295

P31A2

COMMUNICATION ERROR

×

1

EVC-297

P31A7

COMMUNICATION ERROR

×

1

EVC-287

P31A9

COMMUNICATION ERROR

×

1

EVC-289

P31AA

COMMUNICATION ERROR

—

1

EVC-291

P31AB

COMMUNICATION ERROR

—

1

EVC-293

P31AD

COMMUNICATION ERROR

×

1

EVC-297

P31AE

COMMUNICATION ERROR

×

1

EVC-295

P31AF

COMMUNICATION ERROR

×

1

EVC-298

P31B0

COMMUNICATION ERROR

—

1

EVC-300

P31B2

COMMUNICATION ERROR

×

1

EVC-302

P31B3

COMMUNICATION ERROR

× or —

1

EVC-298

P31B4

COMMUNICATION ERROR

—

1

EVC-300

P31B5

COMMUNICATION ERROR

—

1

EVC-302

P31B6

COMMUNICATION ERROR

—

1

EVC-304

P31B7

COMMUNICATION ERROR

×

1

EVC-306

DTC

Items

(CONSULT screen terms)

EV system warning

lamp

Trip

Reference page

VCM

EVC-105

< ECU DIAGNOSIS INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

*: To clear DTC P0AA1, perform “SPECIFIC DTC CLEAR” in “WORK SUPPORT” of CONSULT.

P31B8

COMMUNICATION ERROR

—

1

EVC-308

P31BA

COMMUNICATION ERROR

—

1

EVC-310

P31C5

VCM

—

1

EVC-312

P31C6

VCM

—

1

EVC-312

P31C7

VCM

×

1

EVC-314

P31CA

PD MODULE SYSTEM

×

1

EVC-316

P31CB

PD MODULE SYSTEM

×

1

EVC-316

P31D3

M/C RELAY

×

1

EVC-319

P31D4

PRE CHARGE RELAY

×

1

EVC-322

P31D5

PRE CHARGE RELAY

×

1

EVC-324

P31D6

F/S RELAY

×

1

EVC-329

P31D7

F/S RELAY

×

1

EVC-331

P31D8

CHARGING CONNECTOR LOCK RLY

×

1

EVC-334

P31DB

HV BATT MAIN RELAY +

×

1

EVC-337

P31DC

HV BATT MAIN RELAY -

×

1

EVC-339

P31DD

PRE CHARGE RELAY

×

1

EVC-341

P31DE

HV BATT MAIN RELAY

×

1

EVC-343

P31E0

HV SYSTEM INTERLOCK ERROR

×

1

EVC-344

P31E1

HV SYSTEM INTERLOCK ERROR

×

1

EVC-348

P31E5

VCM POWER SUPPLY

—

1

EVC-351

P31E7

RESTART INHIBITION

×

1

EVC-354

P31E8

WATER PUMP 1

×

1

EVC-355

P31E9

WATER PUMP 1

×

1

EVC-358

P31EC

WATER PUMP 1

—

1

EVC-360

P31EE

REFRIGERANT PRESSURE SENSOR

—

1

EVC-362

P31F2

AV SET INFORMATION

—

1

EVC-365

DTC

Items

(CONSULT screen terms)

EV system warning

lamp

Trip

Reference page

EVC-106

< WIRING DIAGRAM >

VCM

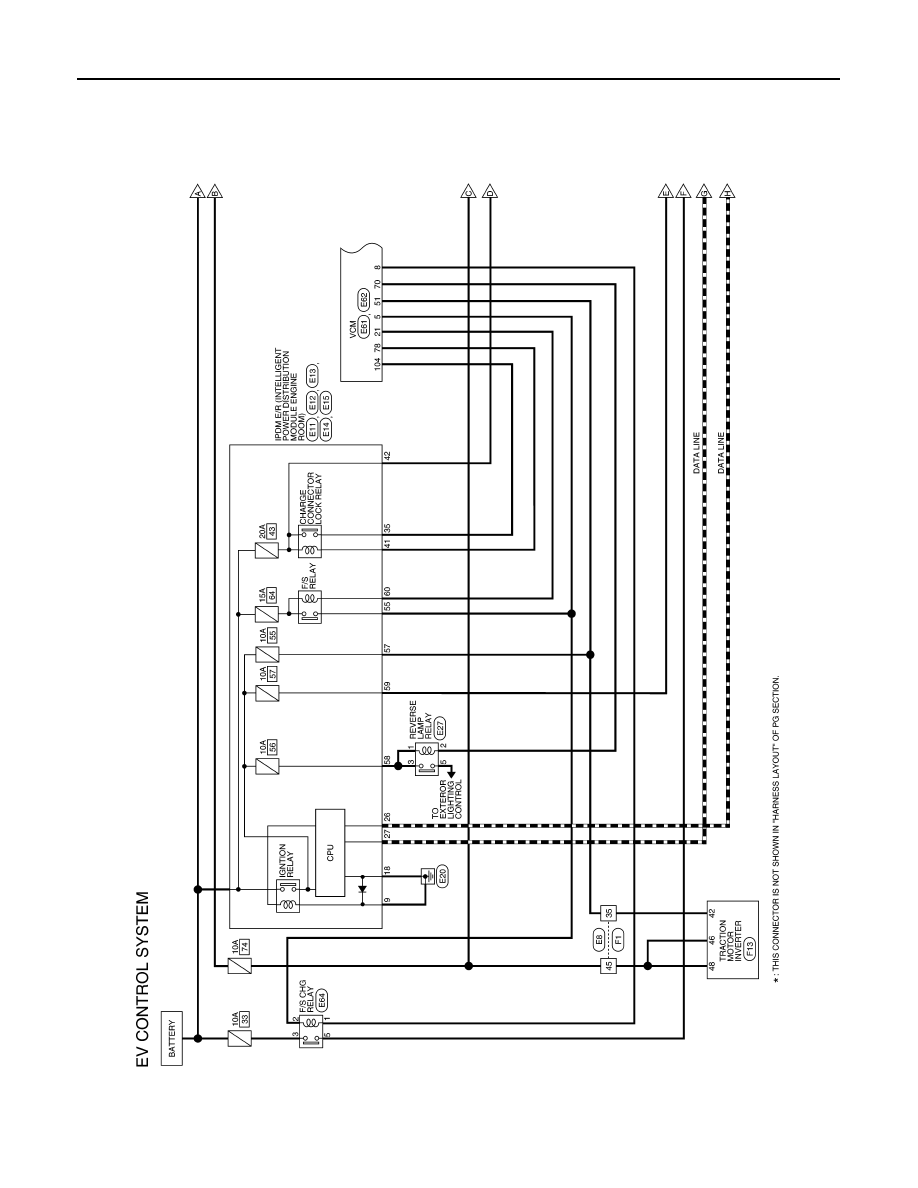

WIRING DIAGRAM

VCM

Wiring Diagram

INFOID:0000000010120586

AACWA0035GB

VCM

EVC-107

< WIRING DIAGRAM >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

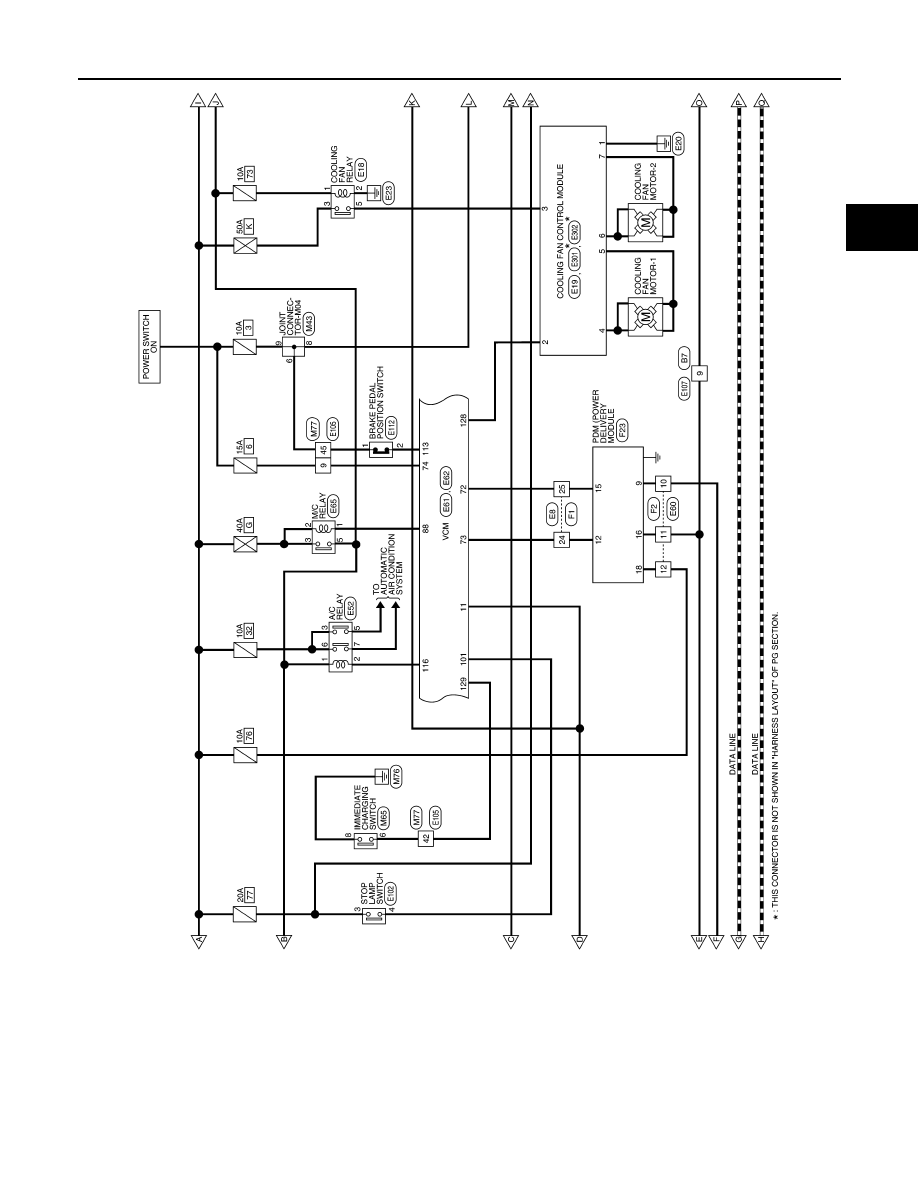

AACWA0036GB
