Nissan Leaf. Manual - part 429

CHARGE PORT LID OPENER SWITCH

DLK-211

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CHARGE PORT LID OPENER SWITCH

Removal and Installation

INFOID:0000000010119918

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

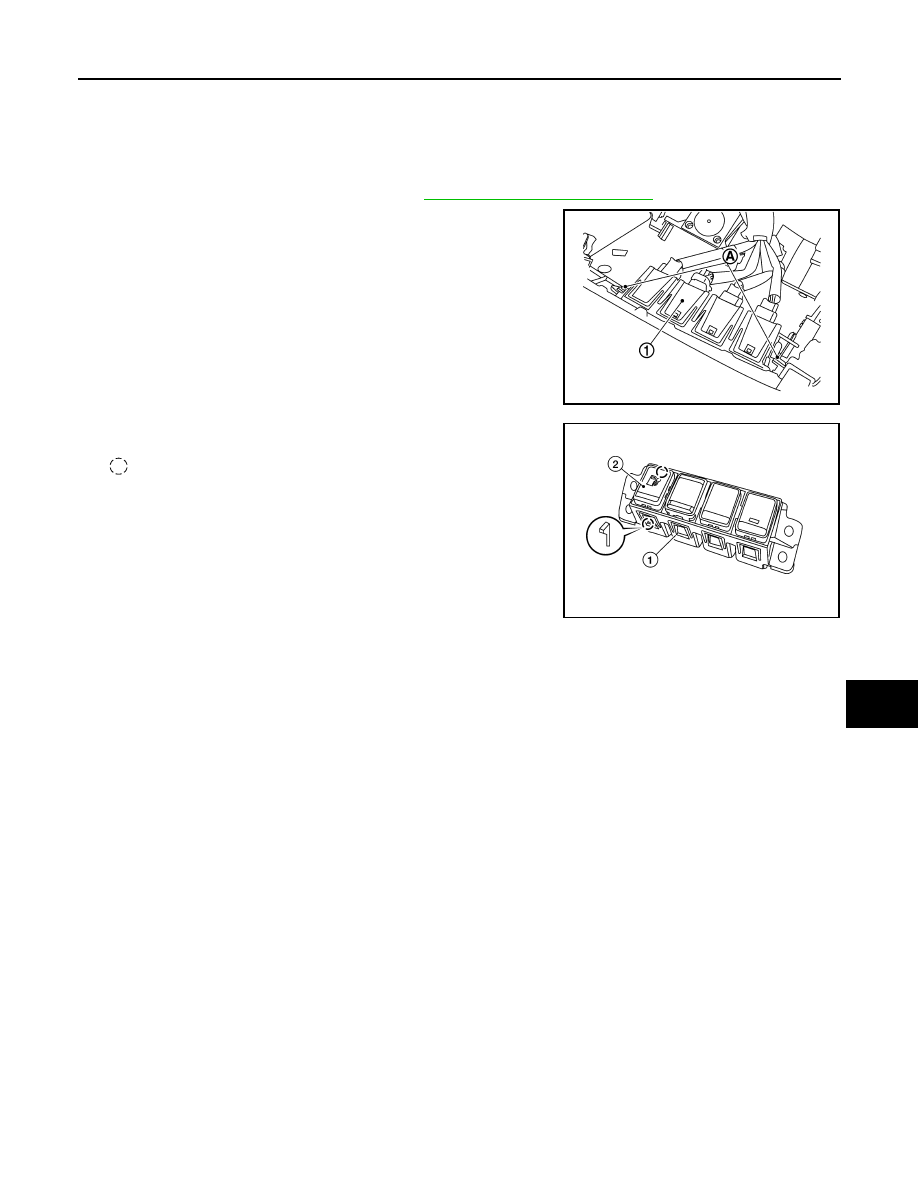

2. Remove the switch finisher screws (A) and switch finisher (1).

3. Remove charge port lid opener switch (2) from switch finisher

(1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

JMKIB0790ZZ

AWKIA2420ZZ

DLK-212

< REMOVAL AND INSTALLATION >

BACK DOOR OPENER SWITCH ASSEMBLY

BACK DOOR OPENER SWITCH ASSEMBLY

Removal and Installation

INFOID:0000000010119919

REMOVAL

1. Remove back door outside handle. Refer to

DLK-200, "OUTSIDE HANDLE : Removal and Installation"

.

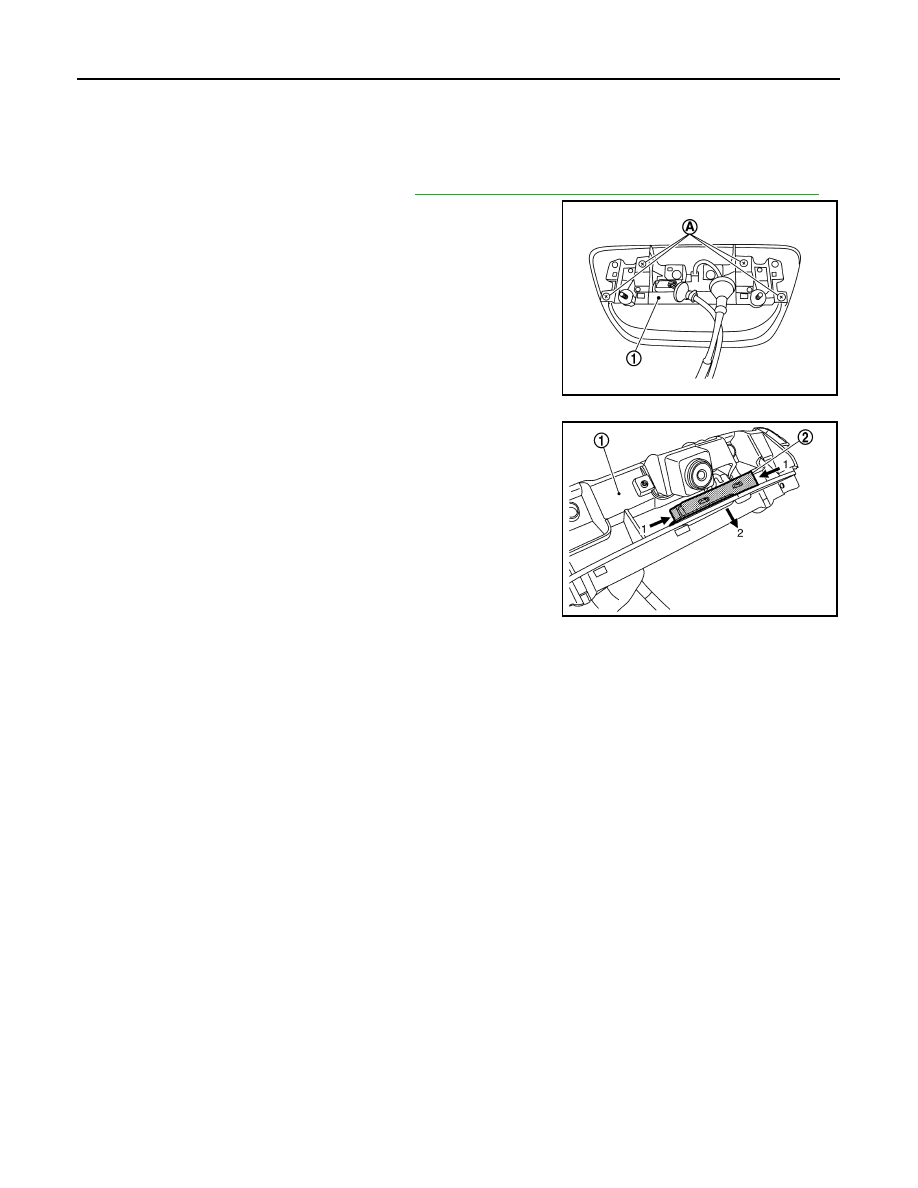

2. Remove the switch finisher screws (A) and switch finisher (1).

3. Pinch back door opener switch assembly (2) from both side (in

the direction shown by arrow 1) and disengage tab. Press

toward outside (in the direction shown by arrow 2) to remove

from back door outside handle (1).

INSTALLATION

Installation is in the reverse order of removal.

JMKIB0792ZZ

JMKIB0793ZZ

EVB-1

ELECTRIC POWER TRAIN

D

E

F

G

H

I

J

K

L

M

SECTION

EVB

A

B

EVB

N

O

P

CONTENTS

EV BATTERY SYSTEM

PRECAUTION ...............................................

5

PRECAUTIONS ...................................................

5

Precaution for Technicians Using Medical Electric

......

5

Point to Be Checked Before Starting Maintenance
Work ..........................................................................

5

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

5

Precaution for Procedure without Cowl Top Cover ......

6

Precaution for Removing 12V Battery .......................

6

High Voltage Precautions ..........................................

7

PREPARATION ............................................

9

PREPARATION ...................................................

9

Special Service Tools ................................................

9

Commercial Service Tools  ......................................

10

Sealant or/and Lubricant  .........................................

13

SYSTEM DESCRIPTION  .............................

14

COMPONENT PARTS  .......................................

14

Component Parts Location ......................................

14

Li-ion Battery  ...........................................................

16

Li-ion Battery Controller  ..........................................

16

Module ....................................................................

17

Heater Relay Unit ....................................................

18

Li-ion Battery Heater  ...............................................

18

Battery Current Sensor  ...........................................

19

Battery Temperature Sensor ...................................

19

Battery Junction Box  ...............................................

20

Service Plug  ............................................................

20

High Voltage Warning Label  ...................................

20

SYSTEM .............................................................

22

LI-ION BATTERY CONTROL SYSTEM  ....................

22

LI-ION BATTERY CONTROL SYSTEM : System
Description ..............................................................

22

LI-ION BATTERY HEATER CONTROL SYSTEM ....

24

LI-ION BATTERY HEATER CONTROL SYSTEM
: System Description ................................................

25

Circuit Diagram ........................................................

27

HANDLING PRECAUTION ...............................

32

EV Battery System  ..................................................

32

DIAGNOSIS SYSTEM (LBC)  ............................

33

CONSULT Function .................................................

33

ECU DIAGNOSIS INFORMATION ..............

35

EV BATTERY SYSTEM  ....................................

35

Reference Value ......................................................

35

Fail-safe ...................................................................

40

DTC Index  ...............................................................

45

WIRING DIAGRAM ......................................

50

VCM ...................................................................

50

Wiring Diagram ........................................................

50

BASIC INSPECTION  ...................................

69

DIAGNOSIS AND REPAIR WORK FLOW  .......

69

Work Flow ................................................................

69

Diagnostic Work Sheet  ............................................

70

ADDITIONAL SERVICE WHEN REPLACING
LI-ION BATTERY CONTROLLER  ....................

72

Description ...............................................................

72

Work Procedure .......................................................

72

MODULE CHARGE BALANCE  ........................

73

Description ...............................................................

73

Work Procedure .......................................................

73

DTC/CIRCUIT DIAGNOSIS  .........................

75

P0A0D HV SYSTEM INTERLOCK ERROR  .....

75

DTC Logic ................................................................

75

Diagnosis Procedure  ...............................................

75

Component Inspection .............................................

76

EVB-2

P0A1F BATTERY ENERGY CONTROL MOD-
ULE ....................................................................

77

DTC Logic ...............................................................

77

Diagnosis Procedure  ..............................................

77

P3030 CELL CONTROLLER LIN ......................

78

DTC Logic ...............................................................

78

Diagnosis Procedure  ..............................................

78

P3031-P303C CELL CONTROLLER ASIC .......

79

DTC Logic ...............................................................

79

Diagnosis Procedure  ..............................................

79

P303D-P3048 CELL CONTROLLER ASIC .......

80

DTC Logic ...............................................................

80

Diagnosis Procedure  ..............................................

80

P3049-P3054 CELL CONTROLLER ASIC
VOLTAGE ..........................................................

81

DTC Logic ...............................................................

81

Diagnosis Procedure  ..............................................

81

P3055-P3060 CELL CONTROLLER ASIC
VOLTAGE ..........................................................

83

DTC Logic ...............................................................

83

Diagnosis Procedure  ..............................................

83

P3061 CELL BATTERY VOLTAGE  ..................

85

DTC Logic ...............................................................

85

Diagnosis Procedure  ..............................................

85

P3062 BYPASS SWITCH  ..................................

86

DTC Logic ...............................................................

86

Diagnosis Procedure  ..............................................

86

P3064 CELL CONT ASIC ..................................

87

DTC Logic ...............................................................

87

Diagnosis Procedure  ..............................................

87

P308B-P3096 CELL CONTROLLER ASIC
OPEN .................................................................

88

DTC Logic ...............................................................

88

Diagnosis Procedure  ..............................................

88

P3097-P30A2 CELL CONTROLLER ASIC
OPEN .................................................................

91

DTC Logic ...............................................................

91

Diagnosis Procedure  ..............................................

91

P30E0 DLC DIAGNOSIS VCM  ..........................

94

DTC Logic ...............................................................

94

Diagnosis Procedure  ..............................................

94

P30E2 DLC DIAGNOSIS HVAC ........................

95

DTC Logic ...............................................................

95

Diagnosis Procedure  ..............................................

95

P30E3 DLC DIAGNOSIS MC  ............................

96

DTC Logic ...............................................................

96

Diagnosis Procedure  ..............................................

96

P30E4 DLC DIAGNOSIS PDM(POWER DE-
LIVERY MODULE)  ............................................

97

DTC Logic  ...............................................................

97

Diagnosis Procedure ...............................................

97

P30FC OVER CURRENT  ..................................

98

DTC Logic  ...............................................................

98

Diagnosis Procedure ...............................................

98

P318D COMMUNICATION ERROR ..................

99

DTC Logic  ...............................................................

99

Diagnosis Procedure ...............................................

99

P318E COMMUNICATION ERROR  .................

100

DTC Logic  .............................................................

100

Diagnosis Procedure .............................................

100

P3191 COMMUNICATION ERROR  .................

101

DTC Logic  .............................................................

101

Diagnosis Procedure .............................................

101

P3196 COMMUNICATION ERROR  .................

102

DTC Logic  .............................................................

102

Diagnosis Procedure .............................................

102

P3198 COMMUNICATION ERROR  .................

103

DTC Logic  .............................................................

103

Diagnosis Procedure .............................................

103

P3199 COMMUNICATION ERROR  .................

104

DTC Logic  .............................................................

104

Diagnosis Procedure .............................................

104

P319C COMMUNICATION ERROR .................

105

DTC Logic  .............................................................

105

Diagnosis Procedure .............................................

105

P31A4 CAN ERROR VCM  ...............................

106

DTC Logic  .............................................................

106

Diagnosis Procedure .............................................

106

P31A7 CAN ERROR INV/MC ...........................

107

DTC Logic  .............................................................

107

Diagnosis Procedure .............................................

107

P3302-P330D CELL OVER VOLTAGE ............

108

DTC Logic  .............................................................

108

Diagnosis Procedure .............................................

108

Component Inspection  ..........................................

111

P330E-P3319 CELL OVER VOLTAGE ............

112

DTC Logic  .............................................................

112

Diagnosis Procedure .............................................

112

Component Inspection  ..........................................

115

P331A-P3325 CELL OVER VOLTAGE ............

116

DTC Logic  .............................................................

116

Diagnosis Procedure .............................................

116

Component Inspection  ..........................................

118

P3326-P3331 CELL OVER VOLTAGE  ............

119

DTC Logic  .............................................................

119
