BRM-44

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Unit: mm (in)

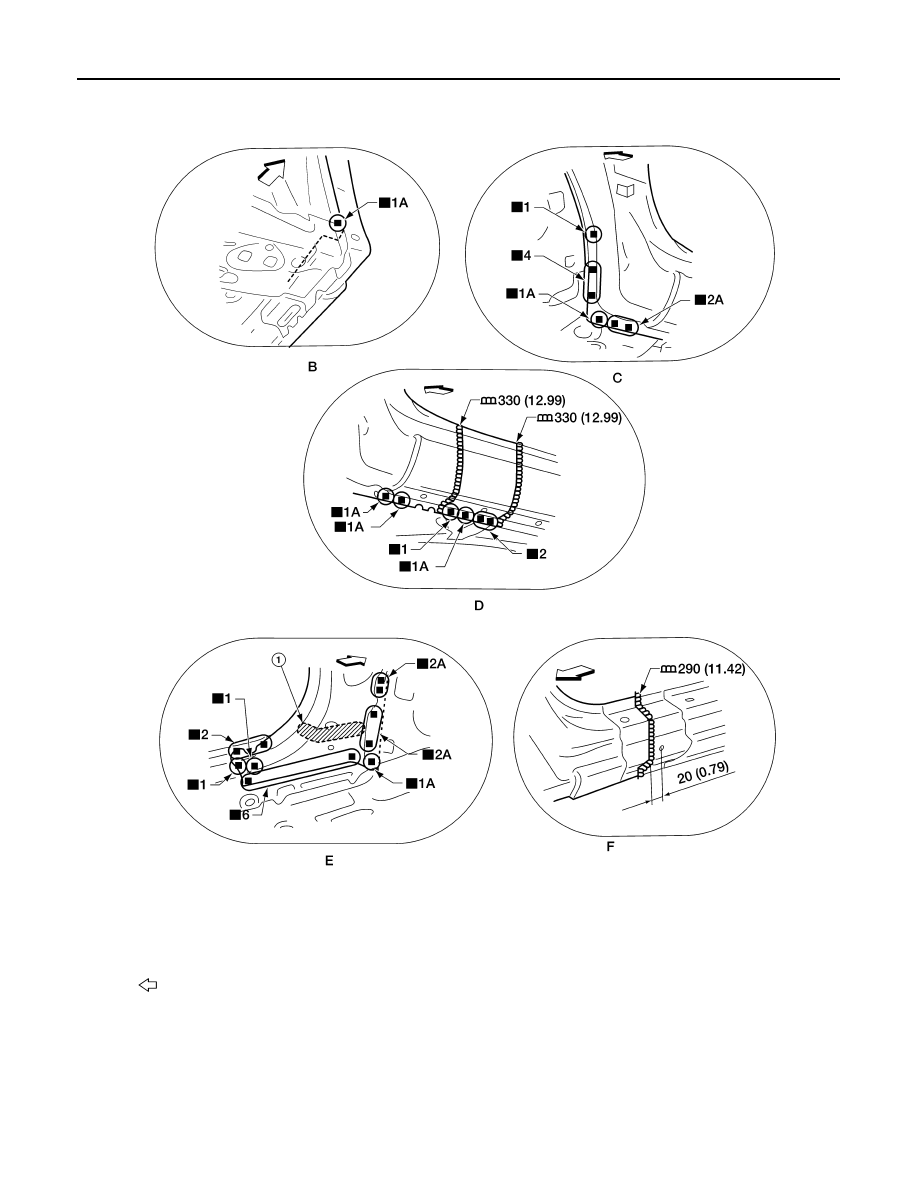

View F: Before installing outer front side body

1. Urethane foam

        Drill

φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

 Front

AWKIA2393ZZ

REPLACEMENT OPERATIONS

BRM-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

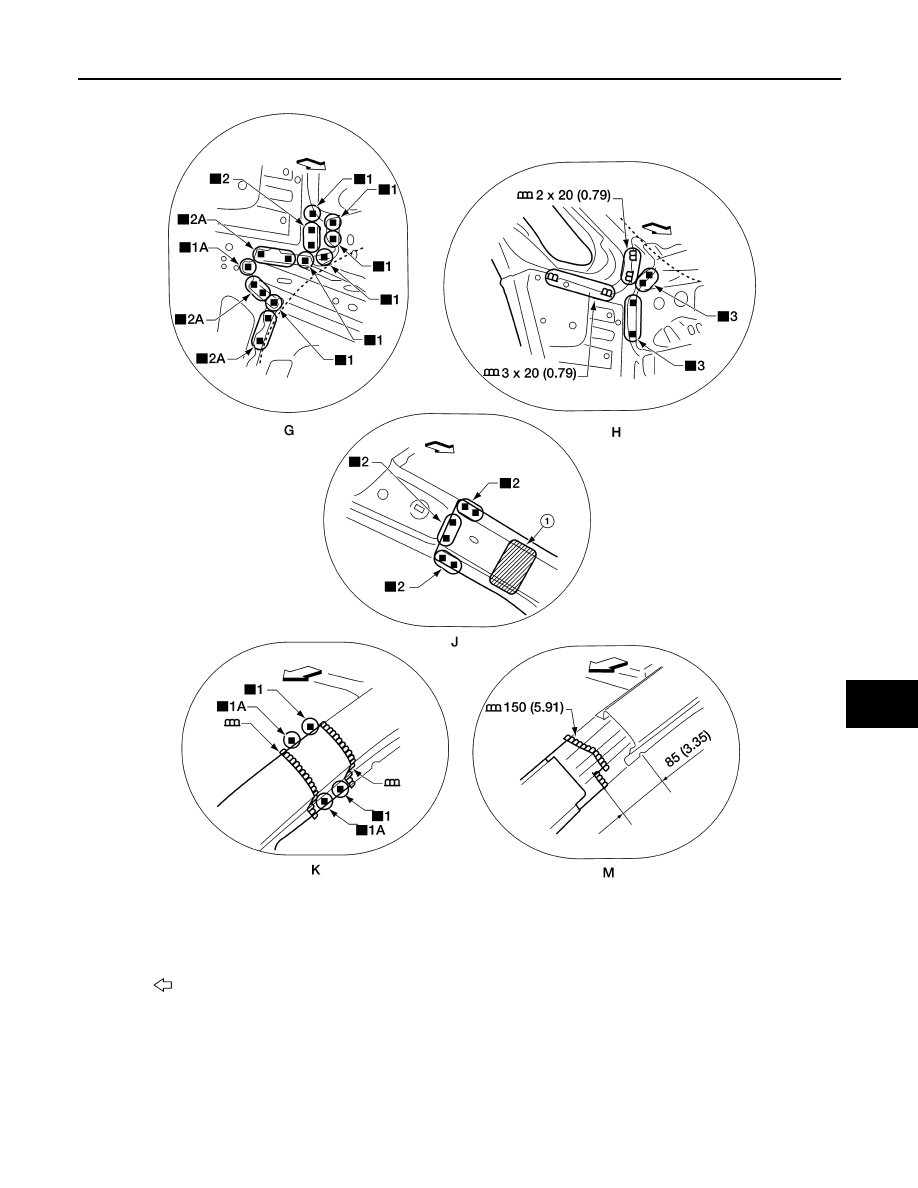

View G: Before installing side body assembly

View M: Before installing outer front side body

Center Pillar

INFOID:0000000010121704

Install the inner center pillar assembly to the side body assembly as shown in the figure for repairing the hid-

den welding point

″View E″.

1. Urethane foam

        Drill

φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

 Front

AWKIA2394ZZ

BRM-46

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Unit: mm (in)

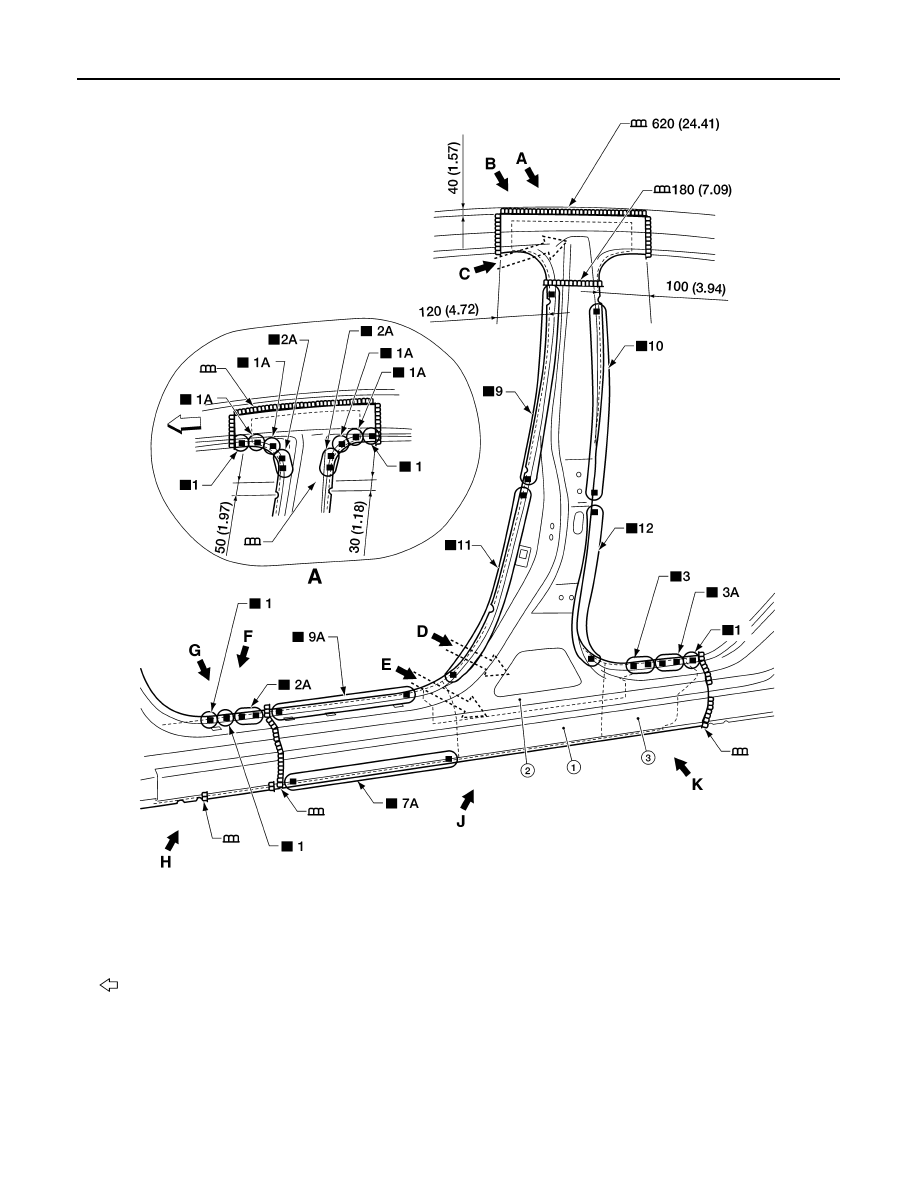

1. Inner center pillar assembly

2.

Lower center pillar brace

3. Outer sill reinforcement

        Drill

φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

 Front

Replacement parts

z

Side body assembly (LH)

z

Inner center pillar assembly (LH)

AWKIA2395ZZ

REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit mm (in)

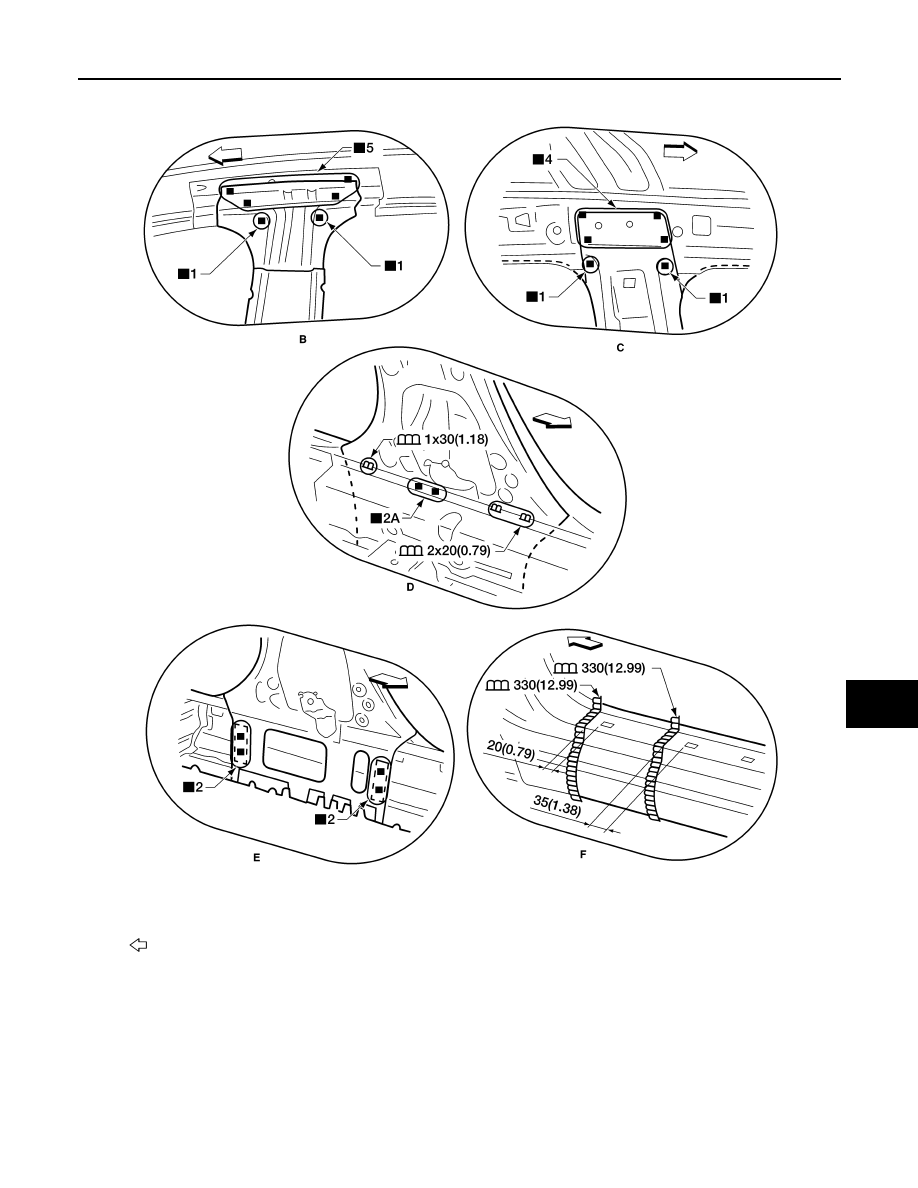

View B: Before installing outer front side body

View E: Inner center pillar assembly and side body assembly (replacement parts)

 Front

      Drill

φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

AWKIA2334ZZ
