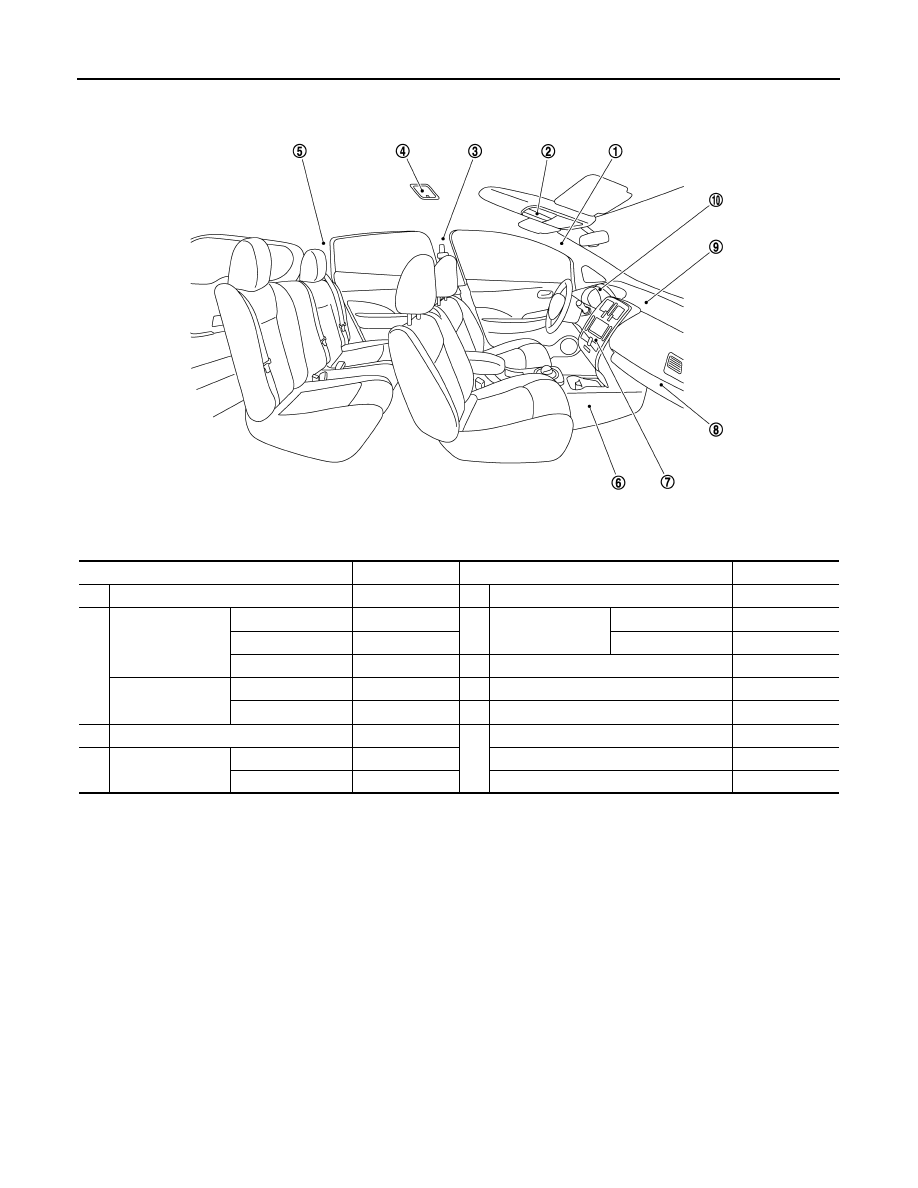

LOCATION OF PLASTIC PARTS

JSKIA2286ZZ

Component

Material

Component

Material

1

Front pillar garnish

PP

5

Rear pillar finisher

PP

2

Map lamp

Lens

PC

6

Center console

Body

PP

Housing

PP

Console finisher

PC + ABS

Center cover

PP

7

Cluster lid C

PC + ABS

Sunglass holder

Case

PP

8

Glove box

PP

Holder

PC + ABS

9

Instrument panel

PP

3

Center pillar garnish

PP

10

Cluster lid A

PP

4

Room  lamp

Lens

PC

Cluster lid finisher

PP

Housing

PP

Meter cover

PC + ABS

BODY COMPONENT PARTS

BRM-17

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY COMPONENT PARTS

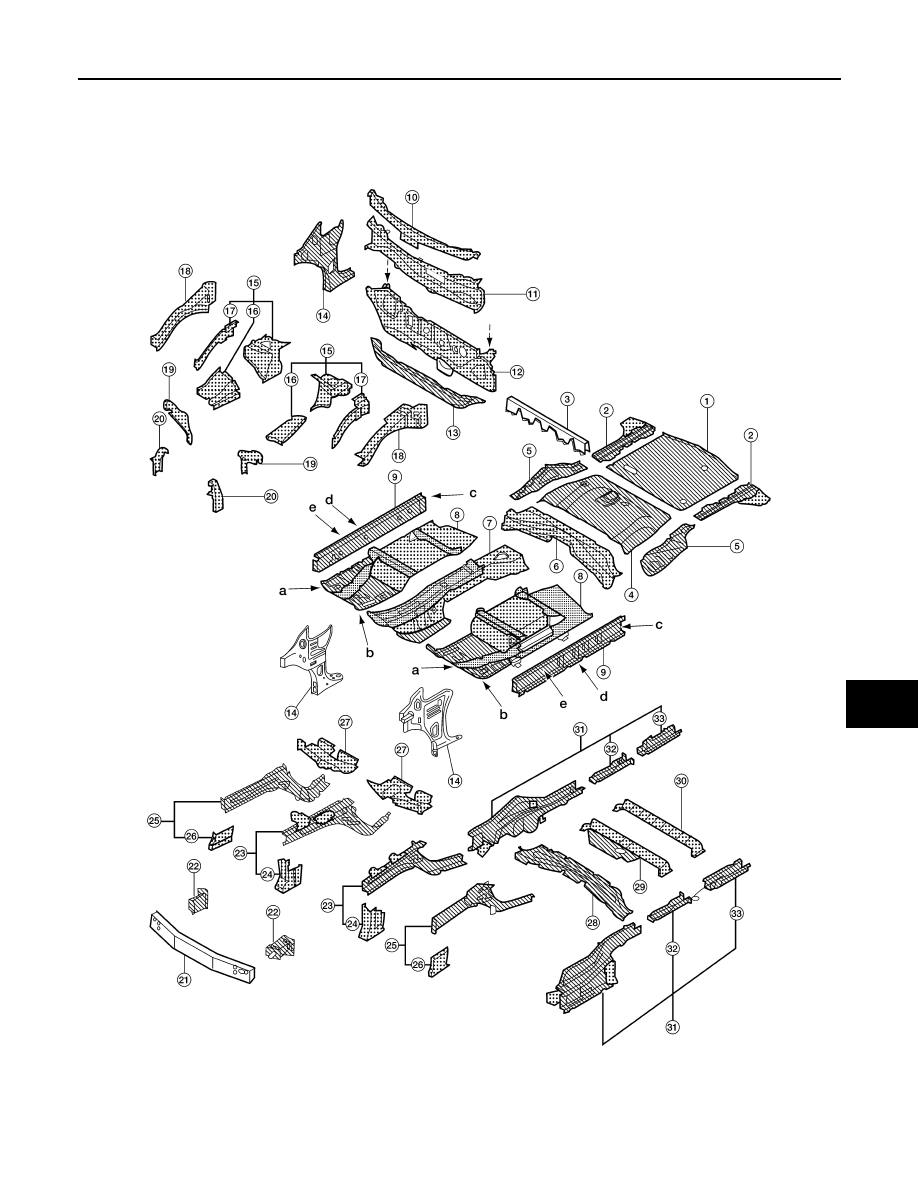

Underbody Component Parts

INFOID:0000000010121688

AWKIA2381ZZ

BRM-18

< PREPARATION >

BODY COMPONENT PARTS

 Both sided anti-corrosive precoated steel sections

 High strength steel (HSS) sections
   Both sided anti-corrosive steel and HSS sections

* Aluminum portion

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion

1.

Rear floor rear

Under 440

×

—

2.

Rear floor rear side (LH/RH)

590

×

—

3.

Upper seat crossmember assembly

Under 440

—

—

4.

Rear floor front

440

×

—

5.

Rear side member closing plate (LH/RH)

590

×

—

6.

Rear floor front extension

Under 440

×

—

7.

Center front floor

440

×

—

8.

Front floor (LH/RH)

a.

T=1.8 mm
(0.071 in)

980

caution

×

—

b.

T=1.8 mm
(0.071 in)

980

caution

9.

Inner sill (LH/RH)

c.

T=1.4 mm
(0.055 in)

980

caution

×

—

d.

T=2.0 mm
(0.079 in)

980

caution

e.

T=1.6 mm
(0.063 in)

980

caution

10.

Cowl top

Under 440

×

—

11.

Upper dash

Under 440

×

—

12.

Lower dash

f.

T=1.4 mm
(0.055 in)

980

caution

×

—

13.

Lower dash crossmember

T=2.0 mm
(0.079 in)

980

caution

×

—

14.

Side dash (LH/RH)

590

×

—

15.

Front strut housing (LH/RH)

590

×

—

16.

Lower front hoodledge (LH/RH)

Under 440

×

—

17.

Upper hoodledge (LH/RH)

Under 440

×

—

18.

Hoodledge reinforcement (LH/RH)

Under 440

×

—

19.

Hoodledge connector (LH/RH)

Under 440

×

—

20.

Side radiator core support (LH/RH)

Under 440

×

—

21.

Inner center front bumper reinforcement

—

—

×

22.

Front side member front assembly (LH/RH)

590

×

—

23.

Front side member assembly (LH/RH)

780

×

—

24.

Front suspension front mounting bracket (LH/RH)

590

×

—

25.

Front side member closing plate assembly (LH/RH)

780

×

—

26.

Outer add on frame bracket (LH/RH)

Under 440

×

—

27.

Front suspension rear mounting bracket (LH/RH)

Under 440

×

—

28.

Rear seat crossmember

440

×

—

29.

Rear crossmember center assembly

440

×

—

30.

7th crossmember

Under 440

×

—

BODY COMPONENT PARTS

BRM-19

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
• Tensile strength column shows the largest strength value of a part in the component part.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

31.

Rear side member (LH/RH)

780

×

—

32.

Rear side member extension reinforcement assembly (LH/RH)

440

×

—

33.

Rear side member extension (LH/RH)

590

×

—

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion
