AV-572

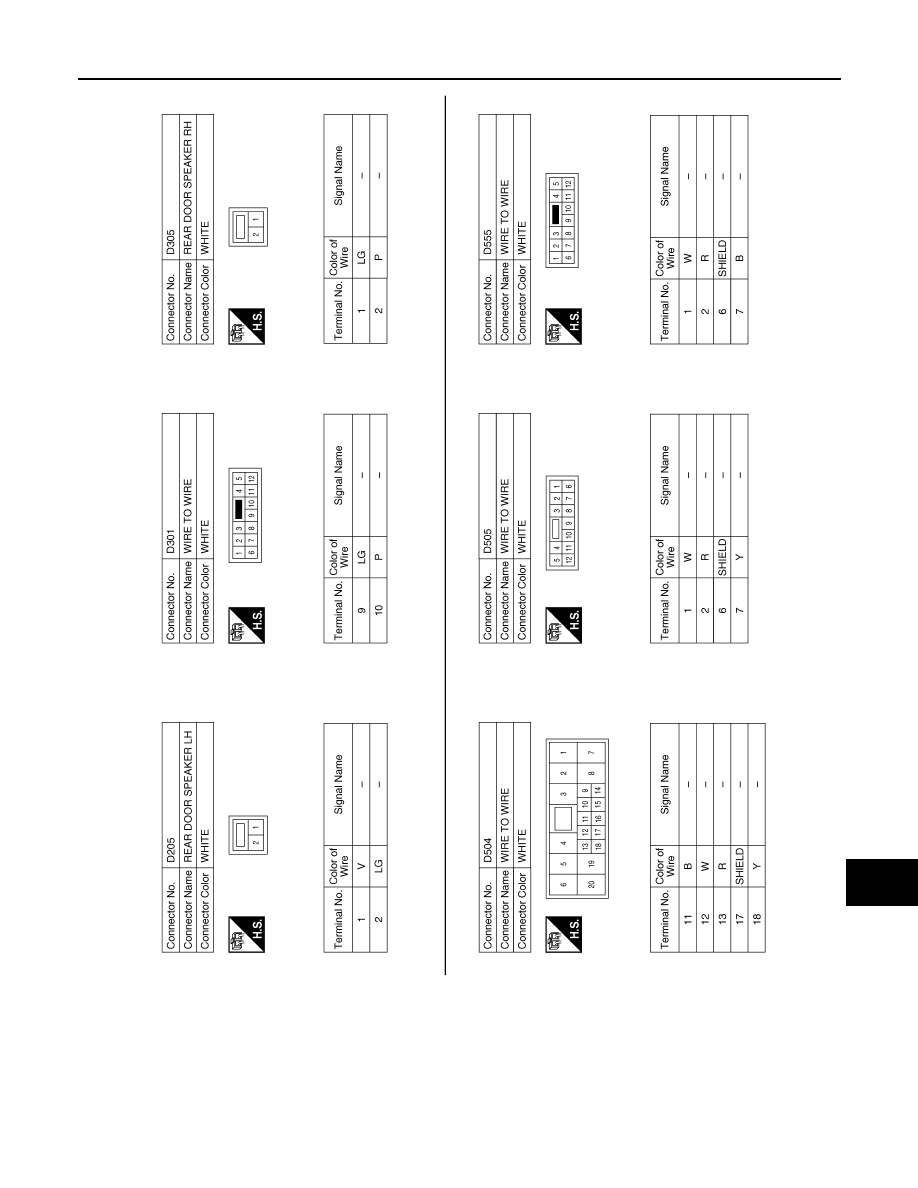

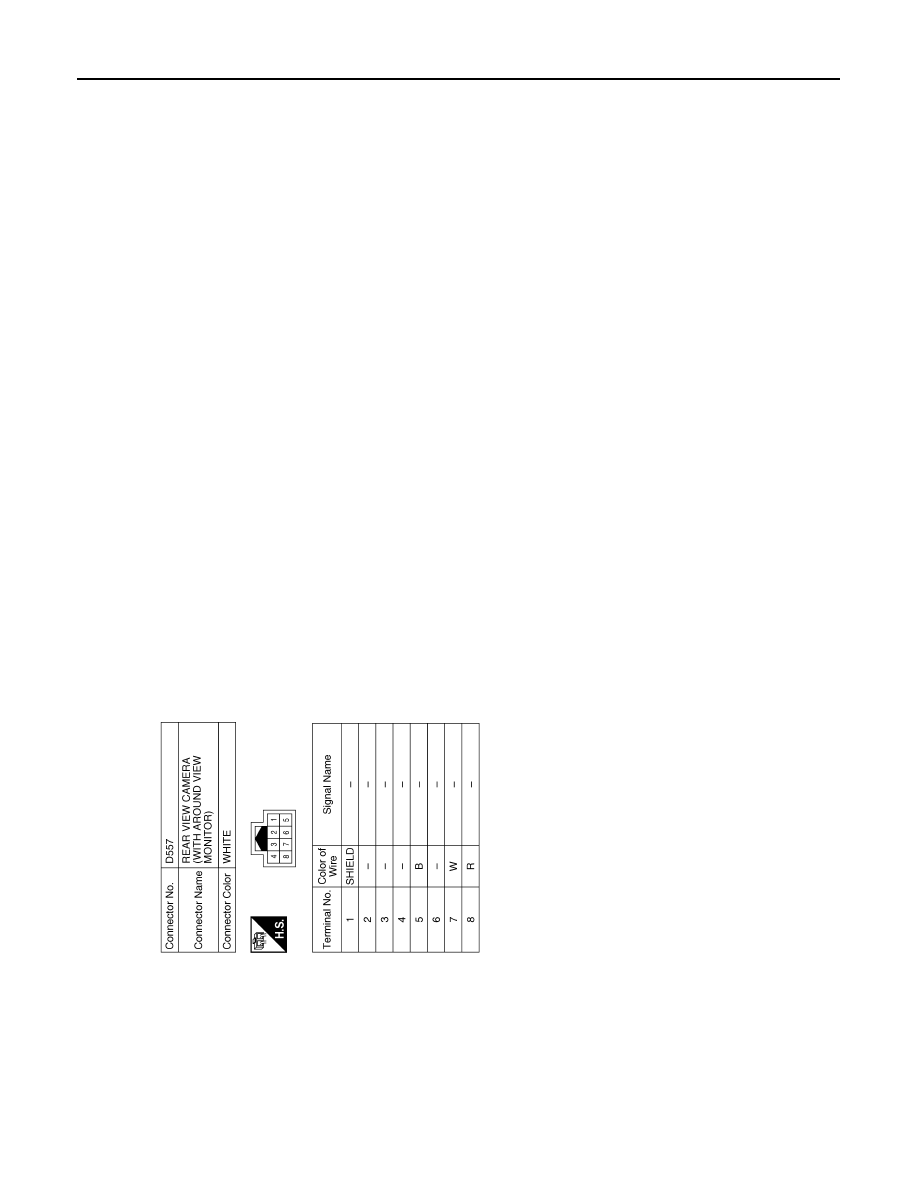

< WIRING DIAGRAM >

[TELEMATICS SYSTEM]

NAVIGATION WITH BOSE

AANIA2756GB

AV

DIAGNOSIS AND REPAIR WORK FLOW

AV-573

< BASIC INSPECTION >

[TELEMATICS SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010122743

OVERALL SEQUENCE

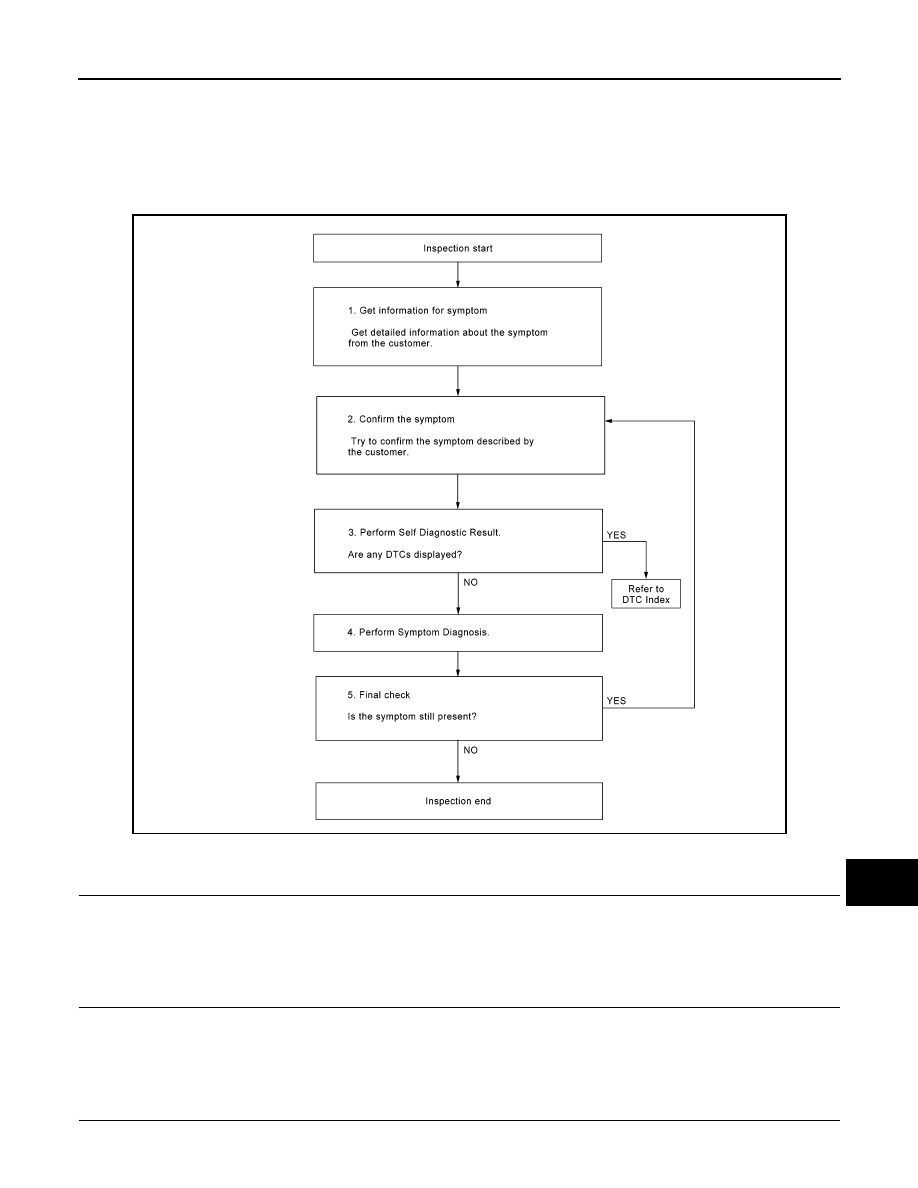

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

PERFORM SELF DIAGNOSTIC RESULT

1. Turn power switch ON and wait for 2 seconds or more.

AWNIA2982GB

AV-574

< BASIC INSPECTION >

[TELEMATICS SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

2. Perform “Self Diagnostic Result” for “TELEMATICS” using CONSULT:
Are any DTCs displayed?

YES

>> Refer to

AV-528, "DTC Index"

.

NO

>> GO TO 4.

4.

PERFORM SYMPTOM DIAGNOSIS

Refer to

AV-591, "Symptom Table"

.

>> GO TO 5

5.

FINAL CHECK

Refer to symptom described by the customer in step 1.
Is the symptom still present?

YES

>> GO TO 2

NO

>> Inspection End.
