WASHER PUMP

WASHER PUMP

Removal and Installation

INFOID:0000000010122230

The washer pump must be replaced together with the washer tank as an assembly. Refer to

WW-43,

"Removal and Installation"

.

WASHER LEVEL SWITCH

WW-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000010122231

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-43,

"Removal and Installation"

.

WW-46

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

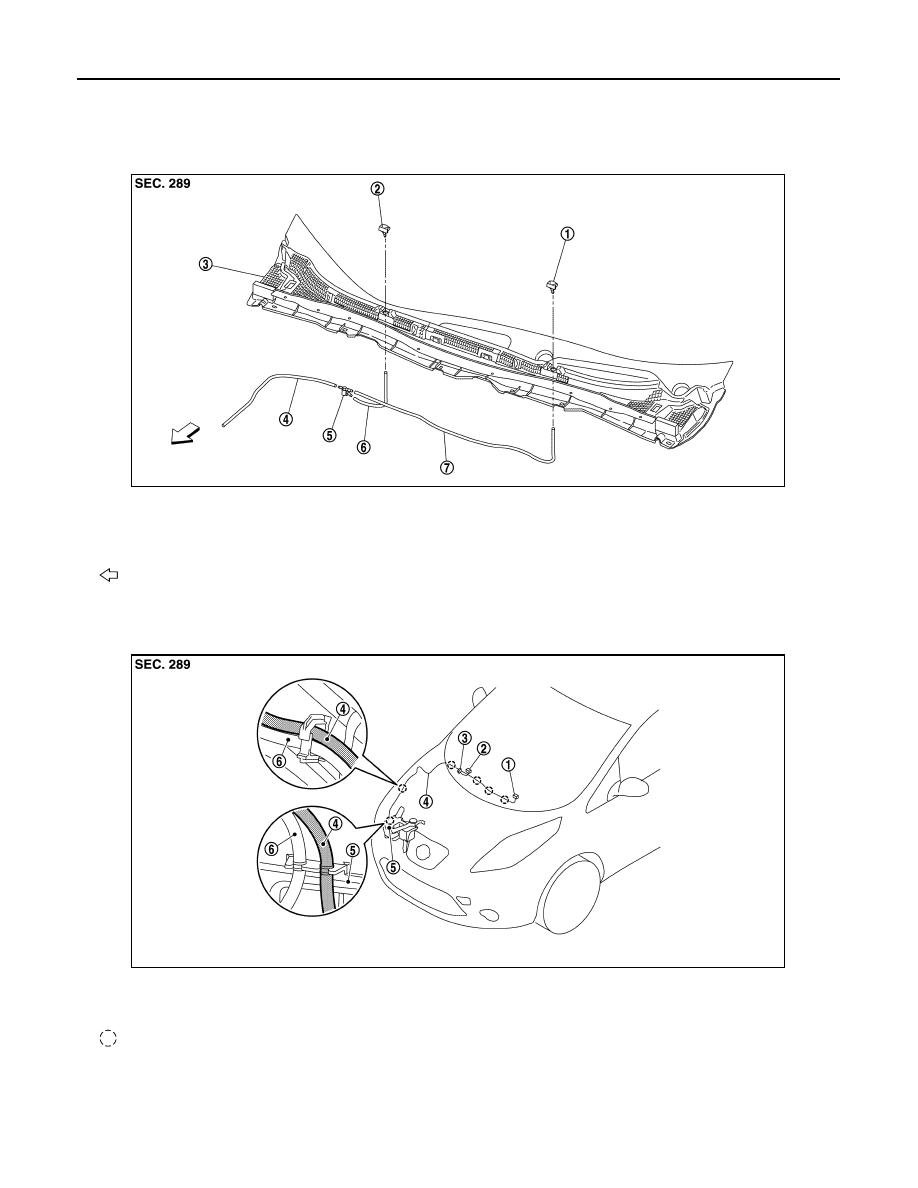

Exploded View

INFOID:0000000010122232

Hydraulic Layout

INFOID:0000000010122233

Removal and Installation

INFOID:0000000010122234

REMOVAL

1. Fully open hood assembly.

1.

Front washer nozzle LH

2.

Front washer nozzle RH

3.

Cowl top cover

4.

Front washer tube (tank side)

5.

Check valve

6.

Front washer tube RH

7.

Front washer tube LH
: Vehicle front

JMLIA1677ZZ

1.

Front washer nozzle LH

2.

Front washer nozzle RH

3.

Check valve

4.

Front washer tube

5.

Washer tank

6.

Rear washer tube

: Clip

JMLIA1687ZZ

FRONT WASHER NOZZLE AND TUBE

WW-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

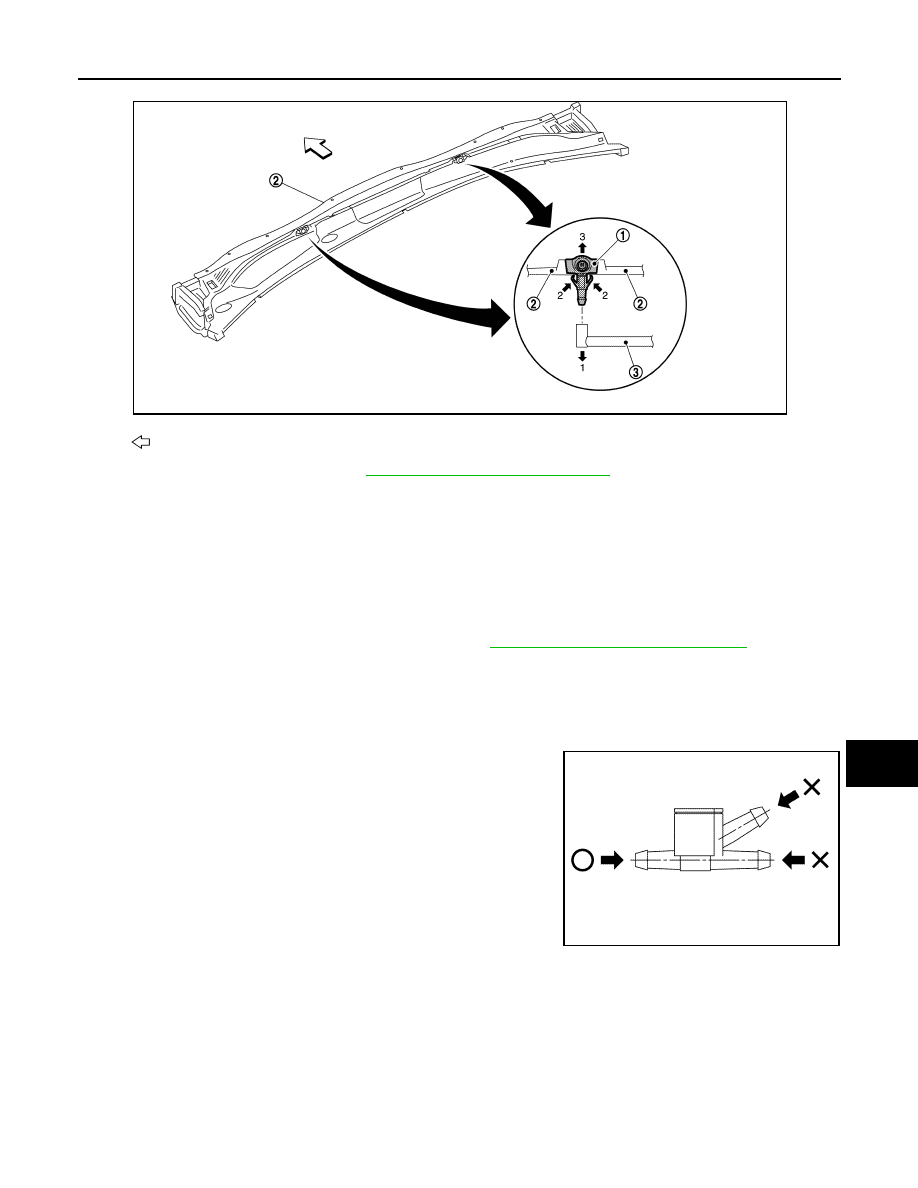

2. Remove front washer nozzle.

a. Remove cowl top cover (2). Refer to

EXT-19, "Removal and Installation"

.

b. Remove front washer tube (3) from front washer nozzle (1).
c. Press front washer nozzle fixing pawls toward the direction shown by the arrows 2 and pull up to remove.

INSTALLATION

1. Install front washer nozzle into the cowl top cover.

CAUTION:

The spray positions differ, check that left and right nozzles are installed correctly.

2. Connect front washer tube to the front washer nozzle.
3. Adjust the front washer nozzle spray position. Refer to

WW-47, "Inspection and Adjustment"

.

Inspection and Adjustment

INFOID:0000000010122235

INSPECTION

Washer Nozzle Inspection

Check that air can pass through the hose by blowing forward (toward

the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

NOTE:

The spray position in the passenger side is similar to the one in the driver side.

: Vehicle front

JMLIA2605ZZ

JMLIA1538ZZ
