Nissan Leaf. Manual - part 1294





WW-4

< PRECAUTION >

PRECAUTIONS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

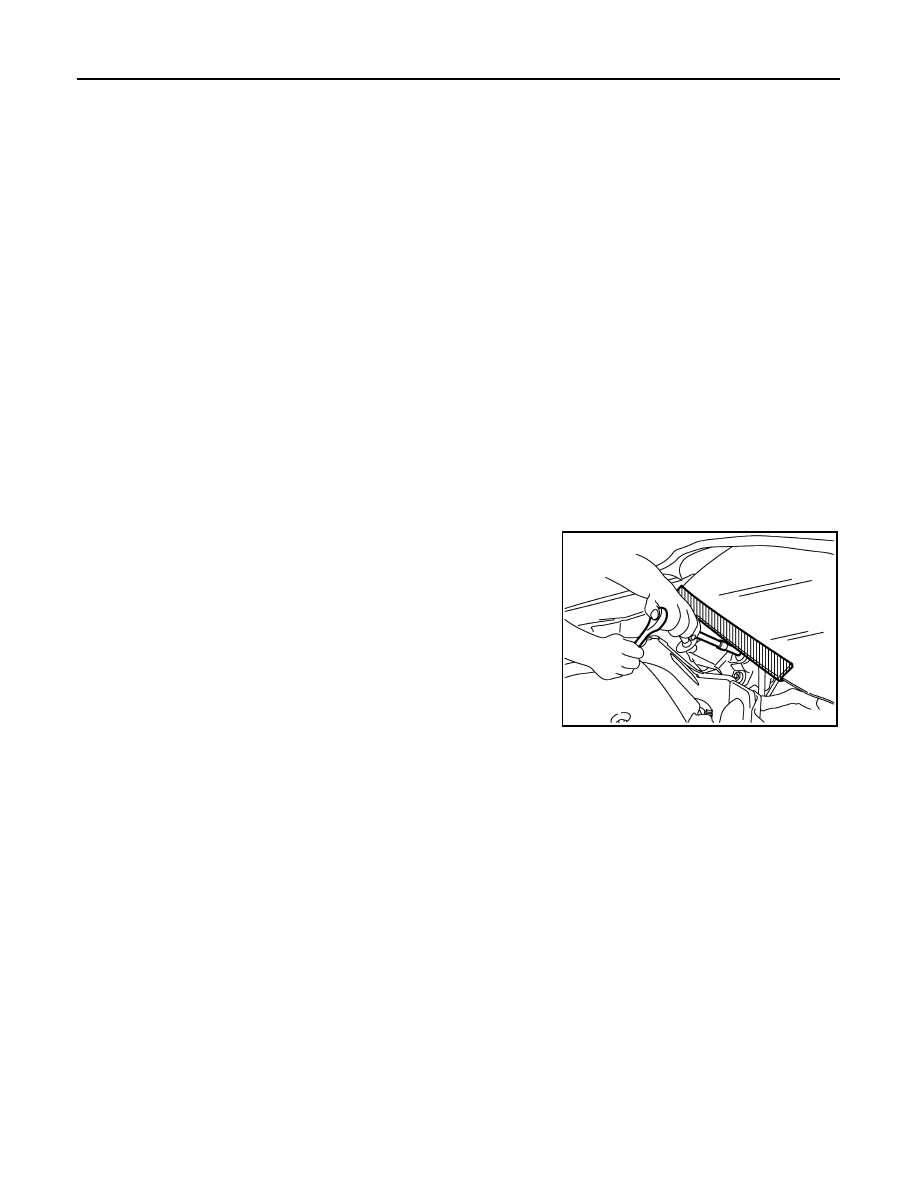

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010122191

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Precaution for Removing 12V Battery

INFOID:0000000010122192

1. Check that EVSE is not connected.

NOTE:

If EVSE is connected, the air conditioning system may be automatically activated by the timer A/C func-

tion.

2. Turn the power switch OFF

→ ON → OFF. Get out of the vehicle. Close all doors (including back door).

3. Check that the charge status indicator lamp does not blink and wait for 5 minutes or more.

NOTE:

 If the battery is removed within 5 minutes after the power switch is turned OFF, plural DTCs may be

detected.

4. Remove 12V battery within 1 hour after turning the power switch OFF

→ ON → OFF.

NOTE:

•  The 12V battery automatic charge control may start automatically even when the power switch is in

OFF state.

•  Once the power switch is turned ON

→ OFF, the 12V battery automatic charge control does not start for

approximately 1 hour.

CAUTION:

•  After all doors (including back door) are closed, if a door (including back door) is opened before

battery terminals are disconnected, start over from Step 1.

•  After turning the power switch OFF, if “Remote A/C” is activated by user operation, stop the air

conditioner and start over from Step 1.

PIIB3706J

COMPONENT PARTS

WW-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

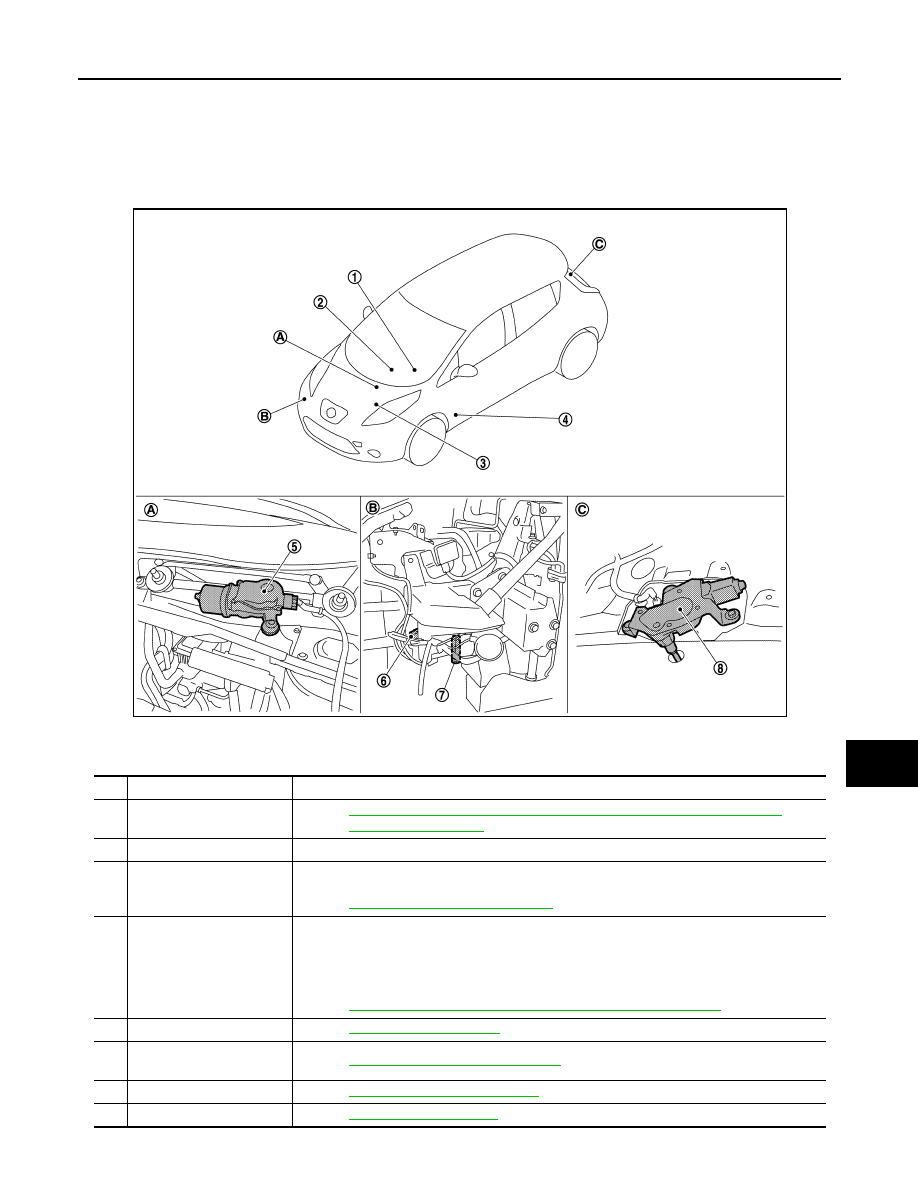

Component Parts Location

INFOID:0000000010122193

A.

Cowl top, left side of motor room

B.

Behind front fender protector (RH)

C.

Back door lower finisher inside

No.

Component

Function

1.

Combination switch
(Wiper & washer switch)

Refer to

BCS-8, "COMBINATION SWITCH READING SYSTEM : System Description"

.

Refer to

WW-6, "Washer Switch"

.

2.

Combination meter

Transmits the vehicle speed signal to BCM via CAN communication.

3.

IPDM E/R

• Controls the integrated relay according to the request (via CAN communication) from BCM.
• Performs the auto stop control of the front wiper.
Refer to

PCS-6, "Component Parts Location"

.

4.

BCM

• Judges each switch status by the combination switch reading function.
• Requests (via CAN communication) the front wiper relay and the front wiper HI/LO relay ON

to IPDM E/R.

• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.
Refer to

BCS-5, "BODY CONTROL SYSTEM : Component Parts Location"

.

5.

Front wiper motor

Refer to

WW-6, "Front wiper motor"

.

6.

Front and rear washer
motor

Refer to

WW-6, "Front and rear washer motor"

.

7.

Washer fluid level switch*

Refer to

WW-6, "Washer fluid level switch"

.

8.

Rear wiper motor

Refer to

WW-7, "Rear wiper motor"

.

JMLIA2520ZZ

WW-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

*: For Canada

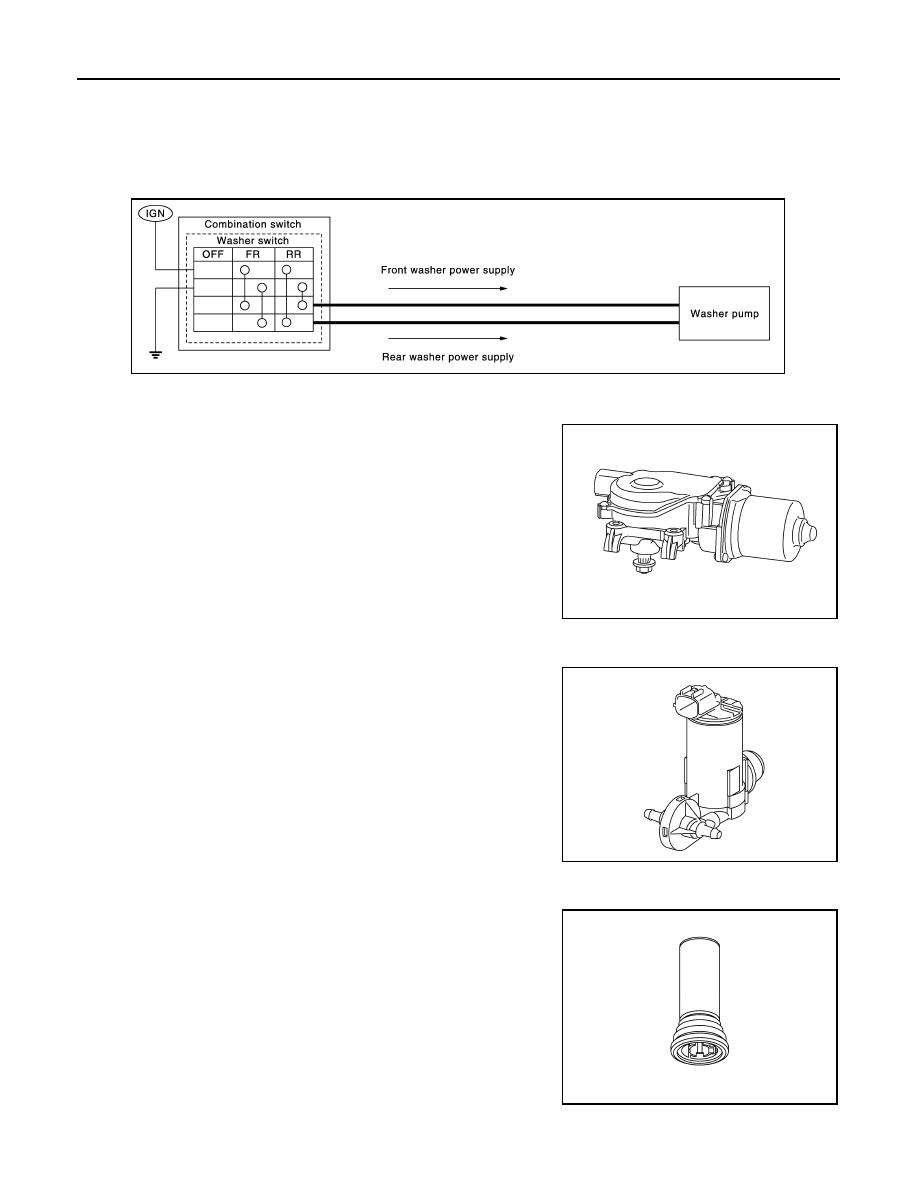

Washer Switch

INFOID:0000000010122194

• Washer switch is integrated with combination switch.

• Combination switch operates front washer or rear washer by changing voltage polarity to be supplied to

washer motor.

Front wiper motor

INFOID:0000000010122195

• Controls front wiper operation with IPDM E/R control.

• Transmits front wiper stop position signal to IPDM E/R.

Front and rear washer motor

INFOID:0000000010122196

• Washer fluid is sprayed according to washer switch states.

• Switching between front washer and rear washer is performed

according to the voltage polarity change to washer motor.

Washer fluid level switch

INFOID:0000000010122197

Detects that washer fluid level is low and transmits washer fluid level

switch signal to combination meter.

JPLIA0163GB

JMLIA2397ZZ

JMLIA2396ZZ

JMLIA2597ZZ

COMPONENT PARTS

WW-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

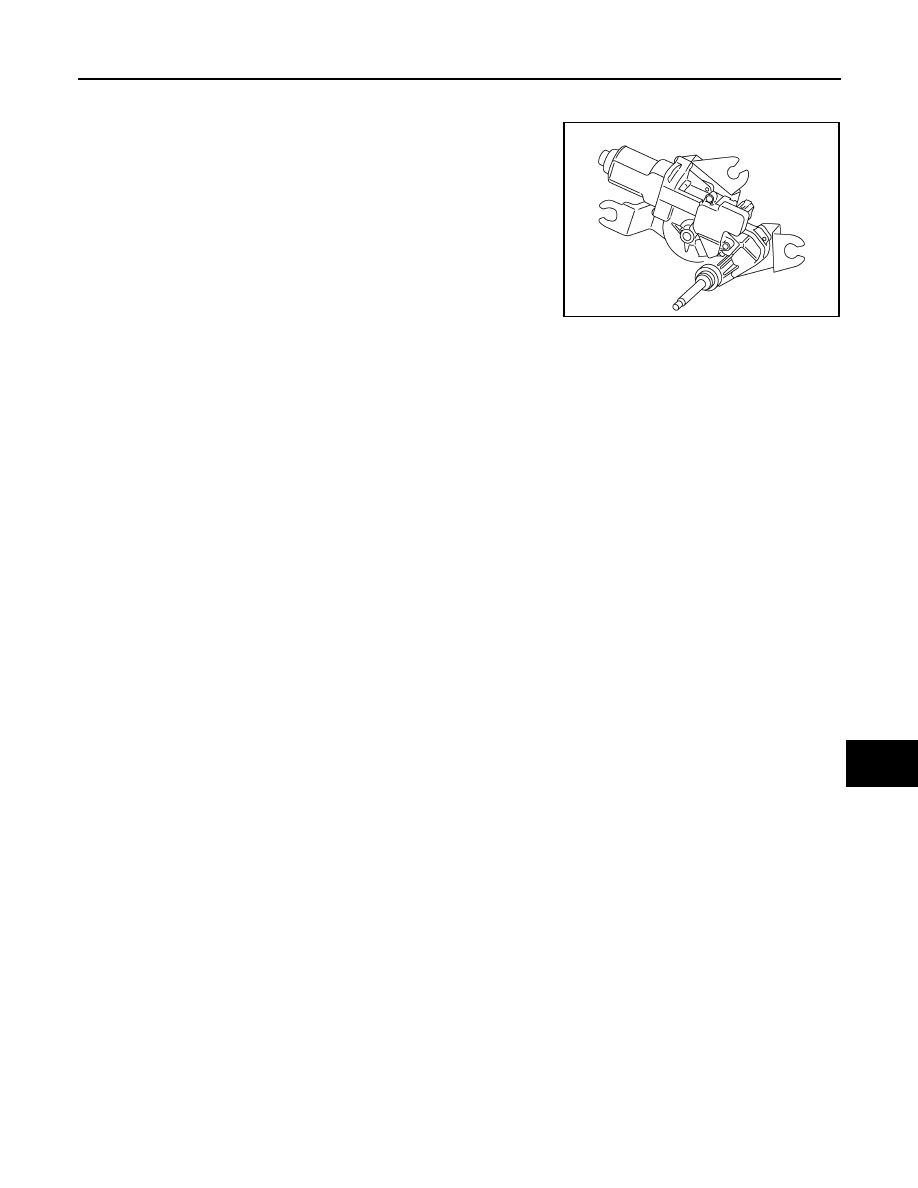

Rear wiper motor

INFOID:0000000010122198

• Controls rear wiper operation with BCM control.

• Transmits rear wiper stop position signal to BCM.

JMLIA2398ZZ
