TIRE PRESSURE MONITORING SYSTEM

WT-15

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

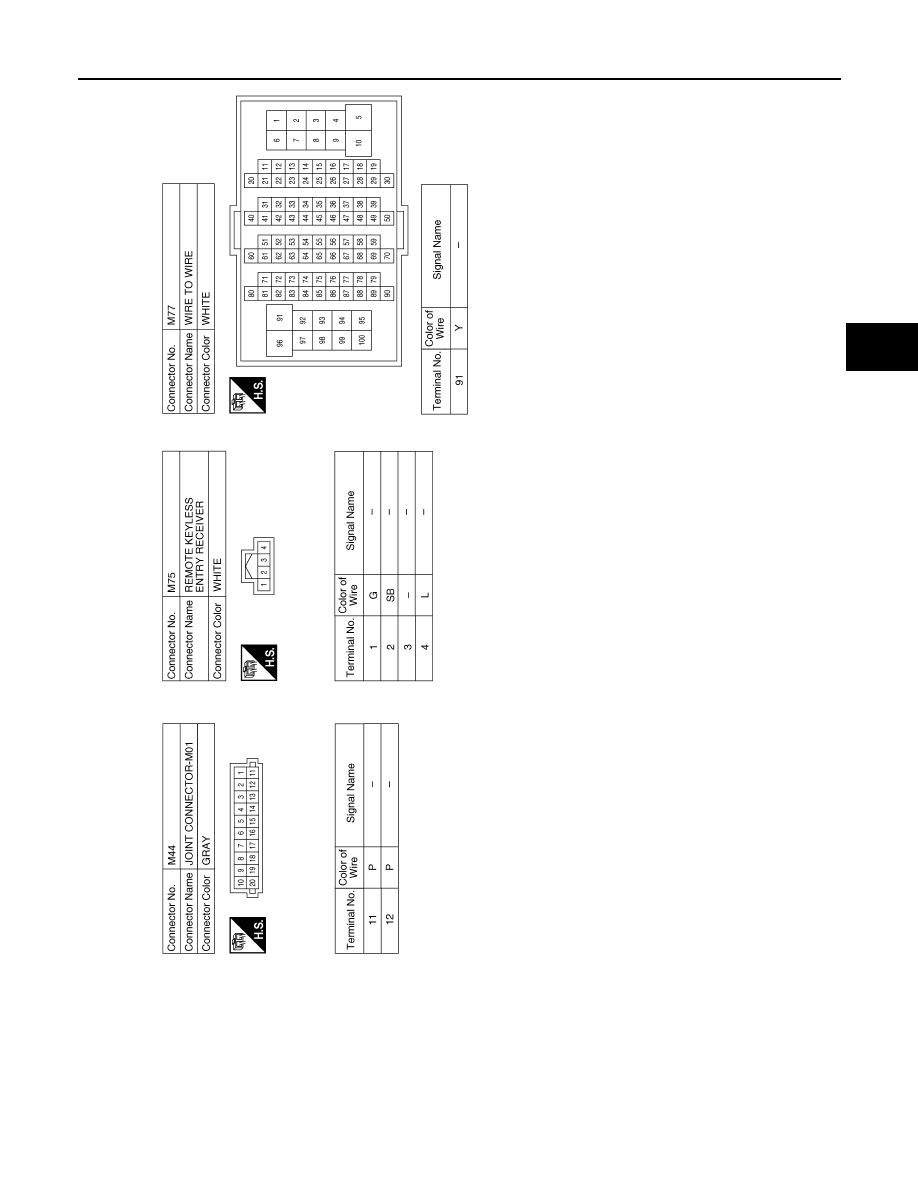

WIRING DIAGRAM

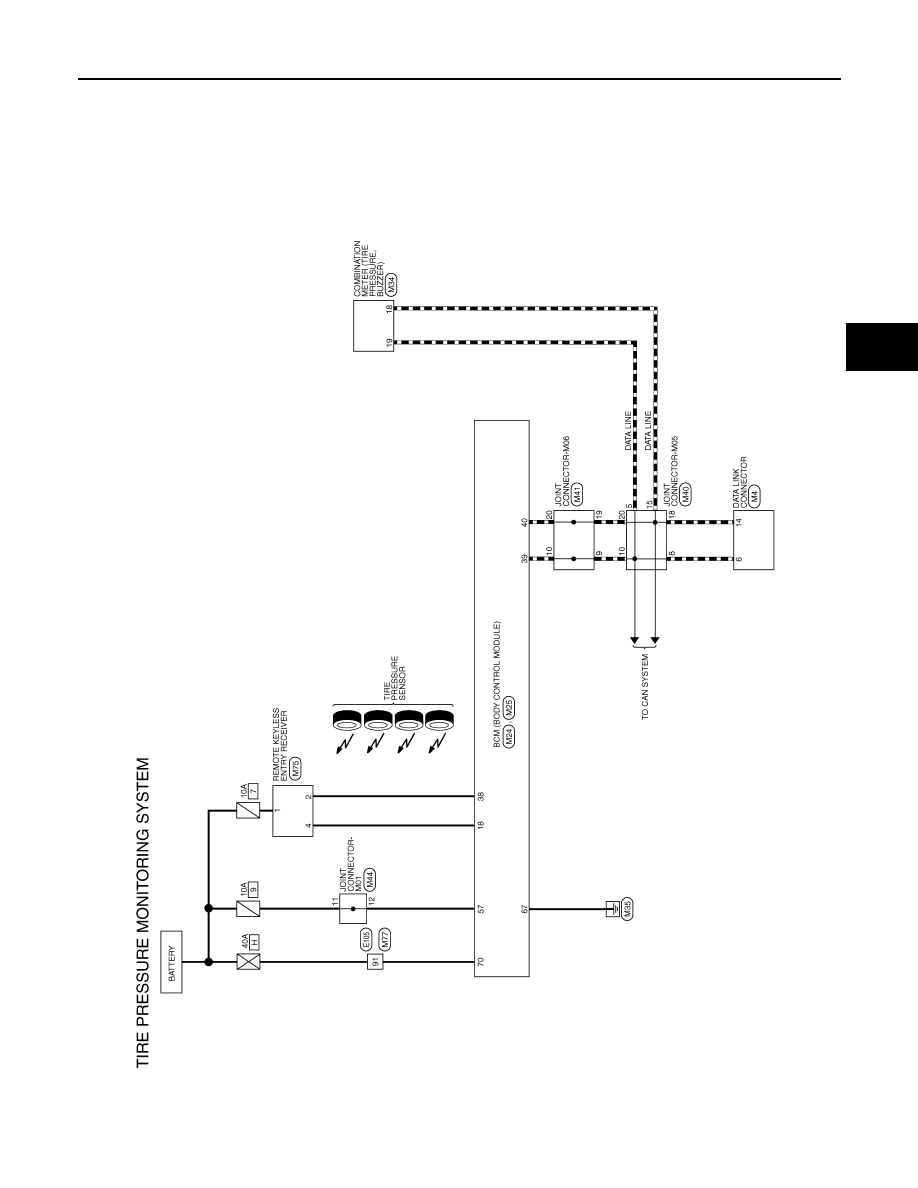

TIRE PRESSURE MONITORING SYSTEM

Wiring Diagram

INFOID:0000000010120183

AAEWA0058GB

WT-16

< WIRING DIAGRAM >

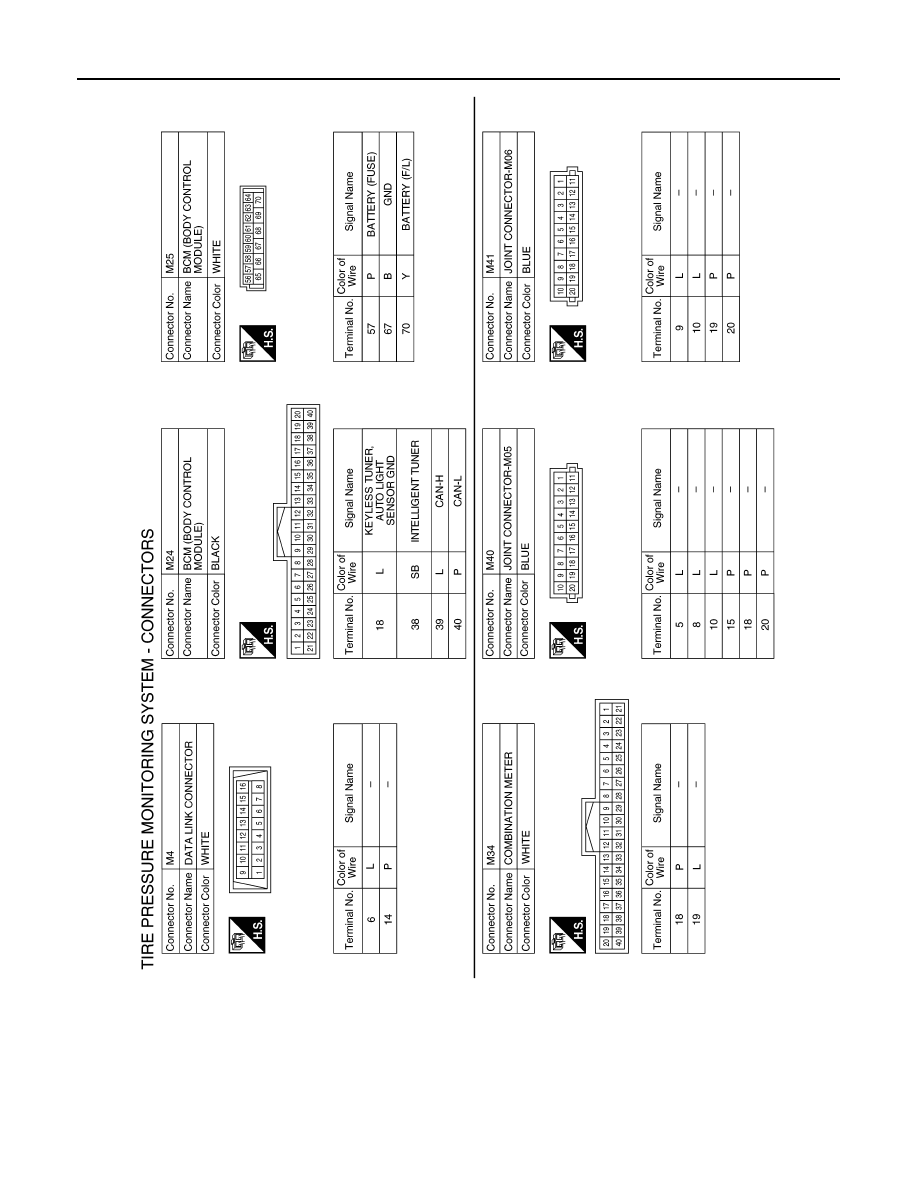

TIRE PRESSURE MONITORING SYSTEM

AAEIA0133GB

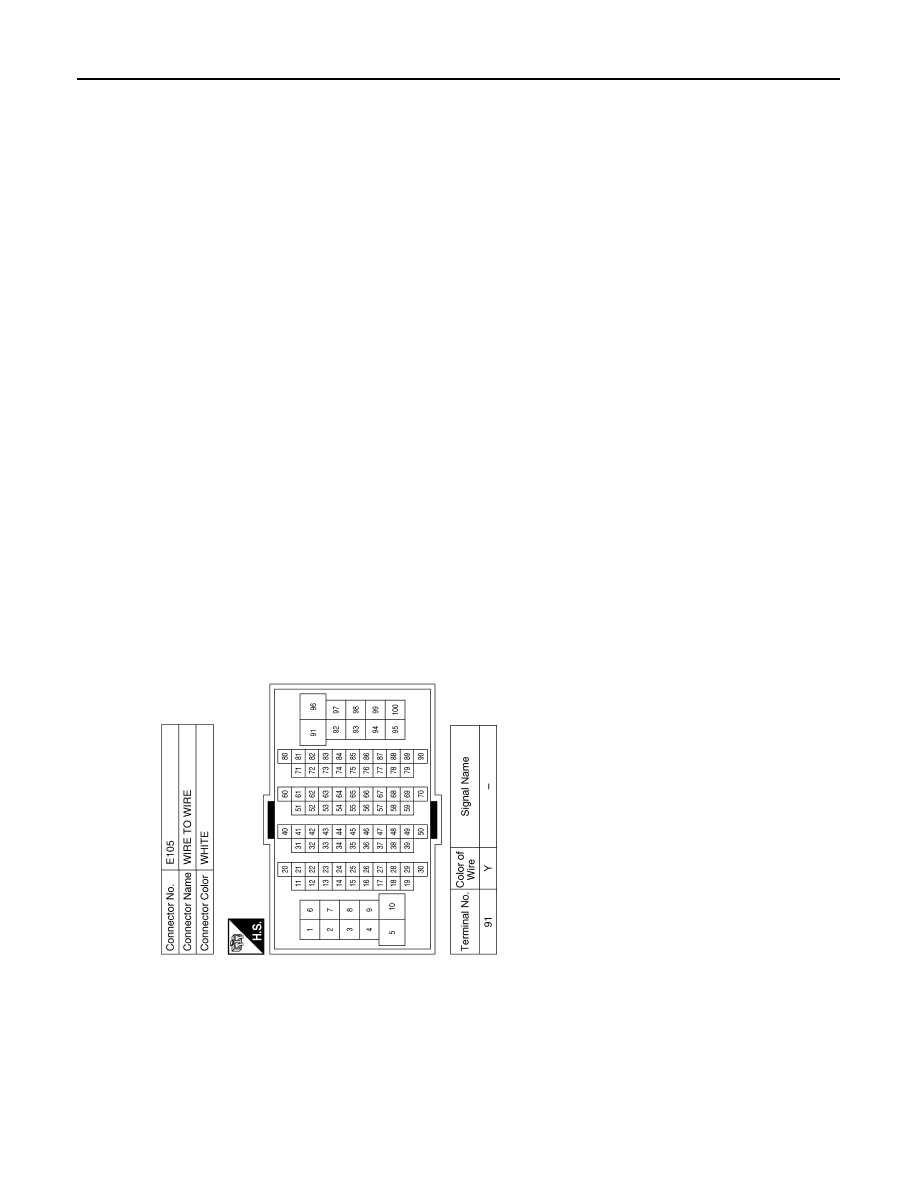

TIRE PRESSURE MONITORING SYSTEM

WT-17

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

AAEIA0134GB

WT-18

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

AAEIA0135GB
