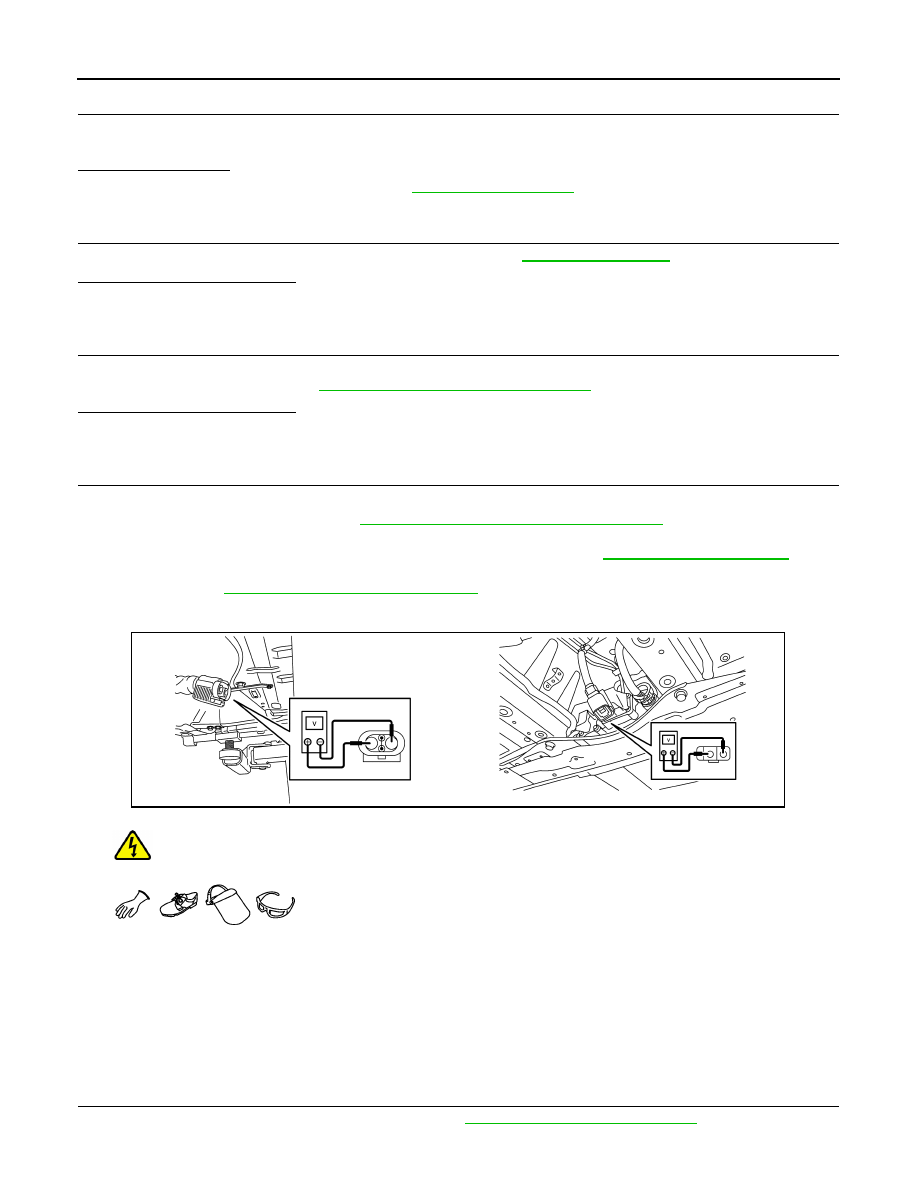

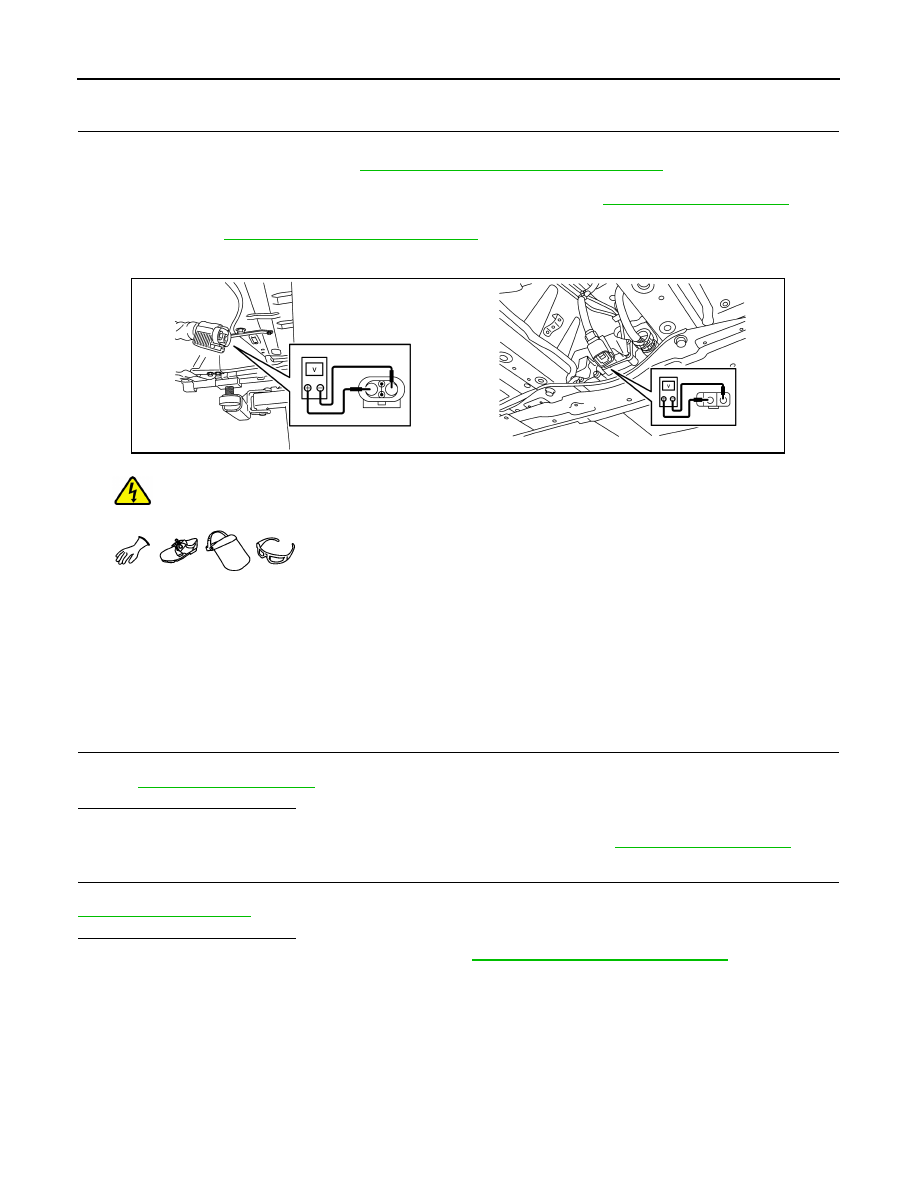

P324A DRIVE MOTOR A INVERTER VOLTAGE TMS-85 < DTC/CIRCUIT DIAGNOSIS > D E F G H I J K L M A B TMS N O P P324A DRIVE MOTOR A INVERTER VOLTAGE DTC Logic INFOID:0000000010120988 DTC DETECTION LOGIC DTC CONFIRMATION PROCEDURE 1. PRECONDITIONING If “DTC CONFIRMATION PROCEDURE” has been previously conducted, always power switch OFF and wait at least 10 seconds before conducting the next test. >> GO TO 2. 2. CHECK DTC DETECTION With CONSULT 1. Power switch ON and wait for 15 seconds or more. 2. Check DTC. YES >> Go to . NO-1 >> To check malfunction symptom before repair: Refer to GI-53, "Intermittent Incident" NO-2 >> Confirmation after repair: INSPECTION END Diagnosis Procedure INFOID:0000000010120989 DANGER: Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are handled incorrectly. Be sure to follow the correct work procedures when performing inspection and maintenance. WARNING: • Be sure to remove the service plug in order to disconnect the high voltage circuits before perform- ing inspection or maintenance of high voltage system harnesses and parts. • The removed service plug must always be carried in a pocket of the responsible worker or placed in the tool box during the procedure to prevent the plug from being connected by mistake. • Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses before beginning work on the high voltage system. • Never allow workers other than the responsible person to touch the vehicle containing high voltage parts. To keep others from touching the high voltage parts, these parts must be covered with an insu- lating sheet except when using them. • Refer to TMS-5, "High Voltage Precautions" CAUTION: Never bring the vehicle into the READY status with the service plug removed unless otherwise instructed in the Service Manual. A malfunction may occur if this is not observed. 1. CHECK DTC HIGH VOLTAGE SYSTEMS 1. Power switch ON and wait for 10 seconds or more. 2. Check DTC of the high voltage systems. YES >> Check DTC detected item. DTC CONSULT screen terms (Trouble diagnosis content) Malfunction detected condition Possible causes P324A DRIVE MOTOR A INVERTER VOLTAGE Precharging does not start for 10 • Traction motor inverter motor inverter |
