SELECTOR INDICATOR CIRCUIT

>> Repair or replace damaged parts.

9.

CHECK HARNESS BETWEEN VCM AND SELECTOR INDICATOR

1. Disconnect the VCM connector.

2. Check the continuity between VCM vehicle side harness connector terminals and selector indicator vehi-

cle side harness connector terminals.

3. Check the continuity between VCM vehicle side harness connector terminals and ground.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair or replace damaged parts.

10.

CHECK GROUND CIRCUIT

Check the continuity between VCM vehicle side harness connector terminals and ground.

Is the inspection result normal?

YES

>> Replace the selector indicator. Refer to

TM-125, "Removal and Installation"

.

NO

>> Repair or replace damaged parts.

VCM

Selector indicator

Continuity

Connector

Terminal

Connector

Terminal

E61

18

M56

1

Existed

33

7

34

8

46

3

VCM

Ground

Continuity

Connector

Terminal

E61

18

Ground

Not existed

33

34

46

VCM

Ground

Continuity

Connector

Terminal

E61

58

Ground

Existed

65

E62

118

126

SHIFT POSITION INDICATOR CIRCUIT

TM-119

< DTC/CIRCUIT DIAGNOSIS >

[ELECTRIC SHIFT]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT POSITION INDICATOR CIRCUIT

Component Function Check

INFOID:0000000010119640

1.

CHECK SHIFT POSITION INDICATOR

1. Set the vehicle to READY.

2. Shift the selector lever.

3. Check that the indication of the shift position indicator in the combination meter corresponds to the

selected shift position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

TM-119, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010119641

1.

CHECK DTC OF ELECTRIC SHIFT CONTROL MODULE

With CONSULT

1. Power switch ON.

2. Perform “Self Diagnostic Results” in “SHIFT”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

TM-50, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK DTC OF VCM

With CONSULT

1. Power switch ON.

2. Perform “Self Diagnostic Results” in “EV/HEV”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

EVC-102, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK DTC OF COMBINATION METER

With CONSULT

1. Power switch ON.

2. Perform “Self Diagnostic Results” in “METER”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

MWI-65, "DTC Index"

.

NO

>> Check input/output signals of combination meter. Refer to

MWI-54, "Reference Value"

.

TM-120

< DTC/CIRCUIT DIAGNOSIS >

[ELECTRIC SHIFT]

ELECTRIC SHIFT WARNING LAMP

ELECTRIC SHIFT WARNING LAMP

Component Function Check

INFOID:0000000010119642

1.

CHECK ELECTRIC SHIFT WARNING LAMP

Check that electric shift warning lamp turns ON for approx. 2 seconds after power switch is ON.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

TM-120, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010119643

1.

CHECK DTC OF ELECTRIC SHIFT CONTROL MODULE

With CONSULT

1. Power switch ON.

2. Perform “Self Diagnostic Results” in “SHIFT”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

TM-50, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK DTC OF VCM

With CONSULT

1. Power switch ON.

2. Perform “Self Diagnostic Results” in “EV/HEV”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

EVC-102, "DTC Index"

.

NO

>> 1. Check input/output signals of VCM. Refer to

EVC-84, "Reference Value"

.

2. If inspection result is OK, GO TO 3.

3.

CHECK DTC OF COMBINATION METER

With CONSULT

1. Power switch ON.

2. Perform “Self Diagnostic Results” in “METER”.
Is any DTC detected?

YES

>> Check DTC detected item. Refer to

MWI-65, "DTC Index"

.

NO

>> Check input/output signals of combination meter. Refer to

MWI-54, "Reference Value"

.

ELECTRIC SHIFT SELECTOR

TM-121

< REMOVAL AND INSTALLATION >

[ELECTRIC SHIFT]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

ELECTRIC SHIFT SELECTOR

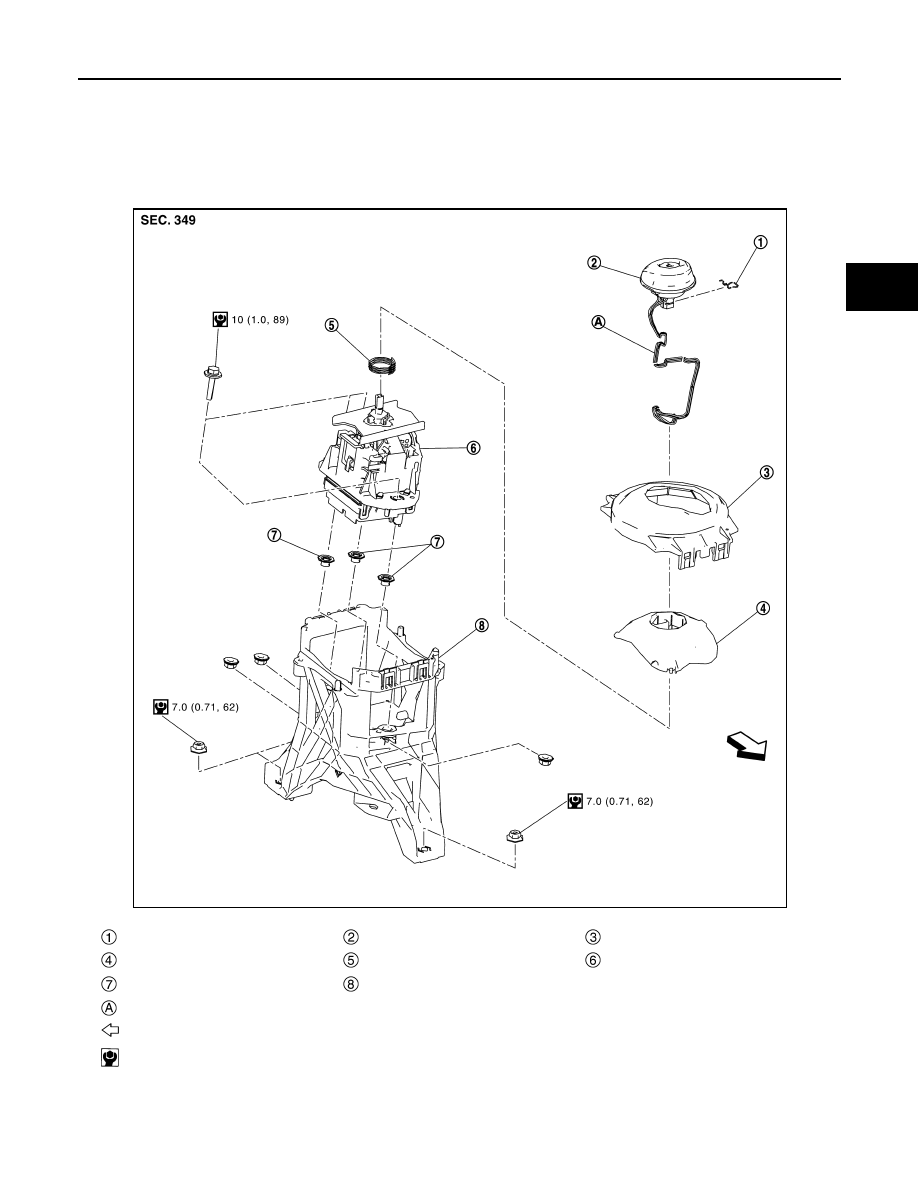

Exploded View

INFOID:0000000010119644

Removal and Installation

INFOID:0000000010119645

CAUTION:

Lock pin

Selector lever knob

Shift gate

Slider plate

Spring

Electric shift sensor

Collar

Body bracket

P position switch harness

: Vehicle front

: N·m (kg-m, in-lb)

JSDIA4235GB
