TM-38

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

COMPONENT PARTS

SIGNAL PATH

• The electric shift control module transmits an electric shift warning lamp signal to the controller of VCM

when detecting a malfunction in the electric shift system.

• VCM transmits that signal to combination meter.

• The combination meter indicates the each message when receiving an electric shift warning message sig-

nal.

WARNING/INDICATOR OPERATIONG CONDITION

Electric Shift Warning A

When the electric shift system detects DTC of master warning lamp (red).

Electric Shift Warning B

When the electric shift system detects DTC of master warning lamp (yellow).

Shift Position Warning

When selector lever is in between positions for 1 second.

WARNING/INDICATOR CANCEL CONDITION

Electric Shift Warning A

When any of the following conditions are satisfied.

• Erase  DTC

• After operating the parking brake with the power switch ON, turn OFF the power switch.

Electric Shift Warning B

Erase DTC

Shift Position Warning

Optimizing selector lever position

Shift Position Indicator

INFOID:0000000010119552

DESIGN/PURPOSE

The shift position indicator displays the shift position of transmission.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

OPERATION AT COMBNATION METER CNA COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-64, "Fail-Safe"

.

JSDIA4015ZZ

COMPONENT PARTS

TM-39

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

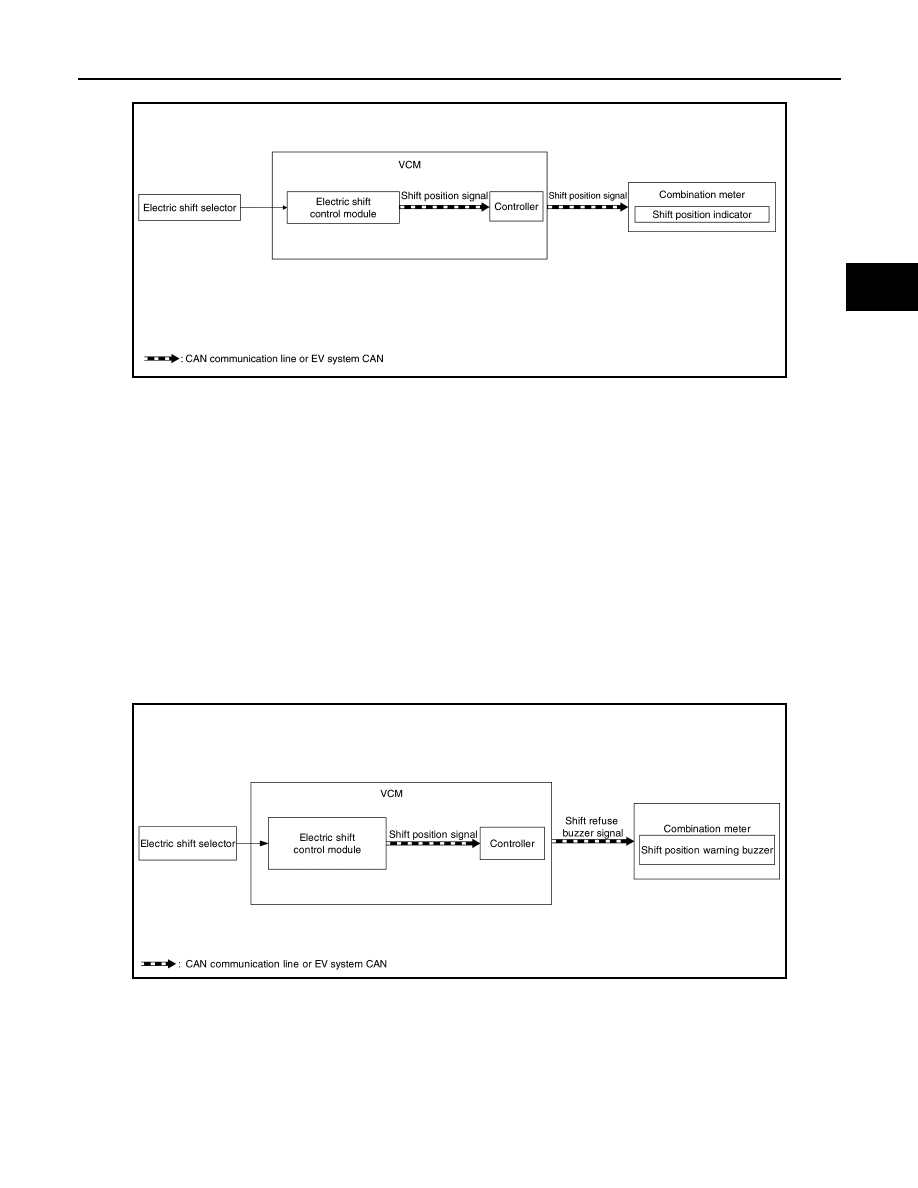

SYSTEM DIAGRAM

SIGNAL PATH

• The electric shift control module judges the shift position by the information from electric shift selector. Then

electric shift control module transmits shift position signal to VCM.

• VCM transmits that signal to combination meter.

• The combination meter indicates the current shift position when receiving shift position signal.

WARNING/INDICATOR OPERATIONG CONDITION

Power switch: ON

WARNING/INDICATOR CANCEL CONDITION

Power switch: OFF

Shift Position Warning Buzzer

INFOID:0000000010119553

PURPOSE

The shift position warning buzzer warns the driver that the sift position does not change to the selected posi-

tion.

SYSTEM DIAGRAM

SIGNAL PATH

• Electric shift control module and VCM judge that the shift position can be switched according to a signal

transmitted from the electric control shift selector.

• When electric shift control module and VCM judge that the shift position cannot be switched, electric shift

control module transmits a shift refuse buzzer signal to the combination meter.

• When receiving a  shift refuse buzzer signal, the combination meter activates the shift position warning

buzzer.

WARNING OPERATING CONDITION

JSDIA4228GB

JSDIA4230GB

TM-40

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

COMPONENT PARTS

When any of the following conditions are satisfied.

• When shifted from P position to other position while the power switch is ON.

• When shifted from P position to other position without depressing the brake pedal while the power switch is

in READY.

• When operating the P position switch while driving at 5 km/h (4 MPH) or more.

• When shifted to R position while driving with the lever in D position.

• When shifted to D position while driving with the lever in R position.

WARNING CANCEL CONDITION

When falling outside the warning operating conditions.

SOUND SPECIFICATION

JSDIA4231GB

STRUCTURE AND OPERATION

TM-41

< SYSTEM DESCRIPTION >

[ELECTRIC SHIFT]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

STRUCTURE AND OPERATION

Operating Principle

INFOID:0000000010119554

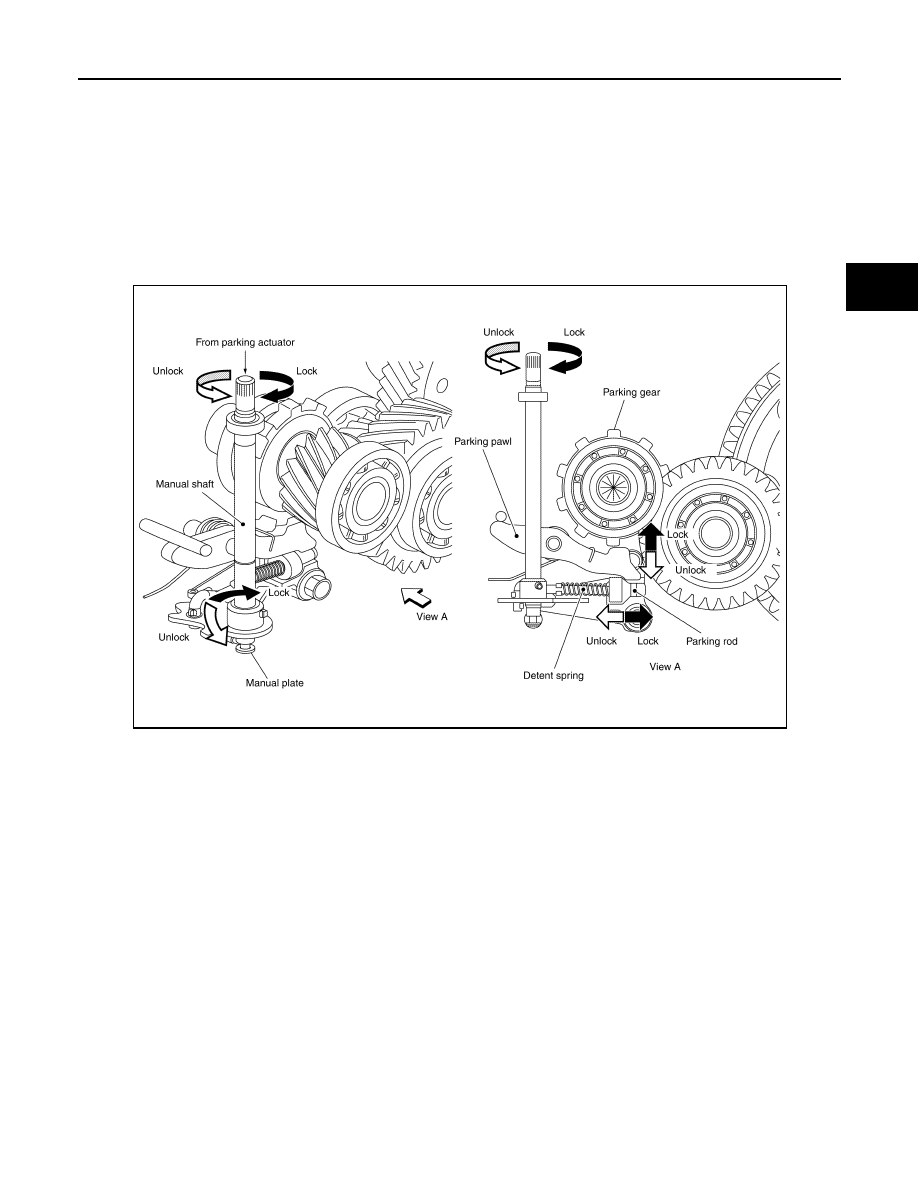

PARKING MECHANISM

• The parking mechanism consists of the manual shaft, manual plate, detent spring, parking rod, parking pawl

and parking gear, and it is locked/unlocked by the operation of the parking actuator.

• If the parking actuator is operated by the signal from the electric shift control module, the manual shaft and

manual plate that is mechanically connected to the parking actuator rotates sliding the parking rod. The slid-

ing parking rod pushes up the parking pawl, which engages with the parking gear locking the parking mech-

anism.

JSDIA4216GB
