PG-76

< WIRING DIAGRAM >

STANDARDIZED RELAY

STANDARDIZED RELAY

Description

INFOID:0000000010586664

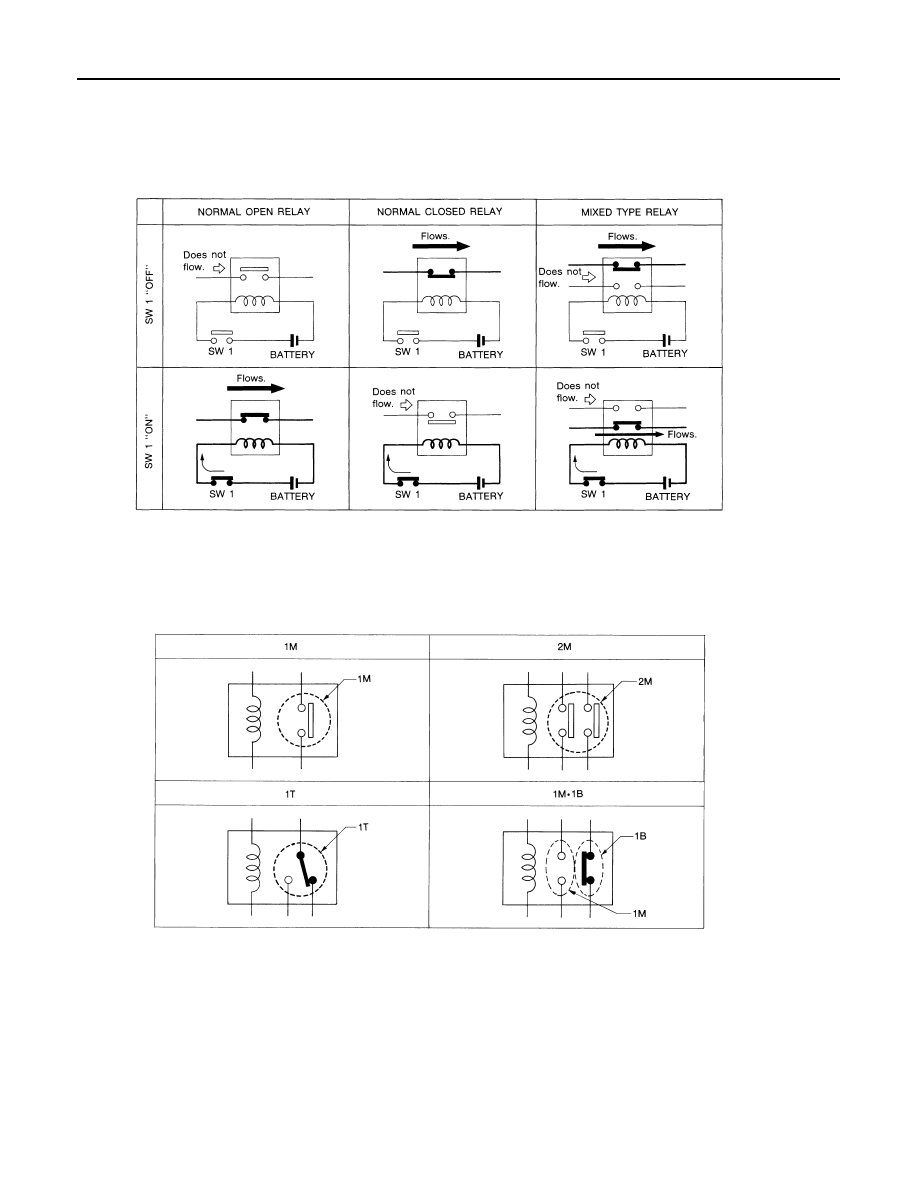

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

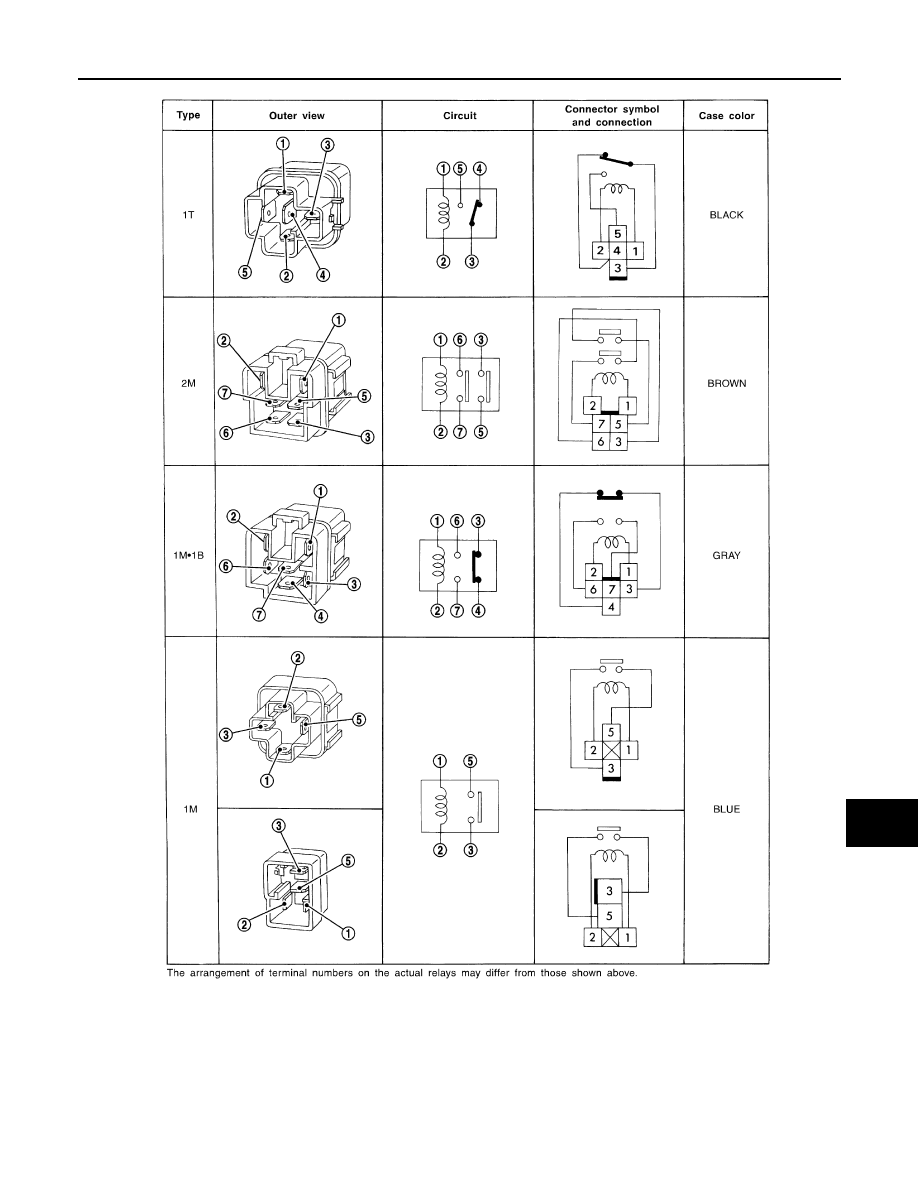

TYPE OF STANDARDIZED RELAYS

SEL881H

1M  ····················  1 Make

2M       ····················  2 Make

1T   ····················  1 Transfer

1M·1B  ····················  1 Make 1 Break

SEL882H

PG

STANDARDIZED RELAY

PG-77

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SEL188W

PG-78

< WIRING DIAGRAM >

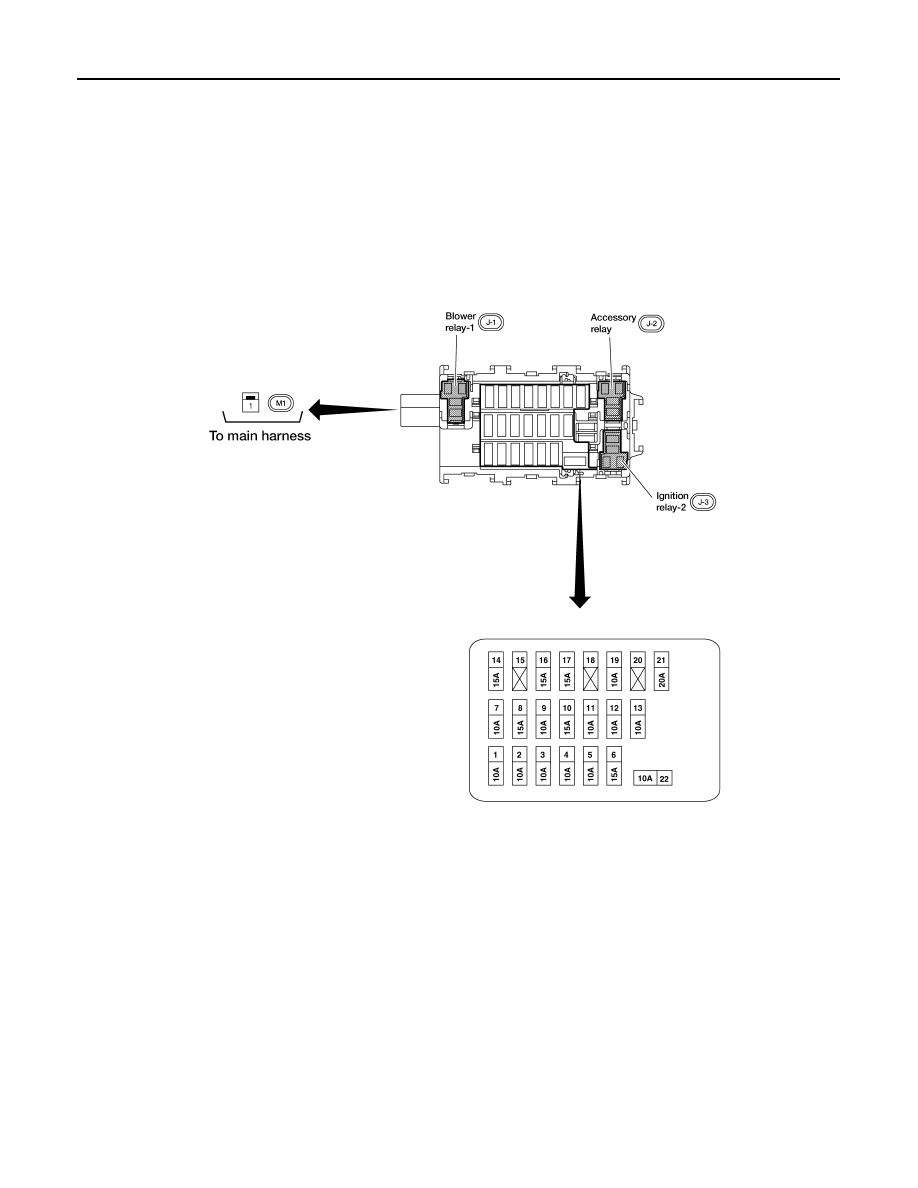

FUSE BLOCK - JUNCTION BOX (J/B)

FUSE BLOCK - JUNCTION BOX (J/B)

Terminal Arrangement

INFOID:0000000010586665

AAMIA2457GB

PG

FUSE, FUSIBLE LINK AND RELAY BOX

PG-79

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

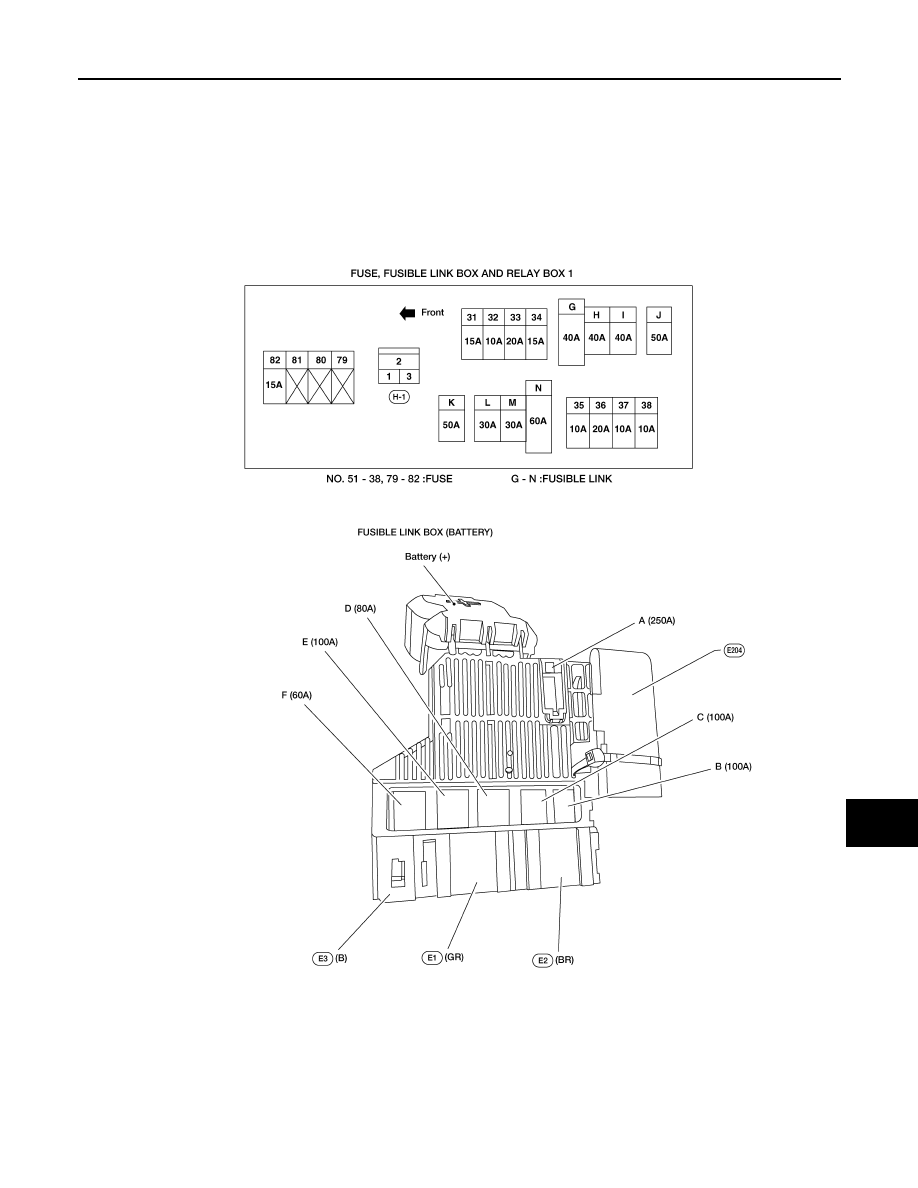

FUSE, FUSIBLE LINK AND RELAY BOX

Terminal Arrangement

INFOID:0000000010586666

FUSE, FUSIBLE LINK AND RELAY BOX 1 AND FUSIBLE LINK BOX (BATTERY)

AAMIA2458GB
