Nissan Primera P11. Manual - part 453





REFERENCE AREA

The Reference Area of the wiring diagram contains references to
additional electrical reference pages at the end of the manual. If
connector numbers and titles are shown in the Reference Area
of the wiring diagram, these connector symbols are not shown
in the Connector Area.

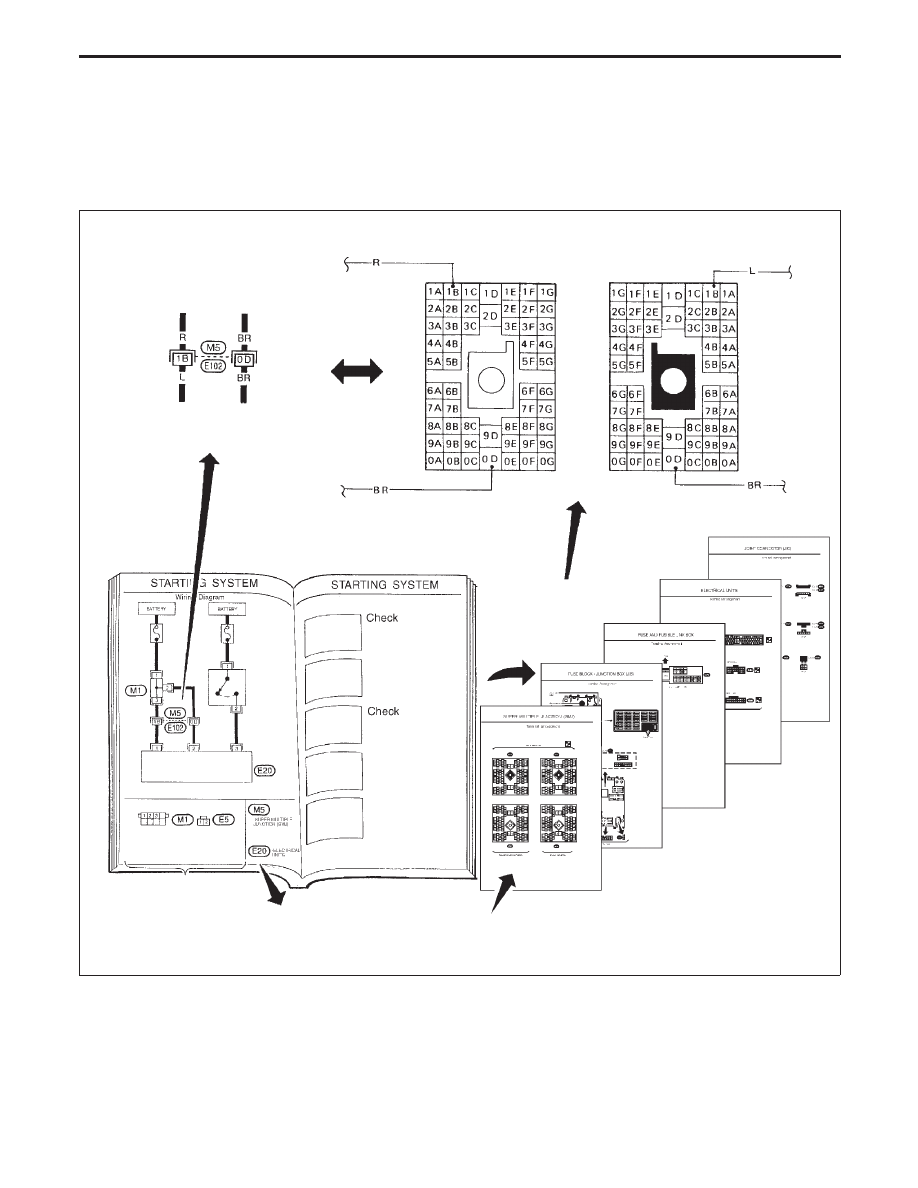

Super multiple junction (SMJ)
In a wiring diagram, the SMJ connectors include a letter of the
alphabet in the terminal number. SMJ connector numbers are
shown in the Reference Area of the wiring diagram. SMJ termi-
nal arrangement can be found on the electrical reference pages
at the end of the manual. For terminal arrangement of these
connectors, refer to “SUPER MULTIPLE JUNCTION (SMJ)”
electrical reference page at the end of the manual.

SGI092A

Example

(Main
harness)

(Engine
room
harness)

Super Multiple Junction

(SMJ)

(Main harness)

(Engine room harness)

Connector Area

Reference Area:
Refer to the electrical reference pages at the end of the manual
for the terminal arrangement of the connectors shown here in the “Reference Area”.

HOW TO READ WIRING DIAGRAMS

Description (Cont’d)

GI-19

Wiring Diagram Codes (Cell Codes)

Use the chart below to find out what each wiring diagram code
stands for.

Code

Section

Wiring Diagram Name

AAC/V

EC

IACV-AAC Valve

ABS

BR

Anti-lock Brake System

ACL/SW

EC

Accelerator Position Switch

ADJRES

EC

Adjustment Resistor

A/C

HA

Manual Air Conditioner

A/CCUT

EC

Air Conditioner Cut Control

ACC/SW

EC

Accelerator Switch (FC)

A/T

AT

Automatic Transmission

AIM

EL

Headlamp Aiming Control

APS

EC

Accelerator Position Sensor

AIRREG

EC

IACV-Air Regulator

AT/C

EC

A/T Control

AUDIO

EL

Audio

BACK/L

EL

Back-up Lamp

BUZZER

EL

Warning Buzzer

CHARGE

EL

Charging System

CKPS

EC

Crankshaft Position Sensor

CHIME

EL

Warning Chime

CMPS

EC

Camshaft Position Sensor

COOL/F

EC

Cooling Fan Control

CSPS

EC

Control Sleeve Position Sensor

DTRL

EL

Headlamp — With Daytime Light
System

DEF

EL

Rear Window Defogger

D/LOCK

EL

Power Door Lock

DTRL

EL

Headlamp — With Daytime Light
System

ECTS

EC

Engine Coolant Temperature
Sensor

EGRC/V

EC

EGR and canister Control Solenoid
Valve

FCUT

EC

Fuel Cut Solenoid Valve

F/FOG

EL

Front Fog Lamp

FICD

EC

IACV-FICD Solenoid Valve

F/PUMP

EC

Fuel Pump

FTS

EC

Fuel Temperature Sensor

GLOW

EC

Quick-glow system

GOVNR

EC

Electric Governor

H/LAMP

EL

Headlamp — Without Daytime
Light System

H/SEAT

EL

Heated Seat

HEAT

HA

Heater

HLC

EL

Headlamp Washer

HO2S

EC

Heated Oxygen Sensor

HORN

EL

Horn, Cigarette Lighter, Clock

IATS

EC

Intake Air Temperature Sensor

IGN/SG

EC

Ignition Signal

Code

Section

Wiring Diagram Name

ILL

EL

Illumination

INJECT

EC

Injector

INT/L

EL

Interior, Spot and Trunk Room
Lamps

KS

EC

Knock Sensor

LOAD

EC

Load Signal

LKUP

EC

Torque Converter Clutch Solenoid
Valve

LOAD

EC

Load Signal

MAFS

EC

Mass Air Flow Sensor

MAIN

EC

Main Power Supply and Ground
Circuit

METER

EL

Speedometer, Tachometer, Temp.
and Fuel Gauges

MI

EC

Malfunction Indicator

MIRROR

EL

Door Mirror

NATS

EL

Nissan Anti-Theft System

NLS

EC

Needle Lift Sensor

O2S

EC

Oxygen Sensor

PGC/V

EC

EVAP Canister Purge Control
Solenoid Valve

PLA

EC

Partial Load Advance Control

PNP/SW

EC

Park/Neutral Position Switch

POWER

EL

Power Supply Routing

PST/SW

EC

Power Steering Oil Pressure
Switch

R/FOG

EL

Rear Fog Lamp

SROOF

EL

Sun Roof

SRS

RS

Supplemental Restraint System

S/LOCK

EL

Power Door Lock — Super Lock

S/SIG

EC

Start Signal

START

EL

Starting System

STOP/L

EL

Stop Lamp

TAIL/L

EL

Clearance, License, and Tail
Lamps

TCV

EC

Injection Timing Control Valve

TPS

EC

Throttle Position Sensor

TURN

EL

Turn Signal and Hazard Warning
Lamps

VSS

EC

Vehicle Speed Sensor

VTC

EC

VTC Solenoid Valve

WARN

EL

Warning Lamps

WINDOW

EL

Power Window

WIPER

EL

Front Wiper and Washer

WIP/R

EL

Rear Wiper and Washer

HOW TO READ WIRING DIAGRAMS

GI-20

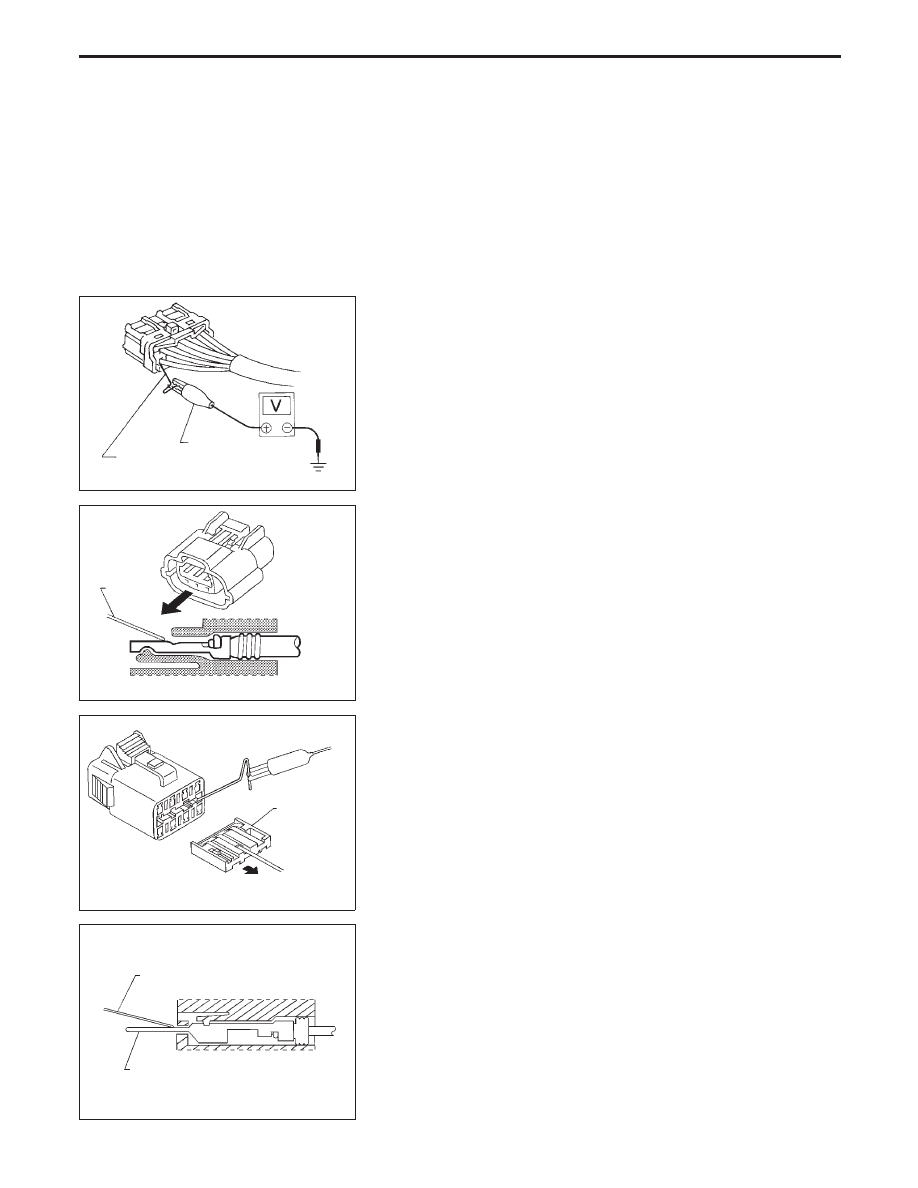

How to Probe Connectors

Connector damage and an intermittent connection can result
from improperly probing of the connector during circuit checks.
The probe of a digital multimeter (DMM) may not correctly fit the
connector cavity. To correctly probe the connector, follow the
procedures below using a “T” pin. For the best contact grasp the
“T” pin using an alligator clip.

PROBING FROM HARNESS SIDE

Standard type (not waterproof type) connector should be probed
from harness side with “T” pin.

If the connector has a rear cover such as a ECM
connector, remove the rear cover before probing the ter-
minal.

Do not probe waterproof connector from harness side.
Damage to the seal between wire and connector may
result.

PROBING FROM TERMINAL SIDE

Female Terminal

There is a small notch above each female terminal. Probe
each terminal with the “T” pin through the notch.
Do not insert any object other than the same type male
terminal into female terminal.

Some connectors do not have a notch above each terminal.
To probe each terminal, remove the connector retainer to
make contact space for probing.

Male Terminal
Carefully probe the contact surface of each terminal using a “T”
pin.
Do not bend terminal.

SGI841

Connector

“T” pin

Alligator clip

DMM

SEL265V

“T” pin

Sectional view (Female)

SEL266V

Retainer

SEL267V

Sectional view (Male)

“T” pin

Male terminal

HOW TO CHECK TERMINAL

GI-21

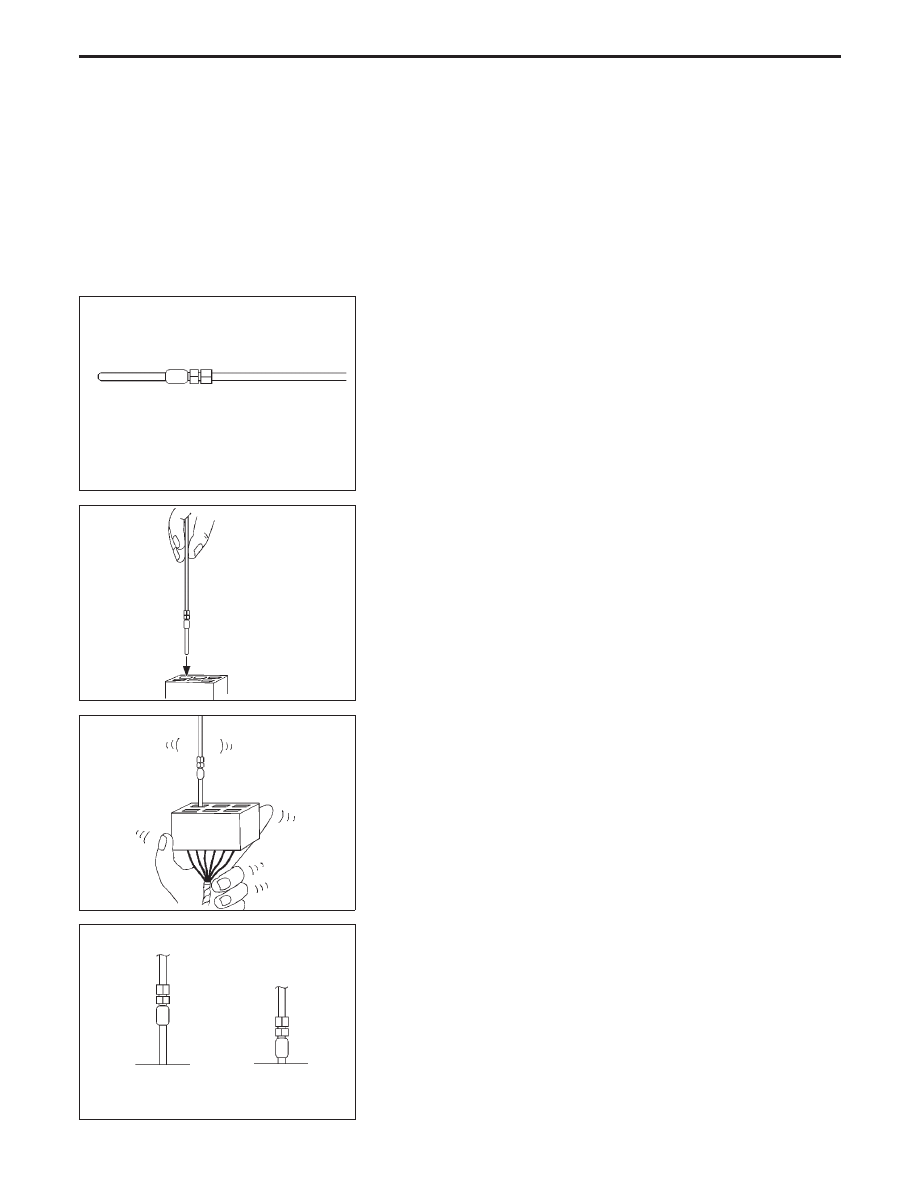

How to Check Enlarged Contact Spring of
Terminal

An enlarged contact spring of a terminal may create intermittent
signals in the circuit.
If the intermittent open circuit occurs, follow the procedure below
to inspect for open wires and enlarged contact spring of female
terminal.

1. Assemble a male terminal and approx. 10 cm (3.9 in) of wire.

Use a male terminal which matches the female terminal.

2. Disconnect the suspected faulty connector and hold it termi-

nal side up.

3. While holding the wire of the male terminal, try to insert the

male terminal into the female terminal.
Do not force the male terminal into the female terminal
with your hands.

4. While moving the connector, check whether the male termi-

nal can be easily inserted or not.

If the male terminal can be easily inserted into the female
terminal, replace the female terminal.

SEL270V

Male terminal

Wire

SEL271V

Do not apply force
against the terminal.

SEL272V

SEL273V

OK

NG

HOW TO CHECK TERMINAL

GI-22
