Nissan Primera P11. Manual - part 294

쑗

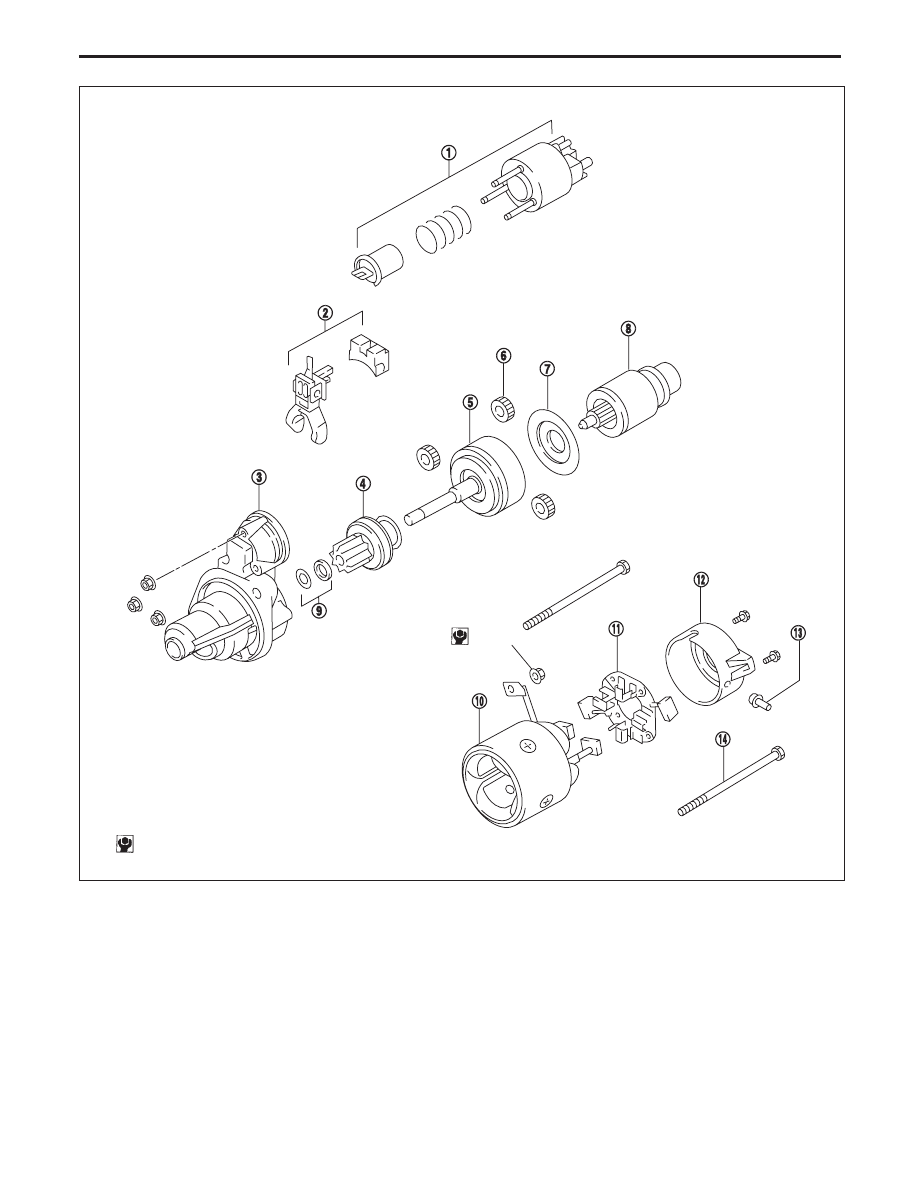

1

Magnetic switch assembly

쑗

2

Shift lever assembly

쑗

3

Gear case

쑗

4

Pinion assembly

쑗

5

Pinion shaft assembly

쑗

6

Planetary gear assembly

쑗

7

Centre bracket

쑗

8

Armature

쑗

9

Pinion stopper

쑗

10

Yoke assembly

쑗

11

Brush holder

쑗

12

Rear cover

쑗

13

Drain hose

쑗

14

Through-bolts

8 (0.8, 69)

: N·m (kg-m, in-lb)

YEL422B

SEC. 233
M70R

STARTING SYSTEM

Construction (Cont’d)

EL-43

쑗

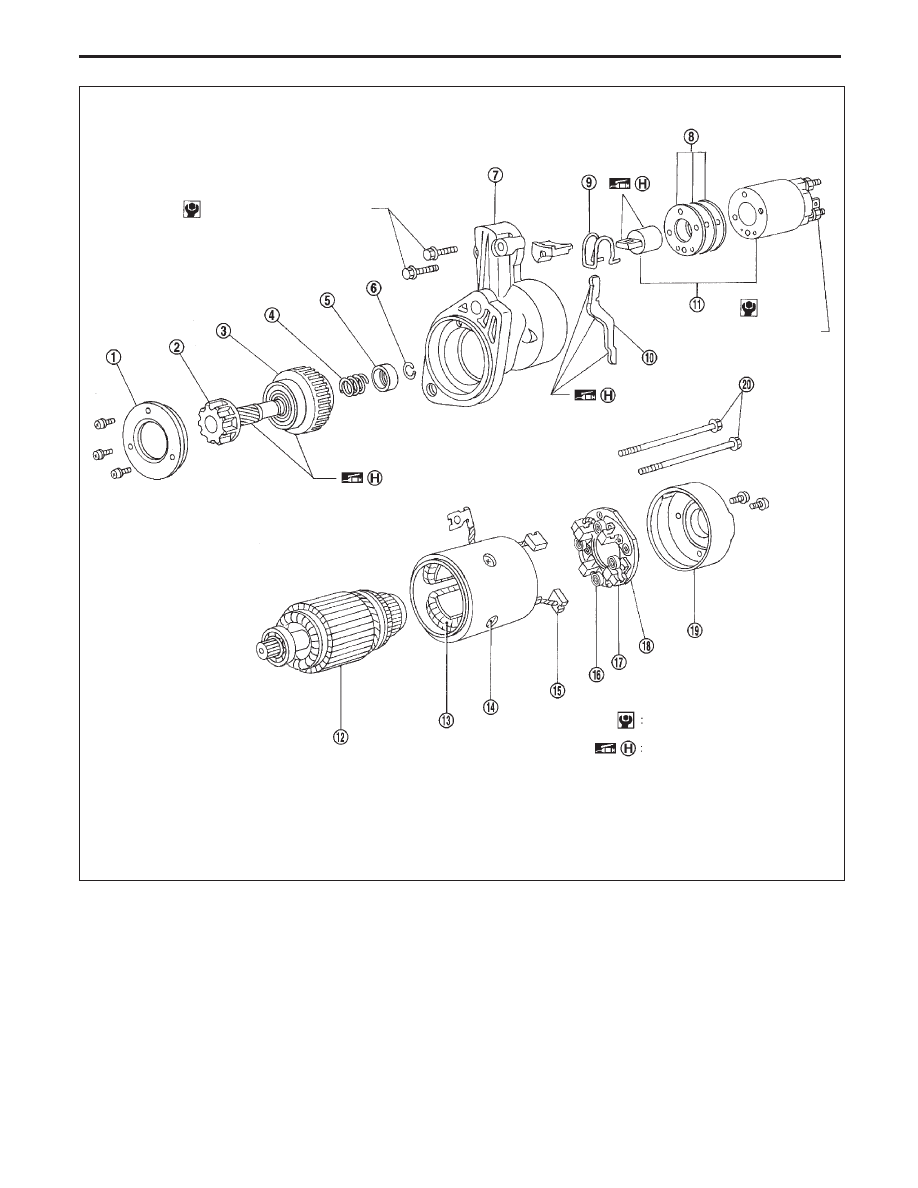

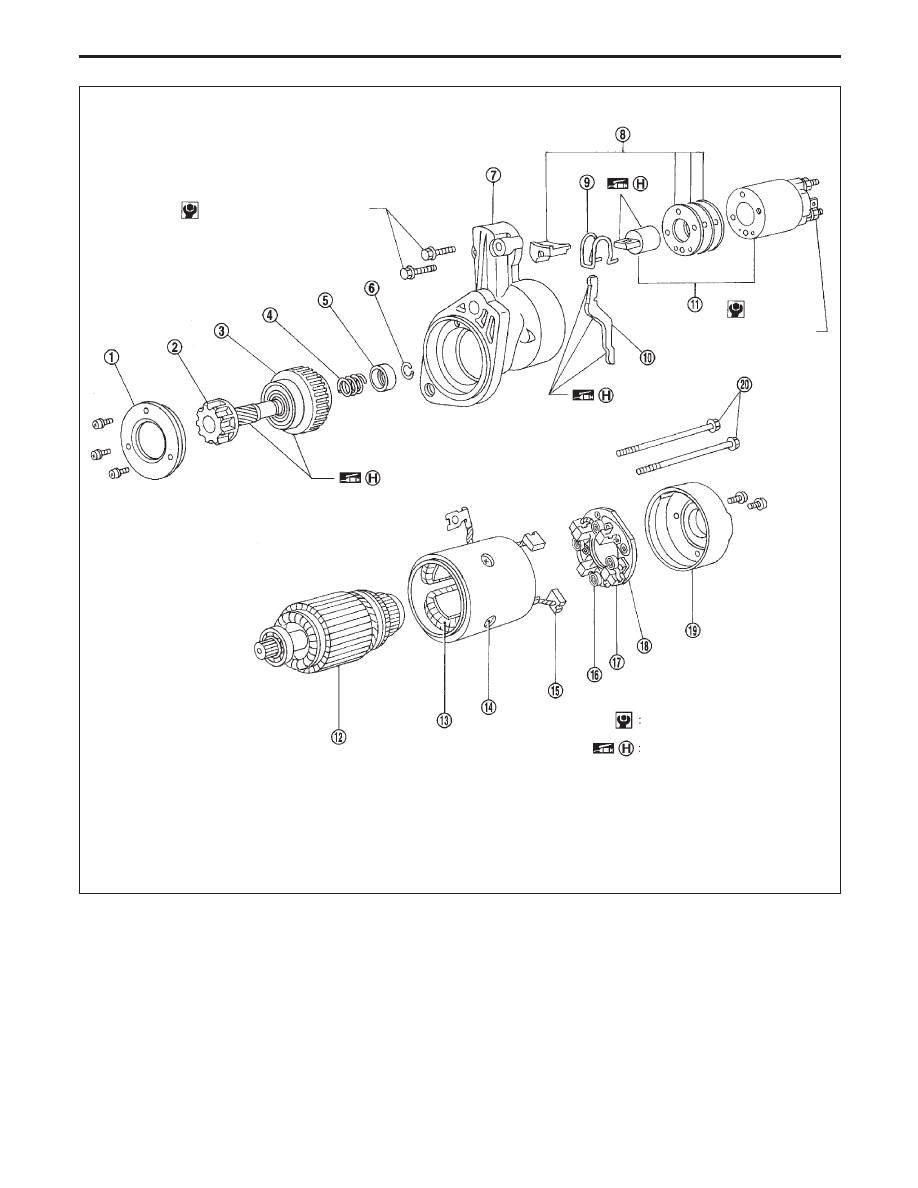

1

Bearing retainer

쑗

2

Pinion shaft

쑗

3

Clutch assembly

쑗

4

Return spring

쑗

5

Pinion stopper

쑗

6

Stopper clip

쑗

7

Gear case

쑗

8

Adjusting plates

쑗

9

Torsion spring

쑗

10

Shift lever

쑗

11

Magnetic switch assembly

쑗

12

Armature assembly

쑗

13

Field coil

쑗

14

Yoke

쑗

15

Brush (+)

쑗

16

Brush spring

쑗

17

Brush (−)

쑗

18

Brush holder

쑗

19

Rear cover

쑗

20

Through-bolt

NEL299

SEC. 233
S13 - 305

6.4 - 7.8 (0.65 - 0.80, 56.4 - 69.4)

7.4 - 9.8
(0.75 - 1.00,
65.1 - 86.8)

N·m (kg-m, in-lb)

High-temperature grease point

STARTING SYSTEM

Construction (Cont’d)

EL-44

쑗

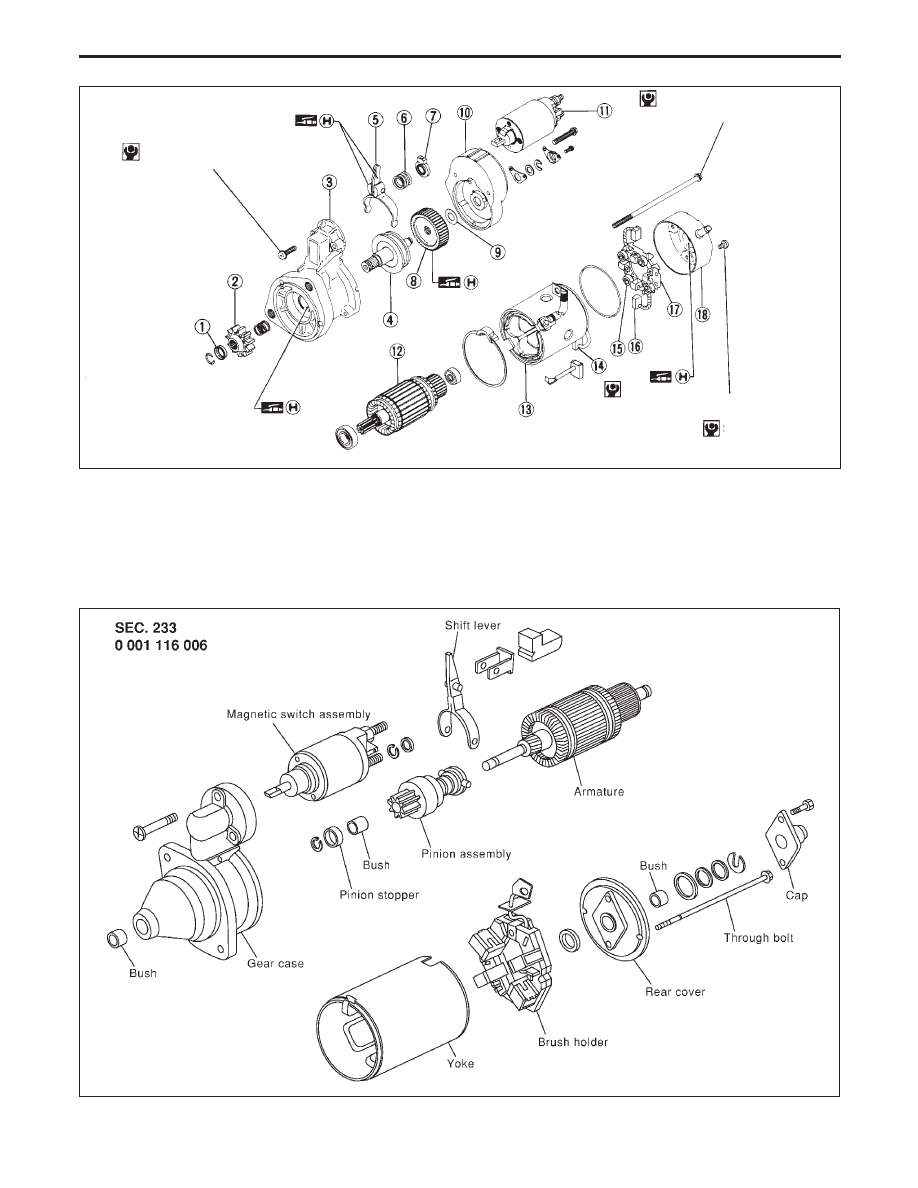

1

Pinion stopper

쑗

2

Pinion assembly

쑗

3

Gear case

쑗

4

Pinion shaft assembly

쑗

5

Shift lever

쑗

6

Spring

쑗

7

Holder

쑗

8

Reduction gear

쑗

9

Washer

쑗

10

Center bracket

쑗

11

Magnetic switch assembly

쑗

12

Armature

쑗

13

Yoke

쑗

14

Brush (+)

쑗

15

Brush spring

쑗

16

Brush (-)

쑗

17

Brush holder

쑗

18

Rear cover

MEL780DB

SEC. 233
M2M62071

3.9 - 7.8
(0.40 - 0.80, 34.7 - 69.4)

4.9 - 6.9
(0.50 - 0.70, 43.4 - 60.8)

2.5 - 4.4
(0.25 - 0.45, 21.7 - 39.1)

N·m (kg-m, in-lb)

MEL232M

STARTING SYSTEM

Construction (Cont’d)

EL-45

쑗

1

Bearing retainer

쑗

2

Pinion shaft

쑗

3

Clutch assembly

쑗

4

Return spring

쑗

5

Pinion stopper

쑗

6

Stopper clip

쑗

7

Gear case

쑗

8

Dust cover

쑗

9

Torsion spring

쑗

10

Shift lever

쑗

11

Magnetic switch assembly

쑗

12

Armature assembly

쑗

13

Field coil

쑗

14

Yoke

쑗

15

Brush (+)

쑗

16

Brush spring

쑗

17

Brush (−)

쑗

18

Brush holder

쑗

19

Rear cover

쑗

20

Through-bolt

MEL233FB

SEC. 233
S13-531

6.4 - 7.8 (0.65 - 0.80, 56.4 - 69.4)

7.4 - 9.8
(0.75 - 1.00,
65.1 - 86.8)

N·m (kg-m, in-lb)

High temperature grease point

STARTING SYSTEM

Construction (Cont’d)

EL-46
