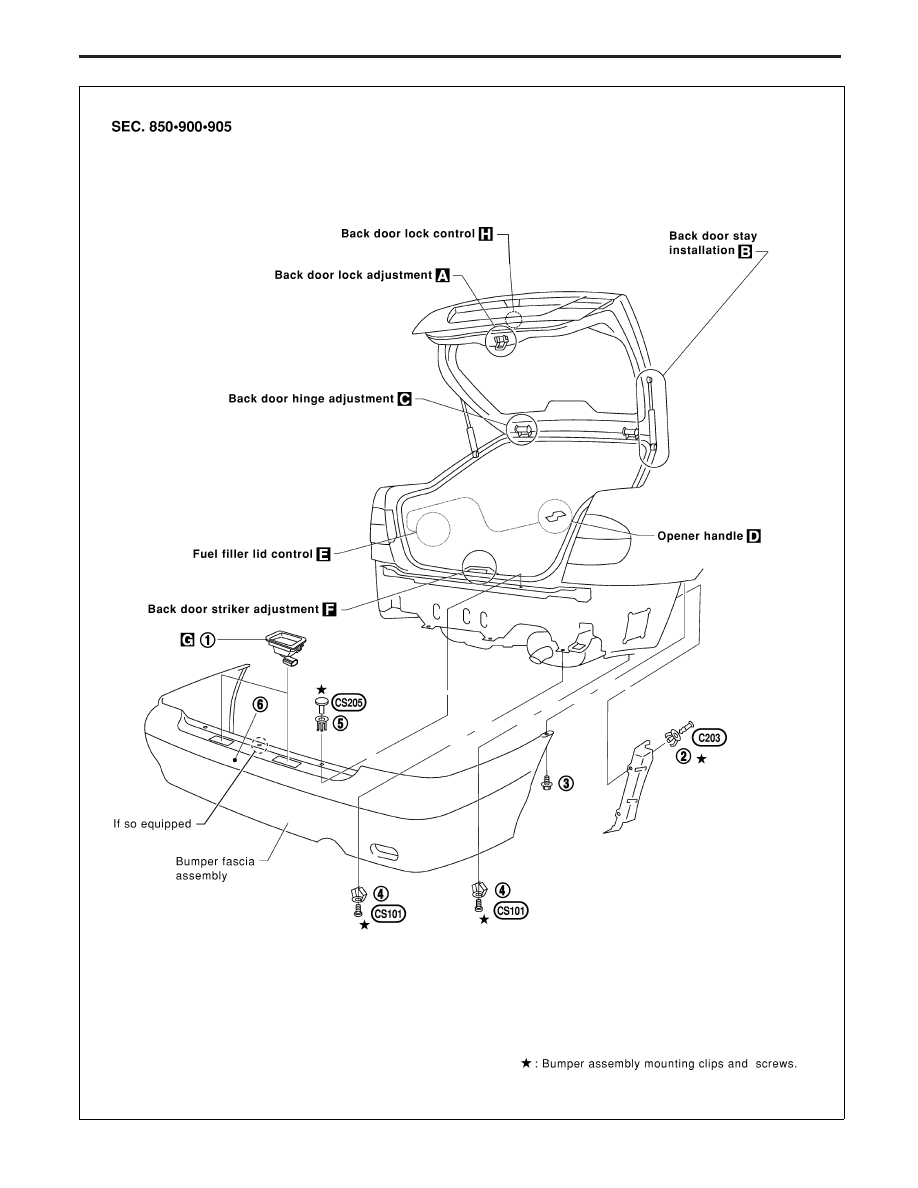

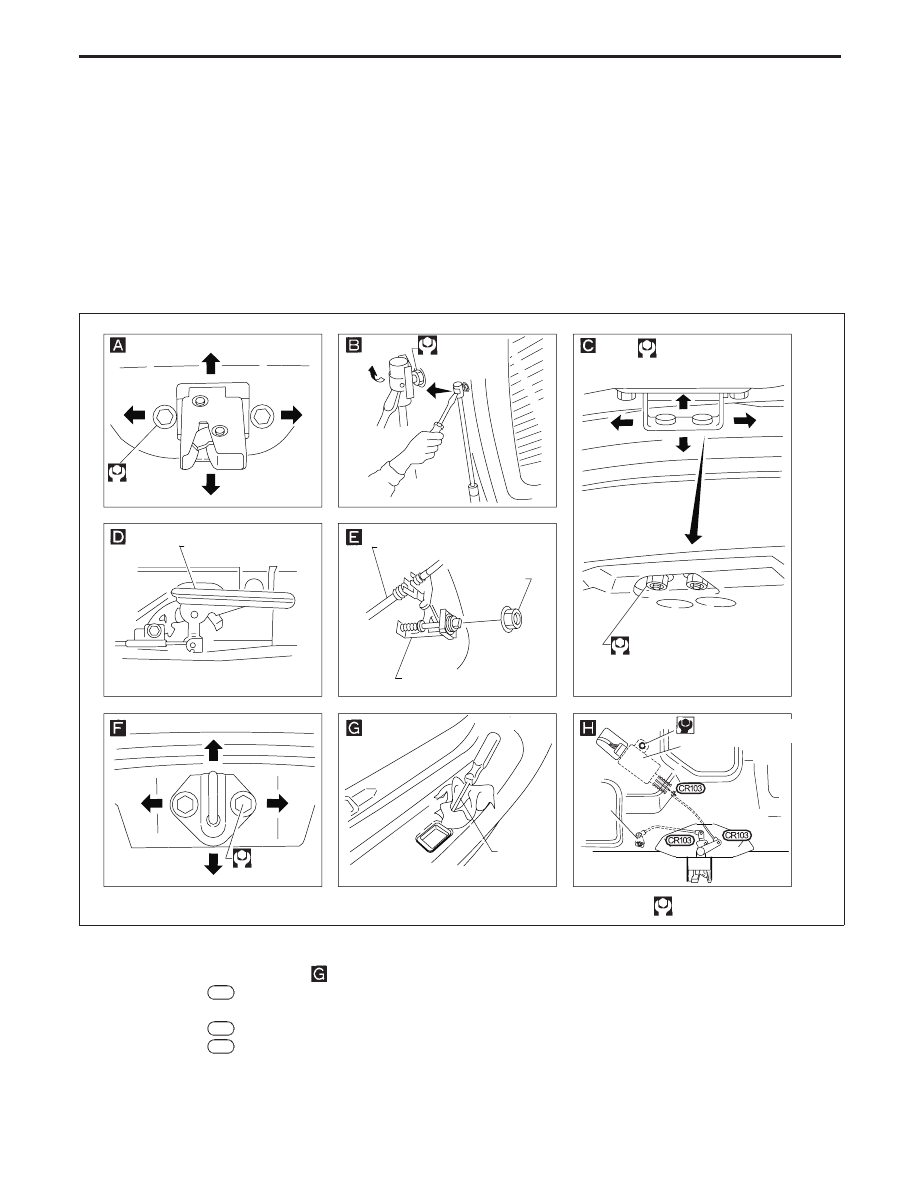

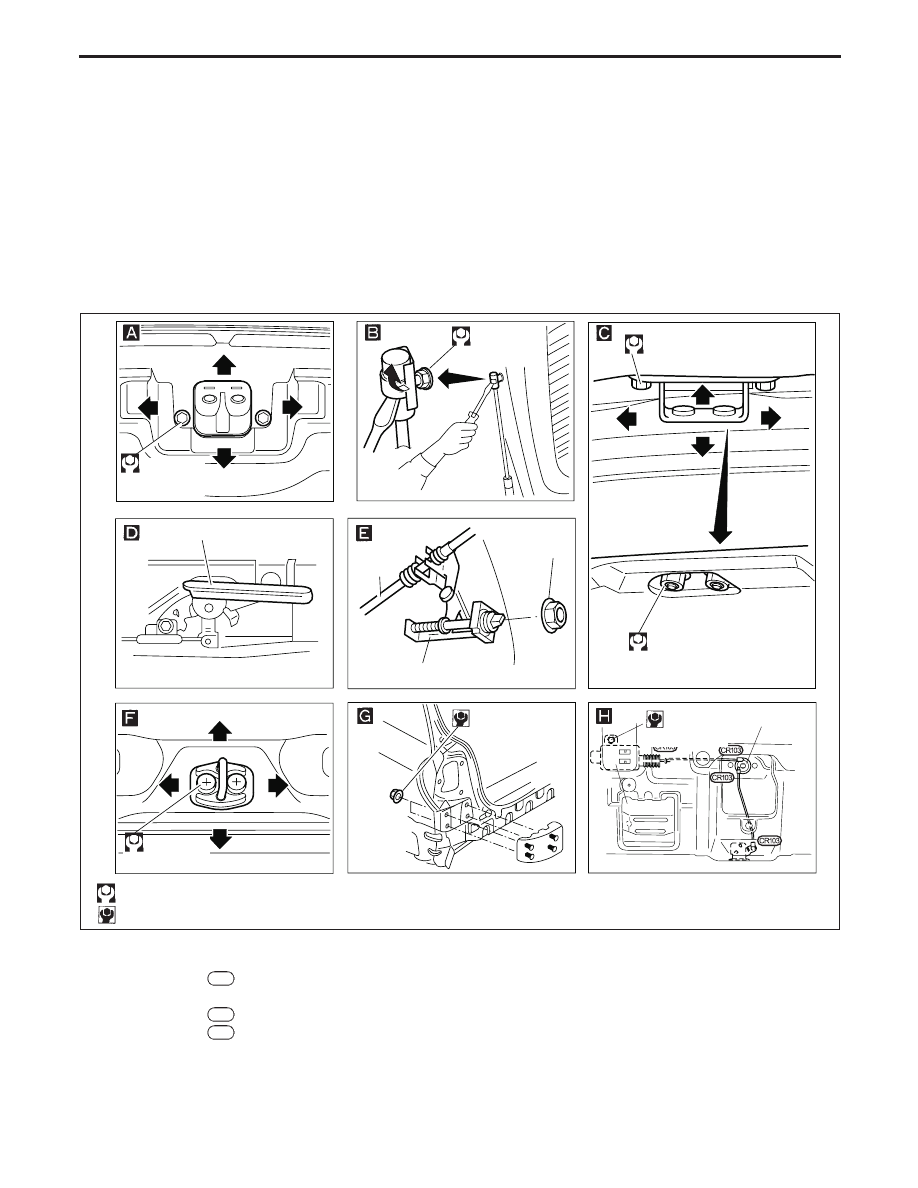

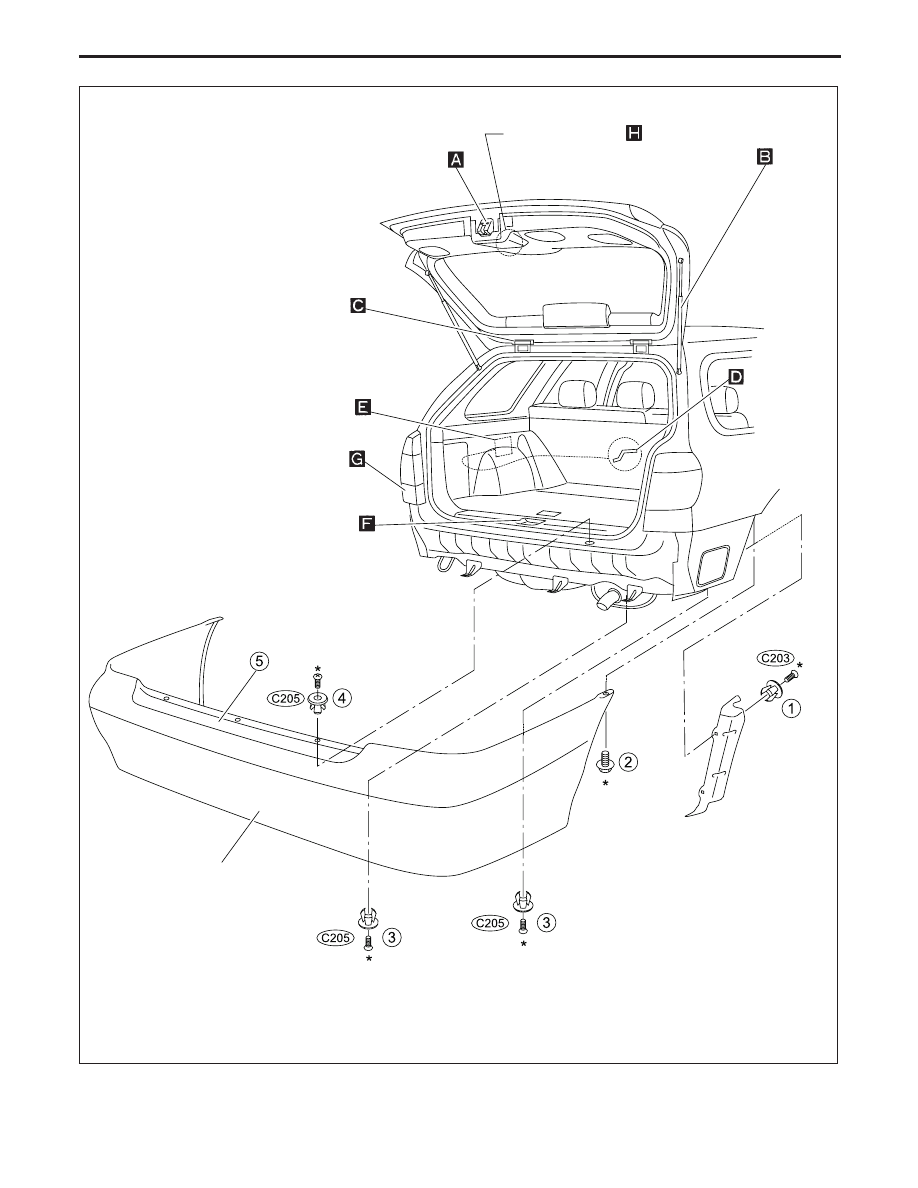

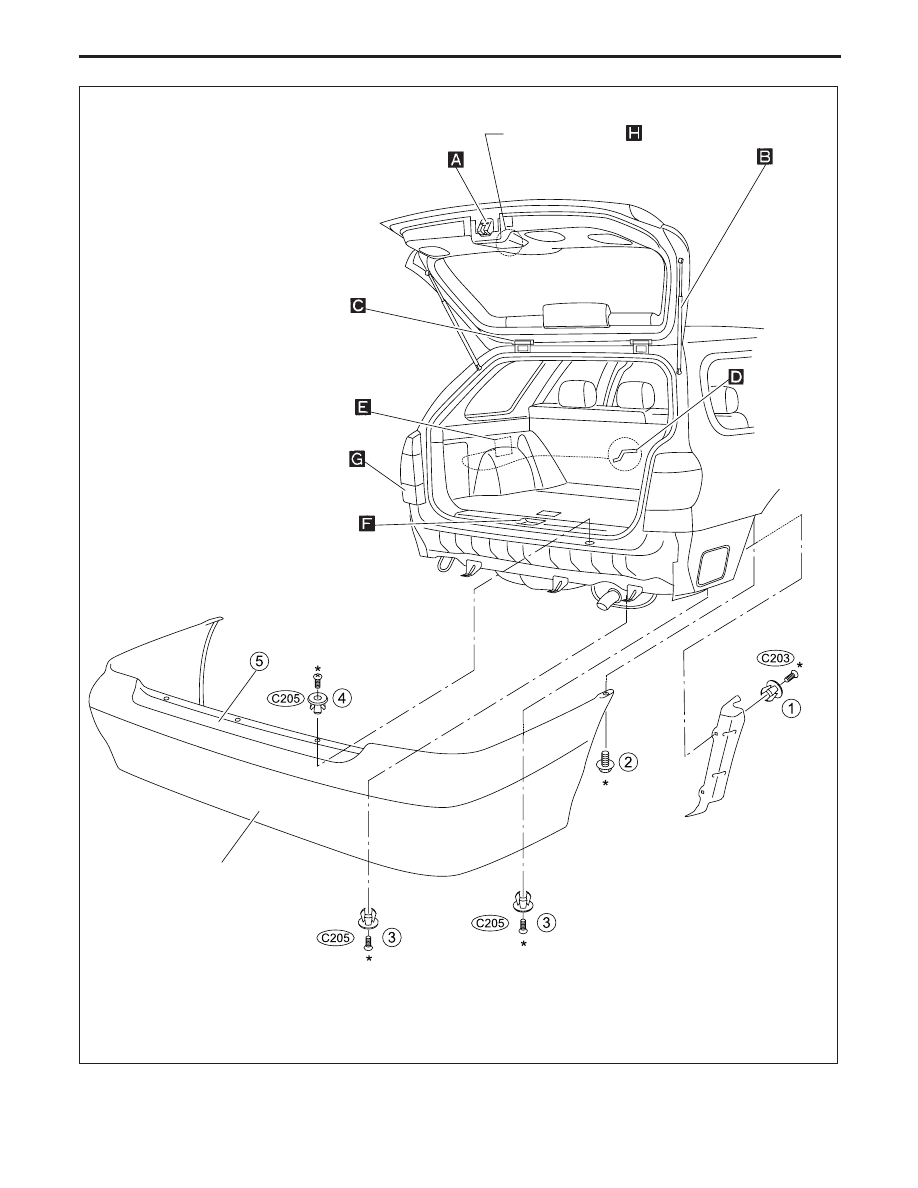

5-DOOR HATCHBACK ● Back door adjustment: Adjust at hinge-body portion for proper back door fit. ● Back door lock system adjustment: Adjust lock & striker so that they are in the center. After adjustment, WARNING: ● Be careful not to scratch back door stay when installing back door. A scratched stay may cause ● The contents of the back door stay are under pressure. Do not take apart, puncture, apply heat ● Opener cable: Do not attempt to bend cable using excessive force. ● After installation, make sure that back door and fuel filler lid open smoothly. REMOVAL — Rear bumper assembly p 1 Remove license plate lamp p 2 Remove clips C203 securing left and right chipping protector. p 3 Remove screws securing bumper fascia to left and right rear fenders. p 4 Remove clips CS101 securing bumper fascia to rear panel. p 5 Remove clips C205 securing bumper fascia to rear panel upper. p 6 Extract bumper fascia assembly. NBT036 Opener handle Opener cable Lock nut Fuel filler lid opener & control 20.6 - 26.5 12.7 - 15.7 12.7 - 15.7 12.7 - 15.7 20.6 - 26.5 : N·m (kg-m, ft-lb) Cloth . 5.1 - 6.37 Actuator Key BODY END Body Rear End and Opener (Cont’d) BT-9 |
