SRS-54

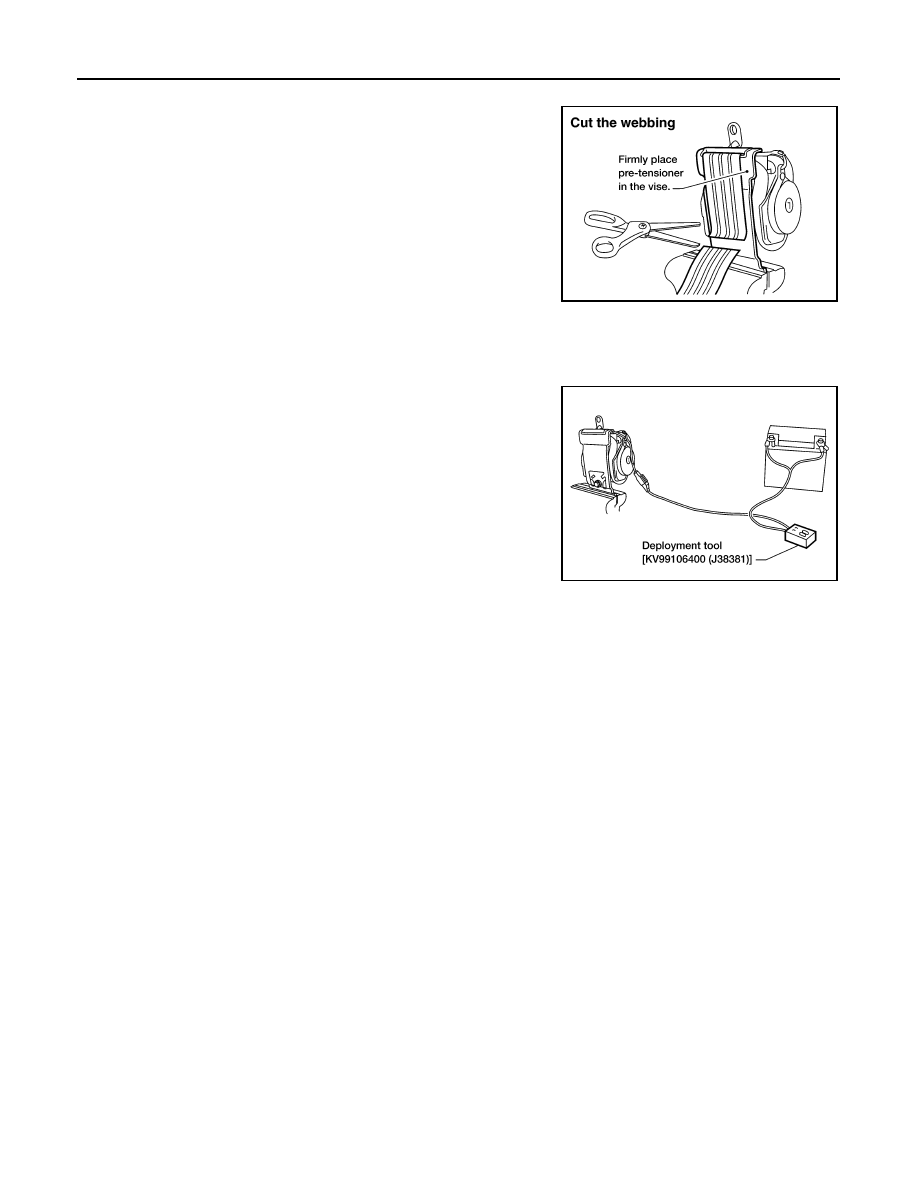

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
3.

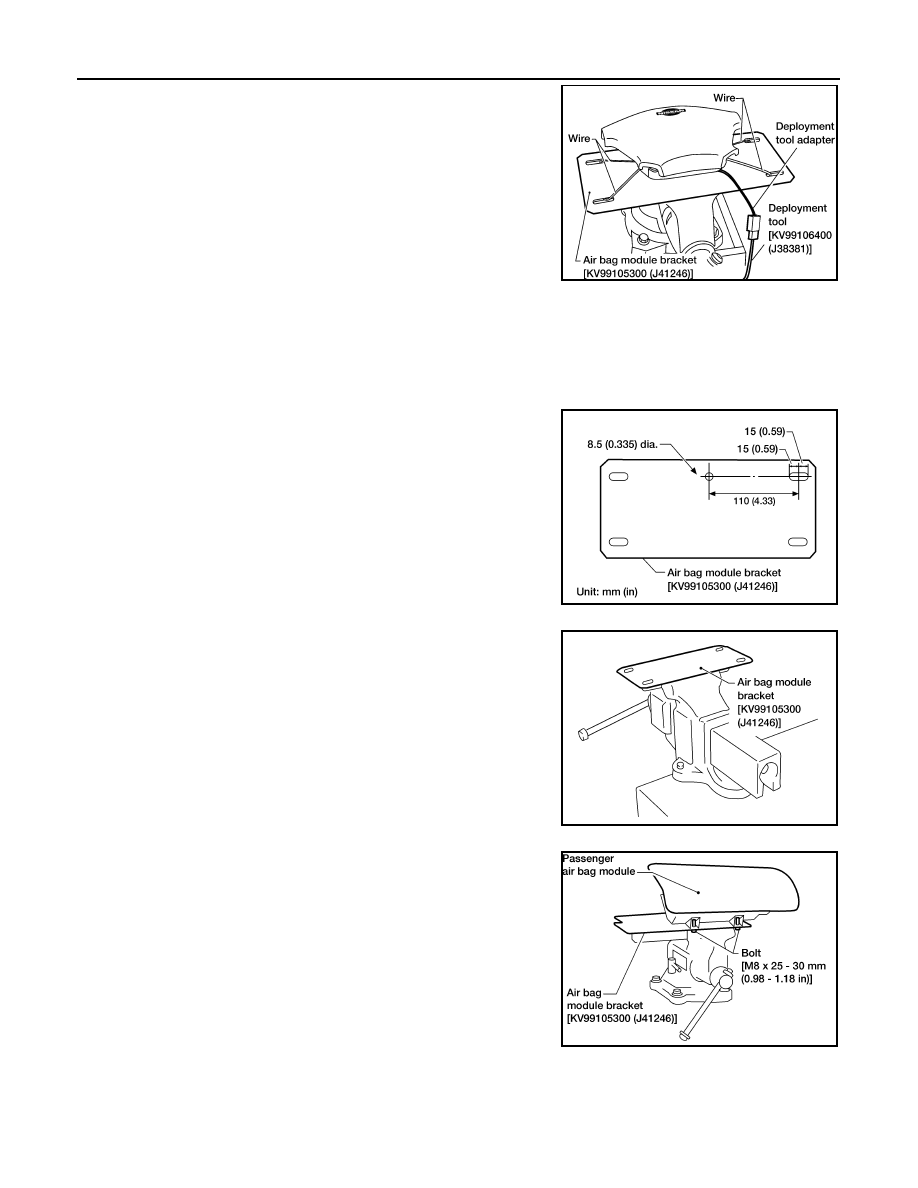

Connect deployment tool adapter [SST: KV99109000 (J44230)]:
for 2-door models or [J38381-80]: for 4-door models to deploy-
ment tool [SST: KV99106400 (J38381)] and driver air bag mod-
ule connector.
4.
Connect red clip of deployment tool [SST: KV99106400
(J38381)] to battery positive terminal and black clip to negative
terminal.
5.
The right side lamp on the deployment tool [SST: KV99106400
(J38381)], marked “DEPLOYMENT TOOL POWER”, should
glow green, not red.
6.
Press the button on the deployment tool [SST: KV99106400
(J38381)]. The left side lamp on the deployment tool [SST:
KV99106400 (J38381)], marked “AIR BAG CONNECTOR VOLTAGE”, will illuminate and the air bag mod-
ule will deploy.
CAUTION:
When deploying the air bag module, stand at least 5 m (16 ft) away from the air bag module.

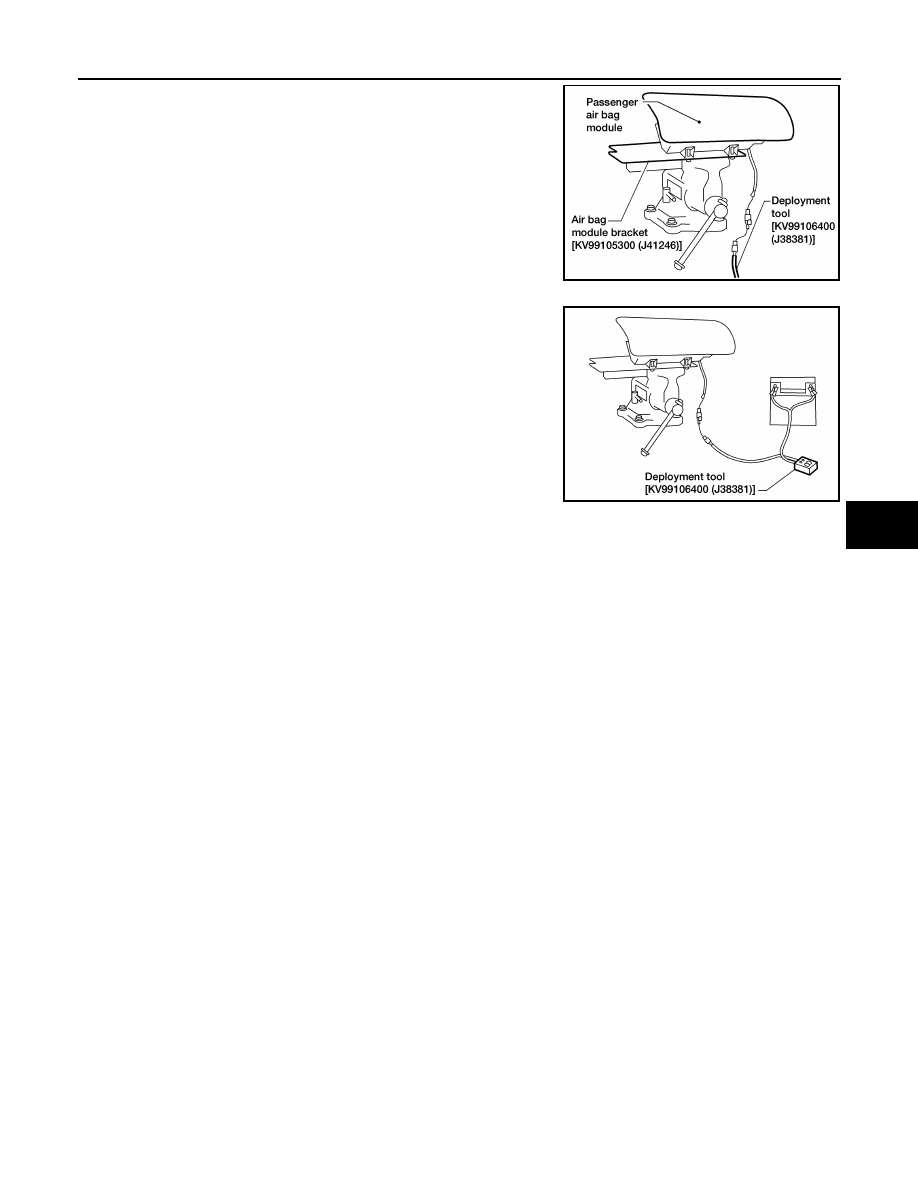

Deployment of Passenger Air Bag Module (Outside of vehicle)
1.
Make an 8.5 mm (0.335 in) diameter hole in air bag module
bracket [SST: KV99105300 (J41246)] at the position shown.
2.
Firmly secure air bag module bracket [SST: KV99105300
(J41246)] in a vise.
3.
Match the two holes in air bag module bracket [SST:
KV99105300 (J41246)] (held in vise) and passenger air bag
module and fix them with two bolts [M8 x 25 - 30 mm (0.98 - 1.18
in)].
CAUTION:
If a gap exists between passenger air bag module and air bag
module bracket, use a piece of wood inserted in the gap to sta-
bilize the air bag module.
