DIAGNOSIS AND REPAIR WORKFLOW

WT-3

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Repair Work Flow

INFOID:0000000009483058

WORK FLOW

DETAILED FLOW

1.

CUSTOMER INFORMATION

Interview the customer to obtain detailed information about the symptom.

>> GO TO 2

2.

PRELIMINARY CHECK

Perform preliminary check. Refer to

WT-5, "Preliminary Check"

.

>> GO TO 3

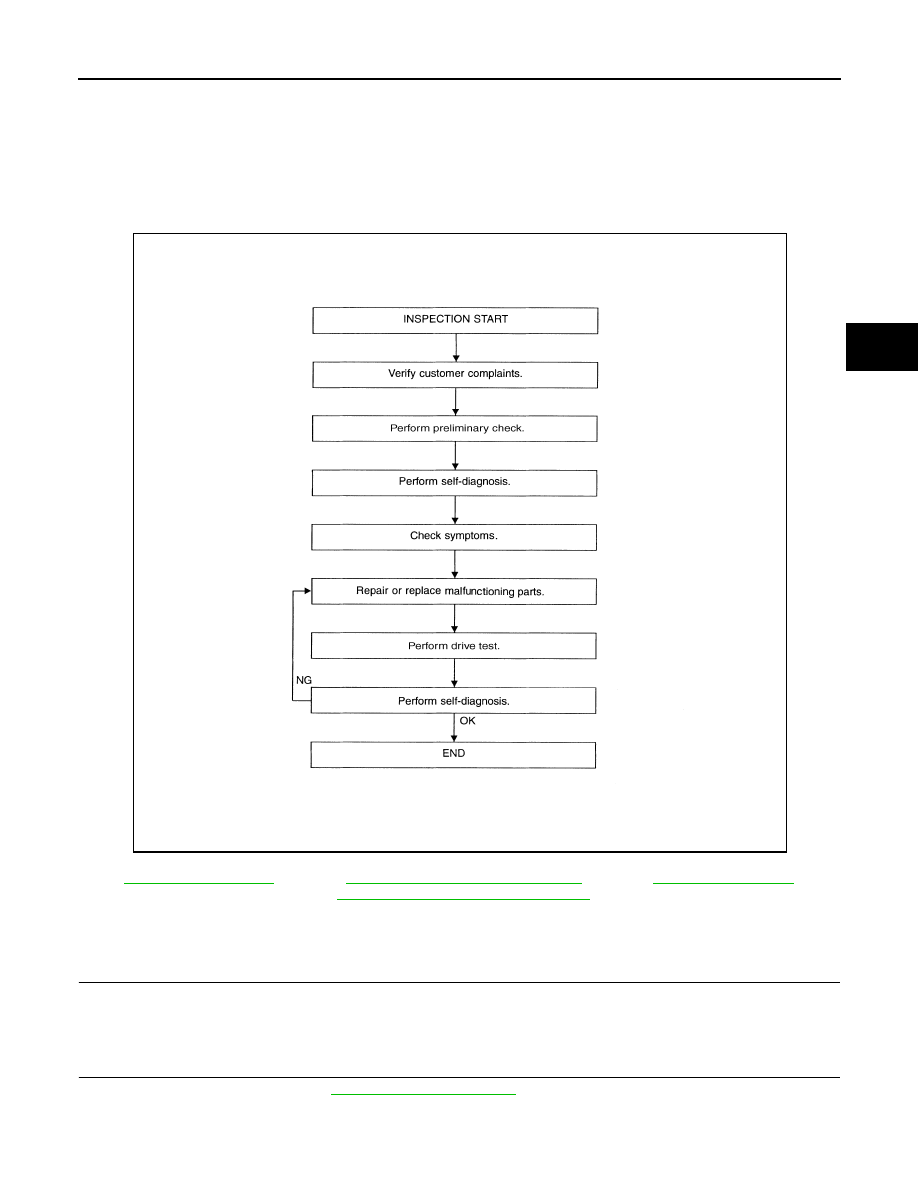

ALEIA0003GB

WT-5, "Preliminary Check"

WT-32, "Self-Diagnosis (With CONSULT)"

WT-33, "Self-Diagnosis (Without CONSULT)"

WT-38, "Symptom Table"

WT-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

3.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS. Refer to

WT-32, "Self-Diagnosis (With CONSULT)"

 or

WT-33, "Self-Diagnosis

(Without CONSULT)"

.

>> GO TO 4

4.

SYMPTOM

Check for symptoms. Refer to

WT-38, "Symptom Table"

.

>> GO TO 5

5.

MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

6.

DRIVE TEST

1. Perform a drive test.

2. Check the low tire pressure warning lamp.

>> GO TO 7

7.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS. Refer to

WT-32, "Self-Diagnosis (With CONSULT)"

 or

WT-33, "Self-Diagnosis

(Without CONSULT)"

.

Are any DTCs displayed?

YES

>> GO TO 5

NO

>> Inspection End.

INSPECTION AND ADJUSTMENT

WT-5

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000009483059

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

1.

TIRE PRESSURE

Check all tire pressures. Refer to

WT-53, "Tire"

.

Do tire pressures match specification?

YES

>> GO TO 2.

NO

>> Adjust tire pressures to specified value.

2.

LOW TIRE PRESSURE WARNING LAMP

Check low tire pressure warning lamp activation.
Does the low tire pressure warning lamp activate for one second when ignition switch is turned ON?

YES

>> GO TO 3.

NO

>> GO TO

WT-39, "Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is

Turned On"

.

3.

BCM CONNECTOR

1. Disconnect BCM harness connectors.

2. Check terminals for damage or loose connections.

3. Reconnect harness connectors.
Are BCM connectors damaged or loose?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 4.

4.

TRANSMITTER ACTIVATION TOOL

Check battery in transmitter activation tool.
Is transmitter activation tool battery fully charged?

YES

>> Perform self-diagnosis. Refer to

WT-32, "Self-Diagnosis (With CONSULT)"

 or

WT-33, "Self-Diag-

nosis (Without CONSULT)"

.

NO

>> Replace battery in transmitter activation tool.
