ASSEMBLY

TM-325

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

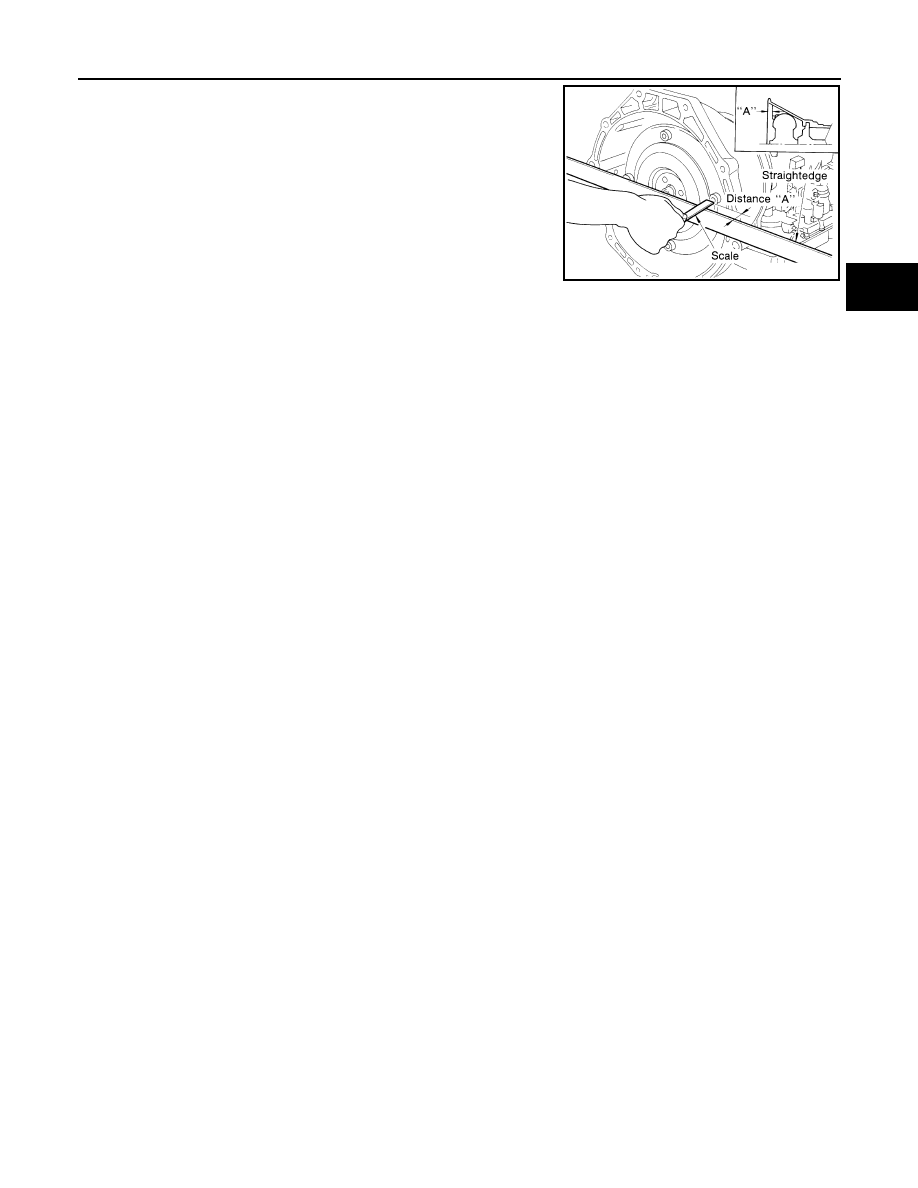

c. Measure distance "A" to make sure that torque converter is in

proper position.

Distance “A"

: 25.0 mm (0.98 in) or more

SCIA5694E

TM-326

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5AT: RE5R05A]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009485633

*1: Refer to

MA-12, "Fluids and Lubricants"

.

Vehicle Speed at Which Gear Shifting Occurs

INFOID:0000000009485634

2WD MODELS

• At half throttle, the accelerator opening is 1/2 of the full opening.

4WD MODELS

• At half throttle, the accelerator opening is 1/2 of the full opening.

Vehicle Speed at Which Lock-up Occurs/Releases

INFOID:0000000009485635

2WD MODELS

Applied model

Engine

VQ40DE

Axle

2WD/4WD

Automatic transmission model

RE5R05A

Stall torque ratio

1.76: 1

Transmission gear ratio

1st

3.842

2nd

2.353

3rd

1.529

4th

1.000

5th

0.839

Reverse

2.765

Recommended fluid

Genuine NISSAN Matic S ATF

*1

Fluid capacity

10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)

CAUTION:

• If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used, Using automatic transmis-

sion fluid other than Genuine NISSAN MATIC S ATF or Matic J ATF will cause deterioration in driveability and automatic
transmission durability, and may damage the automatic transmission, which is not covered by the NISSAN new vehicle lim-
ited warranty.

Throttle position

Vehicle speed km/h (MPH)

D

1

→D

2

D

2

→D

3

D

3

→D

4

D

4

→D

5

D

5

→D

4

D

4

→D

3

D

3

→D

2

D

2

→D

1

Full throttle

68 - 72

(43 - 44)

109 - 117

(68 - 72)

169 - 179

(106 - 111)

249 - 294

(155 - 160)

245 - 255

(153 - 158)

157 - 167

(98 - 103)

95 - 103

(60 - 64)

43 - 47

(27 - 29)

Half throttle

54 - 58

(34 - 36)

88 - 94

(55 - 58)

137 - 145

(86 - 90)

165 - 173

(103 - 107)

137 - 145

(86 - 90)

77 - 85

(48 - 52)

54 - 60

(34 - 37)

11 - 15

(7 - 9)

Throttle position

Vehicle speed km/h (MPH)

D

1

→D

2

D

2

→D

3

D

3

→D

4

D

4

→D

5

D

5

→D

4

D

4

→D

3

D

3

→D

2

D

2

→D

1

Full throttle

62 - 66

(39 - 41)

100 - 108

(63 - 67)

156 - 166

(97 - 103)

241 - 251

(150 - 155)

237 - 247

(148 - 153)

145 - 155

(91 - 96)

88 - 96

(55 - 59)

42 - 46

(27 - 28)

Half throttle

50 - 54

(32 - 33)

82 - 88

(51 - 54)

126 - 134

(779 - 83)

155 - 163

(97 - 101)

126 - 134

(79 - 83)

71 - 79

(45 - 49)

50 - 56

(32 - 34)

11 - 15

(7 - 9)

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-327

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
• At half throttle, the accelerator opening is 1/2 of the full opening.

4WD MODELS

• At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
• At half throttle, the accelerator opening is 1/2 of the full opening.

Stall Speed

INFOID:0000000009485636

Line Pressure

INFOID:0000000009485637

A/T Fluid Temperature Sensor

INFOID:0000000009485638

Input Speed Sensor

INFOID:0000000009485639

Output Speed Sensor

INFOID:0000000009485640

Throttle position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

Closed throttle

57 - 65 (36 - 40)

53 - 61 (33 - 37)

Half throttle

182 - 190 (114 - 118)

137 - 145 (86 - 90)

Throttle position

Vehicle speed km/h (MPH)

Lock-up “ON”

Lock-up “OFF”

Closed throttle

52 - 60 (33 - 37)

49 - 57 (31 - 35)

Half throttle

172 - 180 (107 - 111)

126 - 134 (79 - 83)

Stall speed

2,600 - 2,900 rpm

Engine speed

Line pressure   [ kPa (kg/cm

2

, psi)]

“R” position

“D” position

At idle speed

425 - 465 4.3 - 4.7, 62 - 67)

379 - 428 (3.9 - 4.4, 55 - 62)

At stall speed

1,605 - 1,950 (16.4 - 19.9, 233 - 283)

1,310 - 1,500 (13.4 - 15.3, 190 - 218)

Name

Condition

CONSULT “DATA MONITOR” (Approx.) (V)

Resistance (Approx.) (k

Ω)

A/T fluid temperature sensor 1

0

°C (32°F)

3.3

15

20

°C (68°F)

2.7

6.5

80

°C (176°F)

0.9

0.9

Name

Condition

Data   (Ap-

prox.)

Input speed sensor 1

When running at 50 km/h (31 MPH) in 4th speed with the closed throttle position signal
“OFF”.

 1.3 (kHz)

Input speed sensor 2

When moving at 20 km/h (12 MPH) in 1st speed with the closed throttle position signal
“OFF”.

Name

Condition

Data (Approx.)

Output speed sensor

When moving at 20 km/h (12 MPH).

185 (Hz)

TM-328

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5AT: RE5R05A]

SERVICE DATA AND SPECIFICATIONS (SDS)

Reverse brake

INFOID:0000000009485641

Total End Play

INFOID:0000000009485642

BEARING RACE FOR ADJUSTING TOTAL END PLAY

Number of drive plates

6

Number of driven plates

6

Clearance [mm (in)]

Standard

0.7 - 1.1 (0.028 - 0.043)

Thickness of retaining plates

Thickness mm (in)

4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)

Total end play mm (in)

0.25 - 0.55 (0.0098 - 0.0217)

Thickness mm (in)

0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)
