FSU-24

< UNIT DISASSEMBLY AND ASSEMBLY >

COIL SPRING AND SHOCK ABSORBER

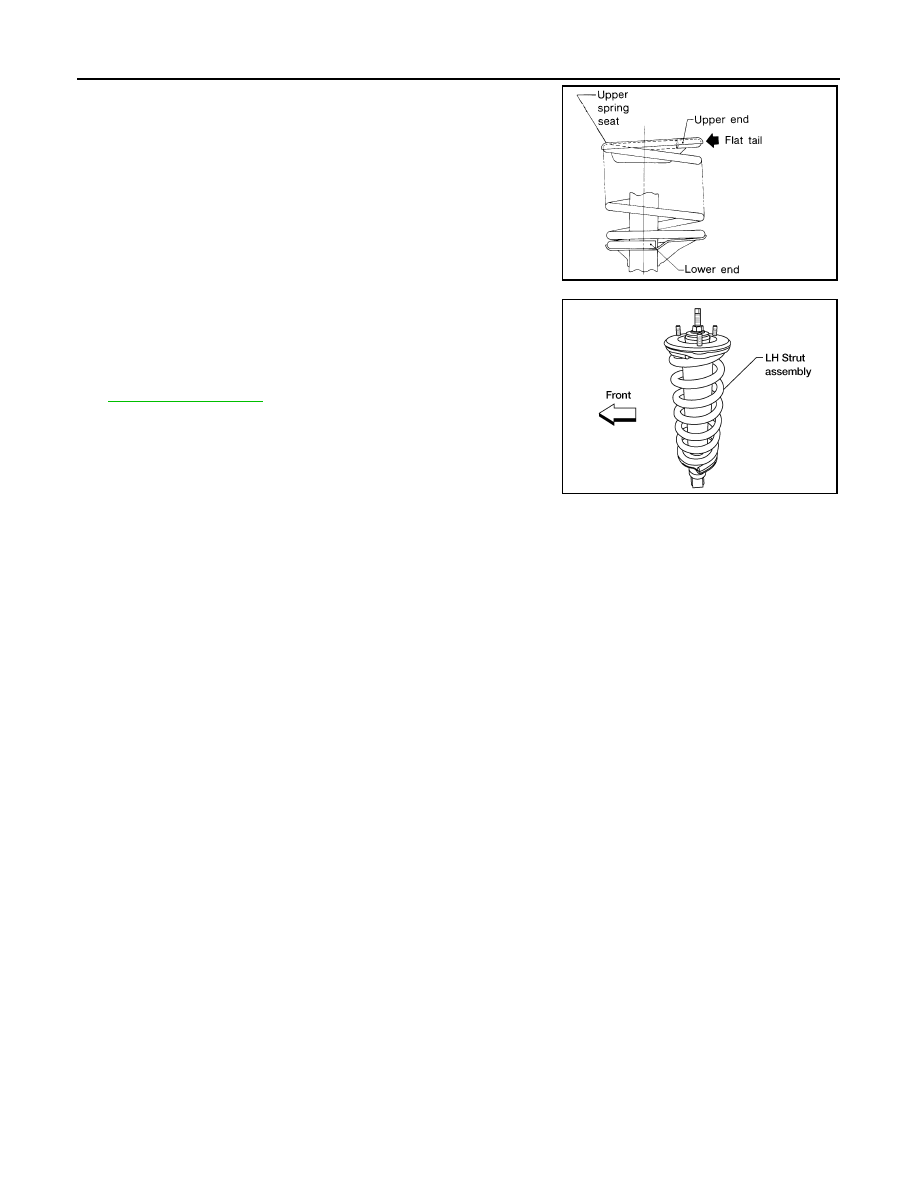

1. When installing coil spring on strut, it must be positioned as

shown.

2. Install the shock absorber mounting insulator as shown in line

with lower shock mount and step in lower seat.

• The step in the strut assembly lower seat faces outside of

vehicle.

3. Tighten the new piston rod lock nut to specification. Refer to

FSU-13, "Component"

.

CAUTION:

Do not reuse piston rod lock nut.

4. Remove commercial service tool.

CAUTION:

Release the commercial service tool while making sure the

position of the commercial service tool on the coil spring

does not move.

SFA508A

WEIA0117E

SERVICE DATA AND SPECIFICATIONS (SDS)

FSU-25

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

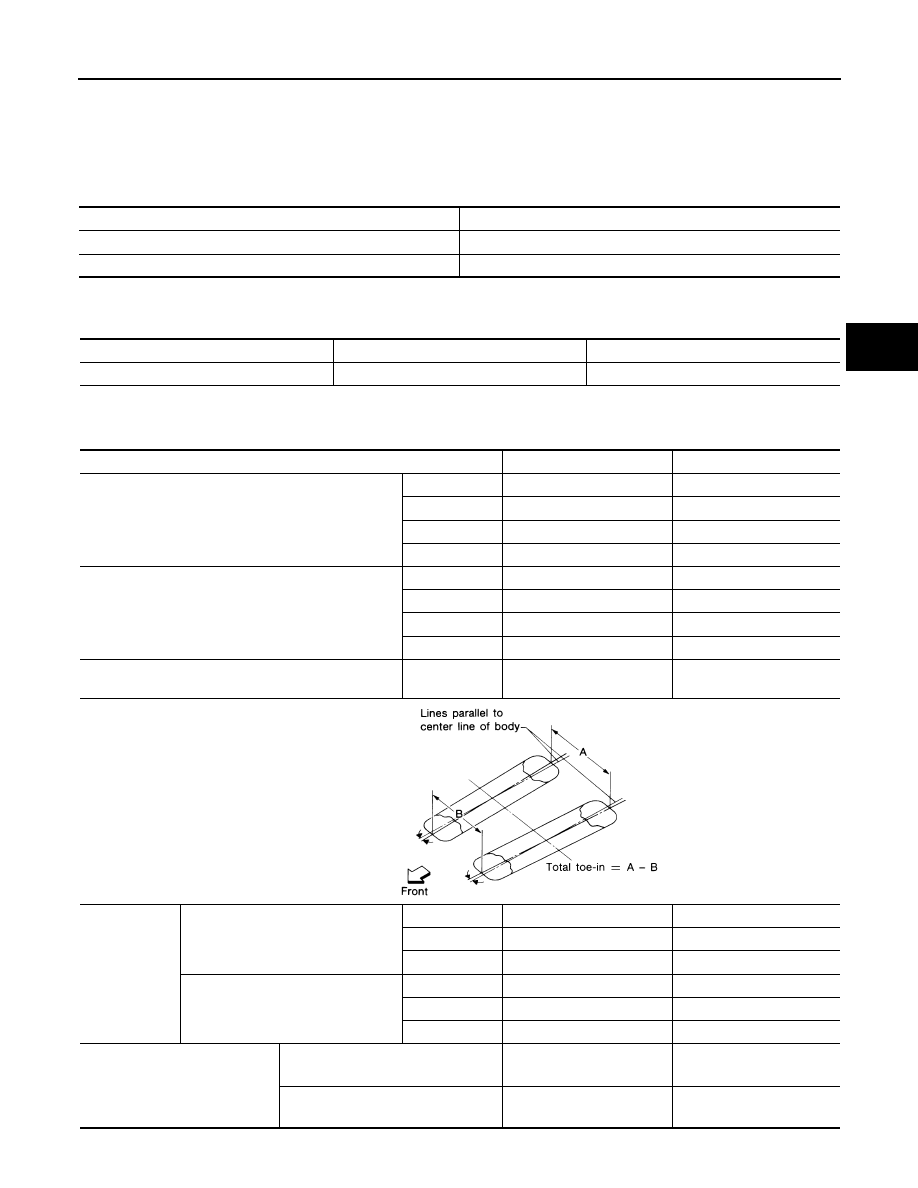

General Specification (Front)

INFOID:0000000009484394

Spring Free Height

INFOID:0000000009484395

Unit: mm (in)

Wheel Alignment (Unladen*1)*6

INFOID:0000000009484396

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Suspension type

Independent double wishbone coil over shock

Shock absorber type

Double-acting hydraulic

Stabilizer

Standard equipment

Drive type

2WD

4WD

Front spring free height

336.1 (13.2)

351 (13.8)

Drive type

2WD

4WD

Camber
Degree minute (decimal degree)

Minimum

-0

° 30′ (-0.50°)

-0

° 15′ (-0.25°)

Nominal

0

° 15′ (0.25°)

0

° 30′ (0.50°)

Maximum

1

° 0′ (1.00°)

1

° 15′ (1.25°)

Cross camber

0

° 45′ (0.75°) or less

 0

° 45′ (0.75°) or less

Caster
Degree minute (decimal degree)

Minimum

2

° 15′ (2.25°)

2

° 0′ (2.00°)

Nominal

3

° 0′ (3.00°)

2

° 45′ (2.75°)

Maximum

3

° 45′ (3.75°)

3

° 30′ (3.50°)

Cross caster

0

° 45′ (0.75°) or less

0

° 45′ (0.75°) or less

Kingpin inclination
Degree minute (decimal degree)

Nominal

13

° 0′ (13.00°)

12

° 45′ (12.75°)

Total toe-in

Distance

Minimum

 In 1.2 mm (In 0.05 in)

 In 1.2 mm (In 0.05 in)

Nominal

In 3.2 mm (0.12 in)

In 3.2 mm (0.12 in)

Maximum

In 5.2 mm (0.20 in)

In 5.2 mm (0.20 in)

Angle
Degree minute (decimal degree)

Minimum

In 0

° 4′ 48″ (In 0.08°)

In  0

° 4′ 48″ (In 0.08°)

Nominal

In 0

° 14′ 24″ (In 0.24°)

In  0

° 14′ 24″ (In 0.24°)

Maximum

In 0

° 24′ (In 0.40°)

In  0

° 24′ (In 0.40°)

Wheel turning angle (full turn)

Inside
Degree minute (Decimal degree)

33

° 26′ – 35° 26′ *

2

(33.43

° – 35.43°)

33

° 40′ – 35° 40′ *

4

(33.67

° – 35.67°)

Outside
Degree minute (Decimal degree)

29

° 22′ – 31° 22′ *

3

(29.37

° – 31.37°)

29

° 54′ – 31° 54′ *

5

(29.90

° – 31.90°)

SFA234AC

FSU-26

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

*2: Target value 35

° 26′ (35.43°)

*3: Target value 31

° 22′ (31.37°)

*4: Target value 35

° 40′ (35.67°)

*5: Target value 31

° 54′ (31.90°)

*6: Some vehicles may be equipped with straight (non-adjustable) lower link bolts and washers. In order to adjust camber and caster on
these vehicles, first replace the lower link bolts and washers with adjustable (cam) bolts and washers.

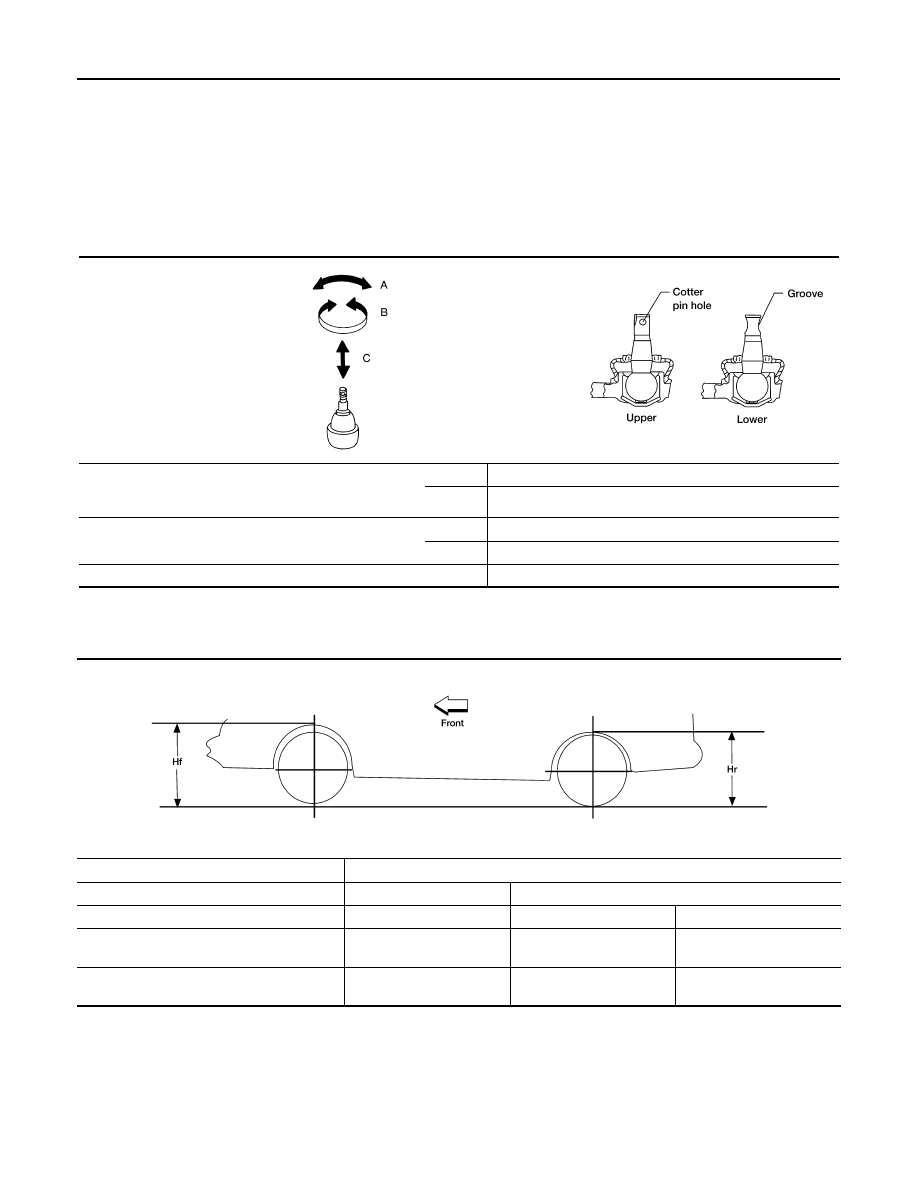

Ball Joint

INFOID:0000000009484397

Wheelarch Height (Unladen*

1

)

INFOID:0000000009484398

Unit: mm (in)

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Swinging force (A)
(Measurement point at either cotter pin hole or groove of ball
stud.)

Upper

8.1 - 79 N (0.83 - 8.1 kg-f, 1.82 - 17.8 lb-f) at hole

Lower

11.4 - 145.5 N (1.16 - 14.84 kg-f, 2.56 - 32.71 lb-f) at groove

Turning torque (B)

Upper

0.5 - 4.9 N·m (0.05 - 0.49 kg-m, 5 - 43 in-lb)

Lower

0.5 - 6.4 N·m (0.05 - 0.65 kg-m, 5 - 56 in-lb)

Vertical end play (C)

0 mm (0 in)

SFA858A

WEIA0076E

Engine type

VQ40DE

Drive type

2WD

4WD

Tire size

P265/70R16

P265/70R16

P265/75R16

Front wheelarch height (Hf)

839

(33.03)

858

(33.78)

870

(34.25)

Rear wheelarch height (Hr)

872

(34.33)

892

(35.12)

904

(35.59)

LEIA0085E

A
B

C

D

E

F

G

H

I

J

K

L

M

N

P

O
