EXT-22

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR

Removal and Installation

INFOID:0000000009483704

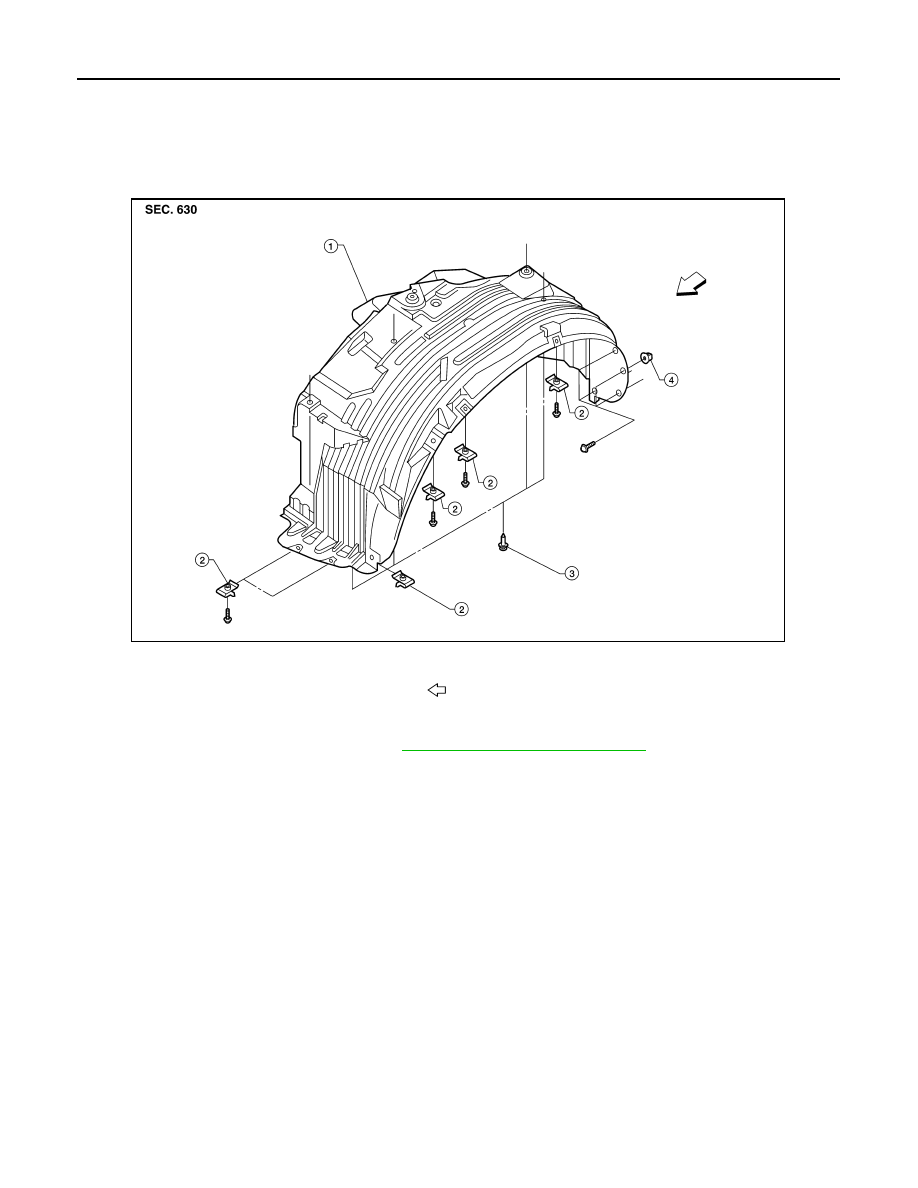

FRONT FENDER PROTECTOR

Removal

1. Remove mudguard (if equipped). Refer to

EXT-24, "Removal and Installation"

.

2. Remove screws.
3. Remove clips.
4. Remove front fender protector.

Installation

Installation is in the reverse order of removal.

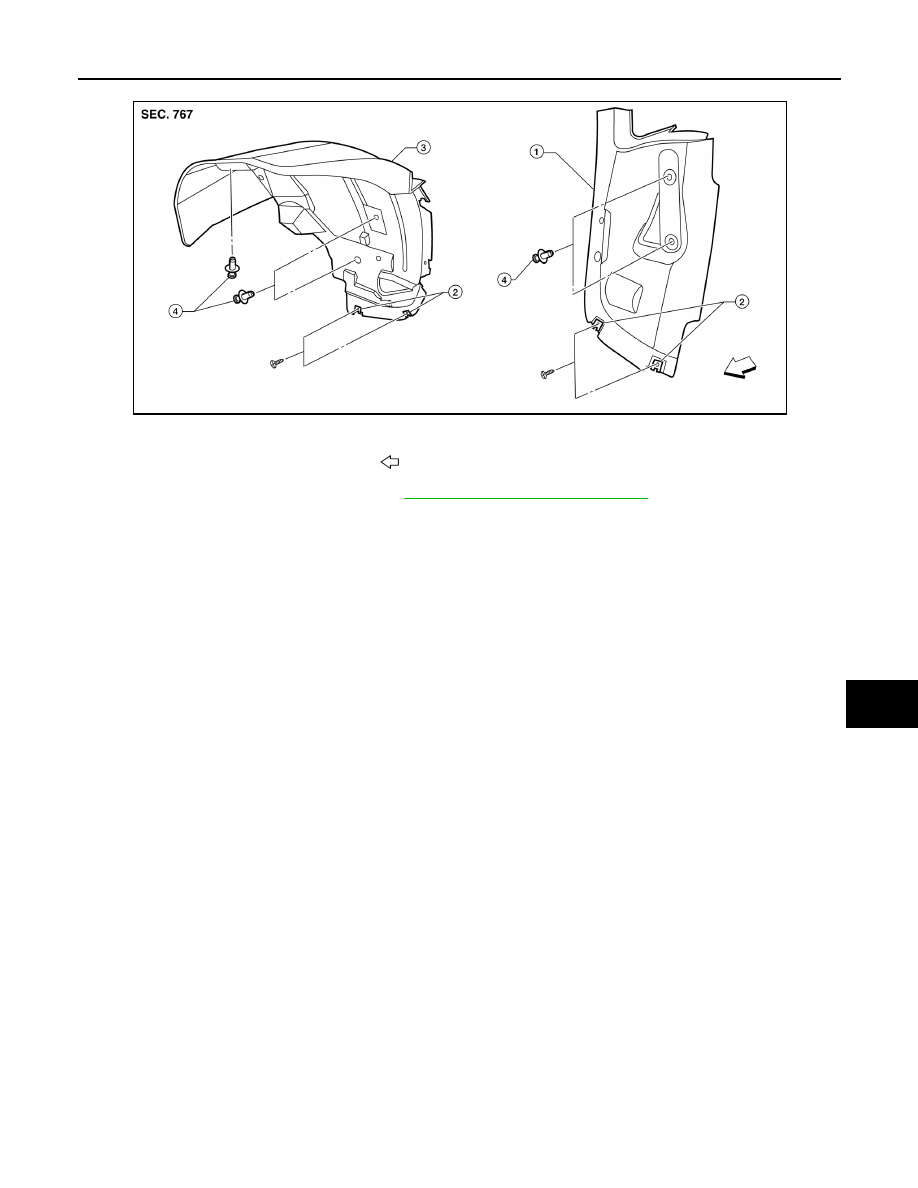

REAR FENDER PROTECTOR

Removal

1.

Front fender protector (LH)

2.

J-nut

3.

Screw

4.

Grommet

Front

WIIA1078E

FENDER PROTECTOR

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

1. Remove mudguard (if equipped). Refer to

EXT-24, "Removal and Installation"

.

2. Remove screws.
3. Remove clips.
4. Remove rear fender protector.

Installation

Installation is in the reverse order of removal.

1.

Fender protector (RH)

2.

J-nuts

3.

Fender protector (LH)

4.

Clip C205

Front

AWKIA1745ZZ

EXT-24

< REMOVAL AND INSTALLATION >

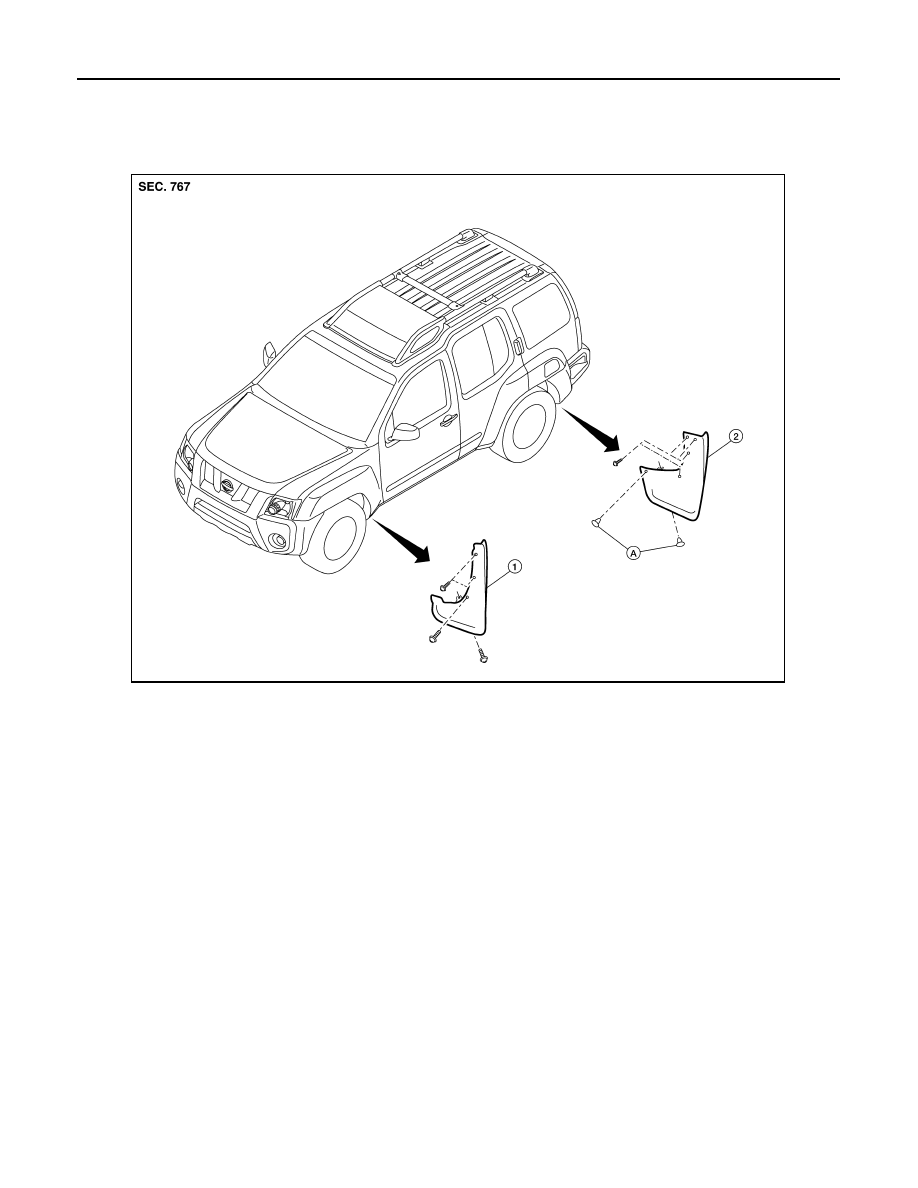

MUDGUARD

MUDGUARD

Removal and Installation

INFOID:0000000009483705

REMOVAL

1. Remove the front mudguard screws and the front mudguard.
2. Remove the rear mudguard clips, screws and the rear mudguard.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front mudguard

2.

Rear mudguard

A.

Clip C205

AWKIA1490ZZ

RUNNING BOARDS

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

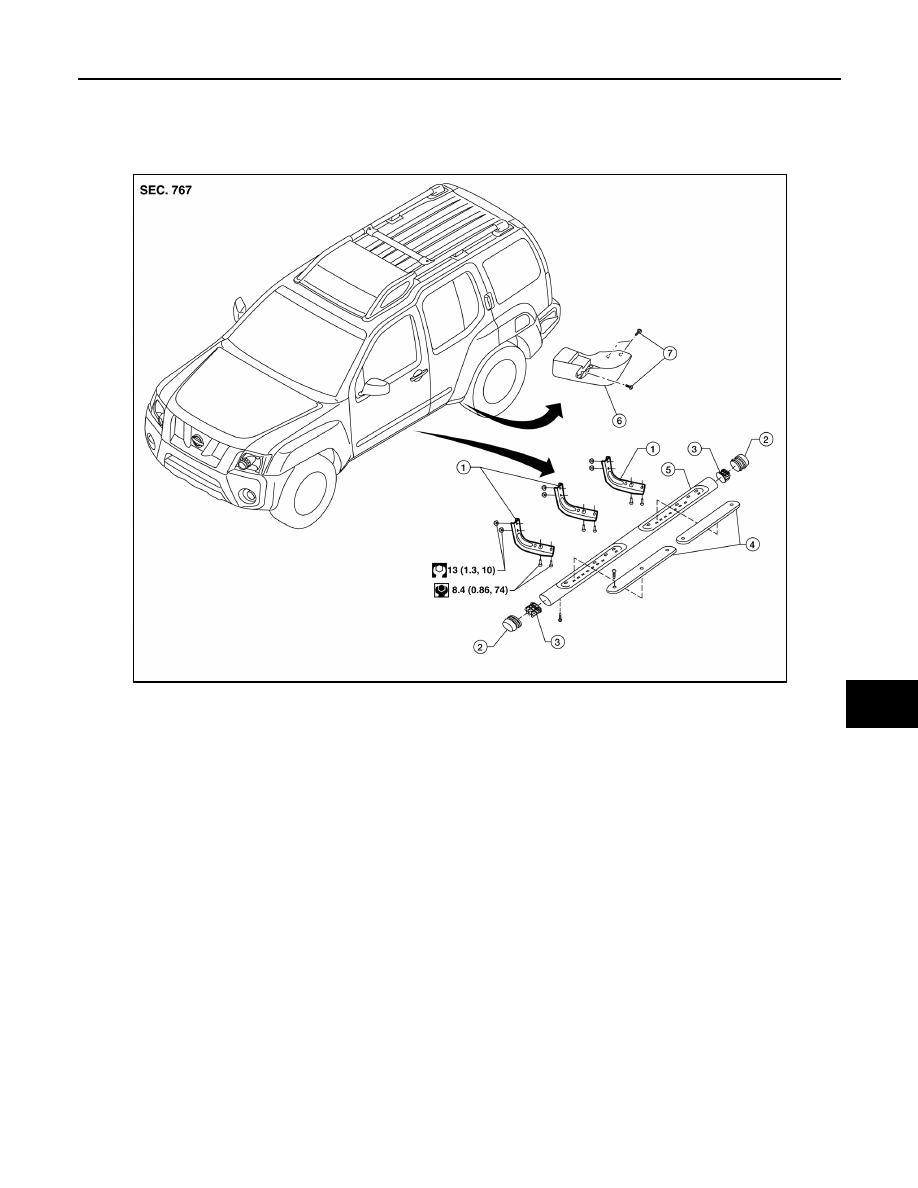

RUNNING BOARDS

Removal and Installation

INFOID:0000000009483706

REMOVAL

1. Remove the screws and remove rear wheel wind deflector (if equipped).
2. Remove the bolts and running board rail from running board brackets.
3. Remove the nuts and running board brackets from chassis.

INSTALLATION

Installation is in the reverse order of removal.

1. Running board bracket

2. End cap

3.

End cap fastener

4. Step pad

5. Running board rail

6.

Rear wheel wind deflector (if equipped)

7. Screws

AWKIA1831GB
