Nissan March K13. Manual - part 508

PG-20

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

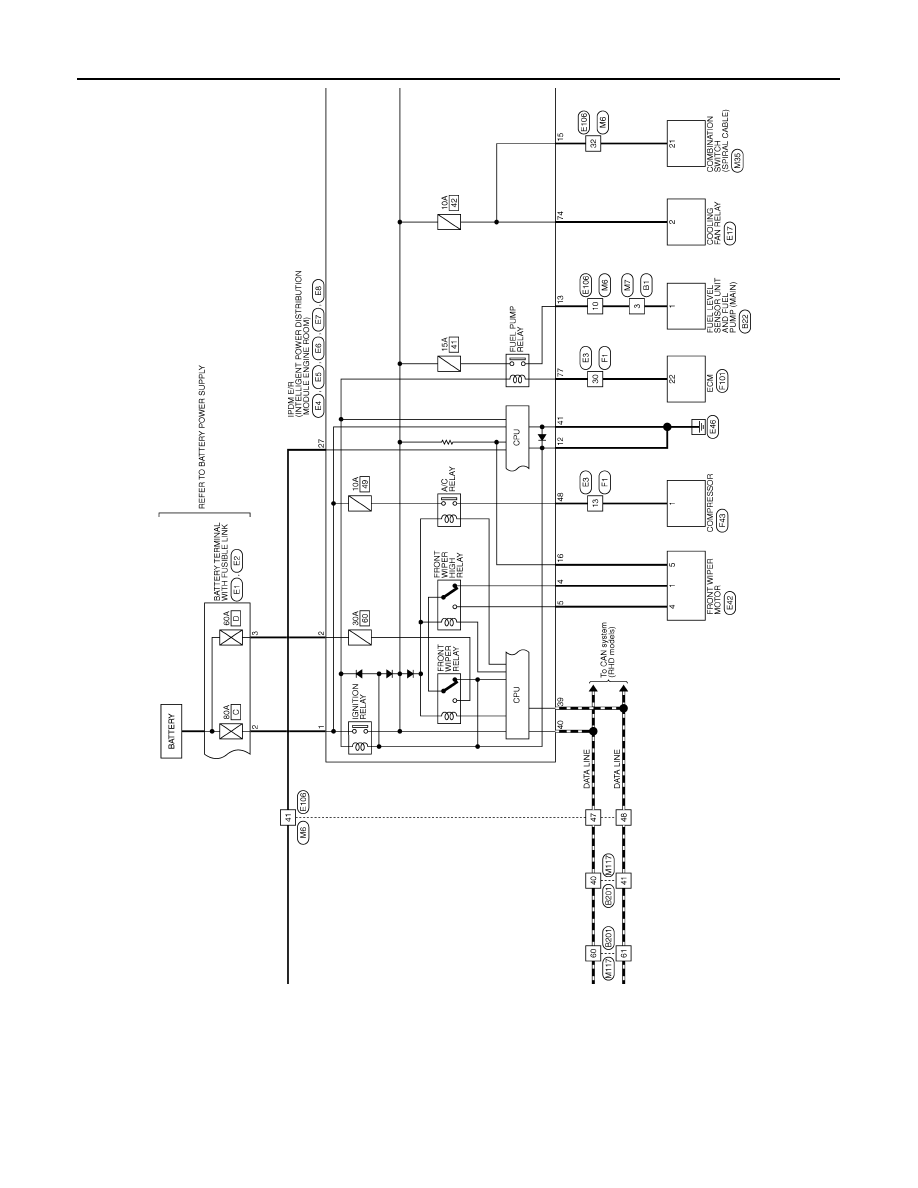

JCMWA4540GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

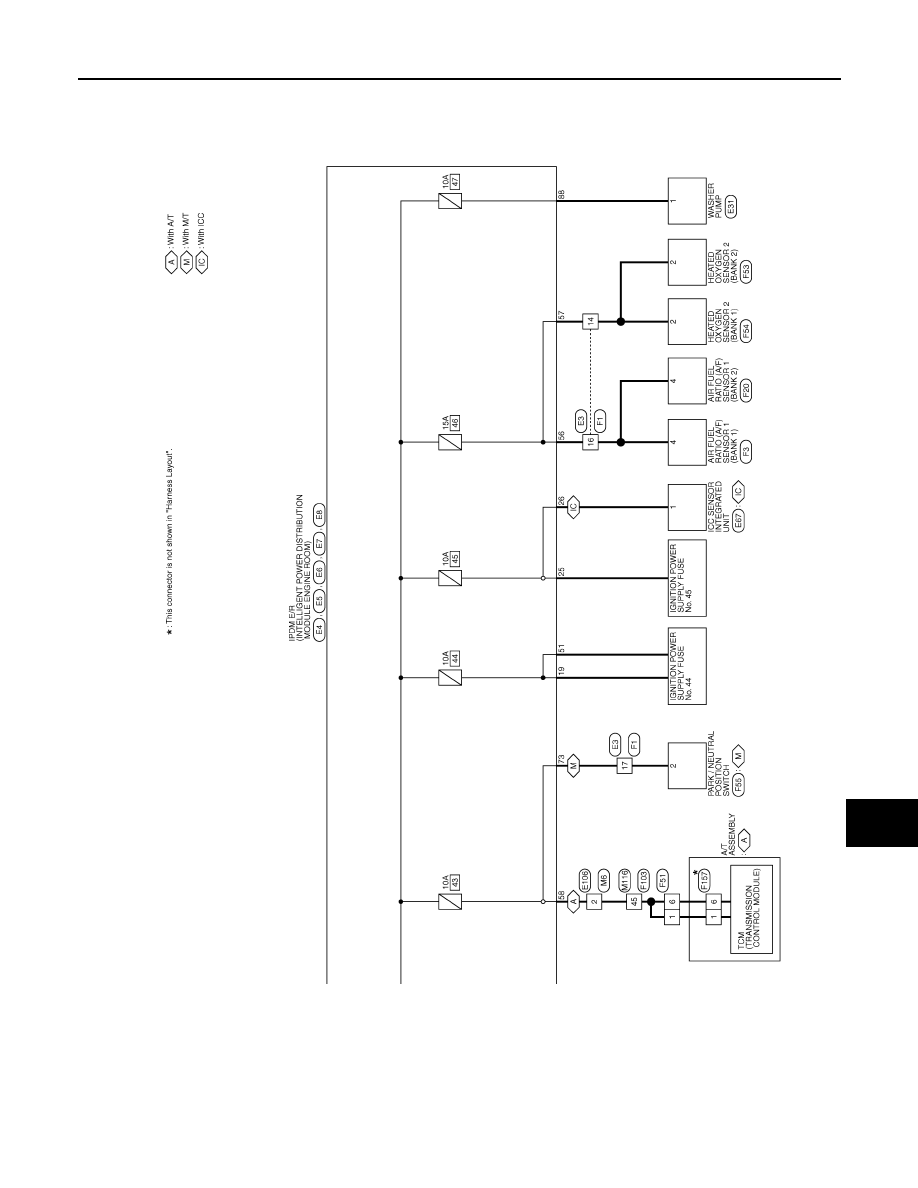

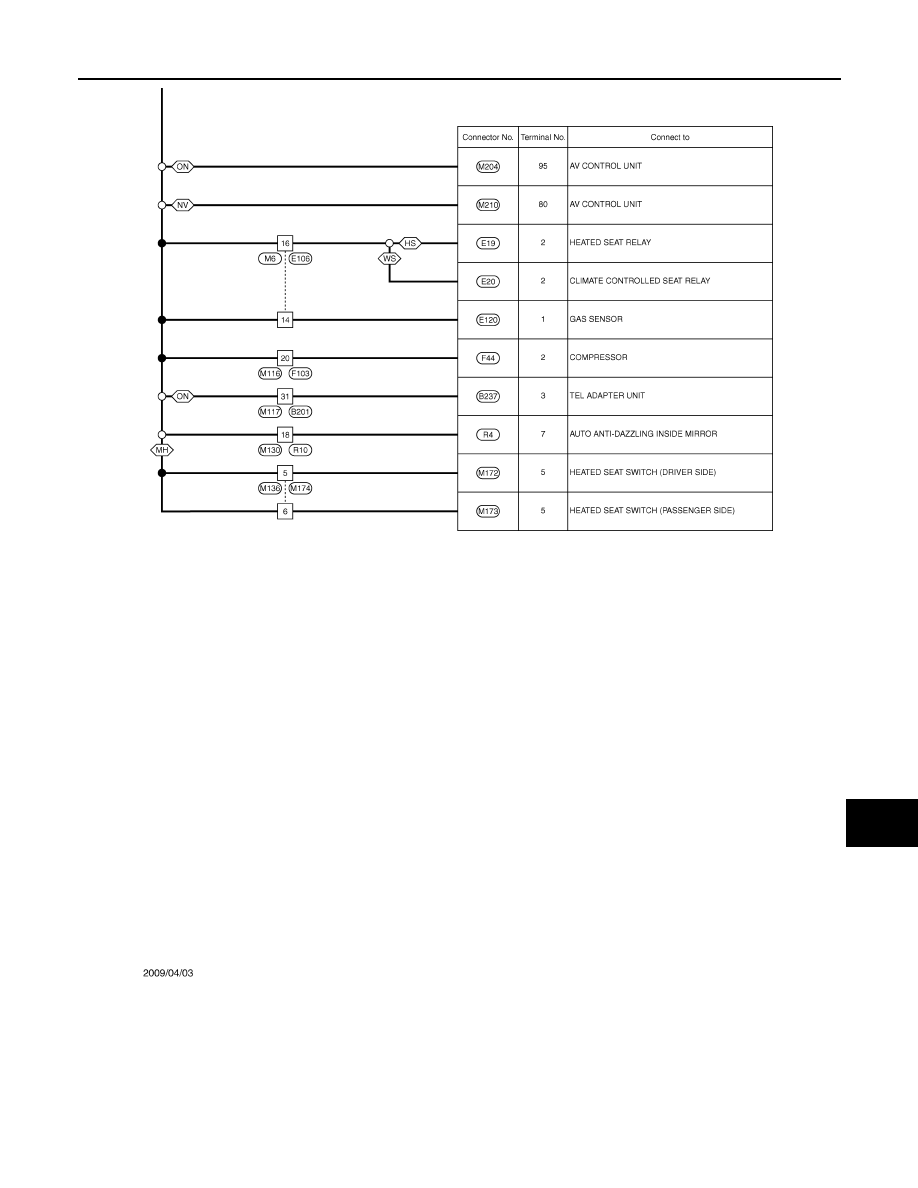

JCMWA4541GB

PG-22

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

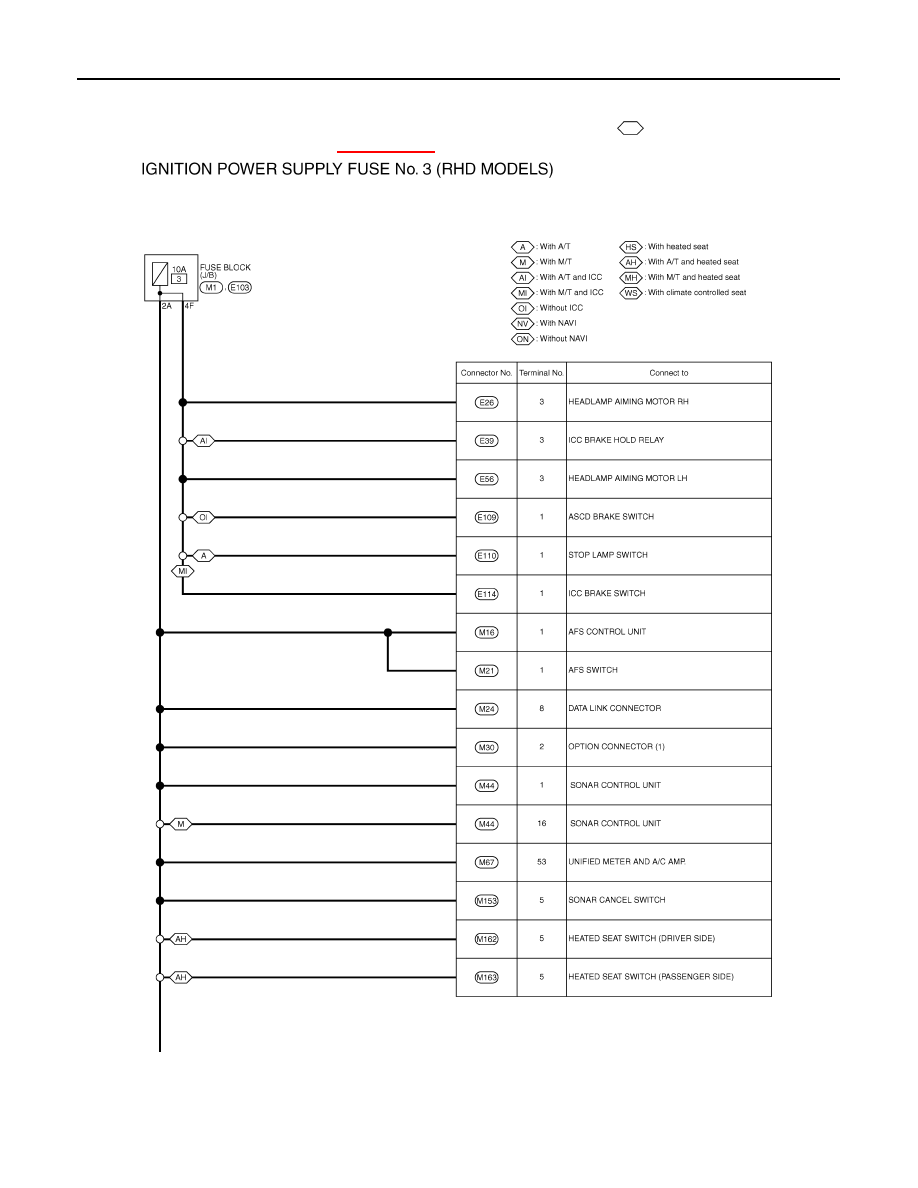

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 3 -

INFOID:0000000005911846

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

XX-XX, "*****"

.

JCMWA4549GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-23

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA4550GB
