Nissan March K13. Manual - part 473

MWI-30

< WIRING DIAGRAM >

METER SYSTEM

RHD

JCNWM3063GB

MWI

METER SYSTEM

MWI-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

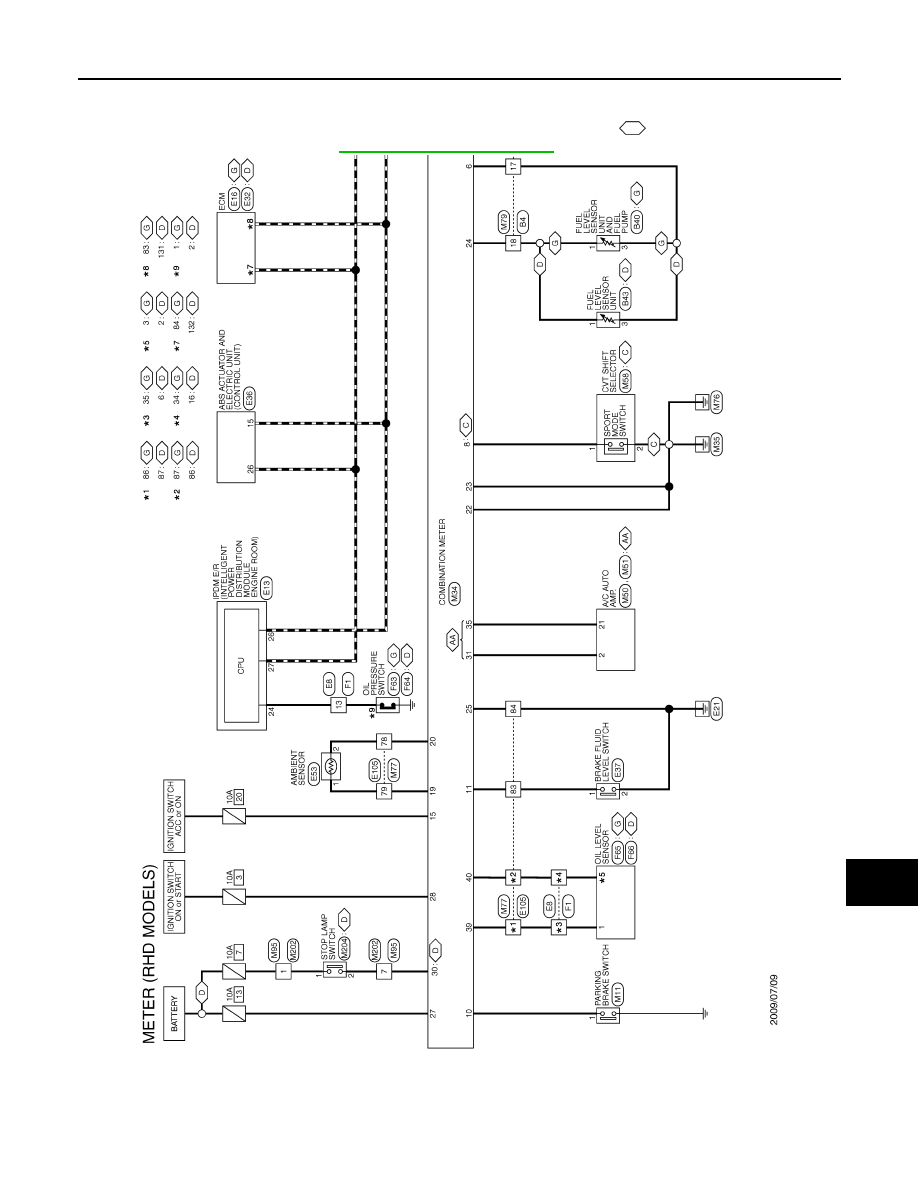

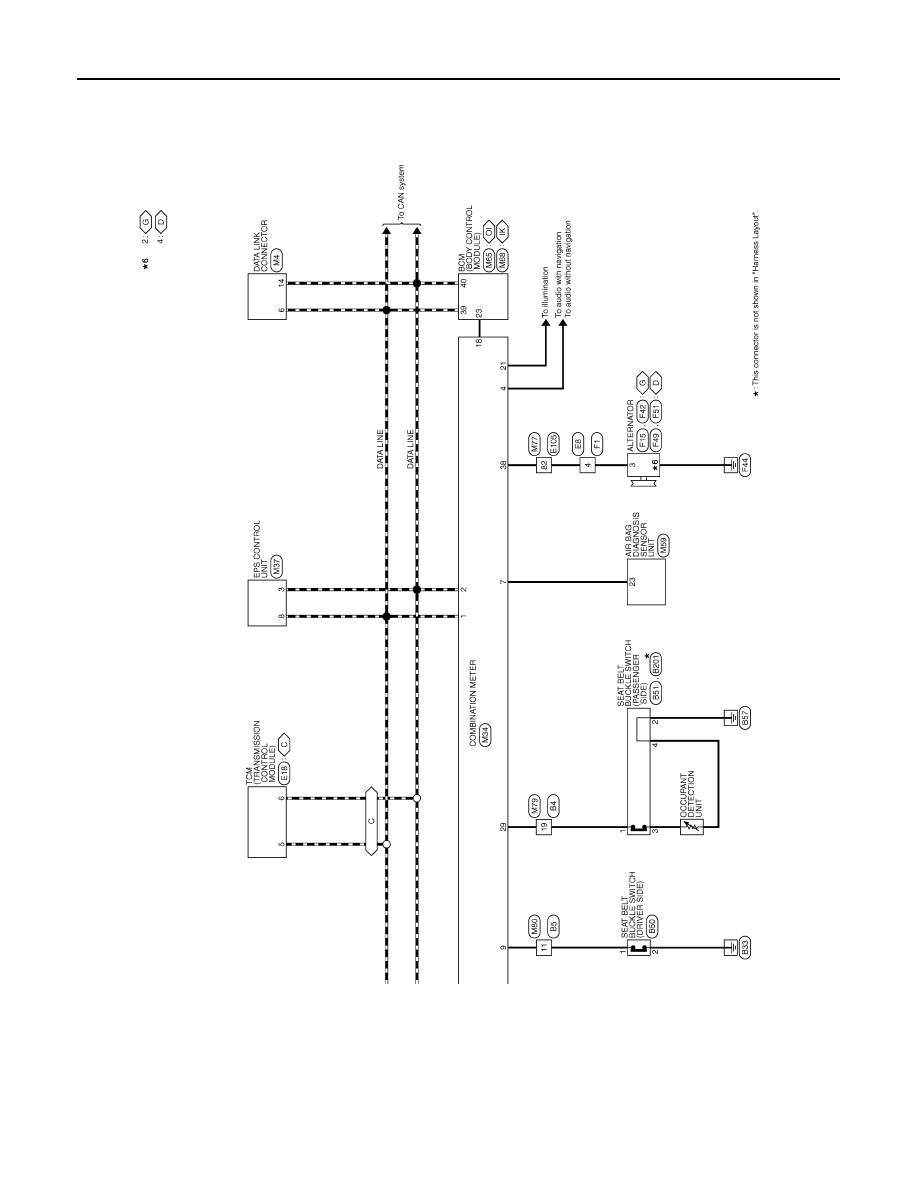

RHD : Wiring Diagram

INFOID:0000000005883876

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCNWM3064GB

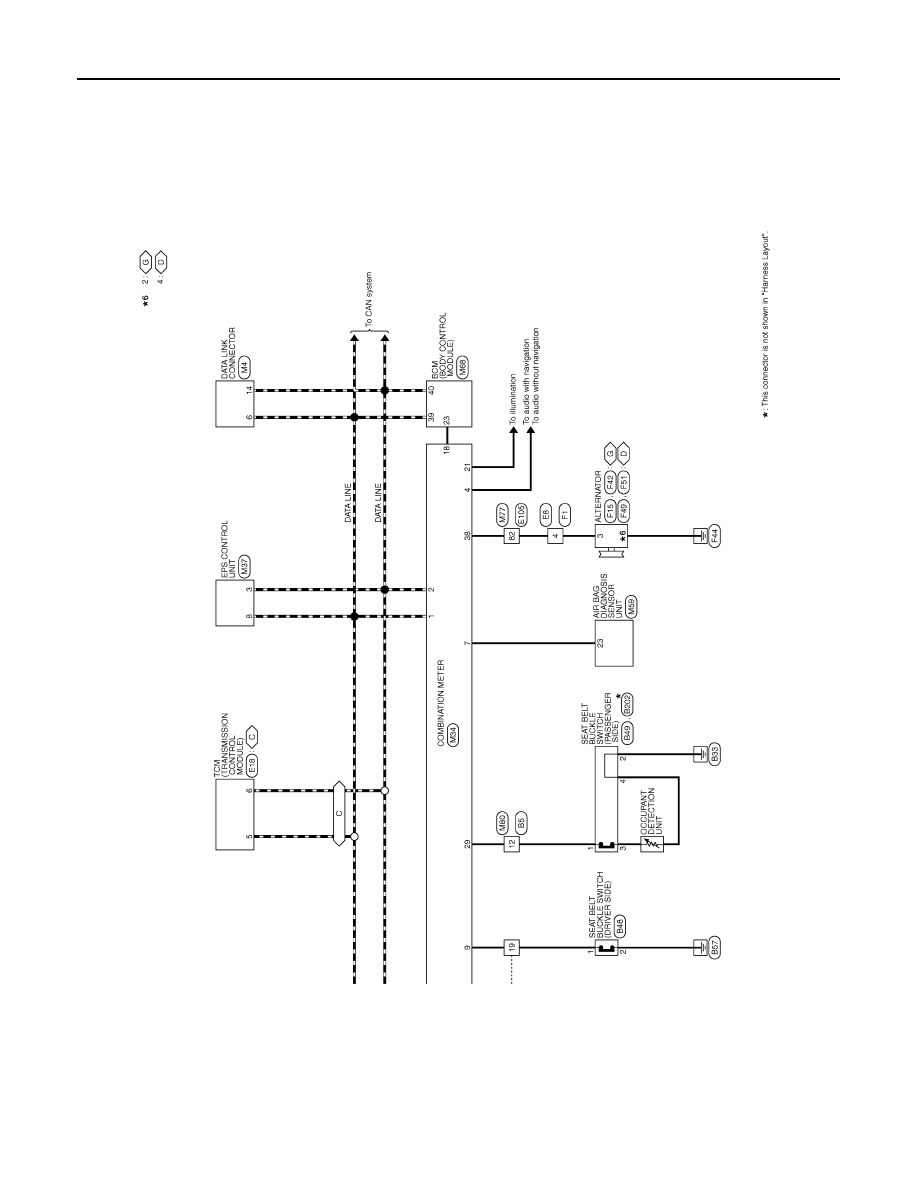

MWI-32

< WIRING DIAGRAM >

METER SYSTEM

JCNWM3065GB

MWI

DIAGNOSIS AND REPAIR WORKFLOW

MWI-33

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work flow

INFOID:0000000005883877

OVERALL SEQUENCE

• Reference 1···

MWI-17, "On Board Diagnosis Function"

.

• Reference 2···

MWI-27, "DTC Index"

.

• Reference 3···

MWI-40, "COMBINATION METER : Diagnosis Procedure"

.

DETAILED FLOW

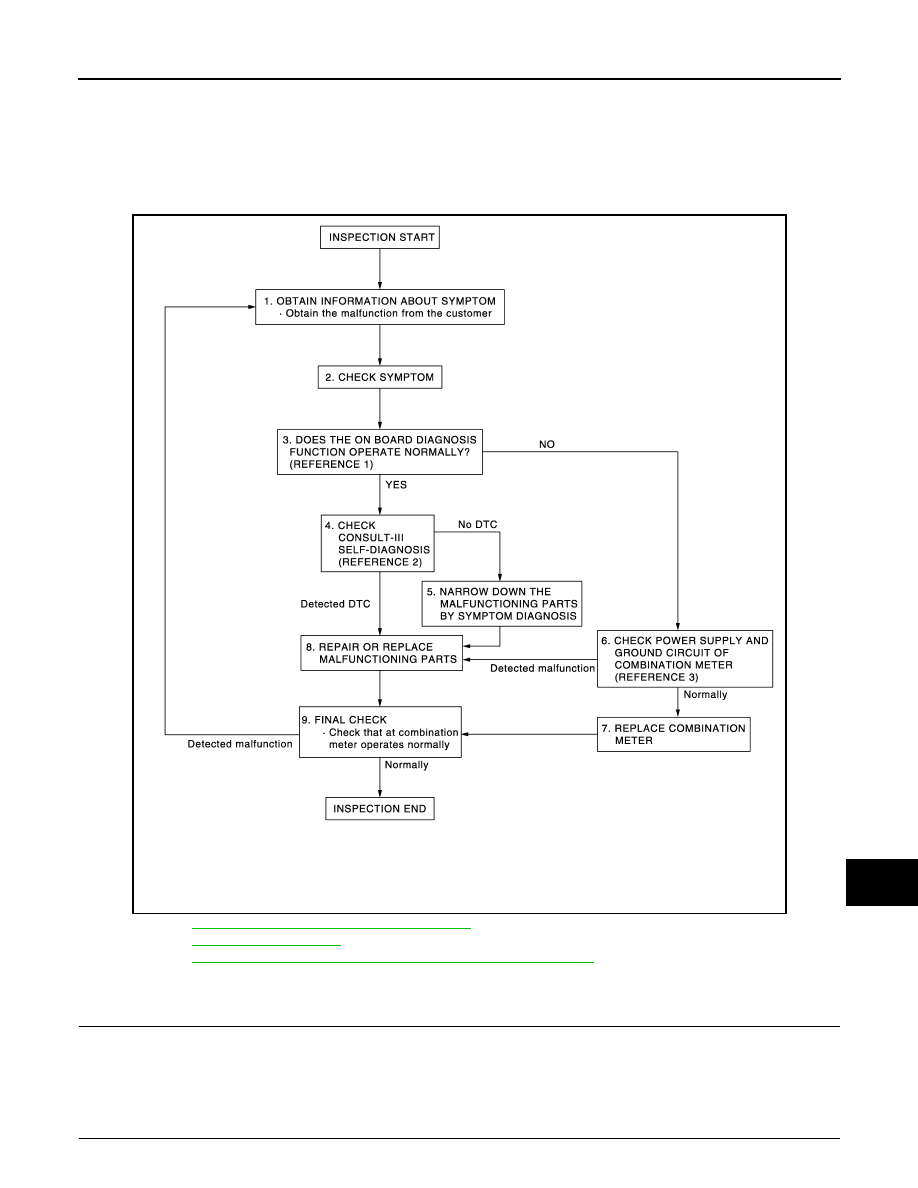

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under
which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

JSNIA0542GB
