MWI-14

< SYSTEM DESCRIPTION >

SYSTEM

MODELS WITH ABS

A/T MODELS WITHOUT ABS

M/T MODELS

NOTE:
• Average fuel consumption on the information display is updated approximately every 30 seconds.
• Soon after a reset or when the ignition switch is turned ON right after battery removal and installation, “

−−−

”

is displayed until after a travel of 30 seconds and approximately 500 m (0.31 mile).

Distance To Empty

The combination meter calculates distance to empty based on the following signals, and the calculated value
is displayed on the information display.

MODELS WITH ABS

A/T MODELS WITHOUT ABS

M/T MODELS

NOTE:

Signal name

Signal path

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

TCM

Combination

meter

Signal name

Signal path

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed sensor signal

Vehicle speed sensor

 Combination meter

Signal name

Signal path

Fuel level sensor signal

Fuel level sensor unit

 Combination meter

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal path

Fuel level sensor signal

Fuel level sensor unit

 Combination meter

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

TCM

Combination

meter

Signal name

Signal path

Fuel level sensor signal

Fuel level sensor unit

 Combination meter

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed sensor signal

Vehicle speed sensor

 Combination meter

MWI

SYSTEM

MWI-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Distance to empty on the information display is updated approximately every 30 seconds.
• When the ignition switch is turned from OFF to ON, “

−−−

” is displayed until after a travel of approximately

500 m (0.31 mile).

• The indicated values may not match each other when refueling with the ignition switch ON. Refer to

MWI-50,

"INFORMATION DISPLAY : Description"

.

INTERRUPT INDICATION

Low Fuel Warning

• The combination meter displays a possible cruising distance by an interrupt and blinks the indications of the

fuel gauge and the possible cruising distance when all the following conditions are satisfied.

• The combination meter judges showing/hiding of “low fuel warning”, according to the signals below:

CLOCK

The combination meter displays time on the vehicle information display.

Operating condition

Ignition switch

ON

Fuel remaining quantity

Approximately 9.5

 (2-1/8 lmp gal) or less [1.5

 (3/8 Imp gal) fuel residues in-

cluded]

Dummy cross-reference("XX-XX")

Signal name

Signal path

Ignition signal

—

Fuel level sensor signal

Fuel level sensor unit

 Combination meter

MWI-16

< SYSTEM DESCRIPTION >

OPERATION

OPERATION

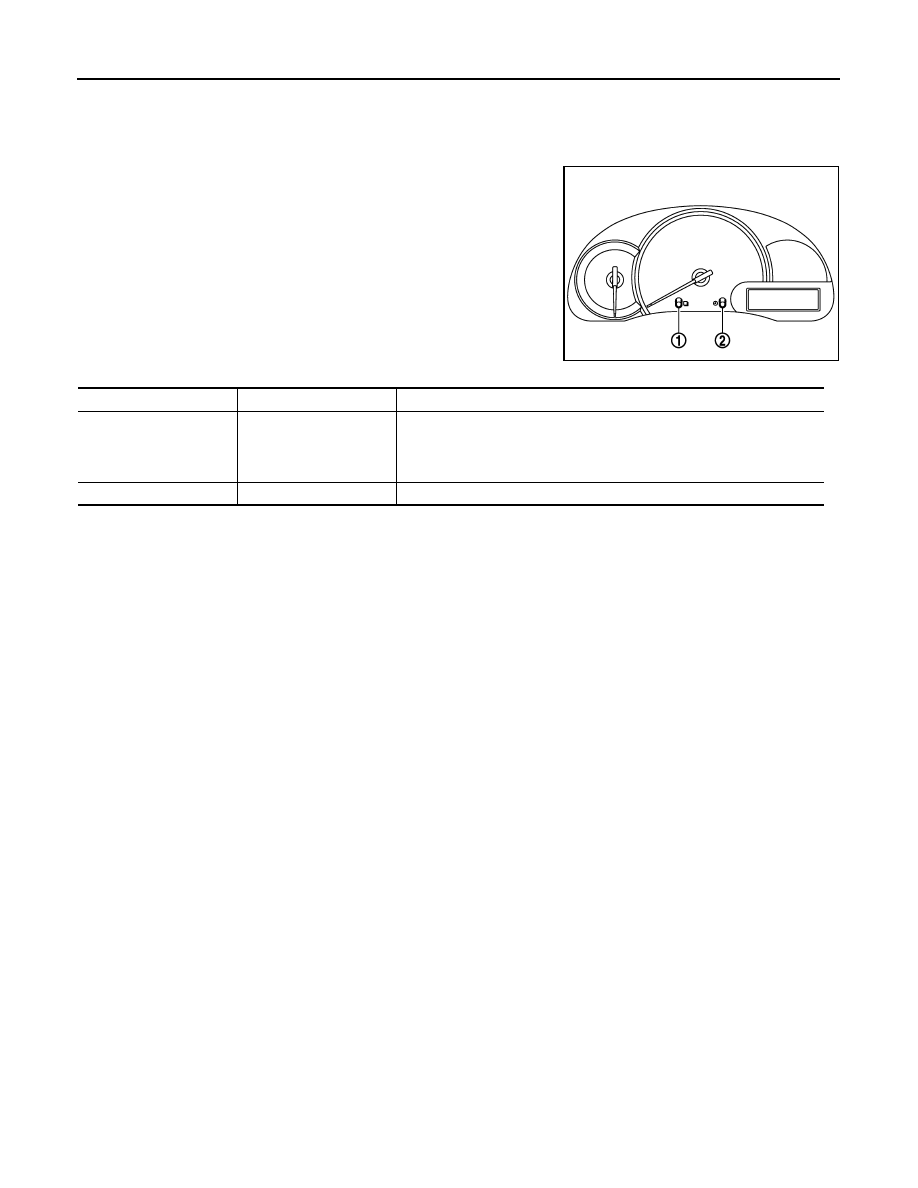

Switch Name and Function

INFOID:0000000005883868

JSNIA2972ZZ

Switch name

Operation

Description

Meter control switch (1)

Press

• Trip meter A or Trip meter B can be reset.
• The information display screen can be switched.
• The value of the average fuel consumption can be reset.
• The combination meter can be switched to Self-diagnosis mode.

Clock switch (2)

Press

Time can be adjusted.

MWI

DIAGNOSIS SYSTEM (COMBINATION METER)

MWI-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (COMBINATION METER)

On Board Diagnosis Function

INFOID:0000000005883869

ON BOARD DIAGNOSIS ITEM

• Information display operation can be checked in self-diagnosis mode.
• Speedometer and tachometer (with tachometer models) can be checked in self-diagnosis mode.

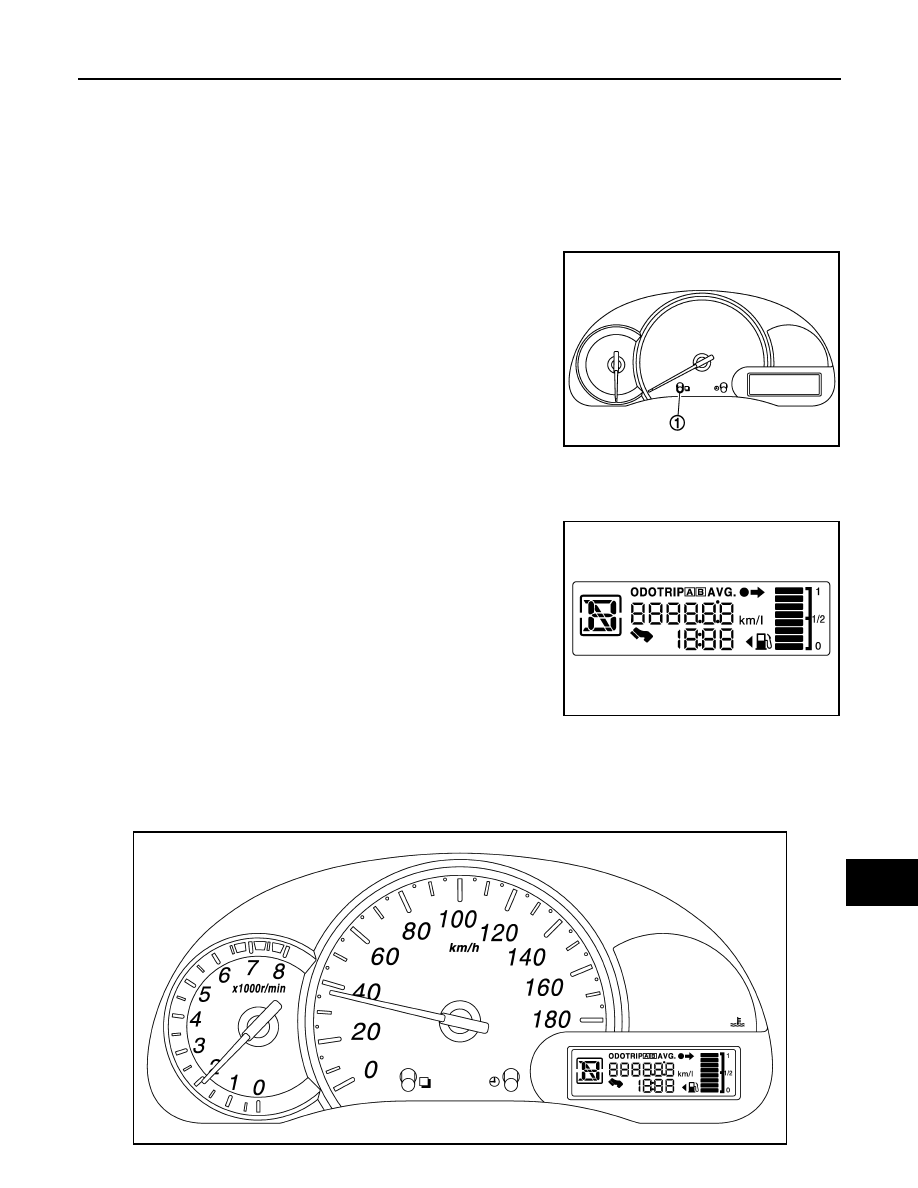

METHOD OF STARTING

1.

Turn the ignition switch ON while pressing and holding the meter
control switch (1) for 0.8 seconds or more.

2.

Press the meter control switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

3.

The combination meter is turned to self-diagnosis mode.
• Speedometer and tachometer (with tachometer models) return to zero, simultaneously.
• All segments of the information display are displayed.

NOTE:
• Check combination meter power supply and ground circuit when the self-diagnosis mode of the combi-

nation meter does not start. Replace combination meter if power supply and ground circuit are normal.

• If any of the segments are not displayed, replace combination meter.

4.

Each meter activates by pressing the meter control switch.

JSNIA2970ZZ

JSNIA2938ZZ

JSNIA2971ZZ
