Nissan March K13. Manual - part 432

LAN-16

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

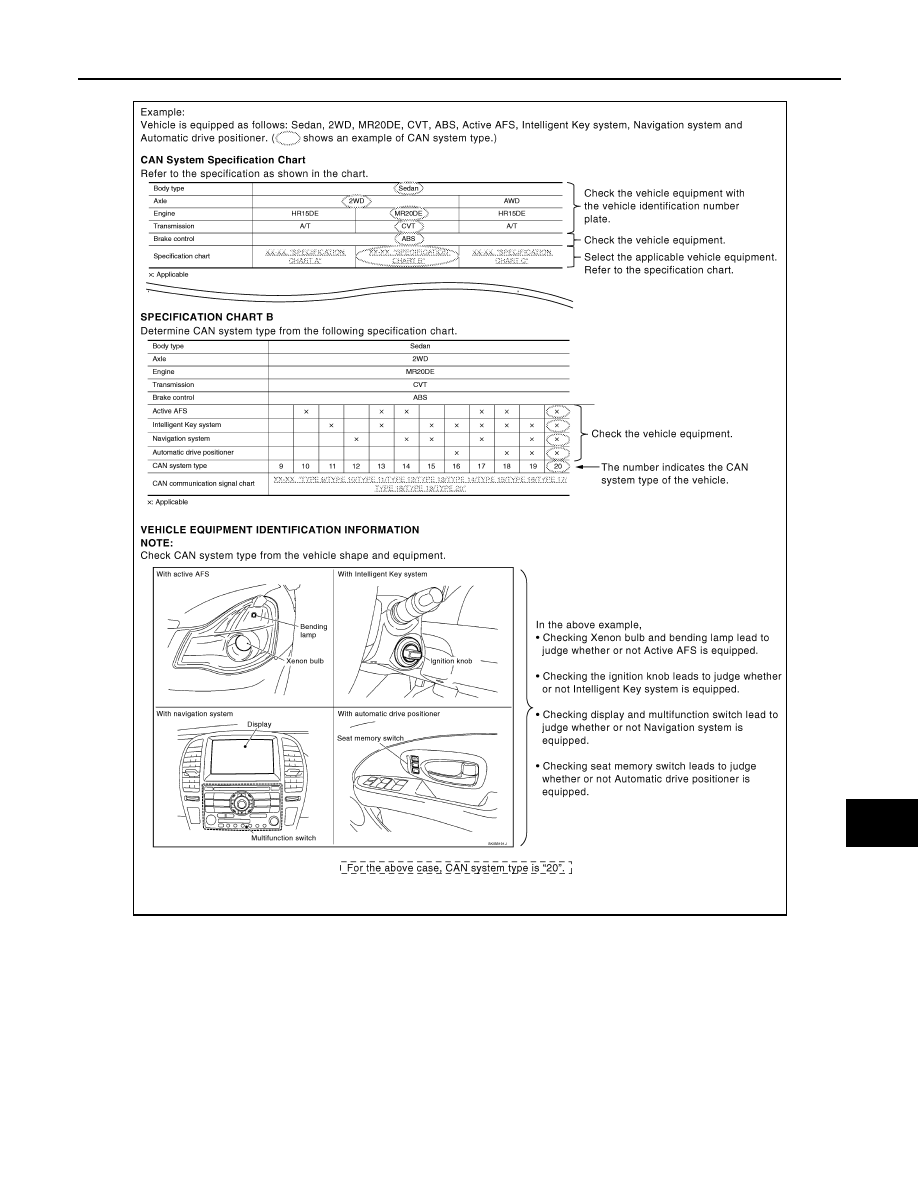

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

CAN System Type Specification Chart (Style B)

NOTE:

JSMIA0017GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-17

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

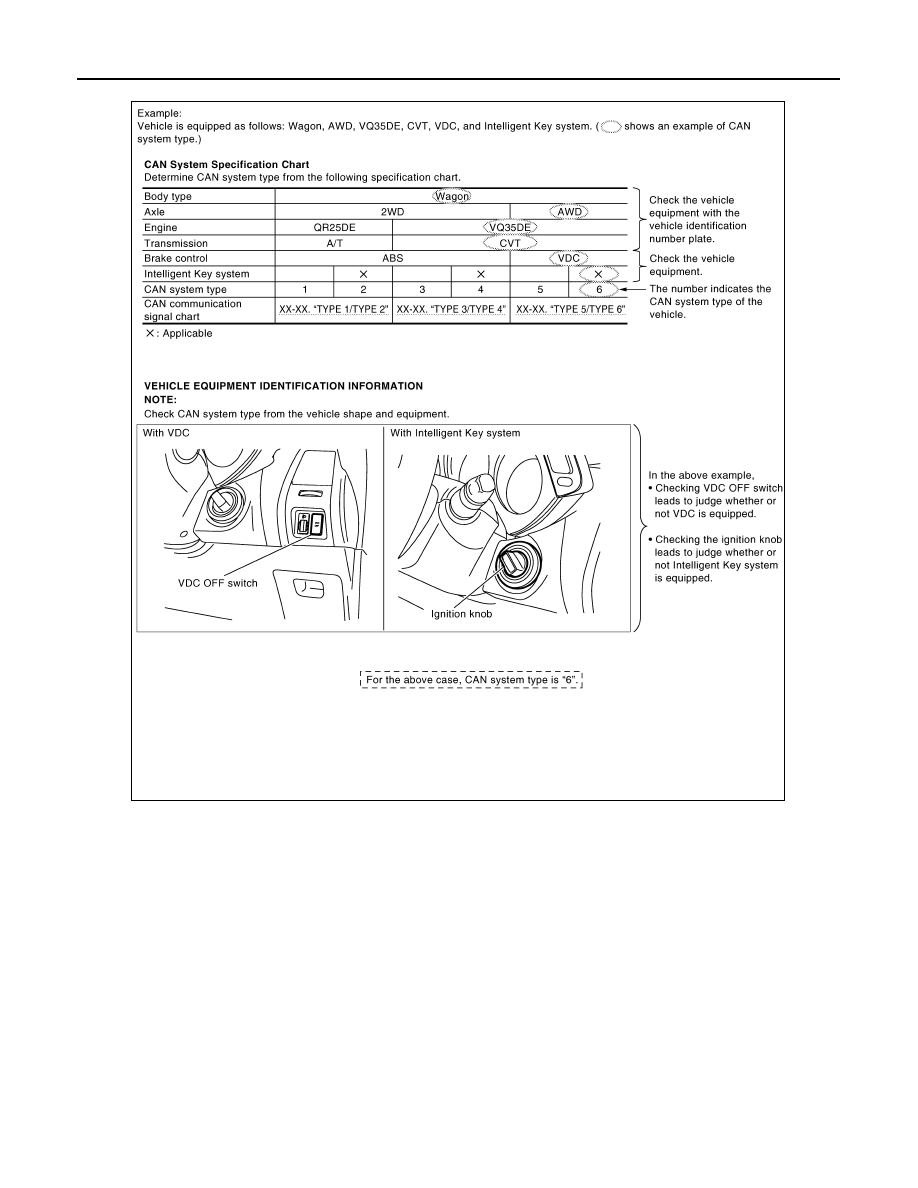

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

CREATE INTERVIEW SHEET

Fill out the symptom described by the customer, vehicle condition, and CAN system type on the interview
sheet.

JSMIA0018GB

LAN-18

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

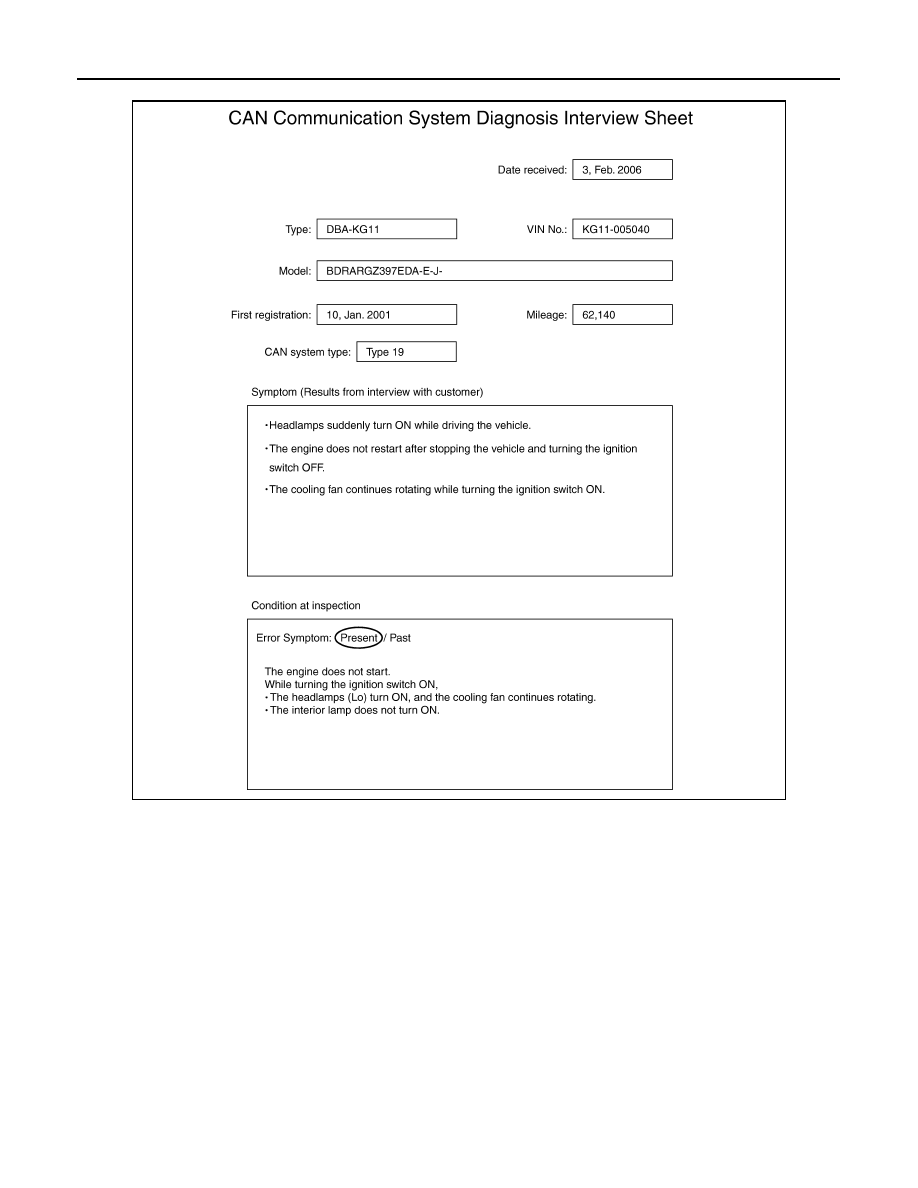

Interview Sheet (Example)

DETECT THE ROOT CAUSE

CAN diagnosis function of CONSULT-III detects the root cause.

JSMIA0019GB

LAN

HOW TO USE THIS SECTION

LAN-19

< HOW TO USE THIS MANUAL >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HOW TO USE THIS MANUAL

HOW TO USE THIS SECTION

Caution

INFOID:0000000005908893

• This section describes information peculiar to a vehicle and inspection procedures.
• For trouble diagnosis procedure, refer to

LAN-14, "Trouble Diagnosis Procedure"

.

Abbreviation List

INFOID:0000000005908894

Unit name abbreviations in CONSULT-III CAN diagnosis and in this section are as per the following list.

Abbreviation

Unit name

ABS

ABS actuator and electric unit (control unit)

BCM

BCM

DLC

Data link connector

ECM

ECM

EPS

EPS control unit

IPDM-E

IPDM E/R

M&A

Combination meter

TCM

TCM
