EXL-90

< REMOVAL AND INSTALLATION >

FRONT COMBINATION LAMP

Removal and Installation

INFOID:0000000005912482

REMOVAL

CAUTION:

Disconnect the battery negative terminal or the fuse.

1.

Remove front bumper fascia. Refer to

XX-XX, "*****"

.

2.

Remove the headlamp mounting bolts.

3.

Pull out the headlamp assembly forward the vehicle.

4.

Disconnect the connectors, and then remove headlamp assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

XX-XX, "*****"

.

Replacement

INFOID:0000000005912483

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB

1.

Disconnect the headlamp bulb connector.

2.

Remove the back cover.

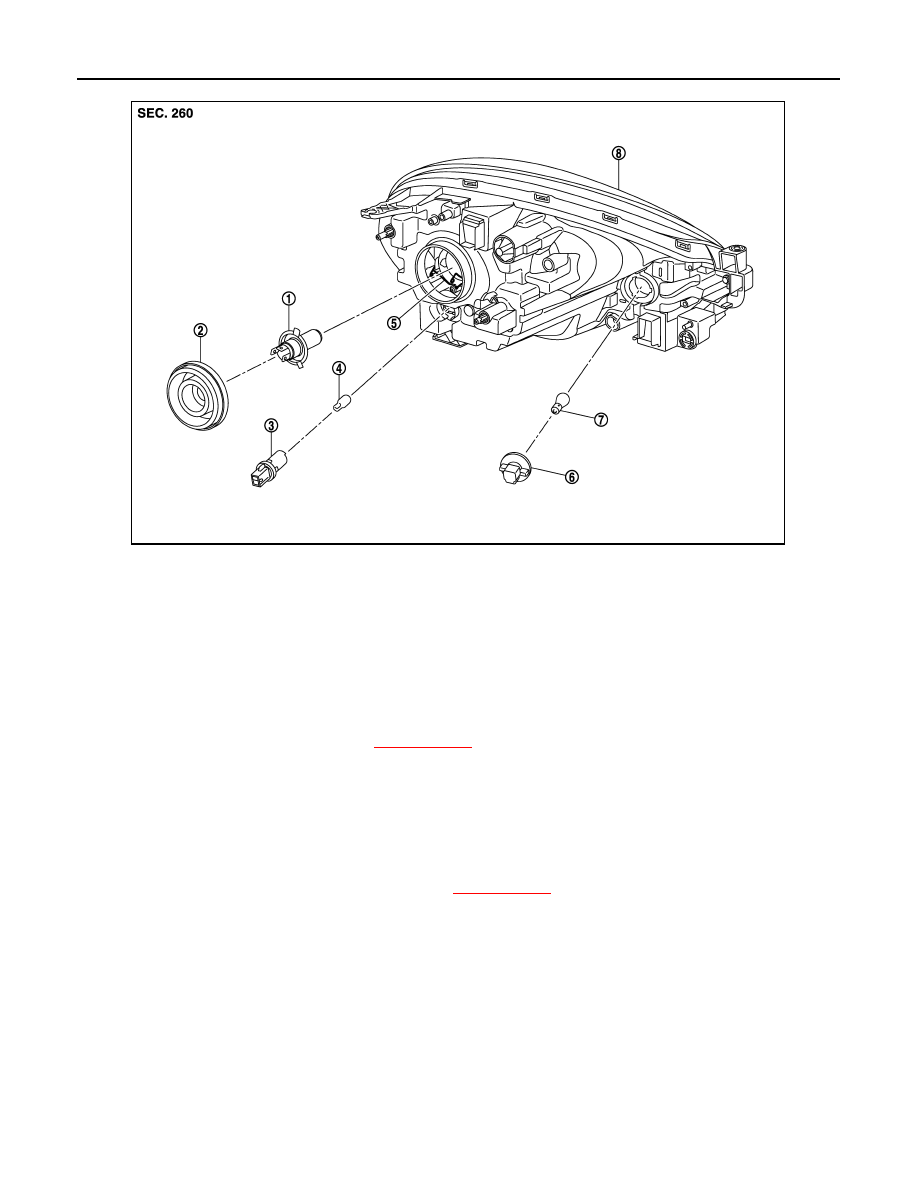

1.

Halogen bulb

2.

Back cover

3.

Parking lamp bulb socket

4.

Parking lamp bulb

5.

Retaining spring

6.

Front turn signal lamp bulb socket

7.

Front turn signal lamp bulb

8.

Headlamp housing assembly

JMLIA1032ZZ

FRONT COMBINATION LAMP

EXL-91

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3.

Remove the retaining spring lock. And remove the bulb from the headlamp housing assembly.

PARKING LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

FRONT TURN SIGNAL LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

Disassembly and Assembly

INFOID:0000000005912484

DISASSEMBLY

1.

Remove the back cover.

2.

Remove the retaining spring lock, and then remove the bulb from the headlamp housing assembly.

3.

Rotate the parking lamp bulb socket counterclockwise and unlock it.

4.

Remove the bulb from the parking lamp bulb socket.

5.

Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.

6.

Remove the bulb from the front turn signal lamp bulb socket.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

CAUTION:

After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

EXL-92

< REMOVAL AND INSTALLATION >

FRONT FOG LAMP

FRONT FOG LAMP

Exploded View

INFOID:0000000005912485

Removal and Installation

INFOID:0000000005912486

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove the fender protector. Refer to

XX-XX, "*****"

.

2.

Remove the front fog lamp connector.

3.

Remove the fixing screws, and then remove front fog lamp.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

XX-XX, "*****"

.

Replacement

INFOID:0000000005912487

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove the fender protector. Keep the service area.Refer to

XX-XX, "*****"

.

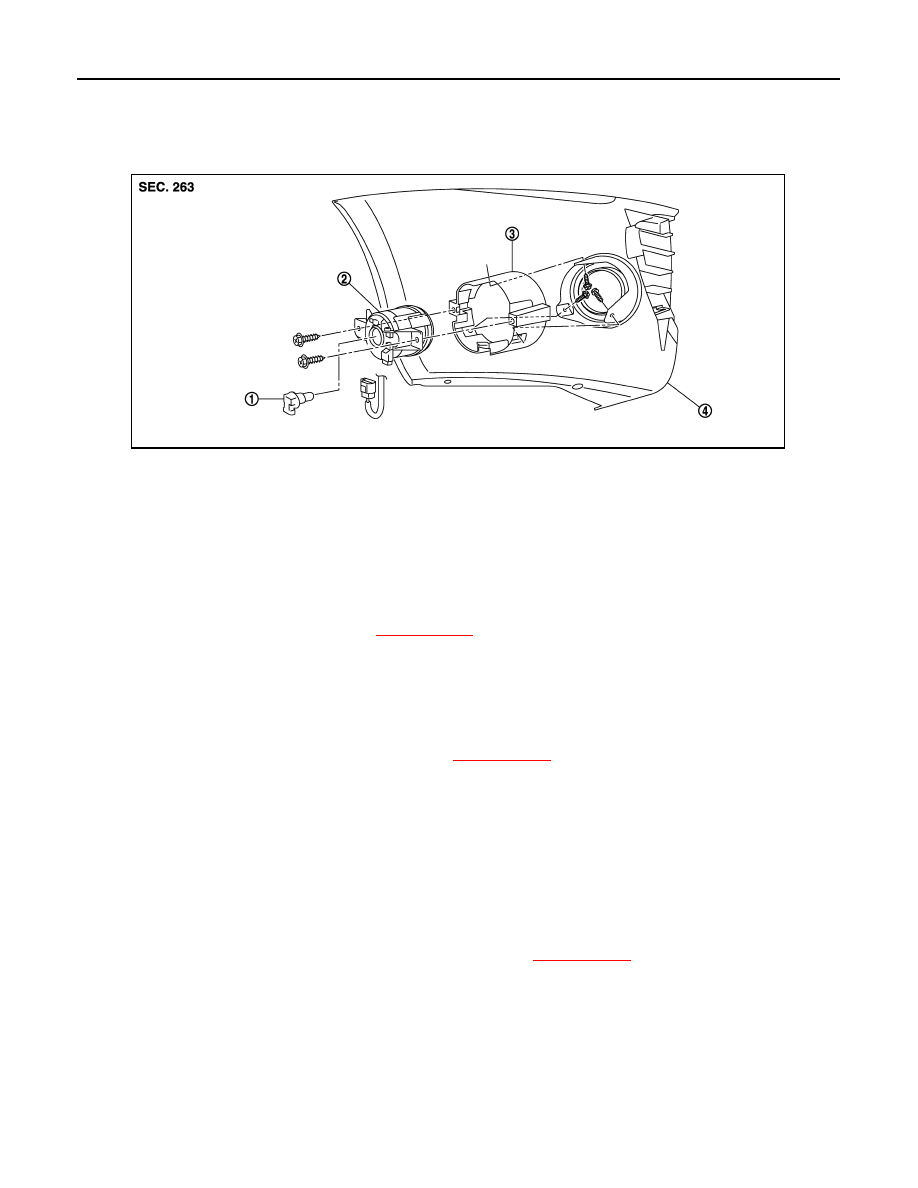

1.

Front fog lamp bulb

2.

Front fog lamp

3.

Front fog lamp bracket

4.

Front bumper

JMLIA1033ZZ

FRONT FOG LAMP

EXL-93

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

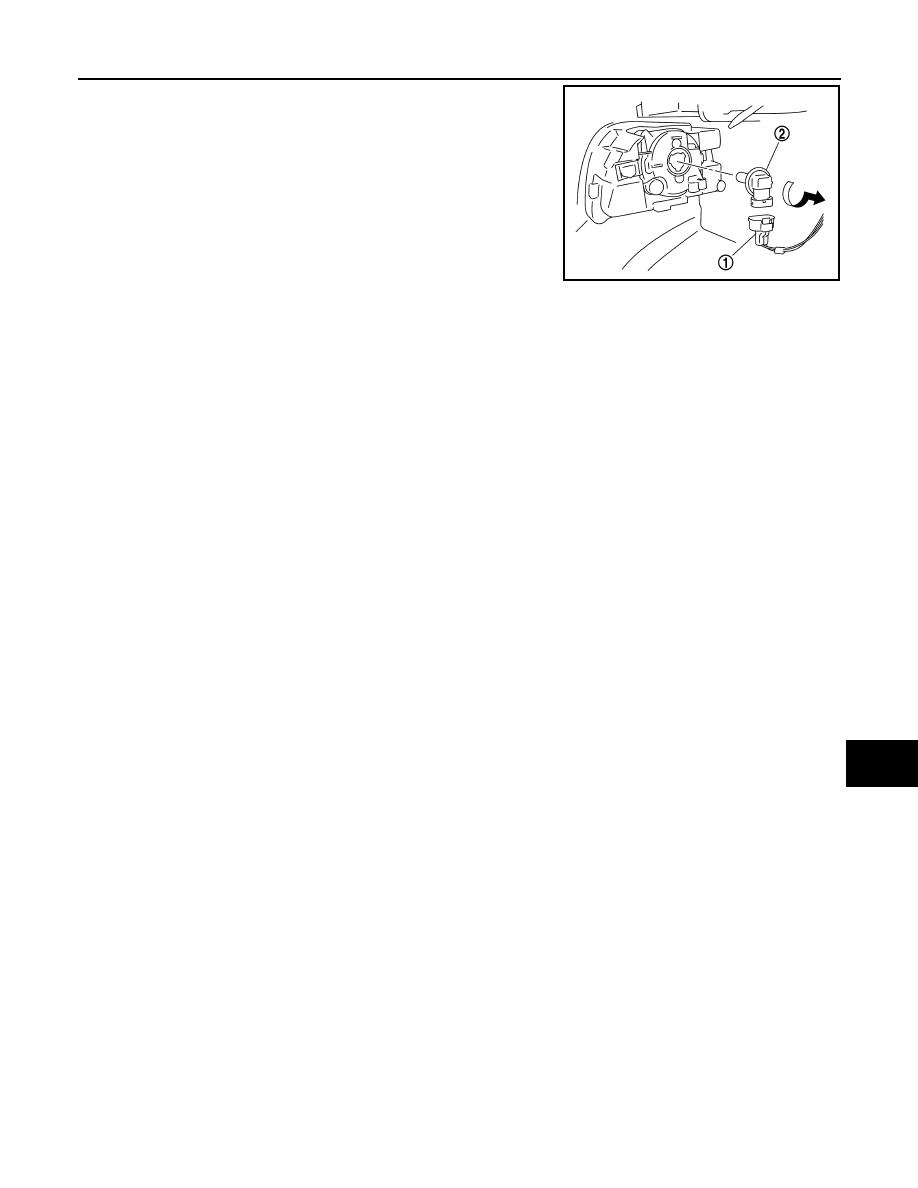

2.

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

SKIB8304J
