PREPARATION

EC-321

< PREPARATION >

[HR12DE (TYPE 2)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PREPARATION

PREPARATION

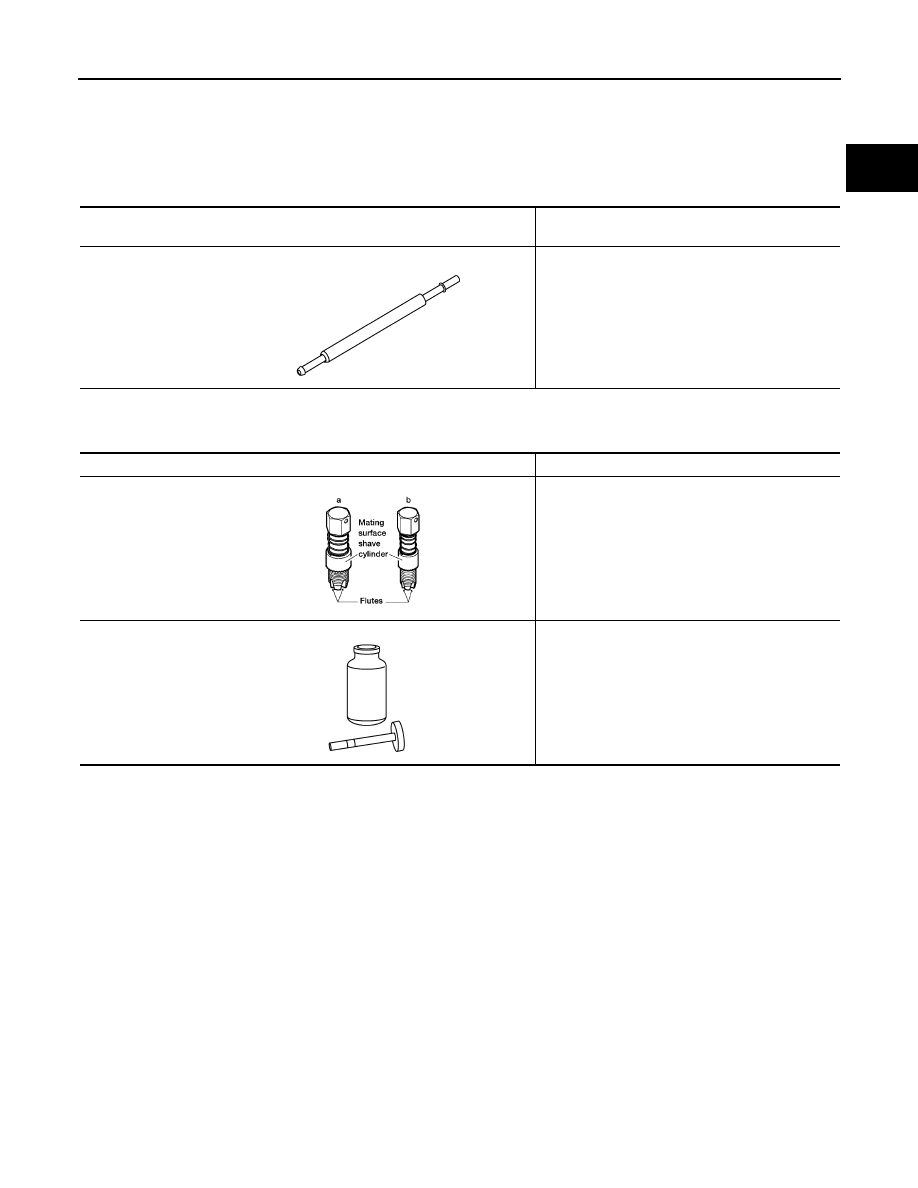

Special Service Tools

INFOID:0000000006036680

Commercial Service Tools

INFOID:0000000006036681

Tool number
Tool name

Description

KV10120000
Fuel tube adapter

Measuring fuel pressure

JSBIA0410ZZ

Tool name

Description

Oxygen sensor thread
cleaner

Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant

i.e.: (Permatex

TM



133AR or equivalent
meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

AEM488

S-NT779

EC-322

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 2)]

STRUCTURE AND OPERATION

SYSTEM DESCRIPTION

STRUCTURE AND OPERATION

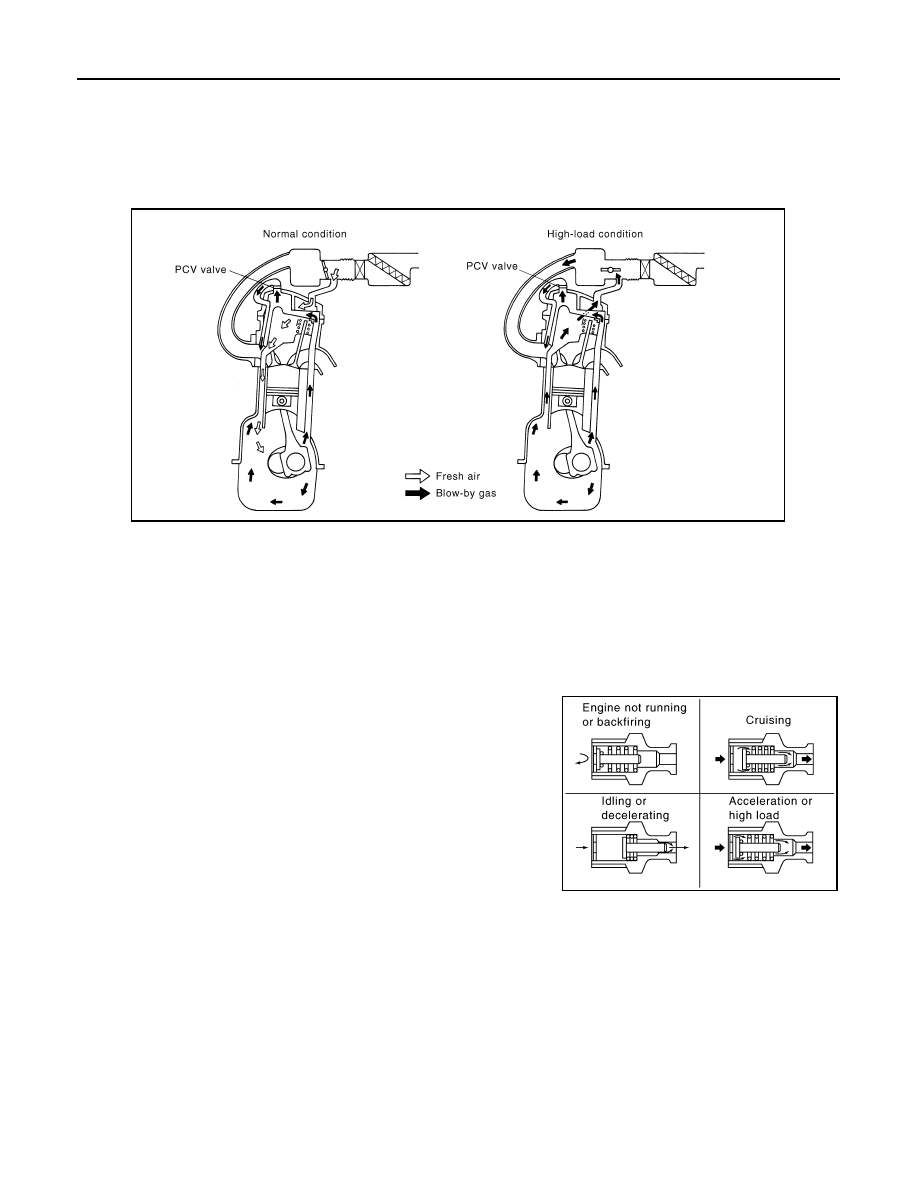

Positive Crankcase Ventilation

INFOID:0000000006036688

This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold.
During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the PCV
valve.
Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of ventilating air.
The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air passes
through the hose connecting air inlet tubes to rocker cover.
Under full-throttle condition, the manifold vacuum is insufficient to draw the blow-by flow through the valve.
The flow goes through the hose connection in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.

PBIB2962E

PBIB1588E

COMPONENT PARTS

EC-323

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 2)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

COMPONENT PARTS

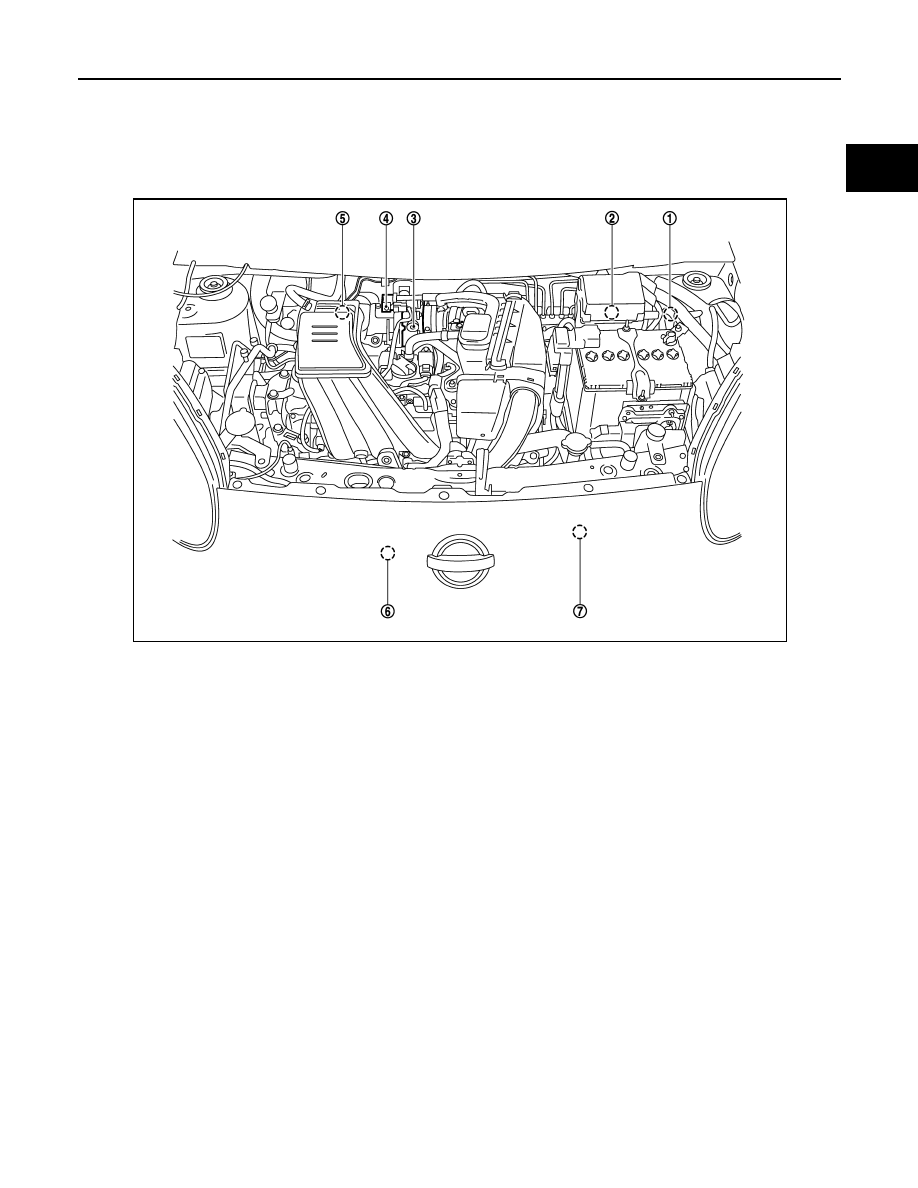

Component Parts Location

INFOID:0000000006036717

ENGINE ROOM COMPARTMENT

ENGINE COMPARTMENT

1.

ECM

2.

IPDM E/R
Refer to

Dummy cross-refer-

ence("XX-XX")

3.

Electric throttle control actuator (with
built in throttle position sensor and
throttle control motor)

4.

EVAP canister purge volume control
solenoid valve

5.

Manifold absolute pressure (MAP)
sensor
(with intake air temperature sensor)

6.

Refrigerant pressure sensor
Refer to

Dummy cross-refer-

ence("XX-XX")

7.

Cooling fan motor
Refer to

Dummy cross-refer-

ence("XX-XX")

JSBIA0326ZZ

EC-324

< SYSTEM DESCRIPTION >

[HR12DE (TYPE 2)]

COMPONENT PARTS

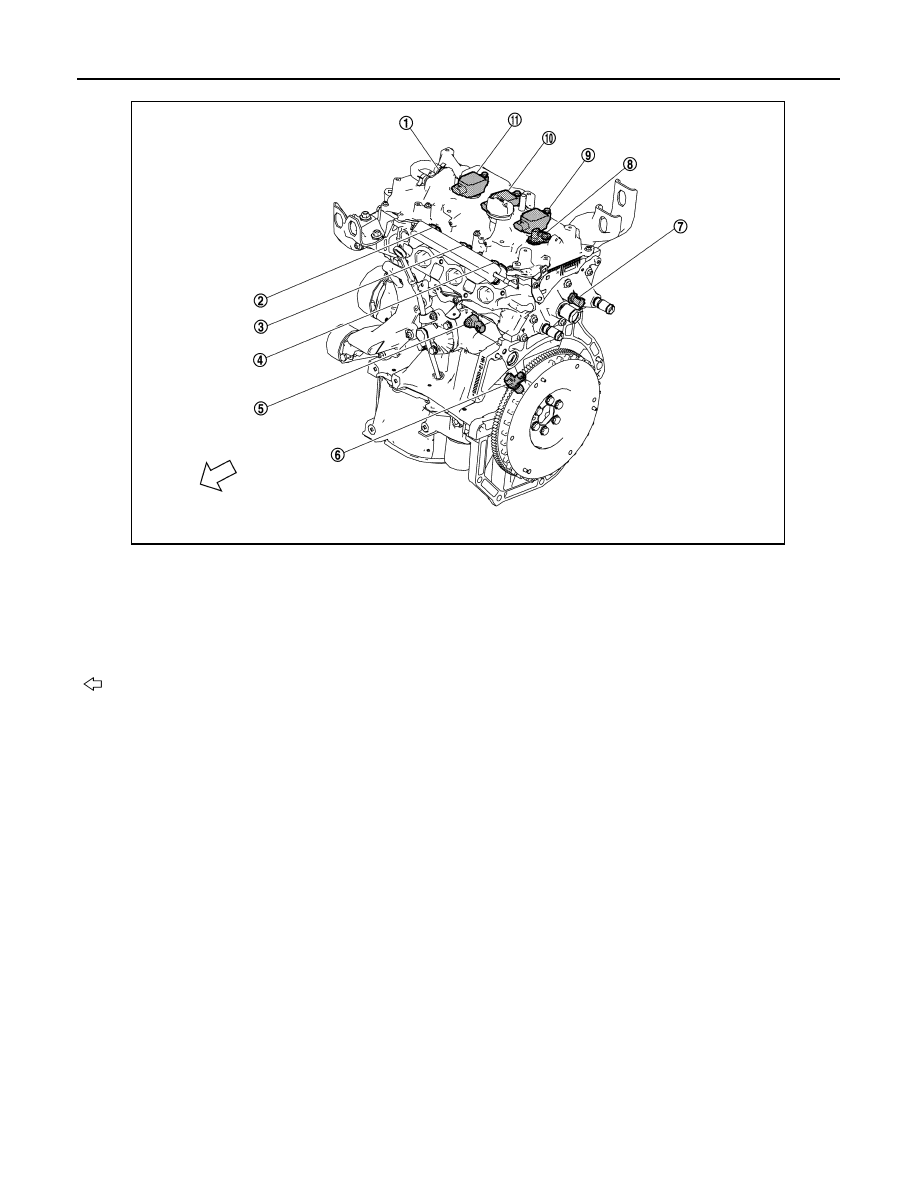

EXHAUST COMPARTMENT

JPBIA3224ZZ

1.

PCV valve

2.

Fuel injector No.1

3.

Fuel injector No.2

4.

Fuel injector No.3

5.

Knock sensor

6.

Crankshaft position sensor (POS)

7.

Engine coolant temperature sensor

8.

Camshaftposition sensor (PHASE)

9.

Ignition coil No.3 (with power transis-
tor)

10.

Ignition coil No.2 (with power transis-
tor)

11.

Ignition coil No.1 (with power transis-
tor)

:Vehicle front
