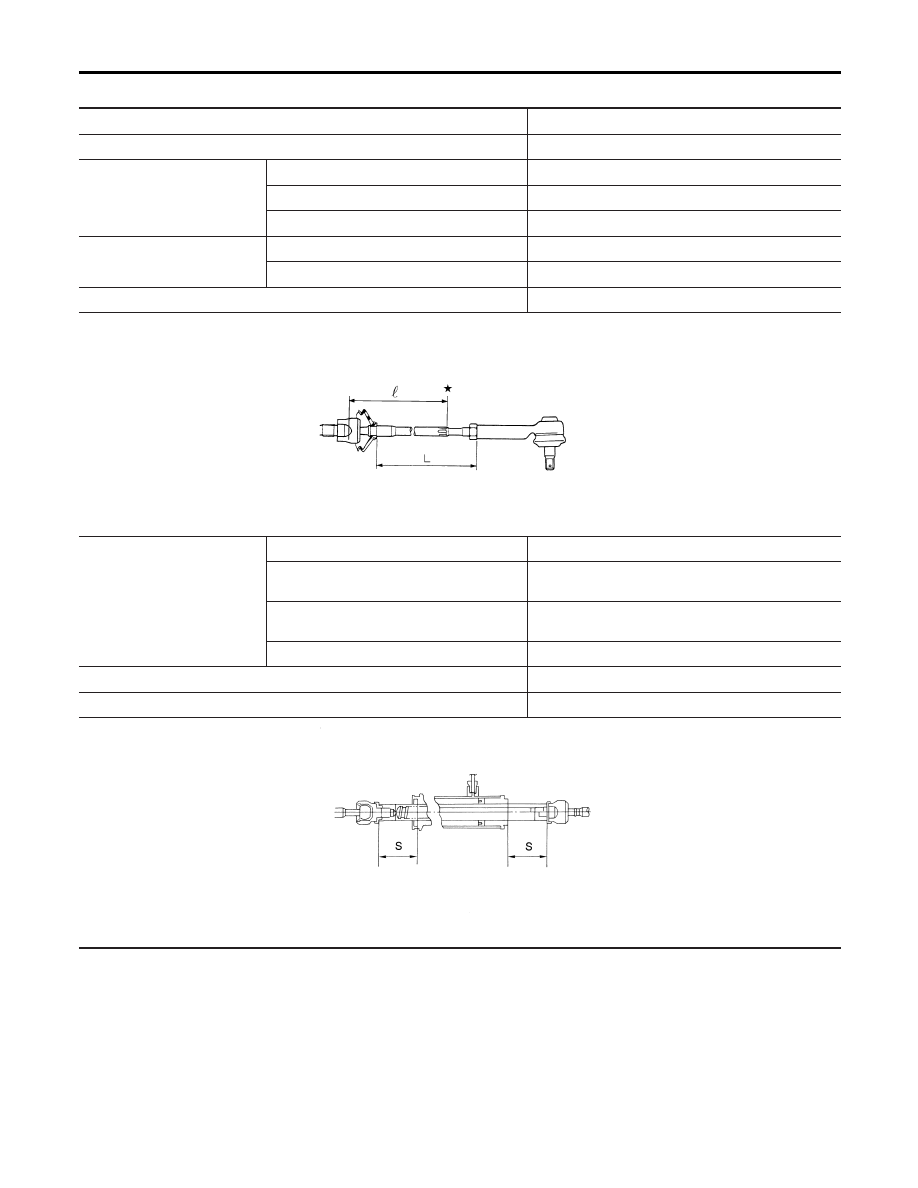

Steering Gear and Linkage
NMST0035
Applied model
All
Steering gear type
PR24AD
Tie-rod outer ball joint
Swinging force at cotter pin hole: “A”
N (kg, lb)
6.47 - 363 (0.66 - 37, 1.46 - 82)
Rotating torque: “B”
N·m (kg-cm, in-lb)
0.29 - 2.94 (3.0 - 30.0, 2.6 - 26.0)
Axial end play: “C”
mm (in)
0.2 (0.008) or less
Tie-rod inner ball joint
Swinging force*: “A”
N (kg, lb)
7.16 - 57.17 (0.73 - 5.83, 1.61 - 12.86)
Axial end play: “C”
mm (in)
0.2 (0.004) or less
Tie-rod standard length “L”
mm (in)
154.2 (6.07)
*: Measuring point [
: 137 mm (6.77 in)]
SST974C
Retainer adjustment
Adjusting screw
Initial tightening torque
N·m (kg-cm, in-lb)
4.9 - 5.9 (50 - 60, 43 - 52)
Retightening torque after loosening
N·m (kg-cm,
in-lb)
0.2 (2, 1.7)
Tightening torque after gear has settled
N·m
(kg-cm, in-lb)
4.9 - 5.9 (50 - 60, 43 - 52)
Returning angle
degree
60° - 80°
Steering gear type
PR24AD
Rack stroke “S”
mm (in)
67 (2.64)
SST086BA
SERVICE DATA AND SPECIFICATIONS (SDS)
Steering Gear and Linkage
ST-30
