Supplemental Restraint System (SRS) “AIR
BAG”

NMST0038

The Supplemental Restraint System such as “AIR BAG” used along with a seat belt, helps to reduce the risk
or severity of injury to the driver and front passenger for certain types of collision. The SRS system composi-
tion which is available to NISSAN MODEL S15 is as follows:
The Supplemental Restraint System consists of driver air bag module (located in the center of the steering
wheel), front passenger air bag module (located on the instrument panel on passenger side), a diagnosis
sensor unit, warning lamp, wiring harness and spiral cable.
Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

I

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.

I

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.

I

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified with yellow harness connector.

Precautions for Steering System

NMST0003

I

Before disassembly, thoroughly clean the outside of the unit.

I

Disassembly should be done in a clean work area. It is important to prevent the internal parts from
becoming contaminated by dirt or other foreign matter.

I

Place disassembled parts in order, on a parts rack, for easier and proper assembly.

I

Use nylon cloths or paper towels to clean the parts; common shop rags can leave lint that might
interfere with their operation.

I

Before inspection or reassembly, carefully clean all parts with a general purpose, non-flammable
solvent.

I

Before assembly, apply a coat of recommended power steering fluid* to hydraulic parts. Vaseline
may be applied to O-rings and seals. Do not use any grease.

I

Replace all gaskets, seals and O-rings. Avoid damaging O-rings, seals and gaskets during instal-
lation. Perform functional tests whenever designated.
*: Type Dexron

TM

III or equivalent. Refer to MA-8, “Fluids and Lubricants”.

PRECAUTIONS

Supplemental Restraint System (SRS) “AIR BAG”

ST-2

Special Service Tools

NMST0004

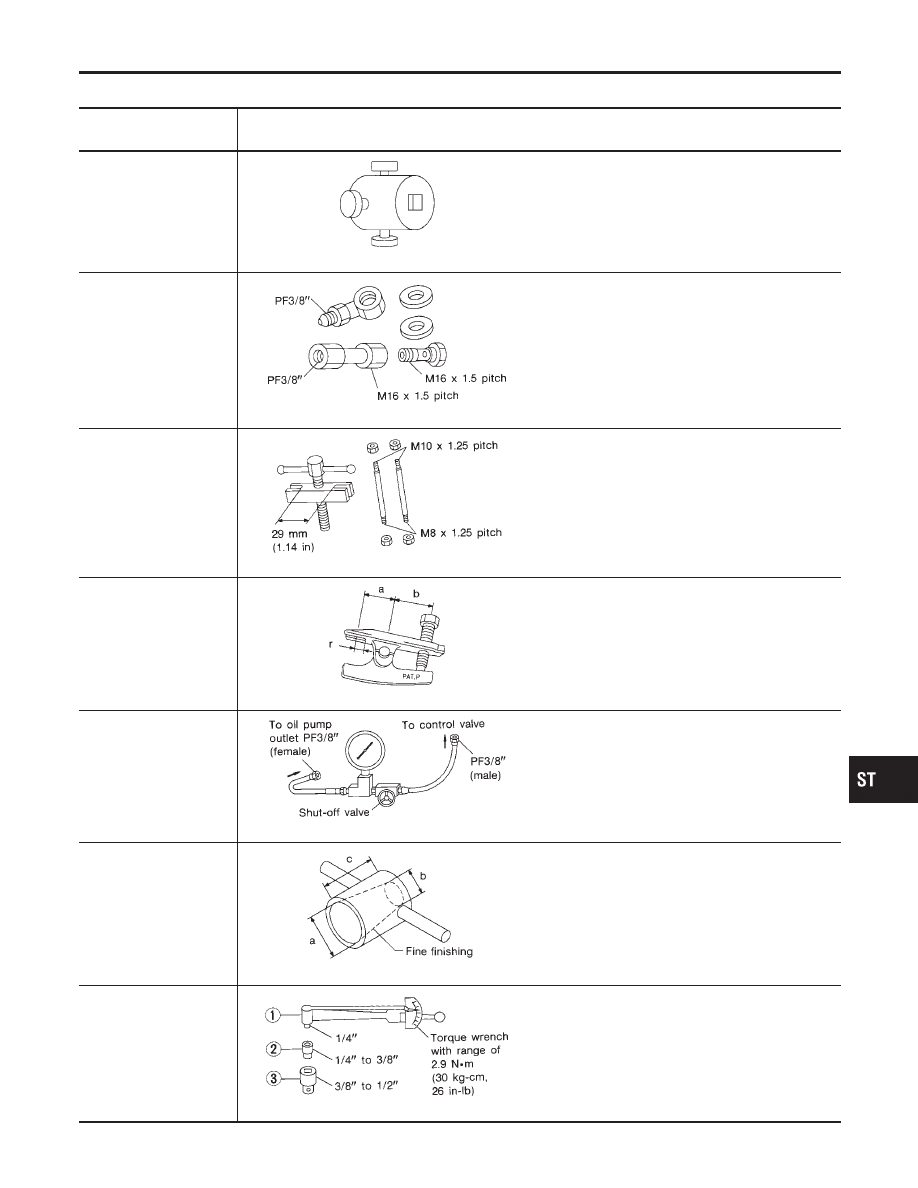

Tool number
Tool name

Description

KV48103400
Torque adapter

NT236

Measuring steering transfer gear rotating torque

KV48102500
Pressure gauge adapter

NT542

Measuring oil pressure

ST27180001
Steering wheel puller

NT544

Removing steering wheel

HT72520000
Ball joint remover

NT546

Removing ball joint
a: 33 mm (1.30 in)
b: 50 mm (1.97 in)
r: R11.5 mm (0.453 in)

KV48103500
Pressure gauge

NT547

Measuring oil pressure

KV48104400
Rack seal ring reformer

NT550

Reforming teflon ring
a: 50 mm (1.97 in) dia.
b: 36 mm (1.42 in) dia.
c: 100 mm (3.94 in)

ST3127S000
1 GG91030000
Torque wrench
2 HT62940000
Socket adapter
3 HT62900000
Socket adapter

NT541

Measuring turning torque

GI

MA

EM

LC

EC

FE

CL

MT

AT

PD

AX

SU

BR

RS

BT

HA

SC

EL

IDX

PREPARATION

Special Service Tools

ST-3

Commercial Service Tool

NMST0005

Tool number

Description

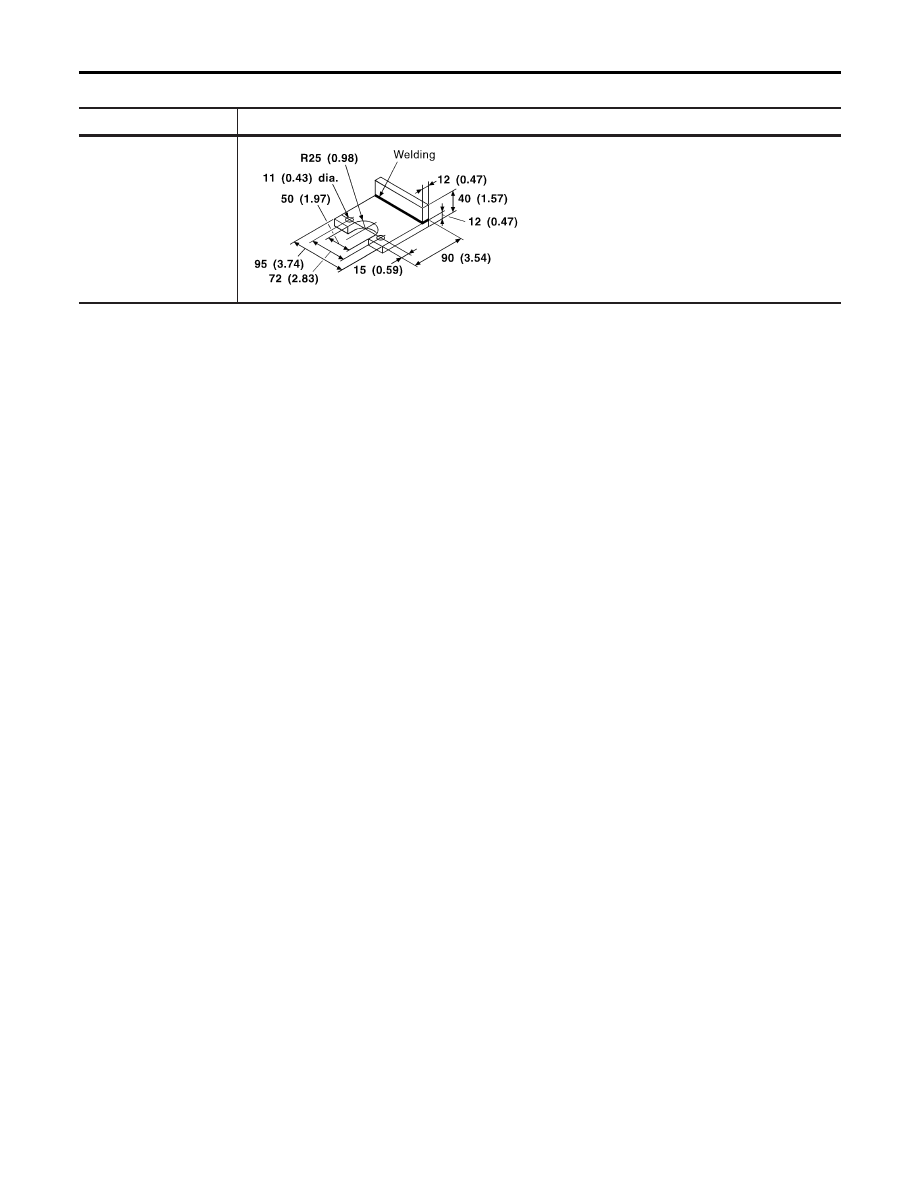

Oil pump attachment

NT774

Disassembling and assembling oil pump
Unit: mm (in)

PREPARATION

Commercial Service Tool

ST-4

NMST0006

NVH Troubleshooting Chart

NMST0006S01

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

Reference page

ST

-7

ST

-8

ST

-19

ST

-19

ST

-19

ST

-7

ST

-6

ST

-8

EM-16

ST

-1

1

ST

-6

ST

-14

ST

-13

ST

-15

AX-3

AX-3

SU-4

SU-4

SU-4

BR-5

Possible cause and
SUSPECTED PARTS

Fluid

level

Air

in

hydraulic

system

T

ie-rod

ball

joint

swinging

force

T

ie-rod

ball

joint

rotating

torque

T

ie-rod

ball

joint

end

play

Steering

gear

fluid

leakage

Steering

wheel

play

Steering

gear

rack

sliding

force

Drive

belt

looseness

Improper

steering

wheel

Improper

installation

or

looseness

or

tilt

lock

lever

Mounting

rubber

deterioration

Steering

column

deformation

or

damage

Improper

installation

or

looseness

of

steering

column

Steering

linkage

looseness

DRIVE

SHAFT

AXLE

SUSPENSION

TIRES

ROAD

WHEEL

BRAKES

Symptom

STEERING

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

×

×

: Applicable

GI

MA

EM

LC

EC

FE

CL

MT

AT

PD

AX

SU

BR

RS

BT

HA

SC

EL

IDX

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

ST-5
