ENGINE LUBRICATION &

COOLING SYSTEMS

SECTION

LC

CONTENTS

ENGINE LUBRICATION SYSTEM..................................2

Precautions ..................................................................2

LIQUID GASKET APPLICATION PROCEDURE

............2

Preparation ..................................................................2

SPECIAL SERVICE TOOLS

........................................2

Lubrication Circuit ........................................................3
Oil Pressure Check......................................................3
Oil Pump ......................................................................4

REMOVAL

.................................................................4

DISASSEMBLY AND ASSEMBLY

................................4

INSPECTION

.............................................................5

REGULATOR VALVE INSPECTION

............................5

INSTALLATION

..........................................................6

Changing Engine Oil....................................................6
Changing Oil Filter.......................................................7
Service Data and Specifications (SDS).......................8

OIL PRESSURE CHECK

............................................8

REGULATOR VALVE INSPECTION

............................8

OIL PUMP INSPECTION

............................................8

ENGINE OIL CAPACITY

.............................................8

ENGINE COOLING SYSTEM..........................................9

Precautions ..................................................................9

LIQUID GASKET APPLICATION PROCEDURE

............9

Preparation ..................................................................9

SPECIAL SERVICE TOOL

..........................................9

Cooling Circuit ...........................................................10
System Check............................................................10

CHECKING COOLING SYSTEM HOSES

...................10

CHECKING COOLING SYSTEM FOR LEAKS

............ 11

CHECKING RADIATOR

............................................ 11

CHECKING RADIATOR CAP

.................................... 11

Water Pump ...............................................................12

REMOVAL

...............................................................12

INSPECTION

...........................................................12

INSTALLATION

........................................................12

Thermostat.................................................................13

REMOVAL AND INSTALLATION

...............................13

INSPECTION

...........................................................13

Water Outlet...............................................................14

INSPECTION

...........................................................14

INSTALLATION

........................................................14

Radiator .....................................................................14

COMPONENTS

.......................................................14

Cooling Fan (Crankshaft driven) ...............................15

DISASSEMBLY AND ASSEMBLY

..............................15

INSPECTION

...........................................................15

Cooling Fan Control System .....................................15
Changing Engine Coolant..........................................15

-DRAINING ENGINE COOLANT-

..............................15

-REFILLING ENGINE COOLANT-

..............................16

-FLUSHING COOLING SYSTEM-

..............................17

Radiator (Aluminum type)..........................................18

PREPARATION

.......................................................18

DISASSEMBLY

........................................................18

ASSEMBLY

.............................................................19

INSPECTION

...........................................................20

Overheating Cause Analysis .....................................21
Service Data and Specifications (SDS).....................22

THERMOSTAT

........................................................22

RADIATOR

..............................................................22

ENGINE COOLANT CAPACITY

................................22

GI

MA

EM

EC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SEM164F

AEM080

Precautions

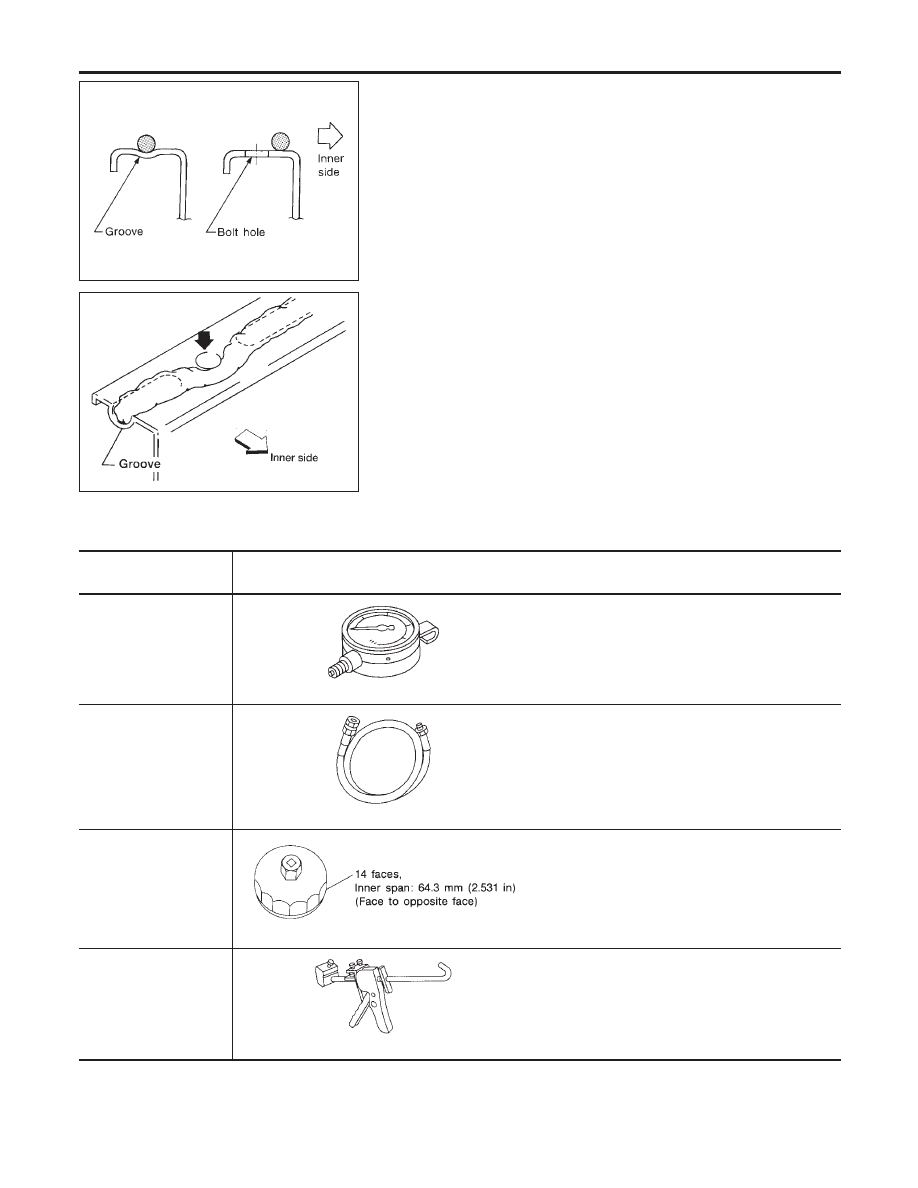

LIQUID GASKET APPLICATION PROCEDURE

NMLC0001

1.

Use a scraper to remove all traces of old liquid gasket from
mating surfaces and grooves. Also, completely clean any oil
from these areas.

2.

Apply a continuous bead of liquid gasket to mating surfaces.
(Use Genuine Liquid Gasket or equivalent.)

I

For oil pan, be sure liquid gasket diameter is 4.0 to 5.0 mm
(0.157 to 0.197 in).

I

For areas except oil pan, be sure liquid gasket diameter is 2.0
to 3.0 mm (0.079 to 0.118 in).

3.

Apply liquid gasket around the inner side of bolt holes (unless
otherwise specified).

4.

Assembly should be done within 5 minutes after coating.

5.

Wait at least 30 minutes before refilling engine oil and engine
coolant.

Preparation

SPECIAL SERVICE TOOLS

NMLC0002

Tool number
Tool name

Description

ST25051001
Oil pressure gauge

NT050

ST25052000
Hose

NT051

Adapting oil pressure gauge to cylinder block

KV10115801
Oil filter wrench

NT362

Removing oil filter

WS39930000
Tube presser

NT052

Pressing the tube of liquid gasket

ENGINE LUBRICATION SYSTEM

Precautions

LC-2

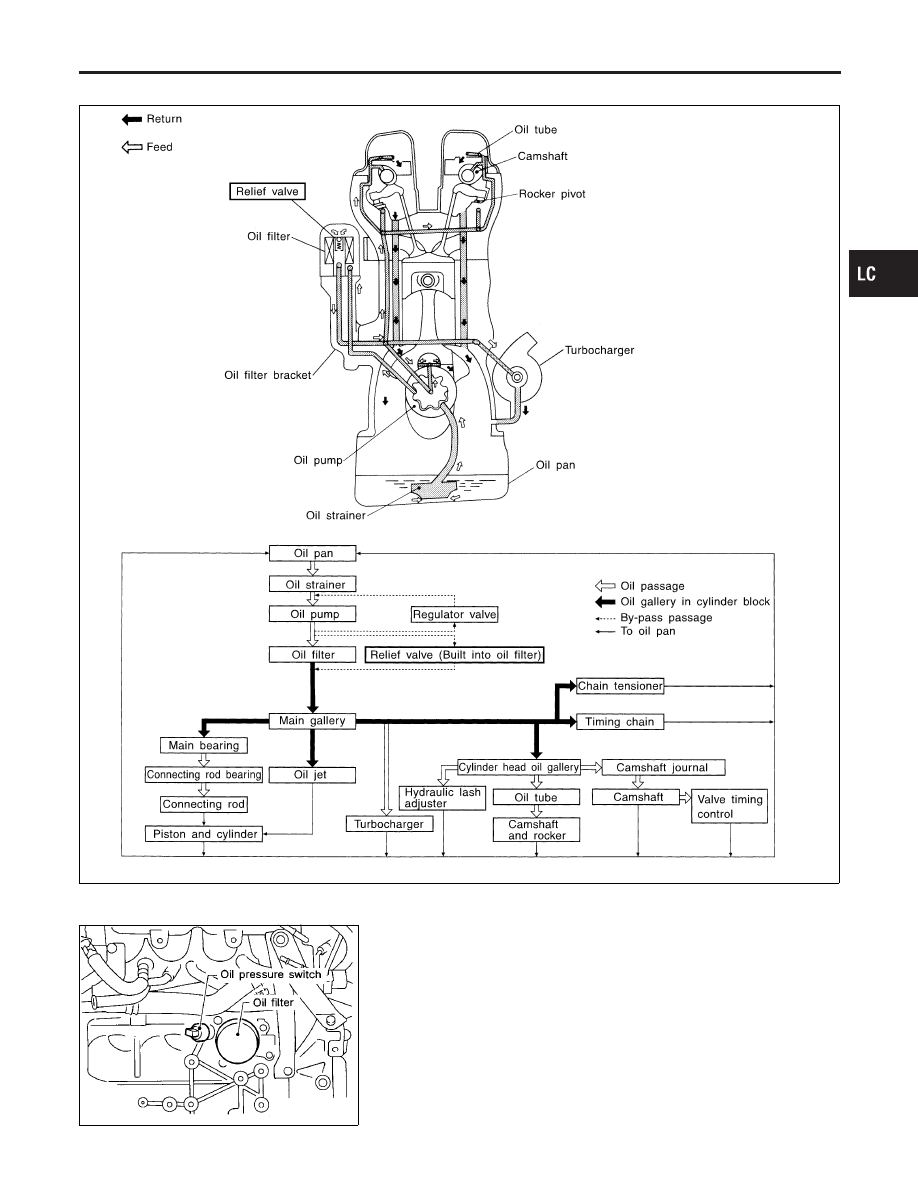

Lubrication Circuit

NMLC0003

SLC401B

SLC970A

Oil Pressure Check

NMLC0004

WARNING:

I

Be careful not to burn yourself, as the engine and oil may
be hot.

I

For M/T models, put gearshift lever in Neutral “N” posi-
tion. For A/T models, put selector lever in Park “P” posi-
tion.

1.

Check oil level.

2.

Remove oil pressure switch.

GI

MA

EM

EC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE LUBRICATION SYSTEM

Lubrication Circuit

LC-3

SLC926-A

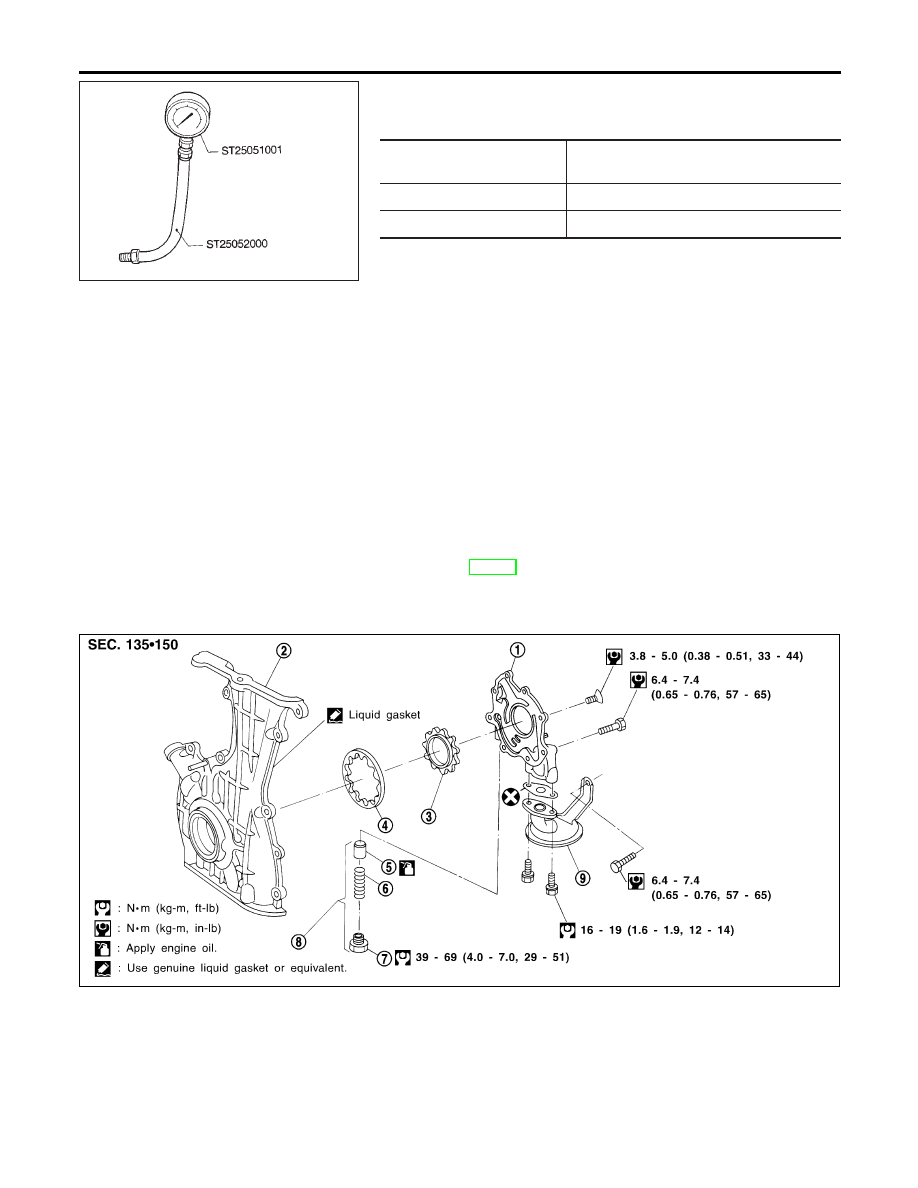

3.

Install pressure gauge.

4.

Start engine and warm it up to normal operating temperature.

5.

Check oil pressure with engine running under no-load.

Engine speed

rpm

Approximate discharge pressure

kPa (bar, kg/cm

2

, psi)

Idle speed

More than 78 (0.78, 0.8, 11)

3,200

314 - 392 (3.14 - 3.92, 3.2 - 4.0, 46 - 57)

I

If difference is extreme, check oil passage and oil pump
for oil leaks.

6.

Install oil pressure switch with sealant.

Oil Pump

REMOVAL

NMLC0005

1.

Remove front cover.
Refer to EM-26, “Removal”.

2.

Remove oil pump cover.

DISASSEMBLY AND ASSEMBLY

NMLC0006

SLC402B

1.

Oil pump cover

2.

Front cover

3.

Inner rotor

4.

Outer rotor

5.

Regulator valve

6.

Spring

7.

Plug

8.

Regulator valve assembly

9.

Oil strainer

ENGINE LUBRICATION SYSTEM

Oil Pressure Check (Cont’d)

LC-4
