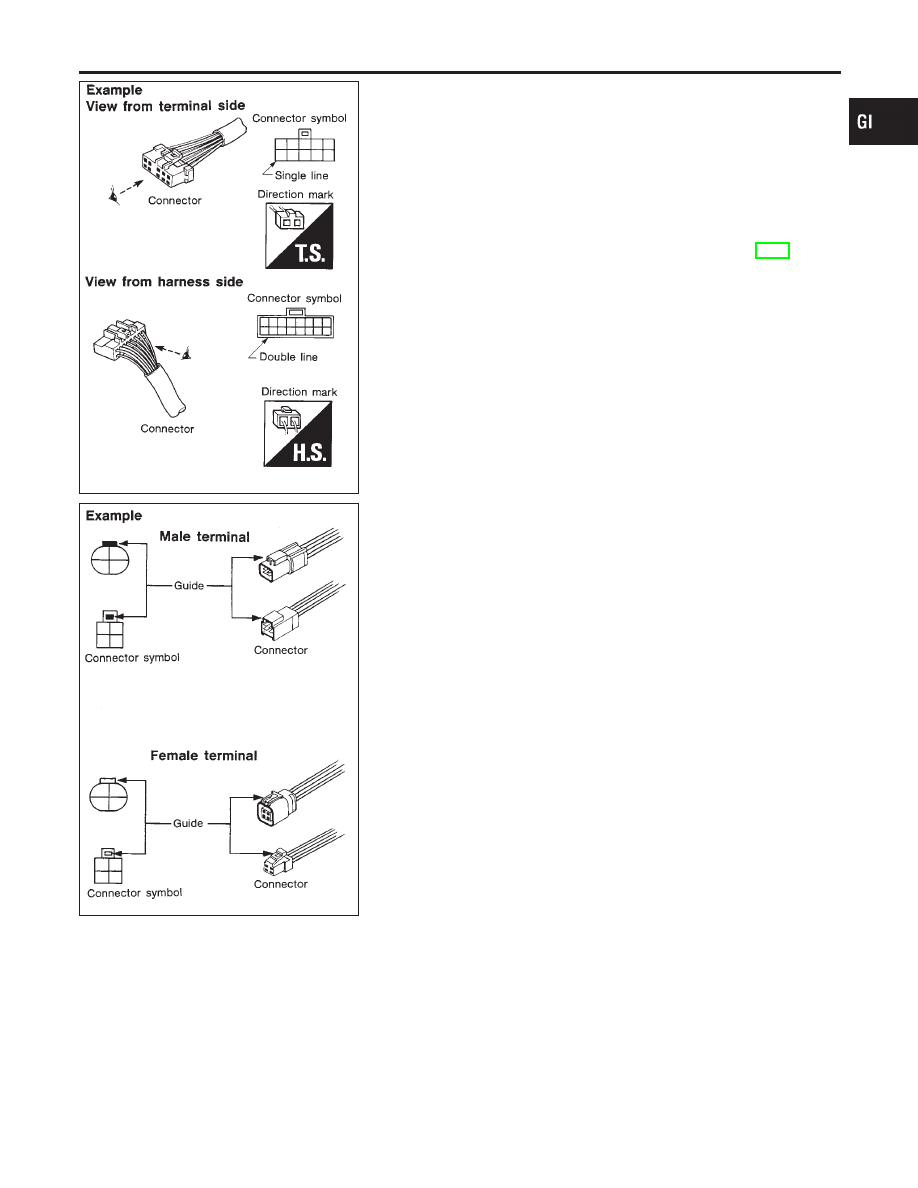

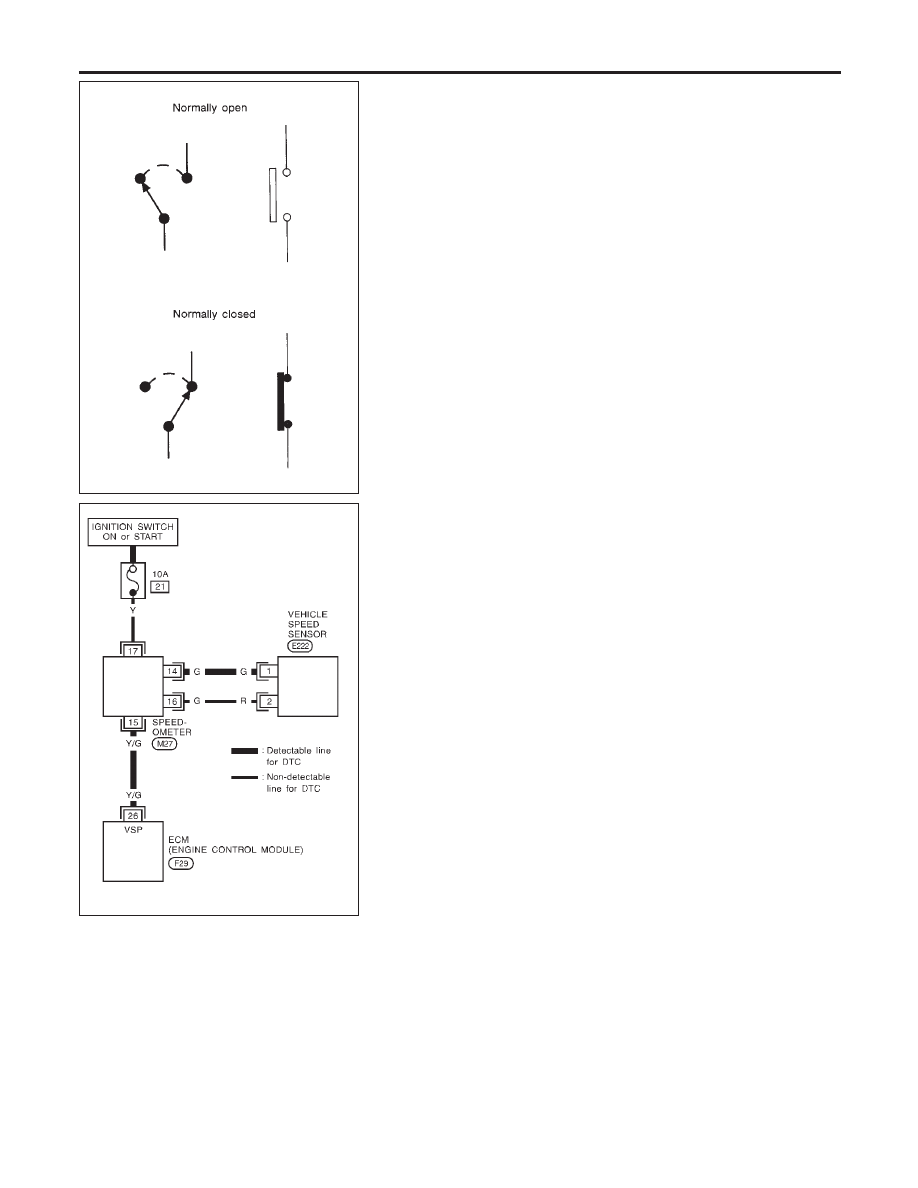

Description =NMGI0003S02 Number Item Description 1 Power condition I This shows the condition when the system receives battery positive voltage (can be 2 Fusible link I The double line shows that this is a fusible link. I The open circle shows current flow in, and the shaded circle shows current flow out. 3 Fusible link/fuse loca- I This shows the location of the fusible link or fuse in the fusible link or fuse box. For 4 Fuse I The single line shows that this is a fuse. I The open circle shows current flow in, and the shaded circle shows current flow out. 5 Current rating I This shows the current rating of the fusible link or fuse. 6 Connectors I This shows that connector E3 is female and connector M1 is male. I The G/R wire is located in the 1A terminal of both connectors. I Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ con- 7 Optional splice I The open circle shows that the splice is optional depending on vehicle application. 8 Splice I The shaded circle shows that the splice is always on the vehicle. 9 Page crossing I This arrow shows that the circuit continues to an adjacent page. I The A will match with the A on the preceding or next page. 10 Common connector I The dotted lines between terminals show that these terminals are part of the same con- 11 Option abbreviation I This shows that the circuit is optional depending on vehicle application. 12 Relay I This shows an internal representation of the relay. For details, refer to EL-5, “STAN- 13 Connectors I This shows that the connector is connected to the body or a terminal with bolt or nut. 14 Wire color I This shows a code for the color of the wire. B = Black BR = Brown When the wire color is striped, the base color is given first, followed by the stripe color as 15 Option description I This shows a description of the option abbreviation used on the page. 16 Switch I This shows that continuity exists between terminals 1 and 2 when the switch is in the A 17 Assembly parts I Connector terminal in component shows that it is a harness incorporated assembly. 18 Cell code I This identifies each page of the wiring diagram by section, system and wiring diagram 19 Current flow arrow I Arrow indicates electric current flow, especially where the direction of standard flow (ver- I A double arrow “ ” shows that current can flow in either direction depending on cir- cuit operation. MA EM LC EC FE CL MT AT PD AX SU BR ST RS BT HA SC EL IDX HOW TO READ WIRING DIAGRAMS Description GI-13 |
