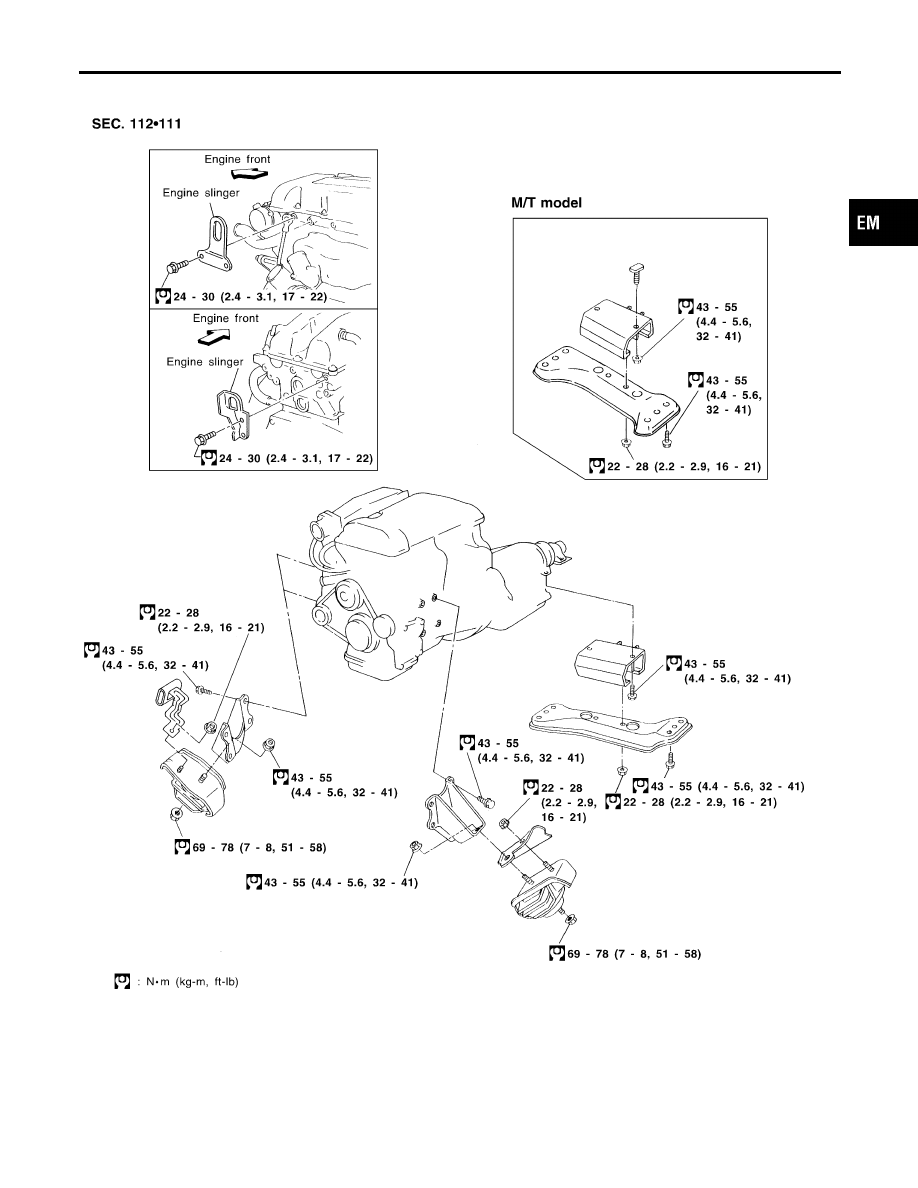

ENGINE ASSEMBLY

Removal and Installation

EM-65

WARNING:

I

Position vehicle on a flat and solid surface.

I

Place chocks at front and back of rear wheels.

I

Do not remove engine until exhaust system has com-
pletely cooled off, otherwise you may burn yourself and/or
fire may break out in fuel line.

I

Before disconnecting fuel hose, release pressure. Refer to
EC-27,
“Fuel Pressure Release”.

I

Be sure to lift engine and transmission in a safe manner.

I

For engines not equipped with engine slingers, attach
proper slingers and bolts described in PARTS CATALOG.

CAUTION:

I

When lifting engine, be sure to clear surrounding parts.
Use special care near accelerator wire casing, brake lines
and brake master cylinder.

I

In lifting the engine, always use engine slingers in a safe
manner.

REMOVAL

NMEM0022S01

1.

Remove transmission. Refer AT-208 or MT-12, “Removal”.

2.

Remove engine under covers and hood.

3.

Drain coolant from both cylinder block and radiator. Refer to
LC-15, “Changing Engine Coolant”.

4.

Drain engine oil.

5.

Remove air cleaner assembly and duct.

6.

Remove the battery and battery tray.

7.

Disconnect the following:

I

Vacuum hoses

I

Heater hoses

I

A/T cooler hoses

I

Power steering hoses

I

Fuel lines

I

Wires

I

Harnesses and connectors

I

Throttle cable

8.

Remove the cooling fans, radiator and reservoir tank.

9.

Remove front exhaust pipe.

10. Remove the drive belts.
11. Remove power steering oil pump and A/C compressor.
12. Attach a suitable engine slinger to cylinder head.
13. Set a suitable hoist on engine slinger.

ENGINE ASSEMBLY

Removal and Installation (Cont’d)

EM-66

14. Remove engine mounting bolts from both sides, then slowly

raise engine.

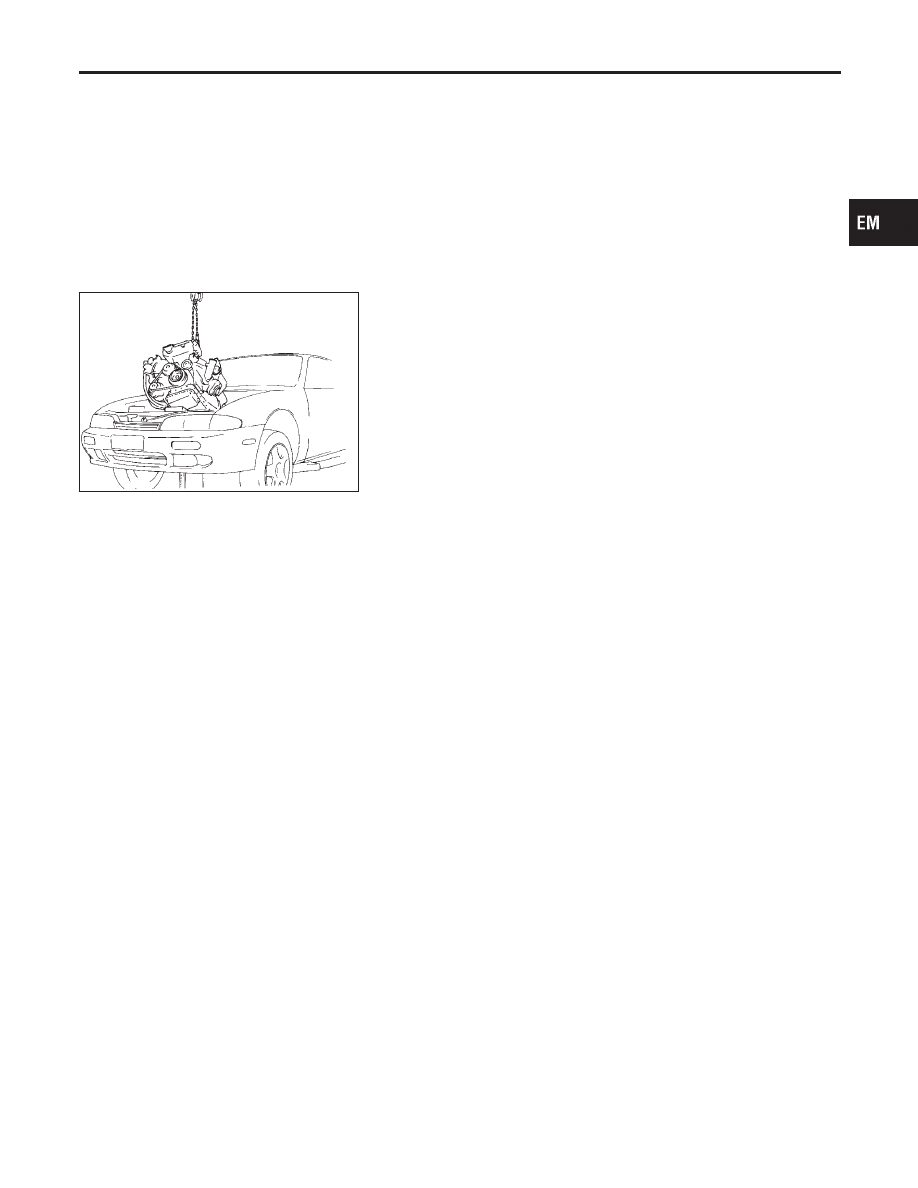

SEM035F

15. Remove engine as shown.

INSTALLATION

NMEM0022S02

Install in the reverse order of removal.

GI

MA

LC

EC

FE

CL

MT

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ENGINE ASSEMBLY

Removal and Installation (Cont’d)

EM-67

Components

NMEM0023

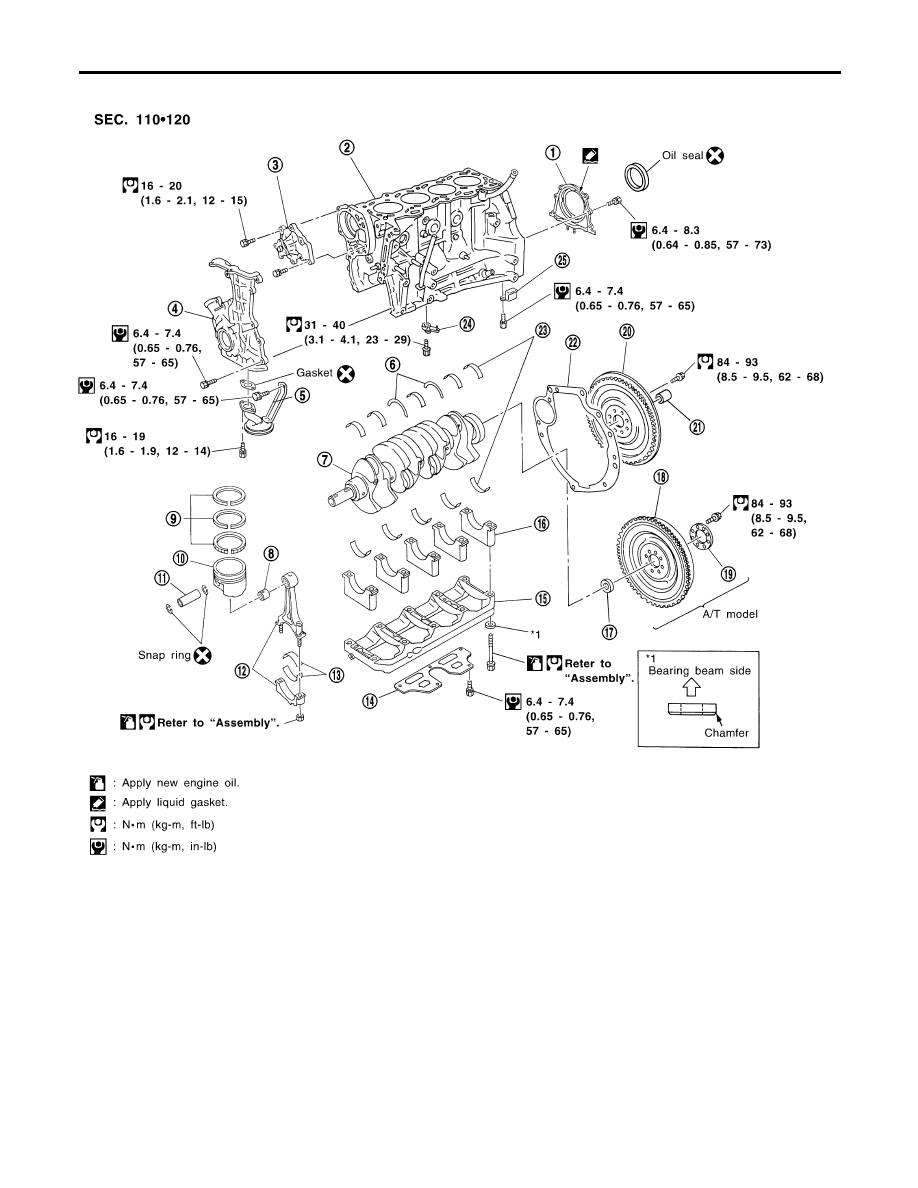

SEM625G

1.

Rear oil seal retainer

2.

Cylinder block

3.

Water pump

4.

Front cover with oil pump

5.

Oil strainer

6.

Thrust bearing

7.

Crankshaft

8.

Connecting rod bushing

9.

Piston rings

10. Piston
11. Piston pin
12. Connecting rod
13. Connecting rod bearing
14. Baffle plate
15. Main bearing beam
16. Main bearing cap
17. Pilot converter

18. Drive plate
19. Reinforcement plate
20. Flywheel
21. Pilot bushing
22. Rear plate
23. Main bearing
24. Oil jet
25. Baffle plate

CYLINDER BLOCK
