Nissan Almera Tino V10 (2001 year). Manual

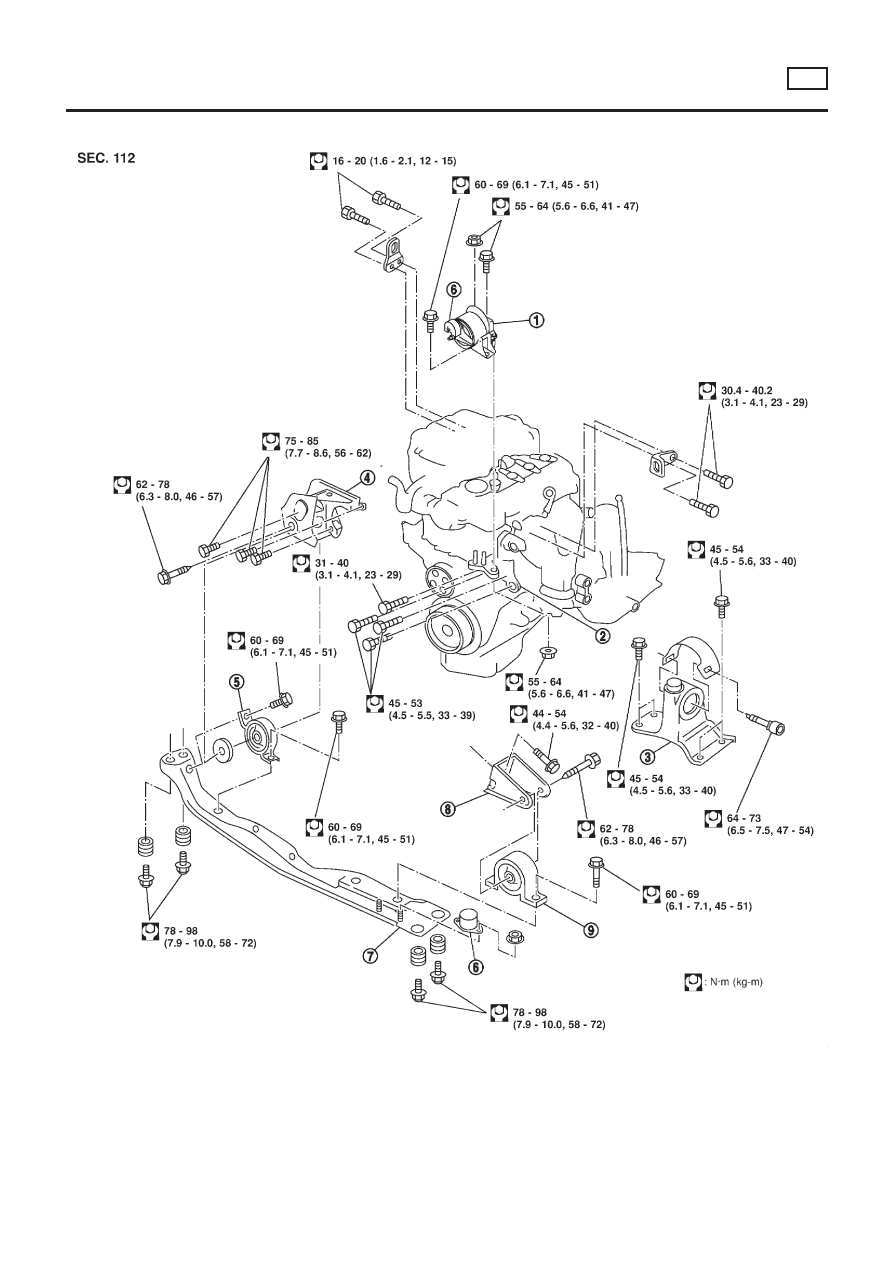

Removal and Installation

NLEM0022

NEM346

RH engine mounting

RH engine mounting bracket

LH engine mounting

Rear engine mounting bracket

Rear engine mounting

Dynamic damper (Specific models
only)

Center member

Front engine mounting bracket

Front engine mounting

ENGINE ASSEMBLY

Removal and Installation

EM-49

WARNING:

Position vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

Do not remove engine until exhaust system has com-
pletely cooled off, otherwise, you may burn yourself
and/or fire may break out in fuel line.

Before disconnecting fuel hose, release pressure.
Refer to EC-43, “Fuel Pressure Release”.

Be sure to lift engine and transaxle in a safe manner.

For engines not equipped with engine slingers, attach
proper slingers and bolts described in PARTS CATALOG.

CAUTION:

When lifting engine, be sure to clear surrounding parts.
Use special care near accelerator wire casing, brake lines
and brake master cylinder.

When lifting the engine, always use engine slingers in a
safe manner.

When removing drive shaft, be careful not to damage
grease seal of transaxle.

Before separating engine and transaxle, remove crank-
shaft position sensor (POS) from the cylinder block
assembly.

Always be extra careful not to damage edge of crankshaft
position sensor (POS), or signal plate teeth.

Engine cannot be removed separately from transaxle. Remove
engine with transaxle as an assembly.

REMOVAL

NLEM0022S01

Drain coolant from radiator and cylinder block. Refer to LC-18,
“Changing Engine Coolant”.

Remove coolant reservoir tank and bracket.

Drain engine oil.

Remove battery and battery tray.

Remove air cleaner and air duct.

Remove drive belts.

Remove alternator and air conditioner compressor from
engine.

Remove power steering oil pump from engine and position
aside.

Power steering oil pump does not need to be disconnected
from power steering tubes.

ENGINE ASSEMBLY

Removal and Installation (Cont’d)

EM-50

SEM174D

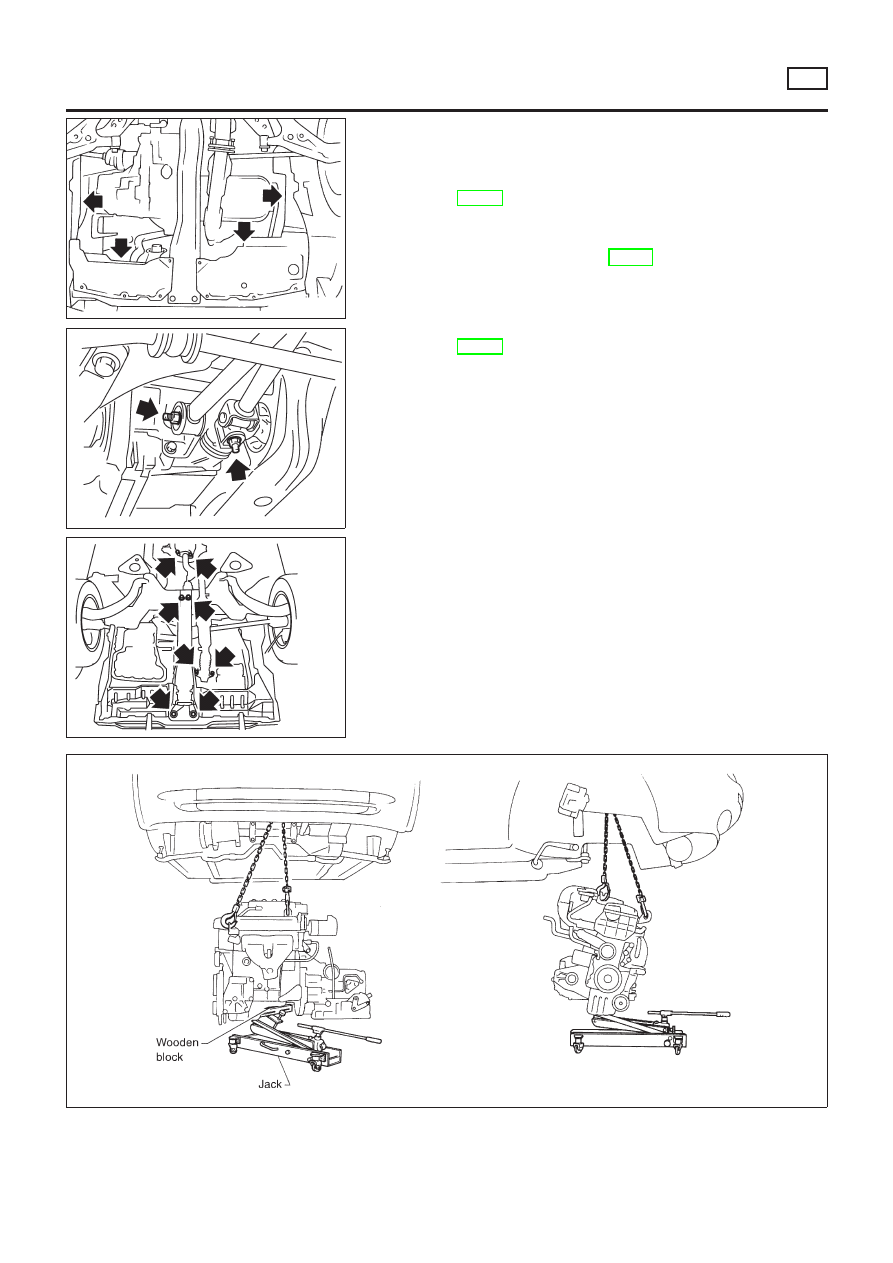

Remove the following parts:

RH and LH front tires

Splash covers

RH and LH brake caliper assemblies
Refer to BR-24, “FRONT DISC BRAKE”.
Brake hose does not need to be disconnected from brake
caliper assembly. Never depress brake pedal.

RH & LH drive shaft. Refer to AX-10, “Drive Shaft”.
When removing drive shaft, be careful not to damage tran-
saxle side grease seal.

SEM109G

Disconnect control rod and support rod from transaxle.
Refer to MT-23, “TRANSAXLE GEAR CONTROL”.

SEM108G

Center member

Front exhaust tube

Stabilizer bar

Cooling fan

Radiator

Disconnect wires, harness, pipes, hoses and so on.

10. Lift up engine slightly and disconnect or remove all engine

mountings.

When lifting engine, be sure to clear surrounding parts. Use
special care near brake tubes and brake master cylinder.
11. Remove engine with transaxle as shown.

SEM420D

INSTALLATION

NLEM0022S02

Install in reverse order of removal.

ENGINE ASSEMBLY

Removal and Installation (Cont’d)

EM-51

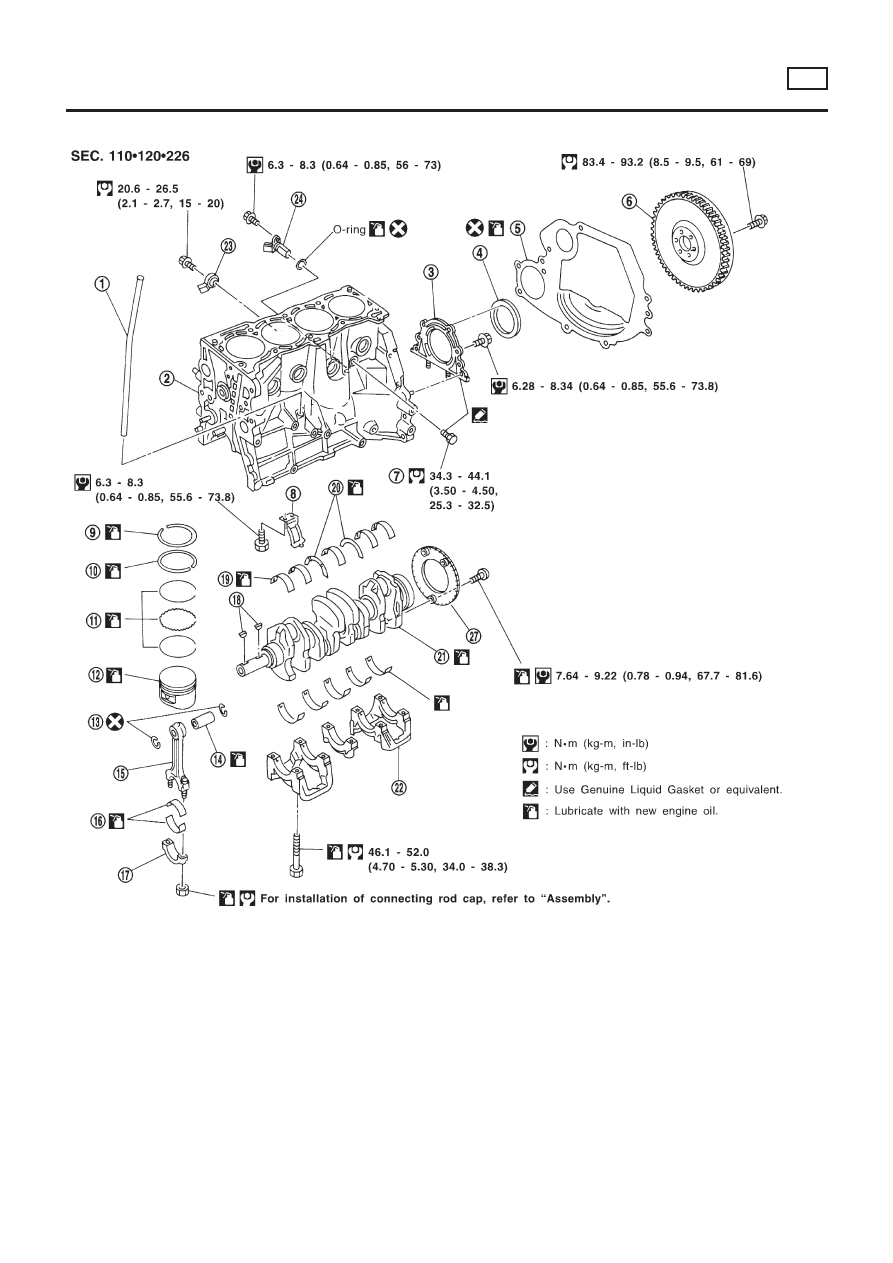

Components

NLEM0023

NEM347

Oil level gauge guide

Cylinder block

Rear oil seal retainer

Rear oil seal

Rear plate

Flywheel

Drain plug

Buffle plate

Top ring

10. 2nd ring
11. Oil ring
12. Piston
13. Snap ring
14. Piston pin
15. Connecting rod
16. Connecting rod bearing
17. Connecting rod cap

18. Key
19. Main bearing
20. Thrust bearing
21. Crankshaft
22. Main bearing cap
23. Knock sensor
24. Crankshaft position sensor (POS)
25. Signal plate

CYLINDER BLOCK

Components

EM-52

Removal and Installation

NLEM0024

CAUTION:

When installing sliding parts such as bearings and
pistons, apply engine oil on the sliding surfaces.

Place removed parts, such as bearings and bearing caps,
in their proper order and direction.

When installing connecting rod nuts and main bearing cap
bolts, apply new engine oil to threads and seating sur-
faces.

Do not allow any magnetic materials to contact the signal
plate teeth of flywheel or drive plate, and rear plate.

Remove the crankshaft position sensor (POS).

Be careful not to damage sensor edges and single plate
teeth.

SEM927F

Disassembly

NLEM0025

PISTON AND CRANKSHAFT

NLEM0025S01

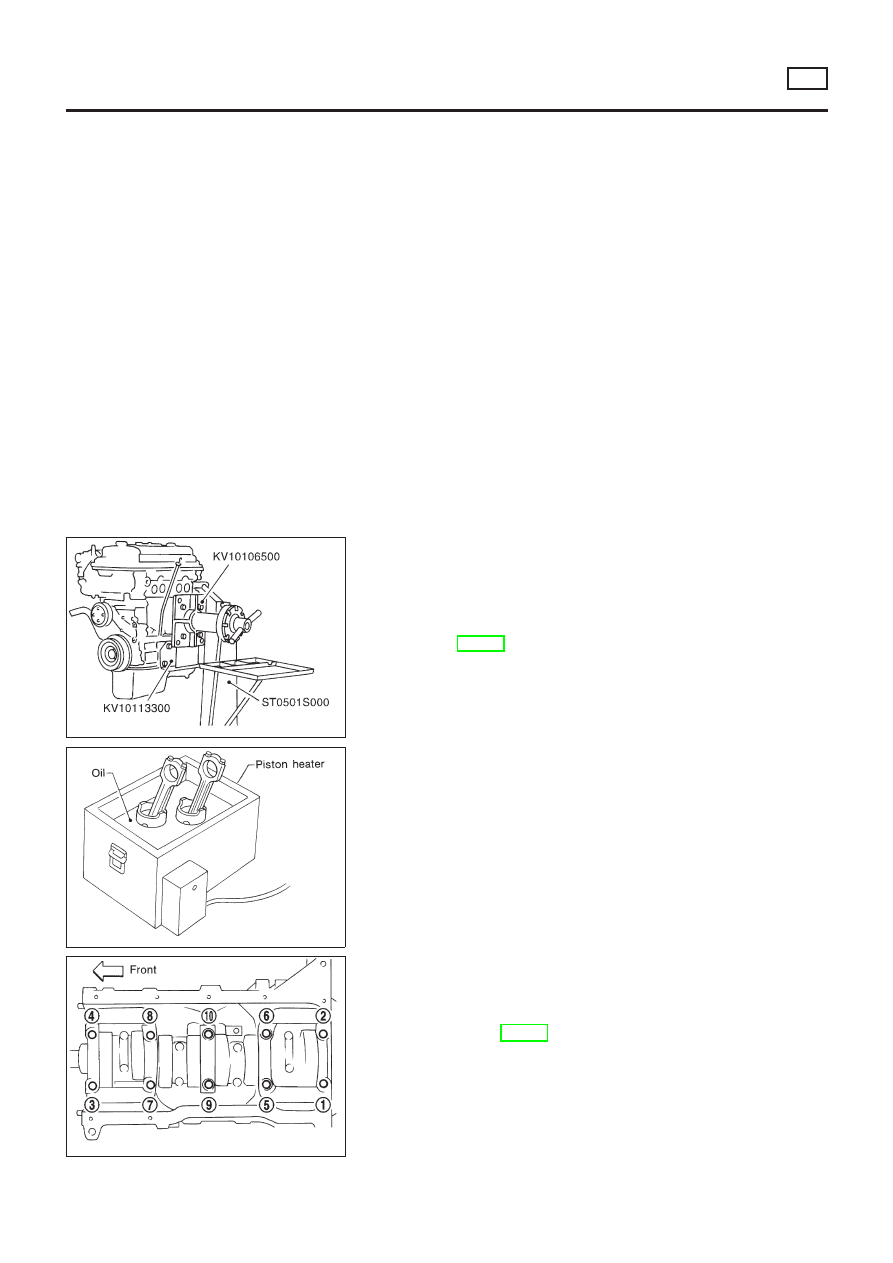

Place engine on a work stand.

Drain coolant and oil.

Remove timing chain.
Refer to EM-23.

SEM877B

Remove pistons with connecting rod.

When disassembling piston and connecting rod, remove snap
ring first. Then heat piston to 60 to 70°C (140 to 158°F) or use
piston pin press stand at room temperature.

CAUTION:

When piston rings are not replaced, make sure that piston
rings are mounted in their original positions.

When replacing piston rings, if there is no punch mark,
install with either side up.

SEM165DB

Loosen main bearing caps in numerical order as shown in fig-
ure.

Remove bearing caps, main bearings and crankshaft.

Before removing bearing caps, measure crankshaft end
play. Refer to EM-61.

Bolts should be loosened in two or three steps.

CYLINDER BLOCK

Removal and Installation

EM-53

SEM928F

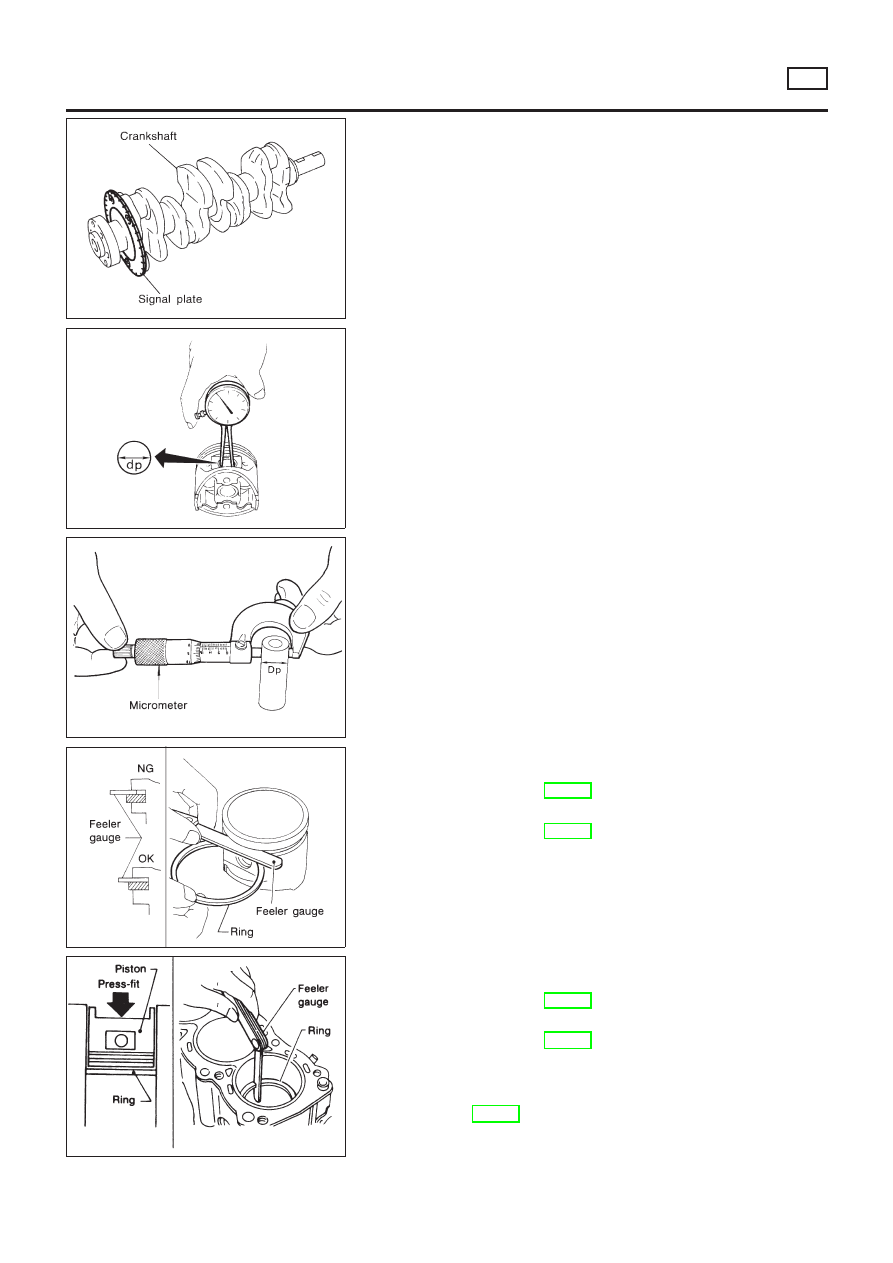

Remove signal plate from crankshaft.

AEM023

Inspection

NLEM0026

PISTON AND PISTON PIN CLEARANCE

NLEM0026S01

Measure inner diameter of piston pin hole “dp”.

Standard diameter “dp”:

18.993 - 19.005 mm (0.7478 - 0.7482 in)

AEM024

Measure outer diameter of piston pin “Dp”.

Standard diameter “Dp”:

18.989 - 19.001 mm (0.7476 - 0.7481 in)

Calculate piston pin clearance.

Dp - dp: 0.002 - 0.006 mm (0.0001 - 0.0002 in)

If it exceeds the above value, replace piston assembly with pin.

SEM024AA

PISTON RING SIDE CLEARANCE

NLEM0026S02

Side clearance:

Refer to SDS, EM-73.

Max. limit of side clearance:

Refer to SDS, EM-73.

If out of specification, replace piston and/or piston ring assembly.

AEM096

PISTON RING END GAP

NLEM0026S03

End gap:

Refer to SDS, EM-73.

Max. limit of end gap:

Refer to SDS, EM-73.

If out of specification, replace piston ring. If gap exceeds maximum
limit with a new ring, rebore cylinder and use oversized piston and
piston rings.
Refer to SDS, EM-73.

When replacing the piston, check the cylinder bore surface for

CYLINDER BLOCK

Disassembly (Cont’d)

EM-54

scratches or seizure. If scratches or seizure is found, hone or
replace the cylinder block.

SEM150B

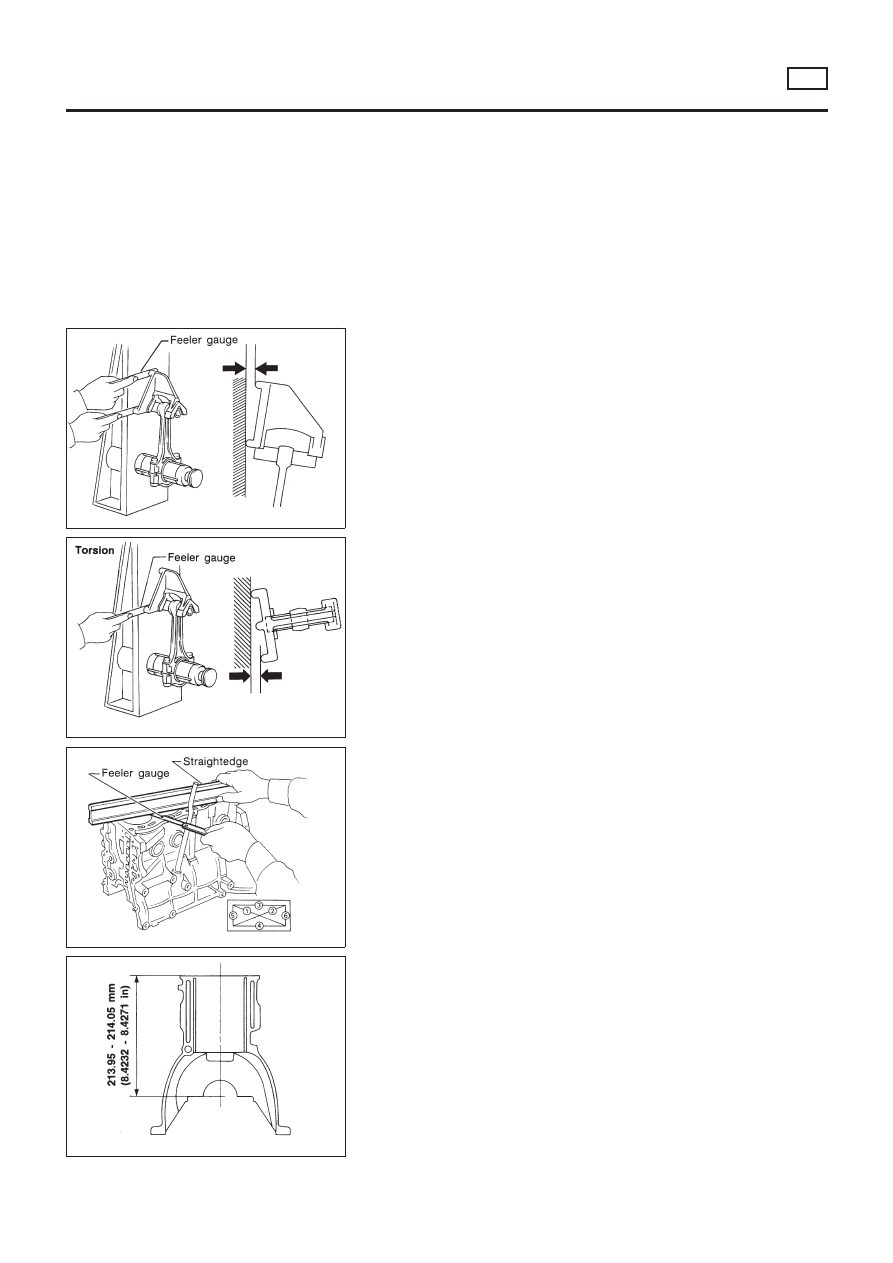

CONNECTING ROD BEND AND TORSION

NLEM0026S04

Bend:

Limit 0.15 mm (0.0059 in)
per 100 mm (3.94 in) length

Torsion:

Limit 0.3 mm (0.012 in)
per 100 mm (3.94 in) length

If it exceeds the limit, replace connecting rod assembly.

SEM003F

SEM486C

CYLINDER BLOCK DISTORTION AND WEAR

NLEM0026S05

Clean upper surface of cylinder block.
Use a reliable straightedge and feeler gauge to check the flatness
of cylinder block surface. Check along six positions shown in fig-
ure.

Block surface flatness:

Standard Less than 0.03 mm (0.0012 in)
Limit 0.10 mm (0.004 in)

If out of specification, resurface it.
The limit for cylinder block resurfacing is determined by the amount
of cylinder head resurfacing.

SEM102F

Amount of cylinder head resurfacing is “A”.
Amount of cylinder block resurfacing is “B”.

The maximum limit is as follows:

A + B = 0.2 mm (0.008 in)

Nominal cylinder block height
from crankshaft center:

213.95 - 214.05 mm (8.4232 - 8.4271 in)

If necessary, replace cylinder block.

CYLINDER BLOCK

Inspection (Cont’d)

EM-55

SEM166D

SEM929F

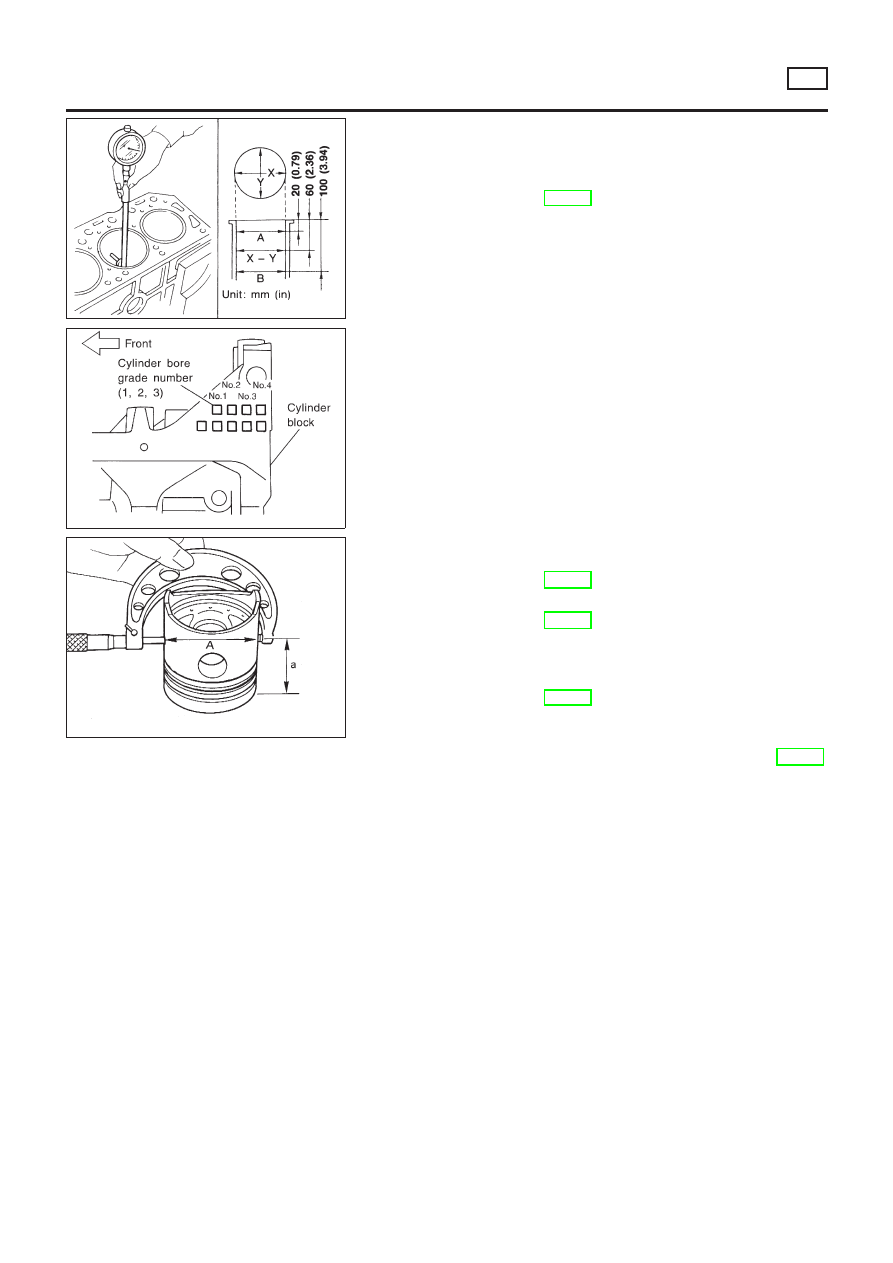

PISTON-TO-BORE CLEARANCE

NLEM0026S06

Using a bore gauge, measure cylinder bore for wear, out-of-
round and taper.

Standard inner diameter:

Refer to SDS, EM-72.

Wear limit:

0.2 mm (0.008 in)

Out-of-round (X − Y) standard:

Less than 0.015 mm (0.0006 in)

Taper (A − B) standard:

Less than 0.01 mm (0.0004 in)

If it exceeds the limit, rebore all cylinders. Replace cylinder
block if necessary.

Check for score and seizure. If seizure is found, hone it.

If cylinder block or piston is replaced, match piston grade
with grade number on cylinder block lower surface.

SEM258C

Measure piston skirt diameter.

Piston diameter “A”:

Refer to SDS, EM-73.

Measuring point “a” (Distance from the top):

Refer to SDS, EM-73.

Check that piston-to-bore clearance is within specification.

Piston-to-bore clearance = cylinder bore measurement
“B” − Piston diameter “A”:

Refer to SDS, EM-73.

Determine piston oversize according to amount of cylinder
wear.

Oversize pistons are available for service. Refer to SDS EM-73.
6.

Cylinder bore size is determined by adding piston-to-bore
clearance to piston diameter “A”.

Rebored size calculation:

D = A + B − C

where,
D: Bored diameter
A: Piston diameter as measured
B: Piston-to-bore clearance
C: Honing allowance 0.02 mm (0.0008 in)

Install main bearing caps and tighten bolts to the specified
torque. This will prevent distortion of cylinder bores.

Cut cylinder bores.

When any cylinder needs boring, all other cylinders must
also be bored.

Do not cut too much out of cylinder bore at a time. Cut
only 0.05 mm (0.0020 in) or so at a time.

Hone cylinders to obtain specified piston-to-bore clearance.

10. Measure finished cylinder bore for out-of-round and taper.

Measurement should be done after cylinder bore cools
down.

CYLINDER BLOCK

Inspection (Cont’d)

EM-56

SEM316A

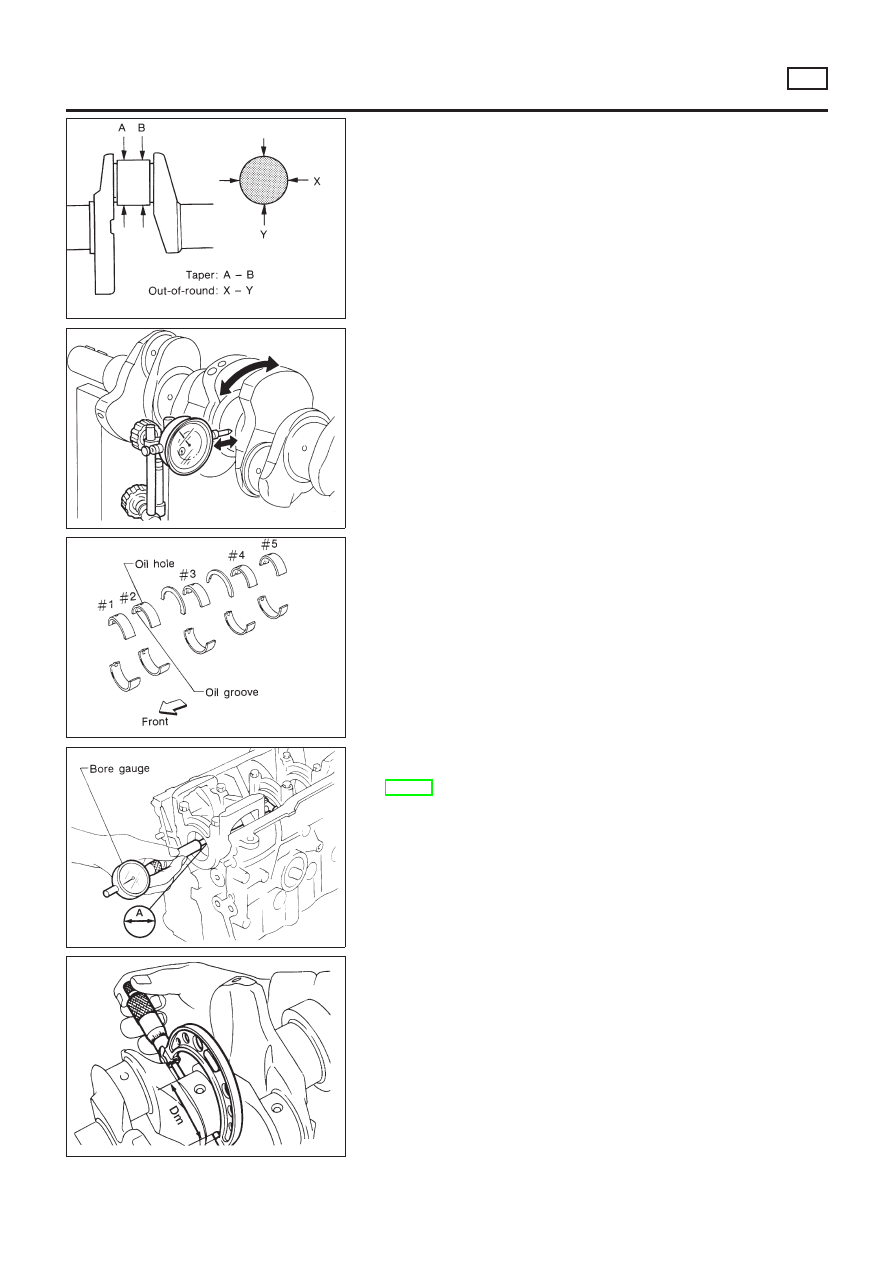

CRANKSHAFT

NLEM0026S07

Check crankshaft main and pin journals for score, wear or
cracks.

With a micrometer, measure journals for taper and out-of-
round.

Out-of-round (X − Y):

Less than 0.003 mm (0.0001 in)

Taper (A − B):

Less than 0.004 mm (0.0002 in)

SEM346D

Measure crankshaft runout.

Runout (Total indicator reading):

Less than 0.04 mm (0.0016 in)

SEM366E

BEARING CLEARANCE

NLEM0026S08

Use Method A or Method B. Method A is preferred because it
is more accurate.

Method A (Using bore gauge and micrometer)

Main bearing

NLEM0026S0801

Set main bearings in their proper positions on cylinder block
and main bearing cap.

AEM153

Install main bearing cap to cylinder block.

Tighten all bolts in correct order in two or three stages. Refer
to EM-61.
3.

Measure inner diameter “A” of each main bearing.

AEM026

Measure outer diameter “Dm” of each main journal in crank-
shaft.

Calculate main bearing clearance.

Main bearing clearance = A − Dm

Standard: 0.020 - 0.044 mm (0.0008 - 0.0017 in)
Limit: 0.1 mm (0.004 in)

If it exceeds the limit, replace bearing.
If clearance cannot be adjusted within standard of any bearing,
grind crankshaft journal and use undersized bearing.

CYLINDER BLOCK

Inspection (Cont’d)

EM-57

SEM588A

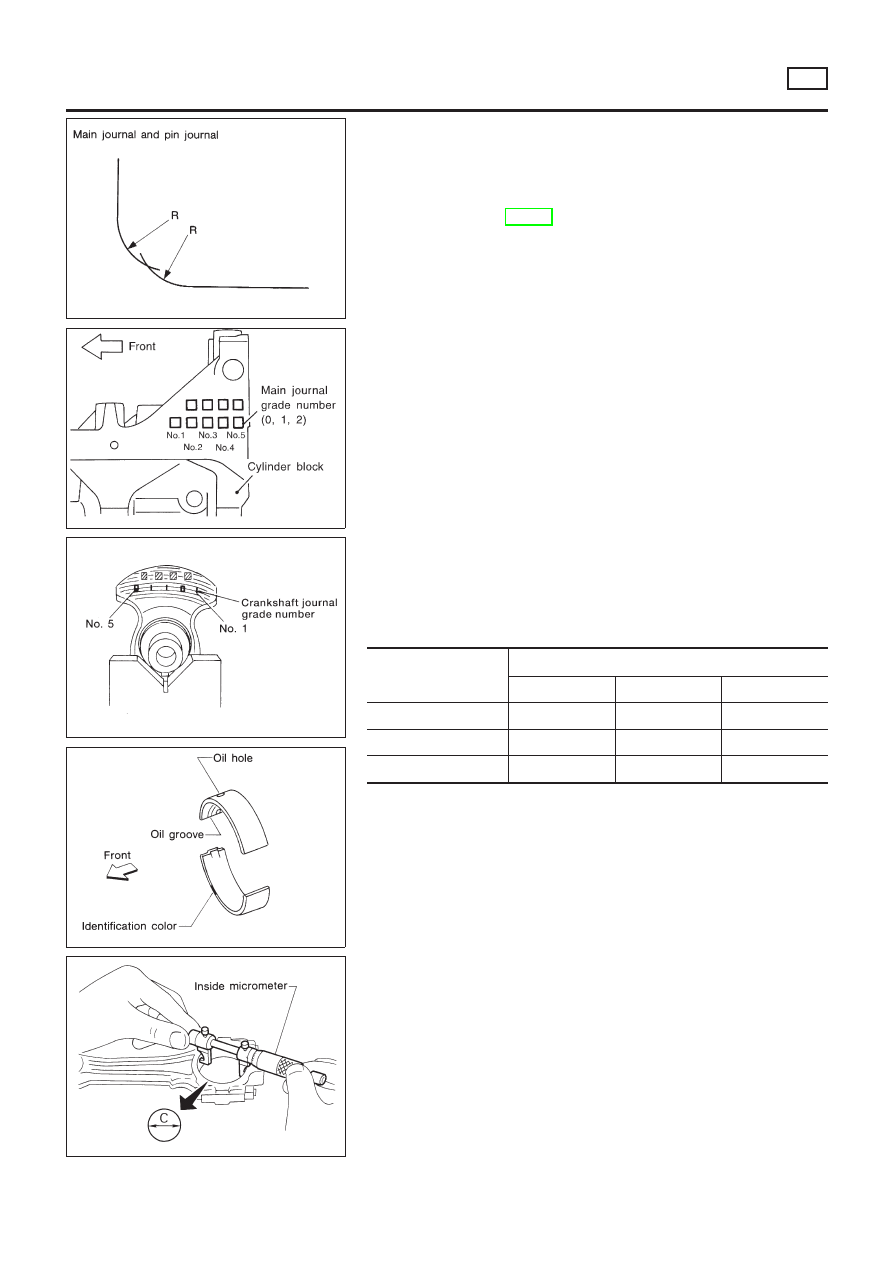

When grinding crank pin and crank journal:

Grind until clearance is within specified standard bearing
clearance.

Fillets should be finished as shown in the figure. R: 2.3 -
2.5 mm (0.091 - 0.098 in)
Refer to SDS, EM-75 for standard bearing clearance and
available spare parts.

SEM930F

If the crankshaft is replaced, select thickness of main bearings
as follows:

Grade number of each cylinder block main journal is punched
on the respective cylinder block. These numbers are punched
in either Arabic or Roman numerals.

AEM172

SEM194C

Grade number of each crankshaft main journal is punched on
the respective crankshaft. These numbers are punched in
either Arabic or Roman numerals.

Select main bearing with suitable thickness according to the
following table.

Main bearing grade color:

Crankshaft main jour-

nal grade number

Cylinder block main journal grade number

Black

Brown or Red

Green

Brown or Red

Green

Yellow

Green

Yellow

Blue

For example:
Cylinder block main journal grade number: 1
Crankshaft main journal grade number: 2
Main bearing grade number = 1 + 2 = Yellow

AEM027

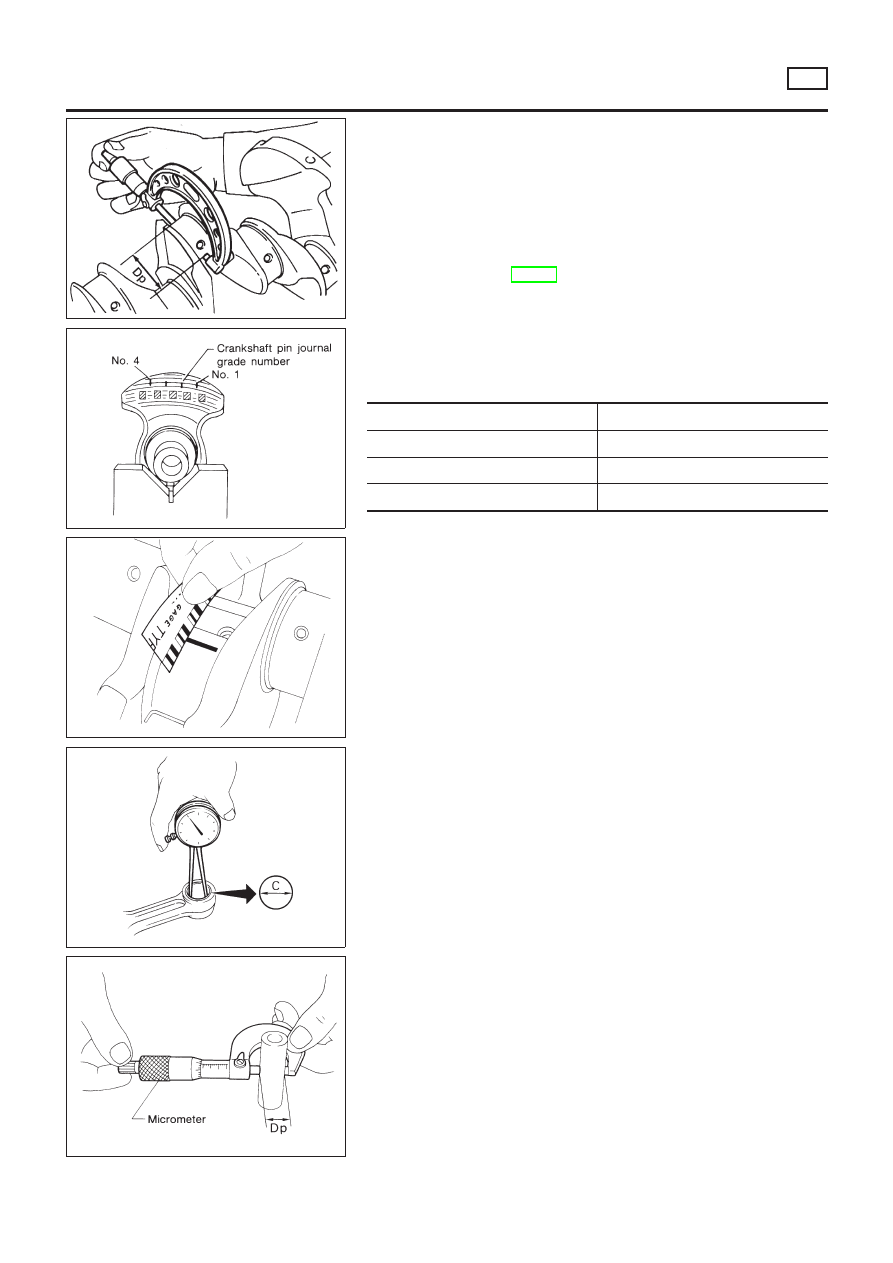

Connecting rod bearing (Big end)

NLEM0026S0802

Install connecting rod bearing to connecting rod and cap.

Install connecting rod cap to connecting rod.

Tighten bolts to the specified torque.
3.

Measure inner diameter “C” of each bearing.

CYLINDER BLOCK

Inspection (Cont’d)

EM-58

AEM028

Measure outer diameter “Dp” of each crankshaft pin journal.

Calculate connecting rod bearing clearance.

Connecting rod bearing clearance = C − Dp

Standard: 0.014 - 0.039 mm (0.0006 - 0.0015 in)
Limit: 0.1 mm (0.004 in)

If it exceeds the limit, replace bearing.
If clearance cannot be adjusted using any standard bearing
grade, grind crankshaft journal and use undersized bearing.
Refer to step 5, EM-57.

SEM437CA

If a new bearing, crankshaft or connecting rod is replaced,
select connecting rod bearing according to the following table.

Connecting rod bearing grade number:
These numbers are punched in either Arabic or Roman numerals.

Crankshaft pin journal grade number

Connecting rod bearing grade color

—

Brown

Green

EM142

Method B (Using Plastigage)

CAUTION:

Do not turn crankshaft or connecting rod while Plastigage
is being inserted.

If incorrect bearing clearance exists, use a thicker or
undersized main bearing to ensure specified clearance.

AEM029

CONNECTING ROD BUSHING CLEARANCE (SMALL
END)

NLEM0026S09

Measure inner diameter “C” of bushing.

AEM030

Measure outer diameter “Dp” of piston pin.

Calculate connecting rod bushing clearance.

Connecting rod bushing clearance = C − Dp

Standard:

0.005 - 0.017 mm (0.0002 - 0.0007 in)

Limit:

0.023 mm (0.0009 in)

If it exceeds the limit, replace connecting rod assembly or
connecting rod bushing and/or piston pin.

CYLINDER BLOCK

Inspection (Cont’d)

EM-59

SEM062A

REPLACEMENT OF CONNECTING ROD BUSHING
(SMALL END)

NLEM0026S10

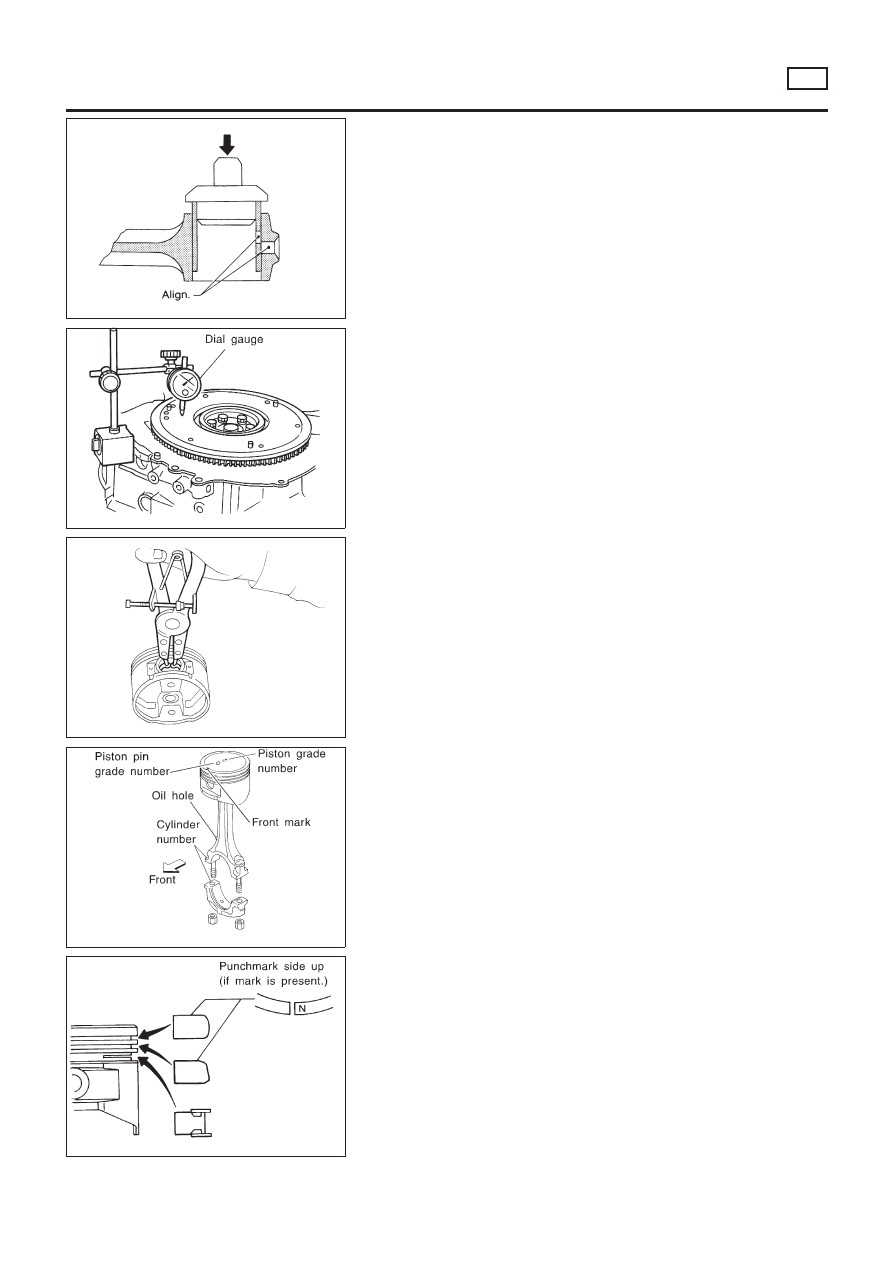

Drive in small end bushing until it is flush with end surface of
rod.

Be sure to align the oil holes.
2.

Ream the bushing so that clearance with piston pin is within
specification.

Clearance between connecting rod bushing and piston
pin:

0.005 - 0.017 mm (0.0002 - 0.0007 in)

SEM931F

FLYWHEEL RUNOUT

NLEM0026S12

Runout (Total indicator reading):

Flywheel

Less than 0.15 mm (0.0059 in)

CAUTION:

Do not allow any magnetic materials to contact the ring
gear teeth and rear plate.

Do not resurface flywheel. Replace if necessary.

SEM166B

Assembly

NLEM0027

PISTON

NLEM0027S01

Install new snap ring on one side of piston pin hole.

SEM932F

Heat piston to 60 to 70°C (140 to 158°F) and assemble piston,
piston pin, connecting rod and new snap ring.

Align the direction of piston and connecting rod.

Numbers stamped on connecting rod and cap correspond
to each cylinder.

After assembly, make sure connecting rod swings
smoothly.

SEM522G

Set piston rings as shown.

CAUTION:

When piston rings are not replaced, make sure that piston
rings are mounted in their original position.

Install new piston rings either side up if there is no punch
mark.

CYLINDER BLOCK

Inspection (Cont’d)

EM-60

SEM160B

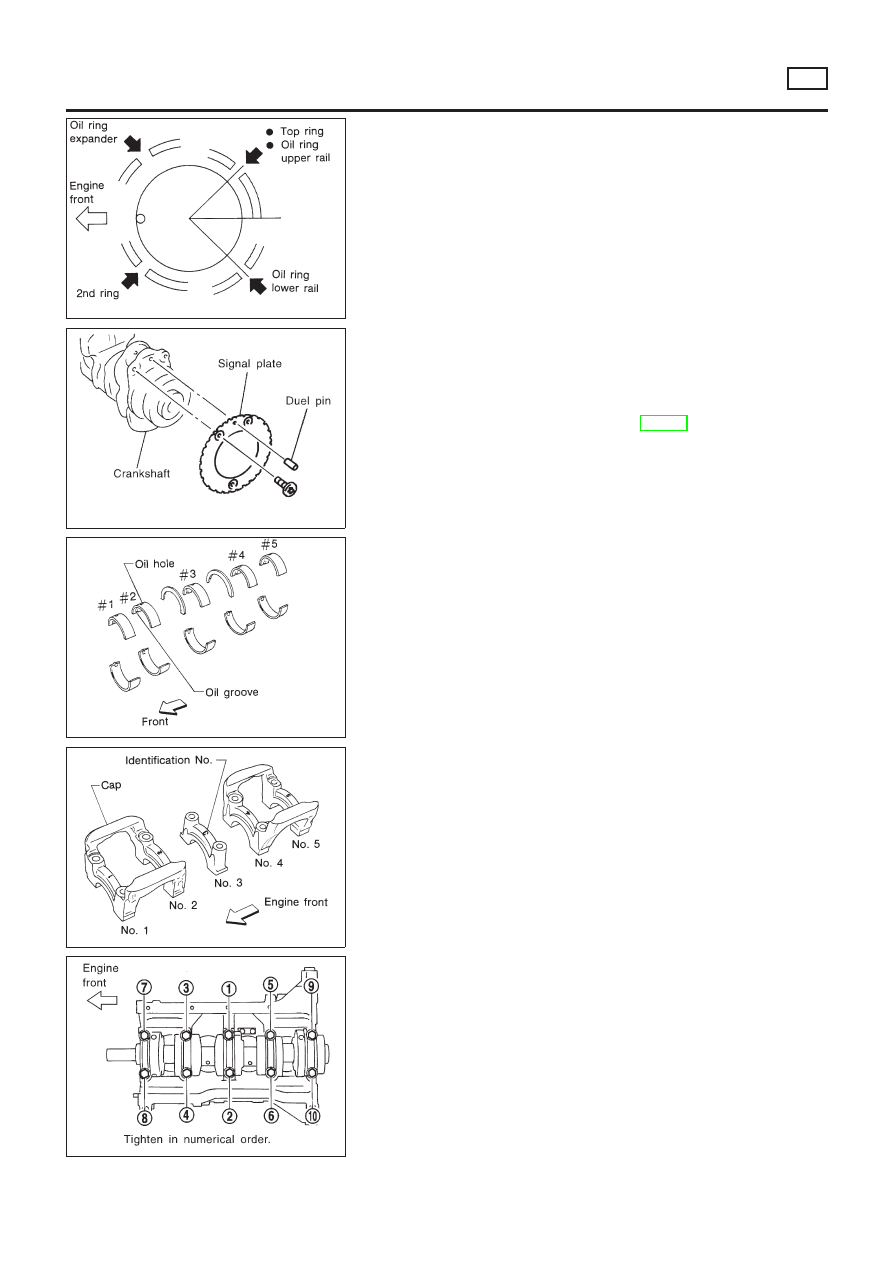

Align piston rings so that end gaps are positioned as
shown.

SEM934F

SEM366E

SEM420C

CRANKSHAFT

NLEM0027S02

Install signal plate to crankshaft.

Set main bearings in their proper positions on cylinder block
and main bearing cap.

Confirm that correct main bearings are selected by using
Method A or Method B. Refer to EM-57.

Apply new engine oil to bearing surfaces.

SEM933F

Install crankshaft and main bearing caps and tighten bolts to
the specified torque.

Apply new engine oil to the bolt thread and seat surface.

Prior to tightening bearing cap bolts, shift crankshaft back
and forth to properly seat the bearing caps.

Tighten bearing cap bolts gradually in two or three stages.
Start with center bearing and move outward as shown in
figure.

After securing bearing cap bolts, make sure crankshaft
turns smoothly by hand.

CYLINDER BLOCK

Assembly (Cont’d)

EM-61

SEM116F

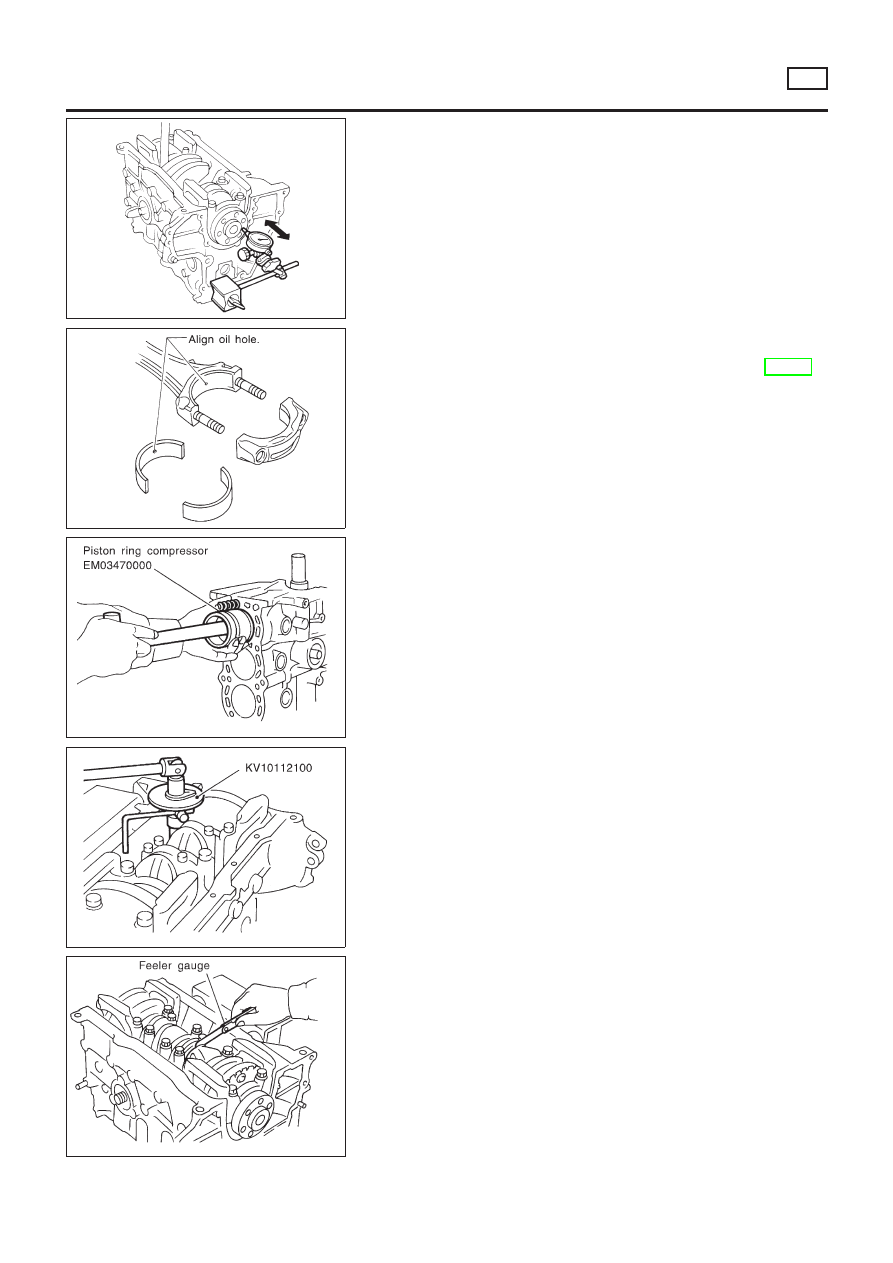

Measure crankshaft end play.

Crankshaft end play:

Standard

0.060 - 0.260 mm (0.0024 - 0.0102 in)

Limit

0.3 mm (0.012 in)

If beyond the limit, replace thrust bearing with new ones.

SEM168D

Install connecting rod bearings in connecting rods and con-
necting rod caps.

Confirm that correct bearings are used. Refer to EM-58.

Install bearings so that oil hole in connecting rod aligns
with oil hole of bearing.

Apply new engine oil to bolt threads and bearing surfaces.

SEM942F

Install pistons with connecting rods.

Install them into corresponding cylinders with Tool.

Make sure connecting rod does not scratch cylinder wall.

Make sure connecting rod bolts do not scratch crankshaft
pin journals.

Arrange so that front mark on piston head faces engine.

Apply new engine oil to piston rings and sliding surface
of piston.

SEM943F

Install connecting rod caps.
Apply new engine oil to bolt threads and nut seating surfaces.
Tighten connecting rod cap nuts in the following procedure:

Tighten to 13.72 to 15.68 N·m (1.399 to 1.599 kg-m, 10.120
to 11.566 ft-lb).

Turn nuts to 35° to 40° degrees clockwise with an angle
wrench. If an angle wrench is not available, tighten nuts to
23 to 28 N·m (2.3 to 2.9 kg-m, 17 to 21 ft-lb).

SEM935F

Measure connecting rod side clearance.

Connecting rod side clearance:

Standard

0.200 - 0.470 mm (0.0079 - 0.0185 in)

Limit

0.5 mm (0.020 in)

If beyond the limit, replace connecting rod and/or crank-
shaft.

CYLINDER BLOCK

Assembly (Cont’d)

EM-62

AEM248

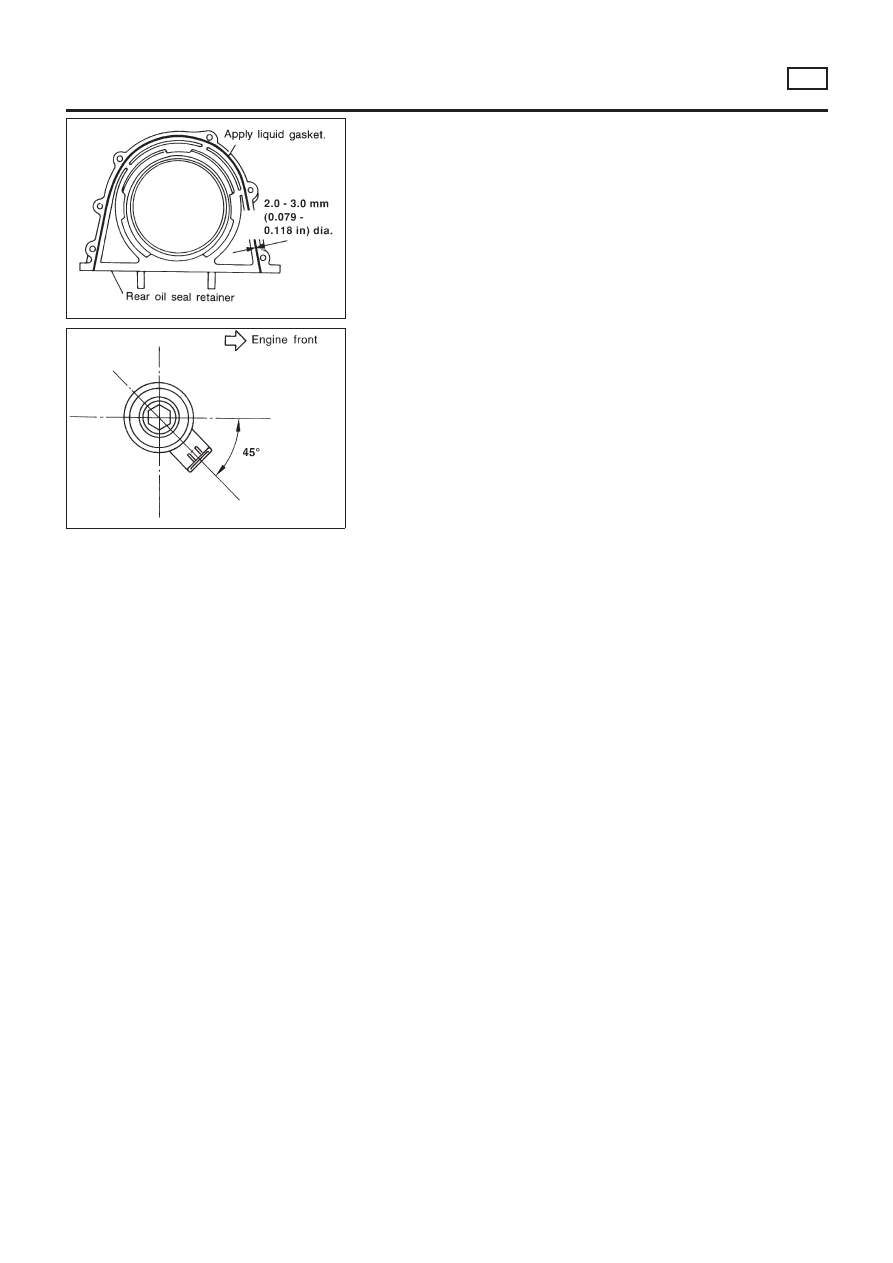

Install rear oil seal retainer.

Before installing rear oil seal retainer, remove old liquid gasket
from cylinder block and retainer.

Apply a continuous bead of liquid gasket to rear oil seal
retainer.

Use Genuine Liquid Gasket or equivalent.

Apply around inner side of bolt holes.

Install crankshaft positon sensor (POS).

SEM936F

10. Install knock sensor.

CYLINDER BLOCK

Assembly (Cont’d)

EM-63

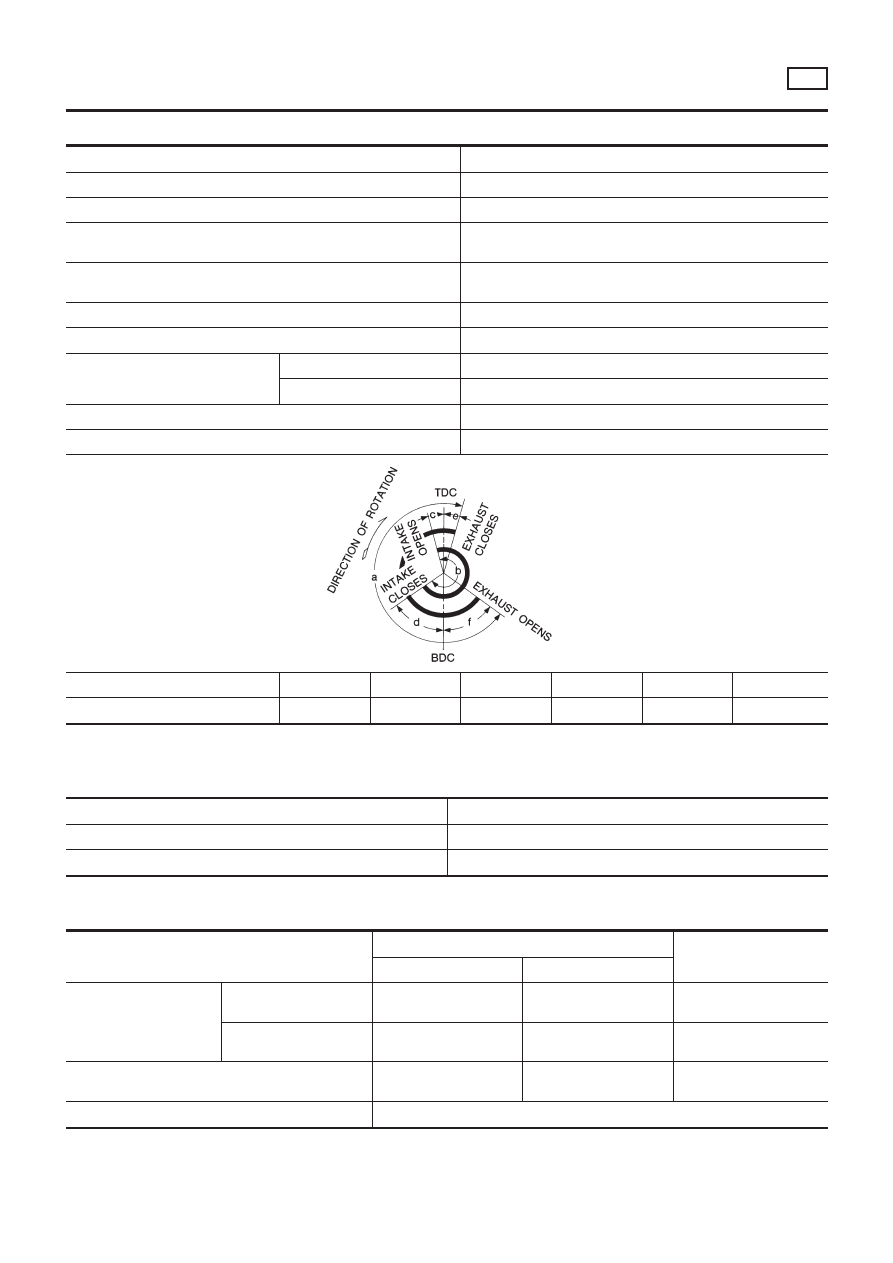

General Specifications

NLEM0028

Engine

QG18DE

Classification

Gasoline

Cylinder arrangement

4, in-line

Displacement
cm

(cu in)

1,769 (107.94)

Bore

stroke

mm (in)

80.0

88.0 (3.150

3.465)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

Oil

Number of main bearings

Compression ratio

9.5

EM120

Valve timing

222°

236°

0° (20°)

56° (36°)

−2°

44°

(

): Valve timing control ON

Compression Pressure

NLEM0029

Unit: kPa (bar, kg/cm

, psi)/350 rpm

Standard

1,324 (13.24, 13.5, 192)

Minimum

1,128 (11.28, 11.5, 164)

Difference limit between cylinders

98 (0.98, 1.0, 14)

Belt Deflection

NLEM0045

Unit: mm (in)

Used belt deflection

Deflection of new belt

Limit

Deflection after adjustment

Alternator

With air conditioner com-
pressor

8.1 (0.319)

5.3 - 5.7

(0.209 - 0.224)

4.5 - 5.0

(0.177 - 0.197)

Without air conditioner com-
pressor

10.2 (0.402)

6.5 - 7.0

(0.256 - 0.276)

5.5 - 6.1

(0.217 - 0.240)

Power steering oil pump

7.1 (0.280)

4.4 - 4.9

(0.173 - 0.193)

3.9 - 4.4

(0.154 - 0.173)

Applied pushing force

98 N (10 kg, 22 lb)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

EM-64

Nissan Almera Tino V10 (2001 year). Manual - part 145
