CHECK DRIVER SIDE DOOR SWITCH

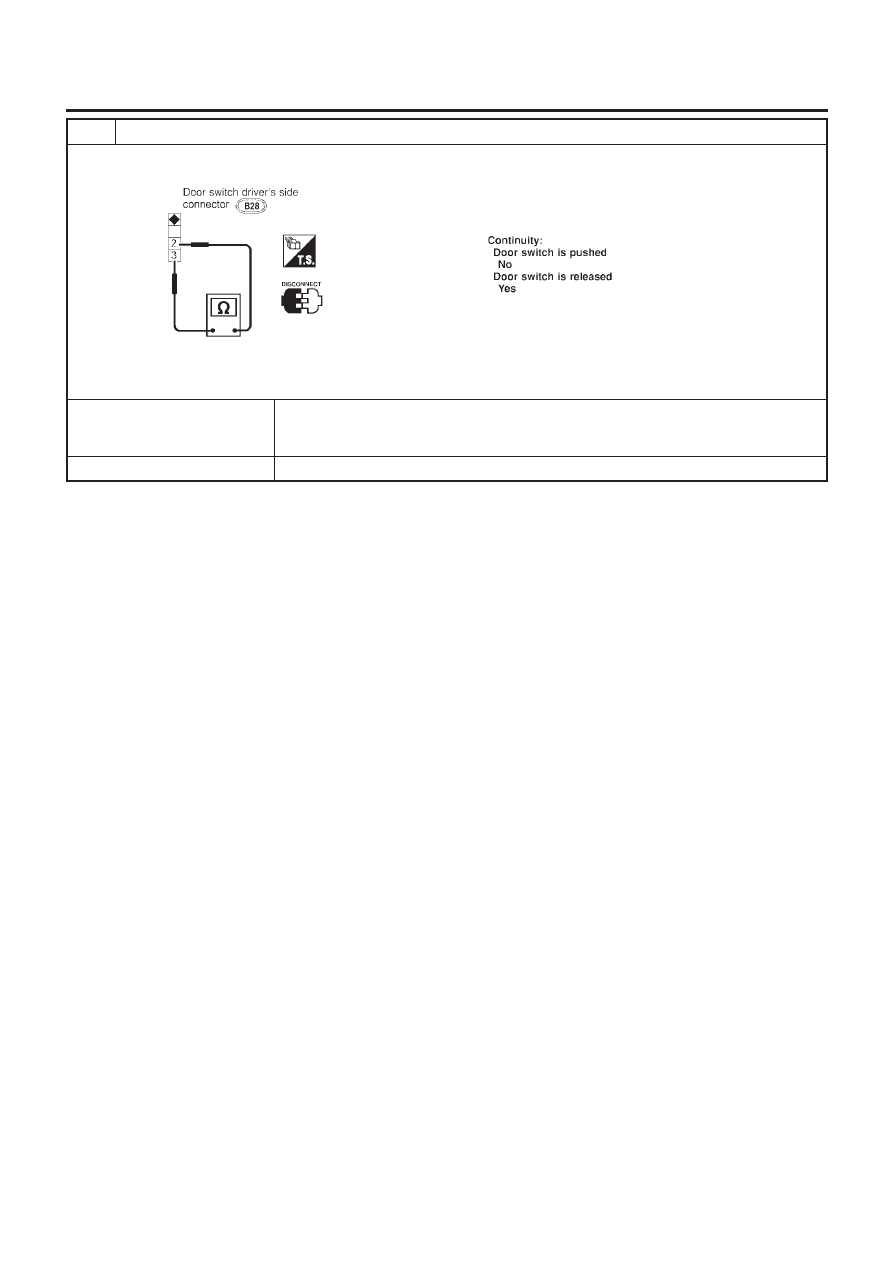

Check continuity between terminals 2 and 3.

NEL648

OK or NG

Check the following.

Driver side door switch ground circuit and condition

Harness for open or short between time control unit and driver side door switch

Replace driver side door switch.

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-175

System Description

NLEL0456

WIPER OPERATION

NLEL0456S01

The wiper switch is controlled by a lever built into the combination switch.
There are three wiper switch positions:

LO speed

HI speed

INT (Intermittent)

Power is supplied at all time

through 30A fuse

to front wiper relay-1 terminal 5, and

through 40A fusible link

through ignition switch terminal 1 and 3 when the switch is in the ON or START position

to front wiper relay-1 terminal 1.

Ground is supplied

to front wiper relay-1 terminal 2

through body grounds E24 and E73

With power and ground supplied, the front wiper relay-1 is energized.

Low and High Speed Wiper Operation

NLEL0456S0101

Ground is supplied to wiper and washer switch terminal 17 through body grounds E30 and E73.
When the wiper switch is placed in the LO position, ground is supplied

through terminal 14 of the front wiper and washer switch

to front wiper motor terminal 4.

With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied

through terminal 16 of the front wiper and washer switch

to wiper motor terminal 5.

With power and ground supplied, the wiper motor operates at high speed.

Auto Stop Operation

NLEL0456S0102

With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided

from terminal 14 of the front wiper and washer switch

to front wiper motor terminal 4, in order to continue wiper motor operation at low speed.

Ground is also supplied

through terminal 13 of the front wiper and washer switch

to front wiper relay-2 terminal 3

through terminal 4 of the front wiper relay-2.

to front wiper motor terminal 2

through terminal 3 of front wiper motor

through body grounds E24 and E73.

When wiper arms reach base of windshield, front wiper motor terminals 2 and 3 are connected instead of ter-
minals 2 and 1. Wiper motor will then stop wiper arms at the STOP position.

Intermittent Operation

NLEL0456S0103

The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to
13 seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier (WIPER SW INT)
and (ACC).
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied

from body grounds E24 and E73

through terminal 5 of front wiper relay-2,

through terminal 3 of front wiper relay-2,

FRONT WIPER AND WASHER

System Description

EL-176

through terminal 13 of front wiper switch and,

through terminal 14 of front wiper switch

to terminal 4 of front wiper motor.

The desired interval time is input

to front wiper relay-2 terminal 1

from terminal 20 of front wiper switch

WASHER OPERATION

NLEL0456S02

With the ignition switch in the ON or START position and the lever is pulled to the WASH/F position, power
is supplied

through 10A fuse [No. 27, located in the fuse block (J/B)]

to front wiper switch terminal 5.

through front wiper switch terminal 3

to front washer motor terminal 1.

When the lever is pulled to the WASH/F position, ground is supplied

from body grounds E24 and E73

through terminal 4 of the front wiper switch

through terminal 18 of the front wiper switch

to front washer motor terminal 2.

With power and ground supplied, the washer motor operates.
When the lever is pulled to the WASH position for one second or more, the wiper motor operates at low speed
for approximately 3 seconds to clean windshield. This feature is controlled by the wiper amplifier in the same
manner as the intermittent operation.

FRONT WIPER AND WASHER

System Description (Cont’d)

EL-177

Wiring Diagram — WIPER —

NLEL0457

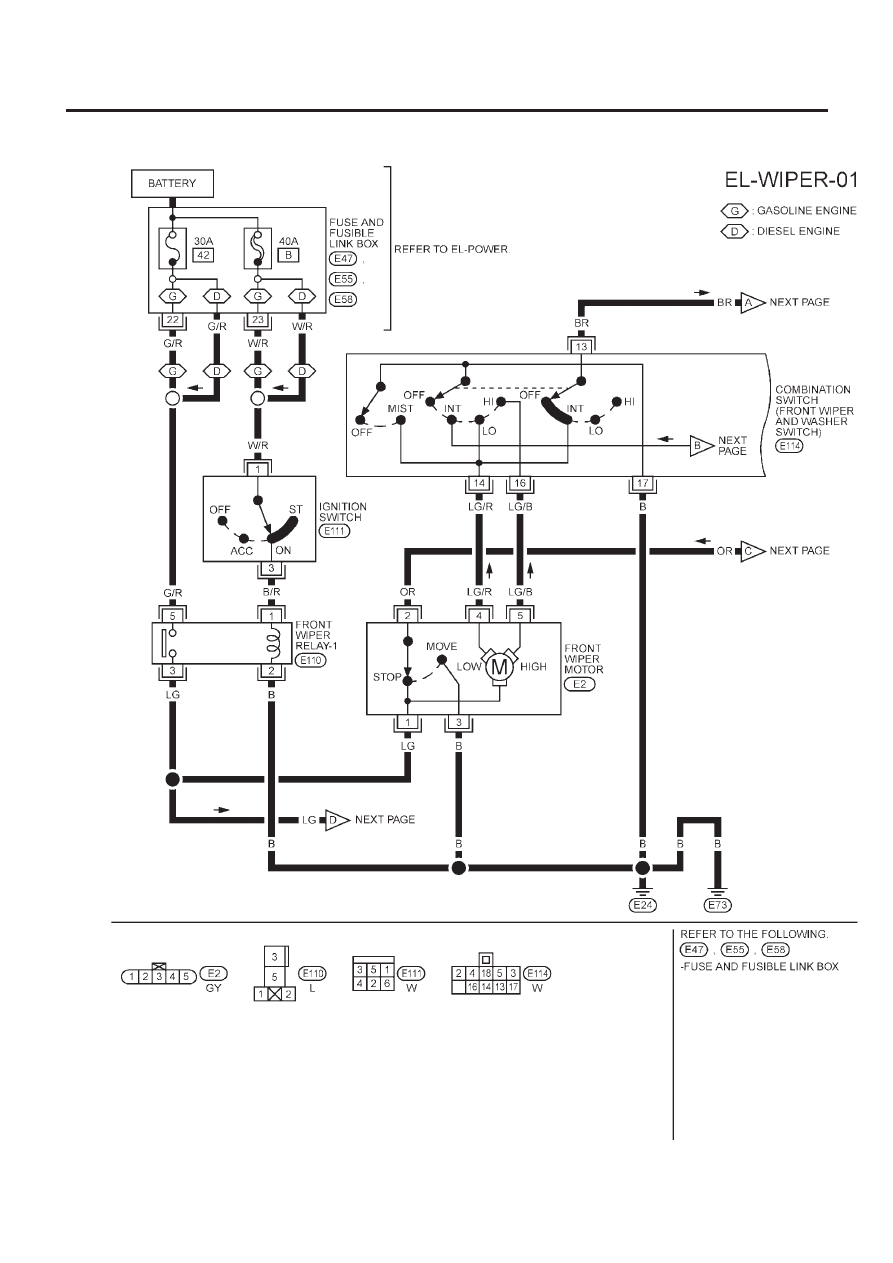

MODELS WITH FUSE AND FUSIBLE LINK BOX E43

NLEL0457S01

YEL903B

FRONT WIPER AND WASHER

Wiring Diagram — WIPER —

EL-178

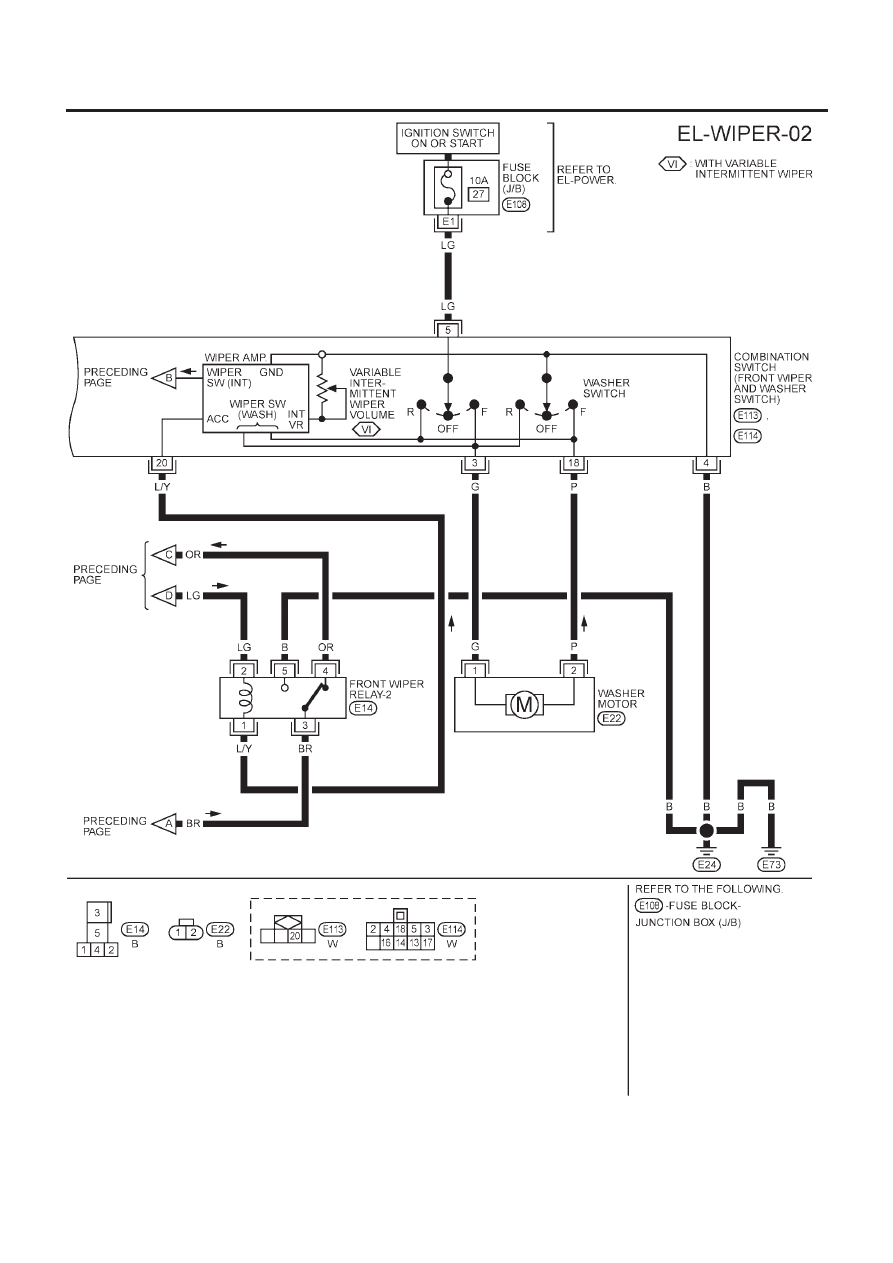

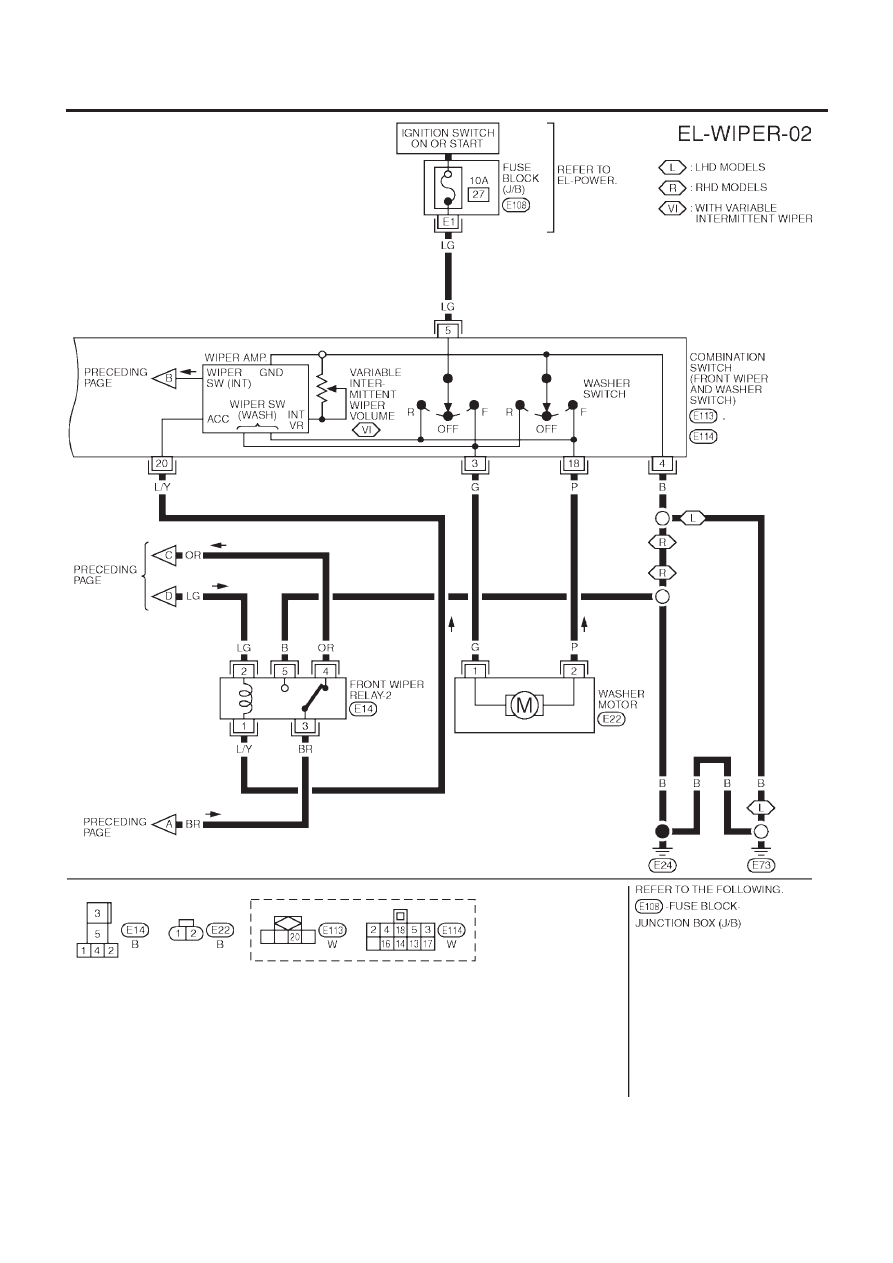

YEL904B

FRONT WIPER AND WASHER

Wiring Diagram — WIPER — (Cont’d)

EL-179

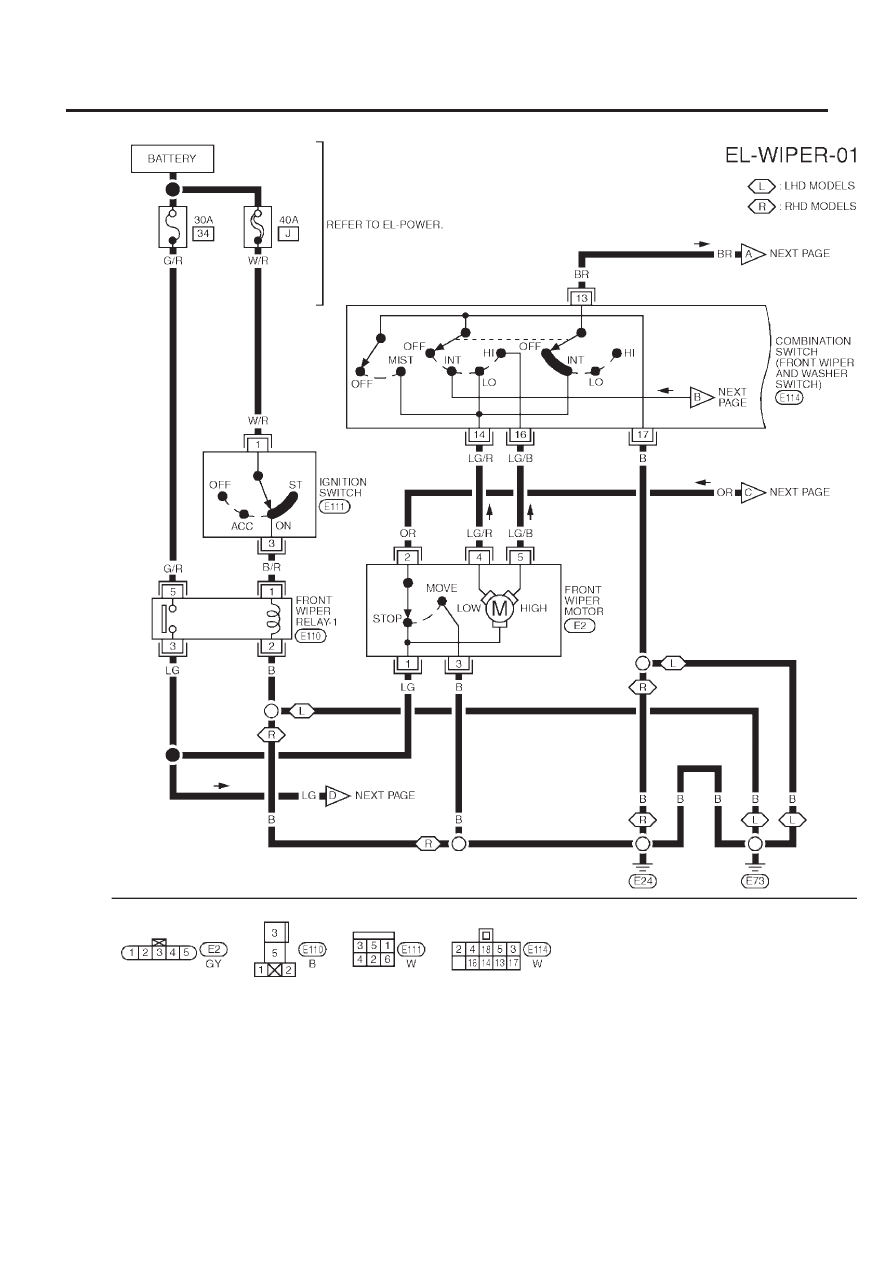

MODELS WITH FUSE AND FUSIBLE LINK BOX E90

NLEL0457S02

YEL427C

FRONT WIPER AND WASHER

Wiring Diagram — WIPER — (Cont’d)

EL-180

YEL428C

FRONT WIPER AND WASHER

Wiring Diagram — WIPER — (Cont’d)

EL-181

SEL543TA

Removal and Installation

NLEL0060

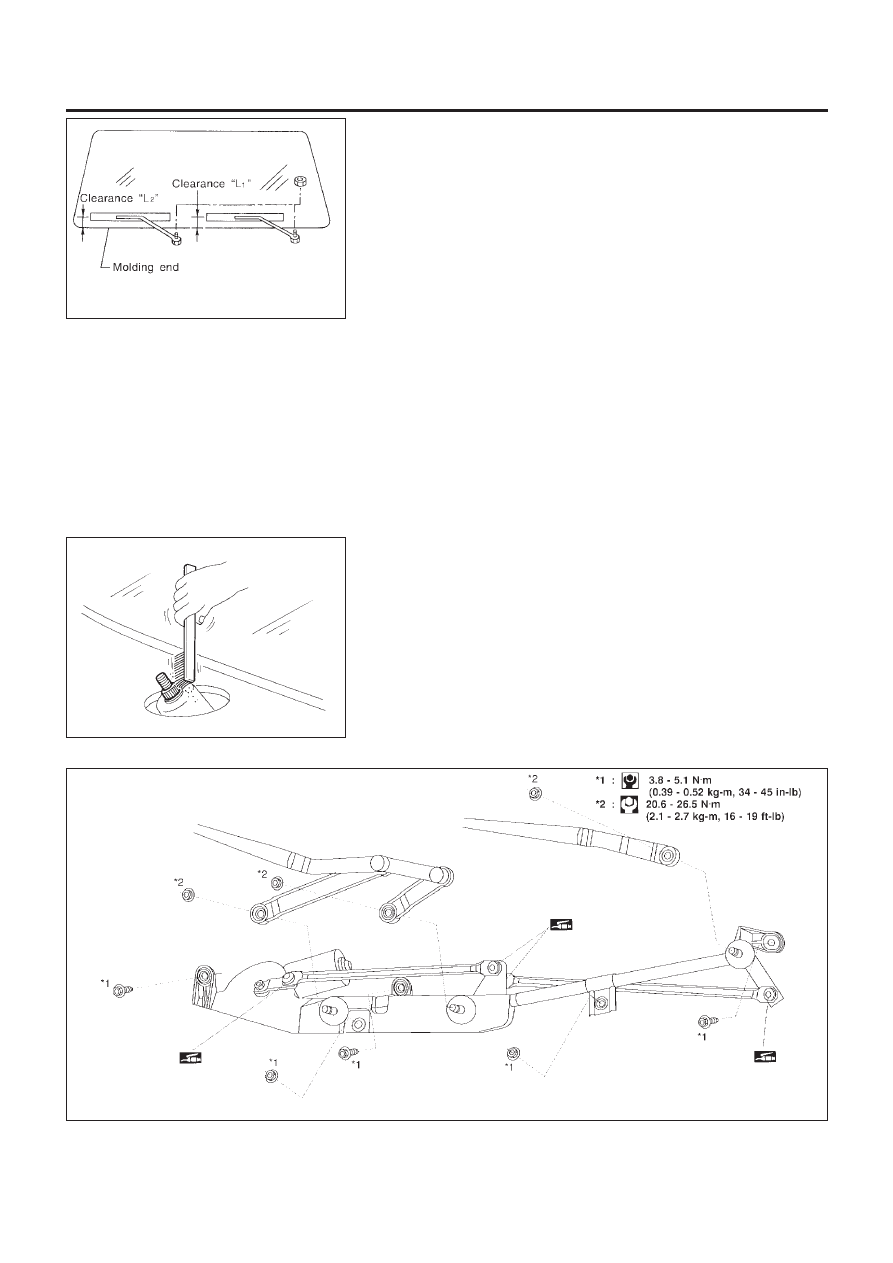

WIPER ARMS

NLEL0060S01

Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).

Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L

” & “L

” immediately before

tightening nut.

Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.

Ensure that wiper blades stop within clearance “L

” & “L

”.

Clearance “L

”: 20.4 - 34.4 mm (0.803 - 1.354 in)

Clearance “L

”: 61.8 - 75.8 mm (2.433 - 2.984 in)

Tighten wiper arm nuts to specified torque.

Front wiper: 21 - 26 N·m (2.1 - 2.7 kg-m, 16 - 19 ft-lb)

SEL024J

Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.

WIPER LINKAGE

NLEL0060S02

NEL719

FRONT WIPER AND WASHER

Removal and Installation

EL-182

Removal

NLEL0060S0201

Remove wiper arms and cowl top cover.

Remove wiper motor connector.

Remove 5 screws and 3 nuts.

Remove wiper linkage.

Be careful not to break ball joint rubber boot.

Installation

NLEL0060S0202

Grease ball joint portion before installation.

Installation is the reverse order of removal.

GEL013-A

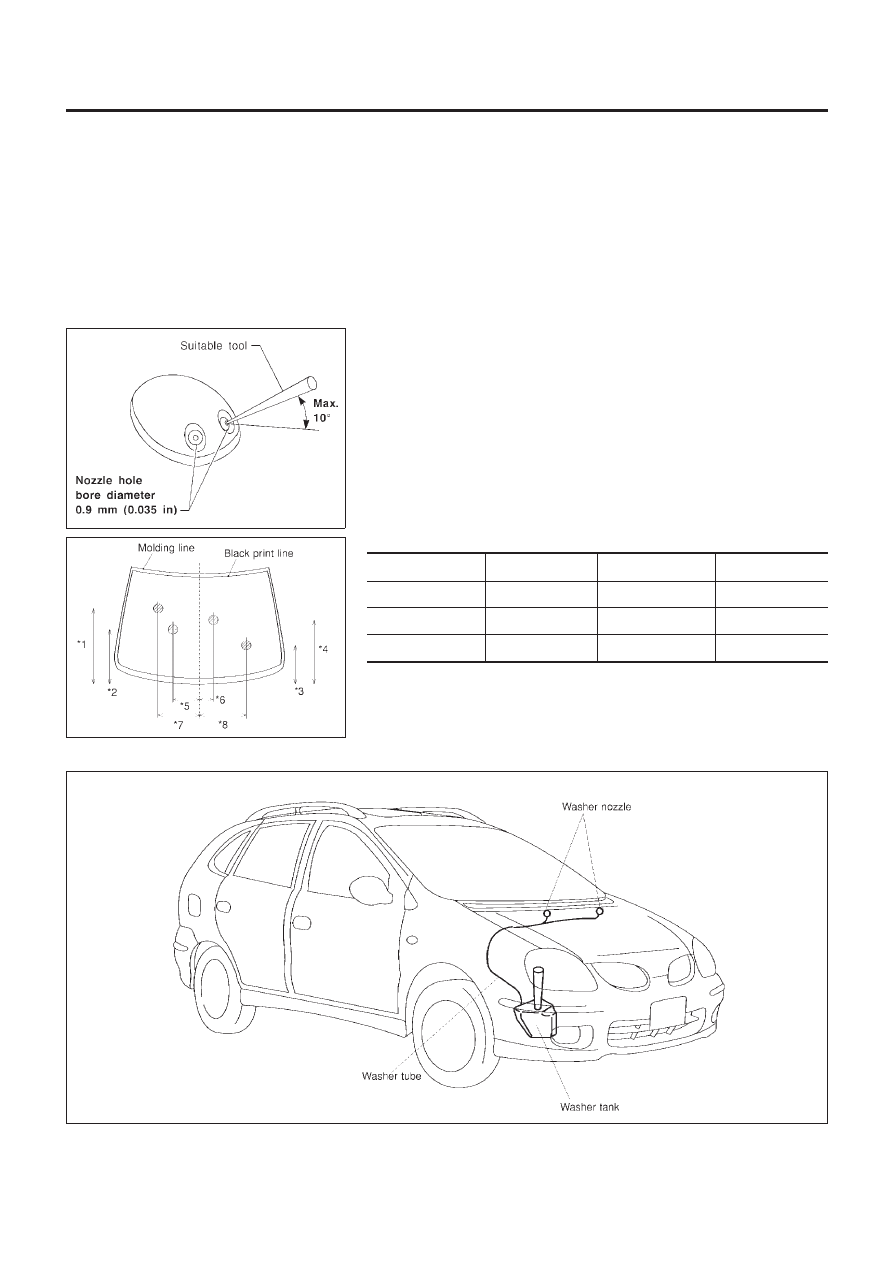

Washer Nozzle Adjustment

NLEL0061

Adjust washer nozzle with suitable tool as shown in the figure
at left.

Adjustable range:

10° (In any direction)

NEL720

Unit: mm (in)

646.9 (25.47)

230.1 (9.06)

470.2 (18.51)

16.8 (0.66)

332.9 (13.11)

356.5 (14.04)

550.9 (21.69)

394.8 (15.54)

*: The diameters of these circles are less than 80 mm (3.15 in).

Washer Tube Layout

NLEL0062

NEL725

FRONT WIPER AND WASHER

Removal and Installation (Cont’d)

EL-183

Wiring Diagram — WIP/R —

NLEL0458

MODELS WITH INTERMITTENT REAR WIPER

NLEL0458S01

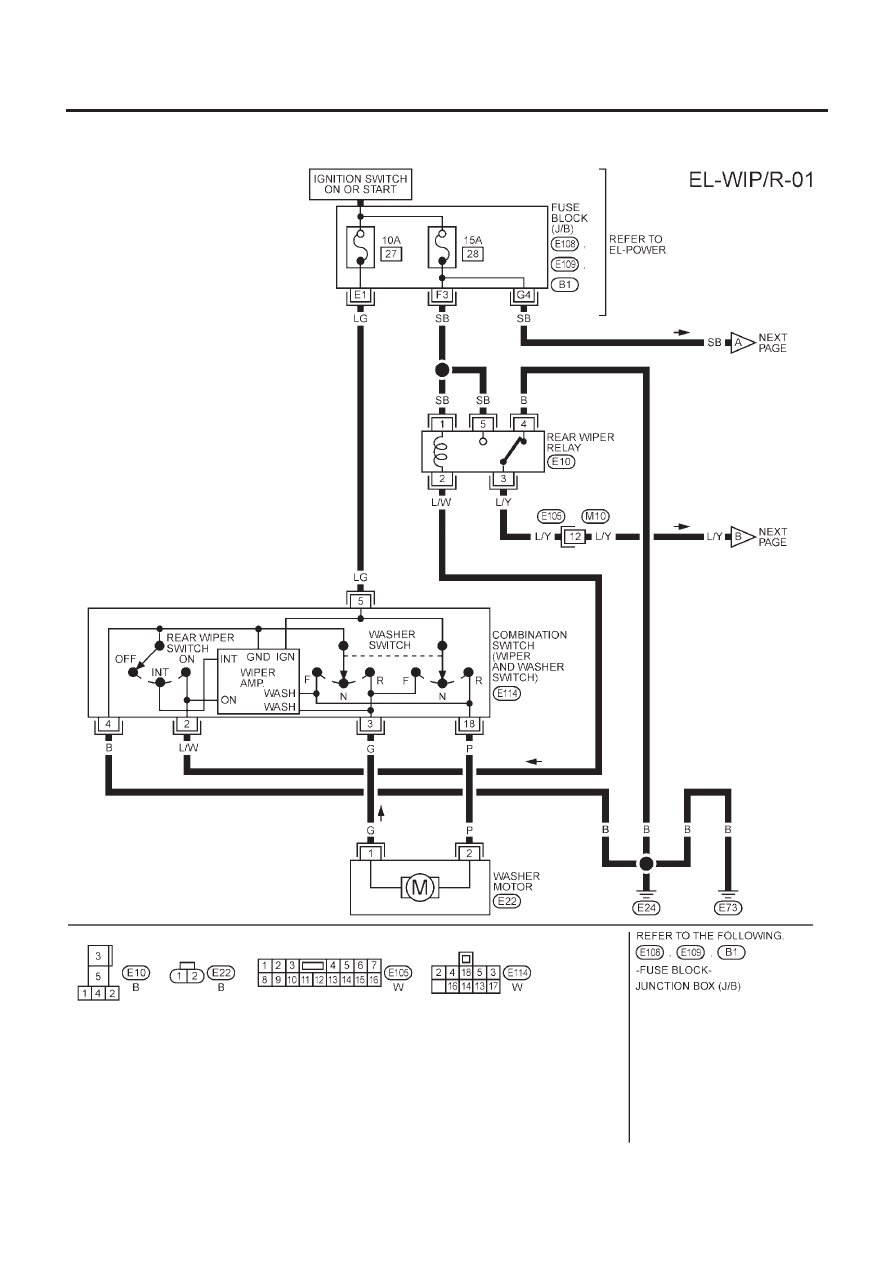

YEL905B

REAR WIPER AND WASHER

Wiring Diagram — WIP/R —

EL-184

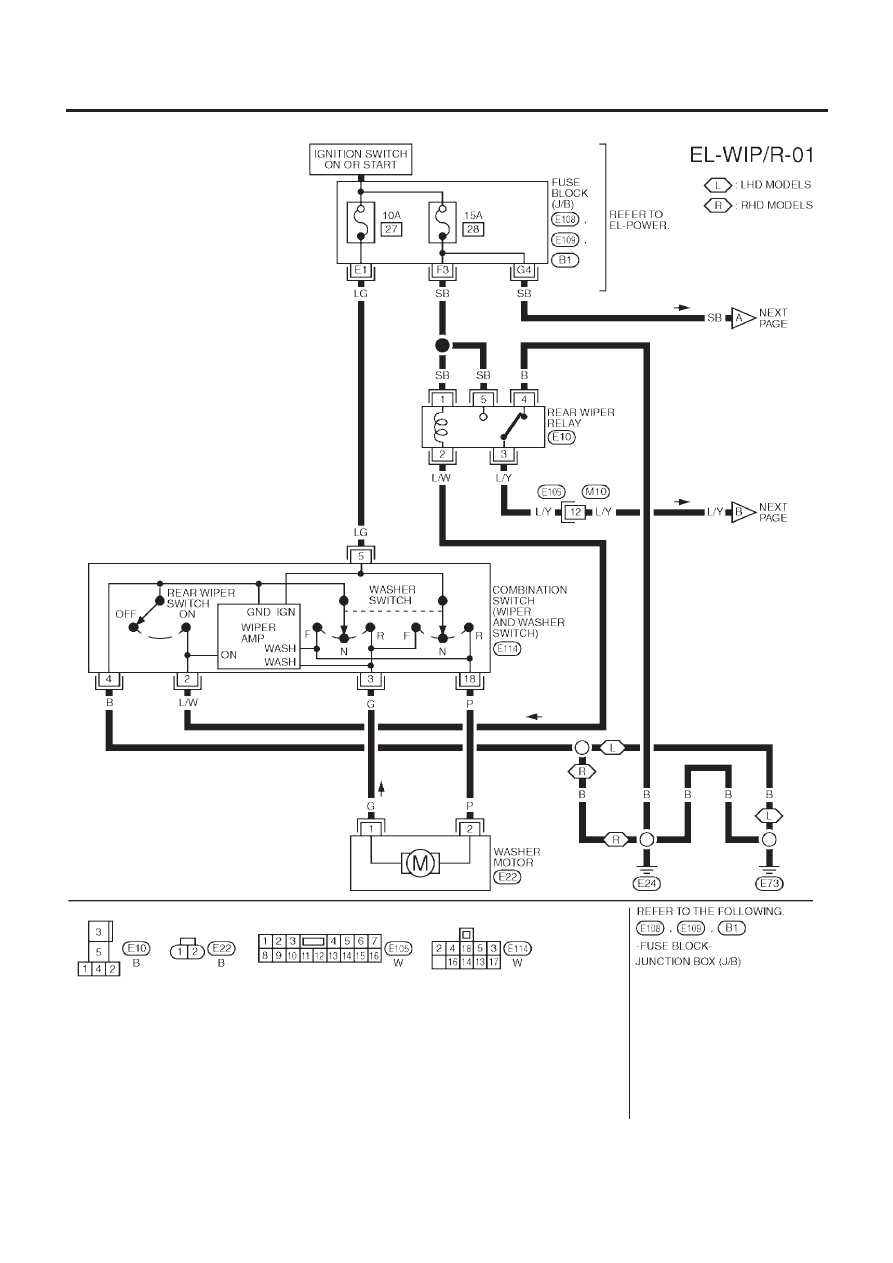

YEL906B

REAR WIPER AND WASHER

Wiring Diagram — WIP/R — (Cont’d)

EL-185

MODELS WITHOUT INTERMITTENT REAR WIPER

NLEL0458S02

YEL429C

REAR WIPER AND WASHER

Wiring Diagram — WIP/R — (Cont’d)

EL-186

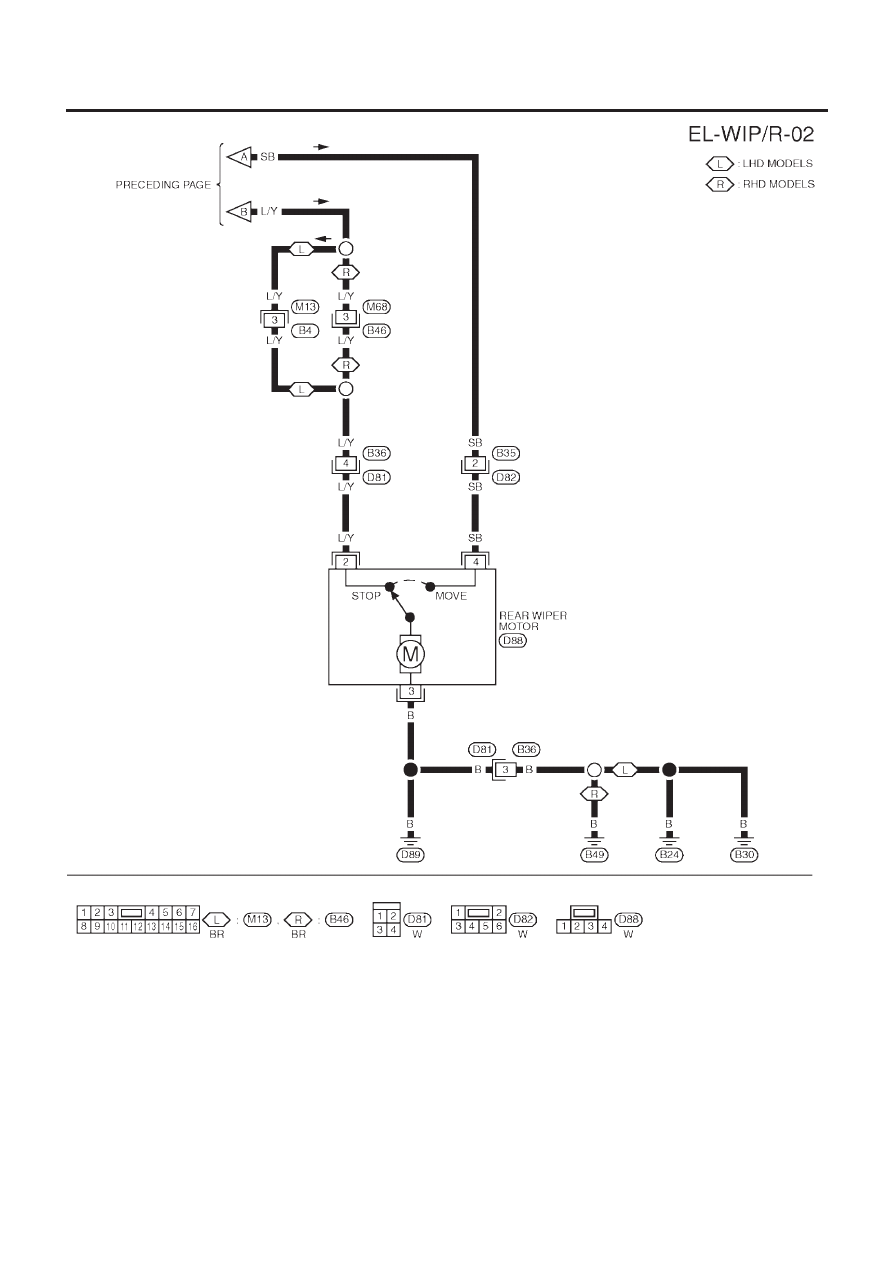

YEL906B

REAR WIPER AND WASHER

Wiring Diagram — WIP/R — (Cont’d)

EL-187

NEL722

Removal and Installation

NLEL0301

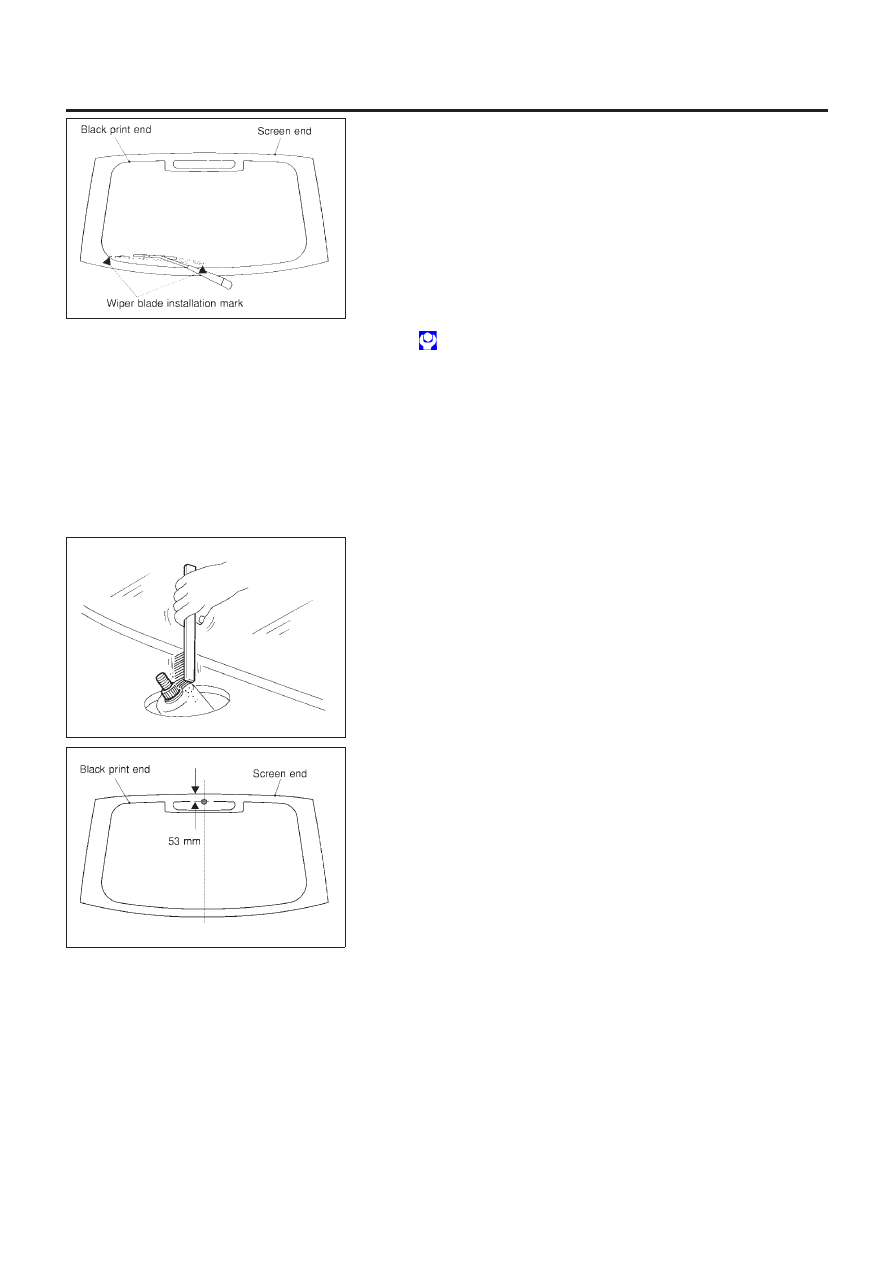

WIPER ARMS

NLEL0301S01

Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).

Lift the blade up and then set it down onto glass surface. Set
the black center to clearance “E” immediately before tighten-
ing the nut.

Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.

Ensure that wiper blades stop on the lowest heat wire.

Tighten windshield wiper arm nuts to specified torque.

: 12.7 - 17.6 N·m (1.3 - 1.8 kg-m, 10 - 13 ft-lb)

SEL024J

Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.

NEL721

Washer Nozzle Adjustment

NLEL0302

The diameter of the washer spit circle is less than 30 mm (1.18 in).

REAR WIPER AND WASHER

Removal and Installation

EL-188

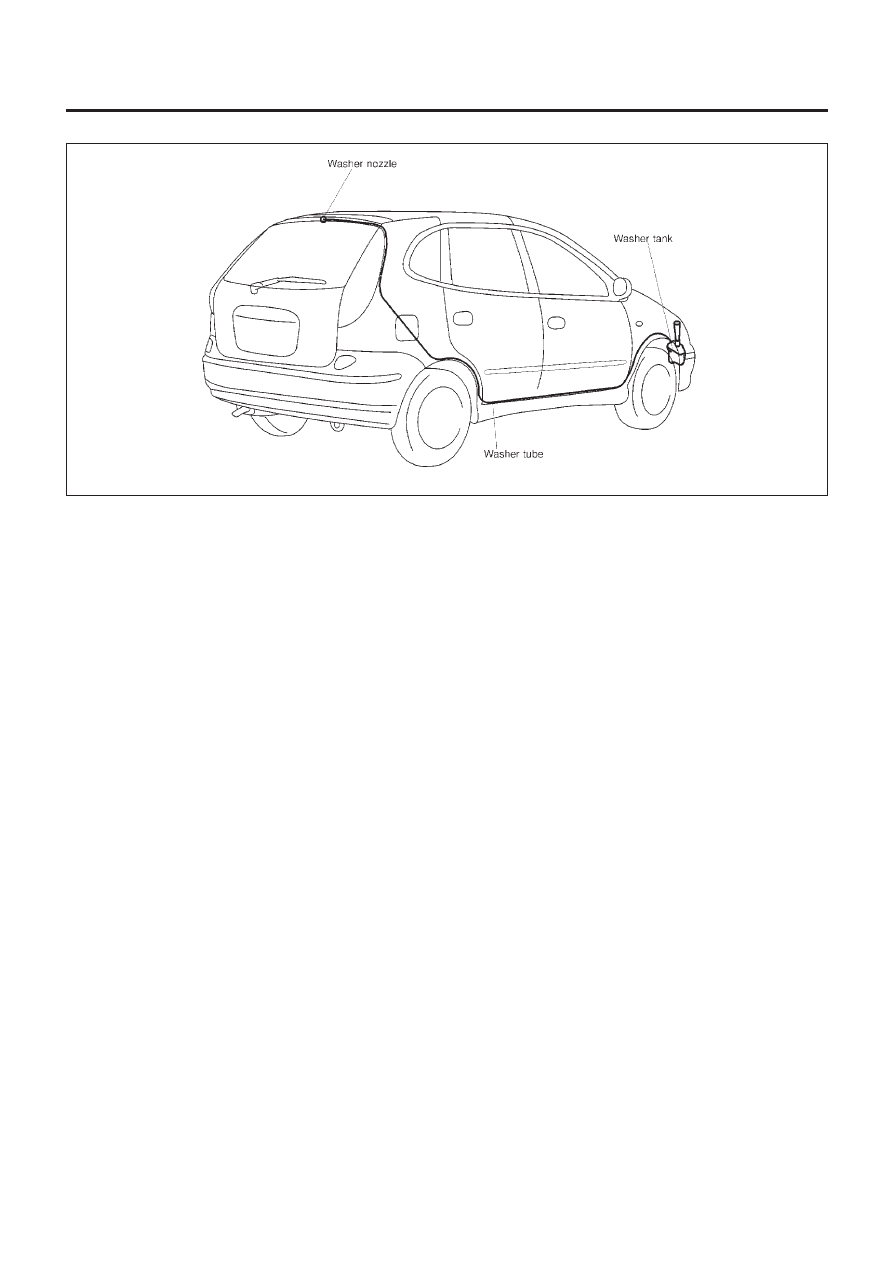

Washer Tube Layout

NLEL0303

NEL723

REAR WIPER AND WASHER

Washer Tube Layout

EL-189

Wiring Diagram — HLC —

NLEL0459

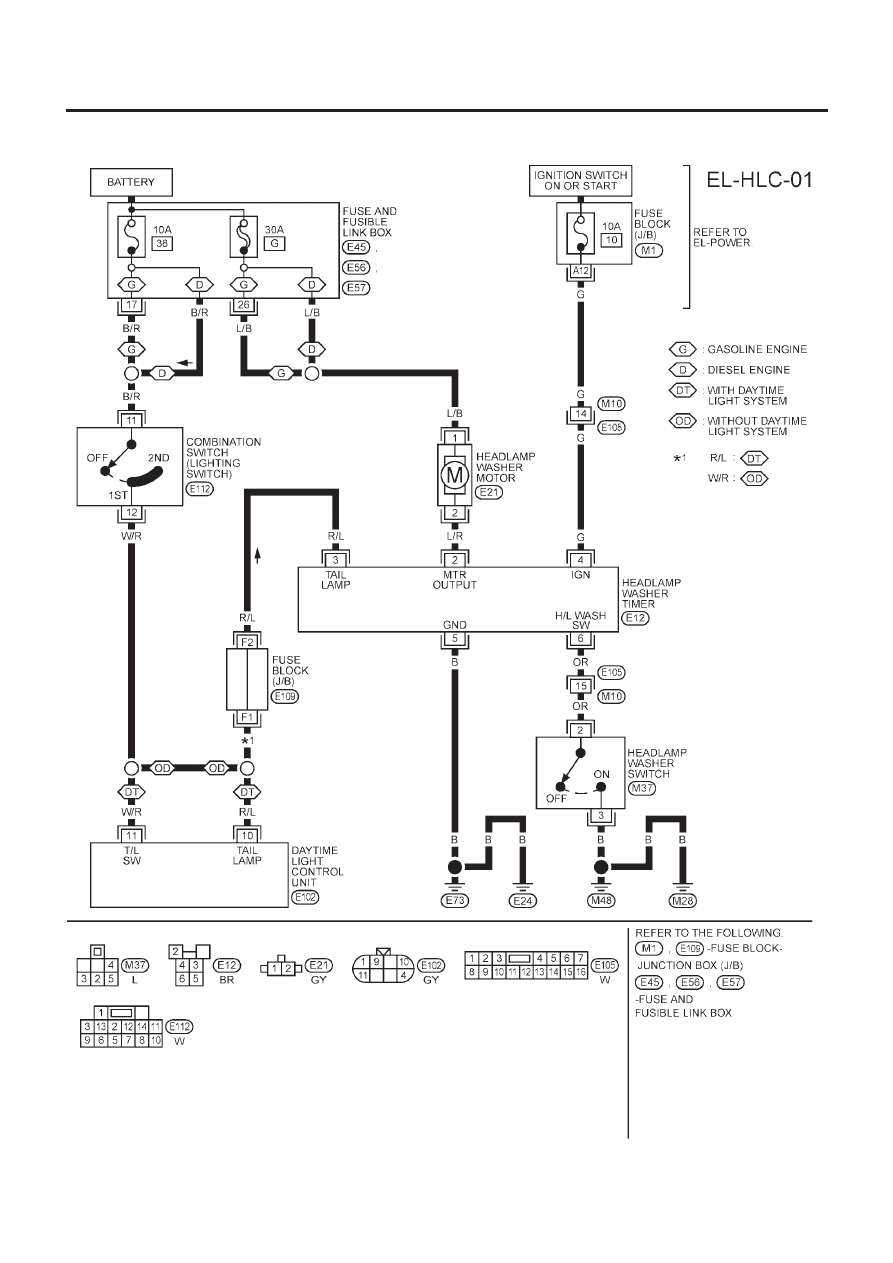

MODELS WITH FUSE AND FUSIBLE LINK BOX E43

NLEL0459S01

YEL907B

HEADLAMP WASHER

Wiring Diagram — HLC —

EL-190
