NLMT0003

NVH Troubleshooting Chart

NLMT0003S01

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.

MANUAL TRANSAXLE

NLMT0003S0101

Reference page

MT

-1

1

(RS5F70A),

MT

-12

(RS5F50A)

MT

-1

1

(RS5F70A),

MT

-12

(RS5F50A)

MT

-1

1

(RS5F70A),

MT

-12

(RS5F50A)

MT

-25

(RS5F70A),

MT

-63

(RS5F50A)

MT

-25

(RS5F70A),

MT

-63

(RS5F50A)

MT

-25

(RS5F70A),

MT

-63

(RS5F50A)

MT

-24

MT

-27

(RS5F70A),

MT

-65

(RS5F50A)

MT

-27

(RS5F70A),

MT

-65

(RS5F50A)

MT

-26

(RS5F70A),

MT

-64

(RS5F50A)

MT

-26

(RS5F70A),

MT

-64

(RS5F50A)

MT

-26

(RS5F70A),

MT

-64

(RS5F50A)

MT

-26

(RS5F70A),

MT

-64

(RS5F50A)

SUSPECTED PARTS
(Possible cause)

(Oil

level

is

low

.)

(W

rong

oil)

(Oil

level

is

high.)

GASKET

(Damaged)

OIL

SEAL

(W

orn

or

damaged)

O-RING

(W

orn

or

damaged)

SHIFT

CONTROL

ROD

(W

orn)

CHECK

PLUG

RETURN

SPRING

AND

CHECK

BALL

(W

orn

or

damaged)

SHIFT

FORK

(W

orn)

GEAR

(W

orn

or

damaged)

BEARING

(W

orn

or

damaged)

BAULK

RING

(W

orn

or

damaged)

INSER

T

SPRING

(Damaged)

Symptoms

Noise

1

2

3

3

Oil leakage

3

1

2

2

2

Hard to shift or will not shift

1

1

2

3

3

Jumps out of gear

1

2

3

3

NOISE, VIBRATION AND HARSHNESS (NVH)

TROUBLESHOOTING

RS5F70A, RS5F50A

NVH Troubleshooting Chart

MT-10

SMA145AA

SMT512C

Changing M/T Oil

NLMT0086

1.

Drain oil from drain plug and refill with new gear oil.

2.

Check oil level.

Oil grade:

API GL-4

Viscosity:

Refer to MA-20, “RECOMMENDED FLUIDS AND
LUBRICANTS”.

Capacity:

RS5F70A 3.0



(5-1/4 Imp pt)

Oil level (Reference data):

RS5F70A 75.5 - 80.5 mm (2.972 - 3.169 in)

Drain plug:

: 25 - 34 N·m (2.5 - 3.5 kg-m, 18 - 25 ft-lb)

SMA066C

Checking

NLMT0087

OIL LEAK AND OIL LEVEL

NLMT0087S01

1.

Check that oil is not leaking from transaxle or around it.

2.

Check oil level.

Never start engine while checking oil level.

Filler plug:

: 10 - 19 N·m (1.0 - 2.0 kg-m, 87 - 173 in-lb)

GI

MA

EM

LC

EC

FE

CL

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

M/T OIL

RS5F70A

Changing M/T Oil

MT-11

SMA067C

Changing M/T Oil

NLMT0088

1.

Drain oil from drain plug and refill with new gear oil.

2.

Check oil level.

Oil grade:

API GL-4

Viscosity:

Refer to MA-20, “RECOMMENDED FLUIDS AND
LUBRICANTS”.

Capacity:

RS5F50A 4.5 - 4.8



(7-7/8 - 8-1/2 Imp pt)

Drain plug:

: 15 - 20 N·m (1.5 - 2.0 kg-m, 11 - 14 ft-lb)

SMA066C

Checking

NLMT0089

OIL LEAK AND OIL LEVEL

NLMT0089S01

Check for oil leakage and oil level.
Never start engine while checking oil level.

Filler plug:

: 25 - 34 N·m (2.5 - 3.5 kg-m, 18 - 25 ft-lb)

M/T OIL

RS5F50A

Changing M/T Oil

MT-12

NLMT0034

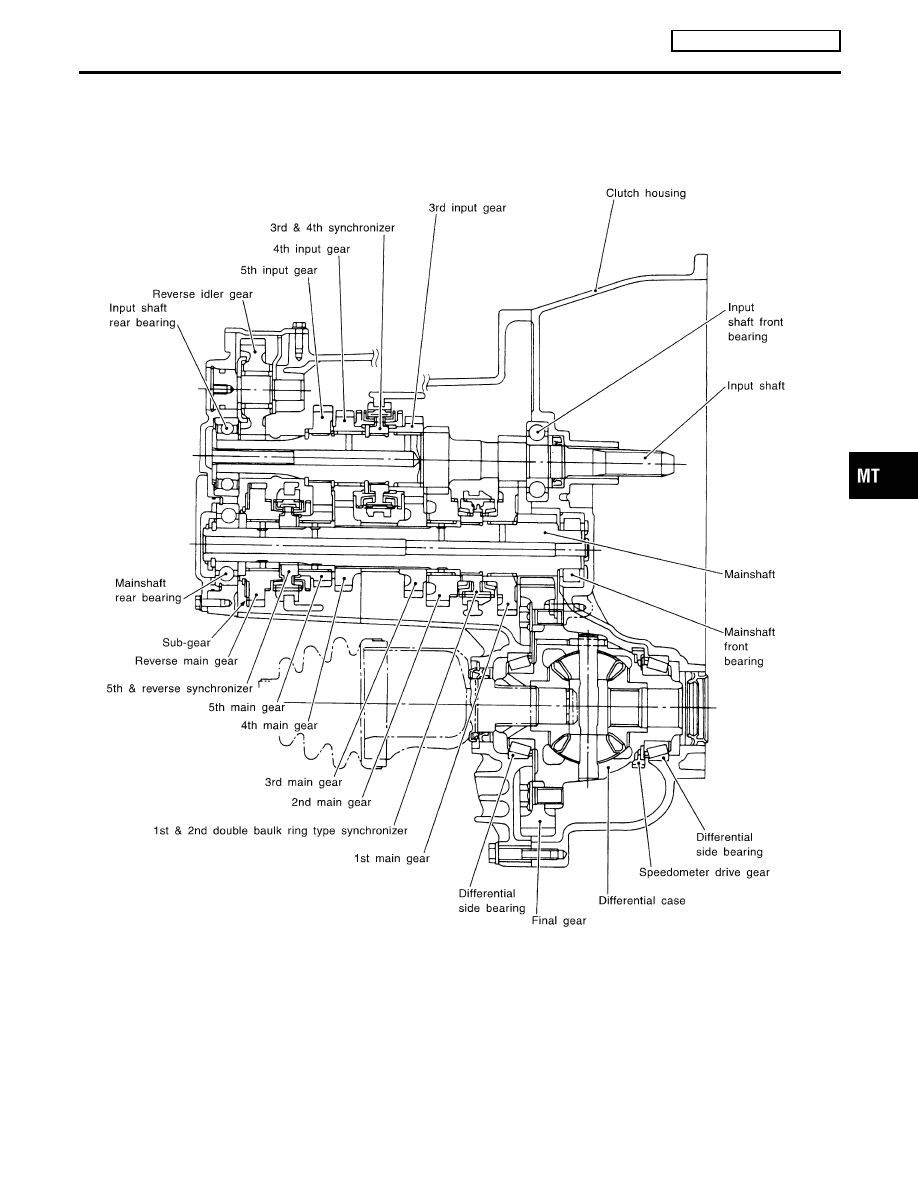

Cross-sectional View — RS5F70A

NLMT0034S03

SMT924D

GI

MA

EM

LC

EC

FE

CL

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DESCRIPTION

RS5F70A, RS5F50A

Cross-sectional View — RS5F70A

MT-13
