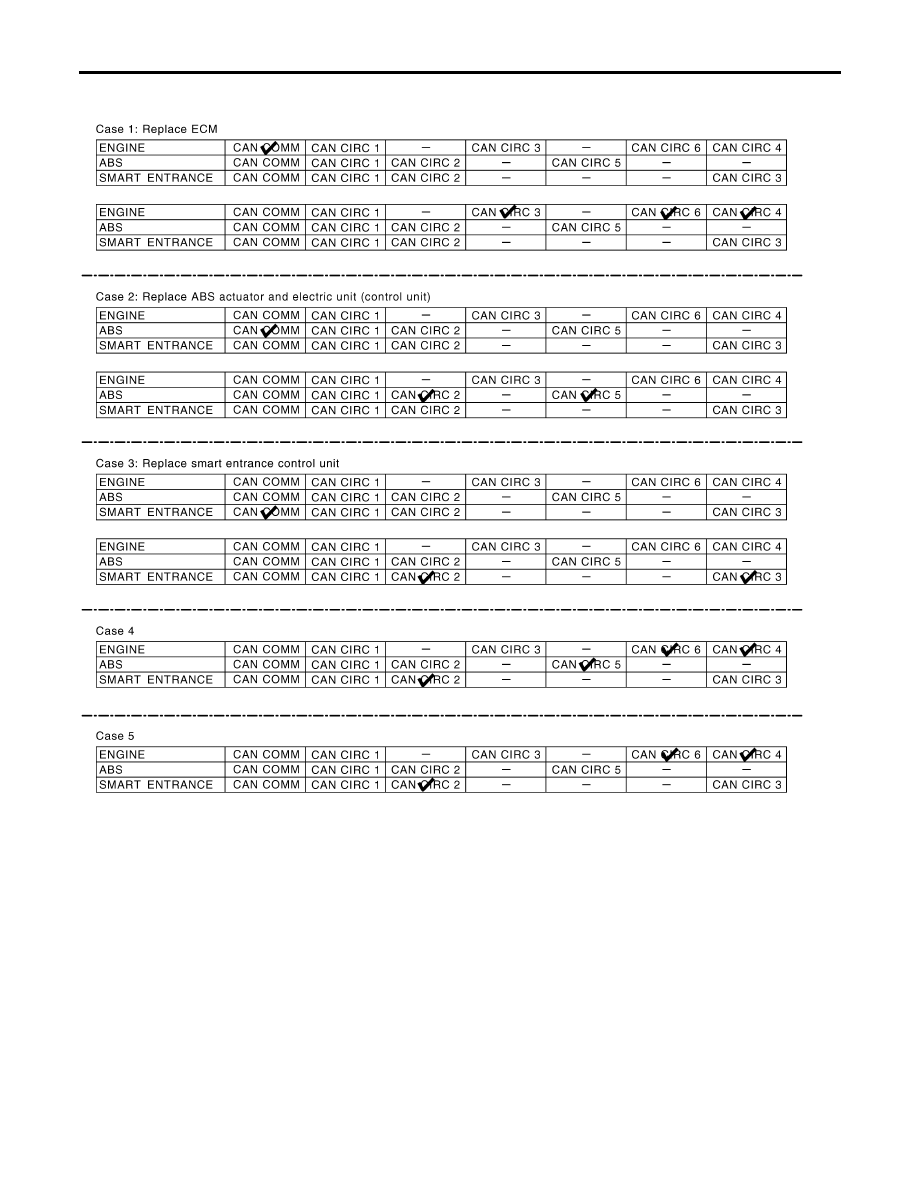

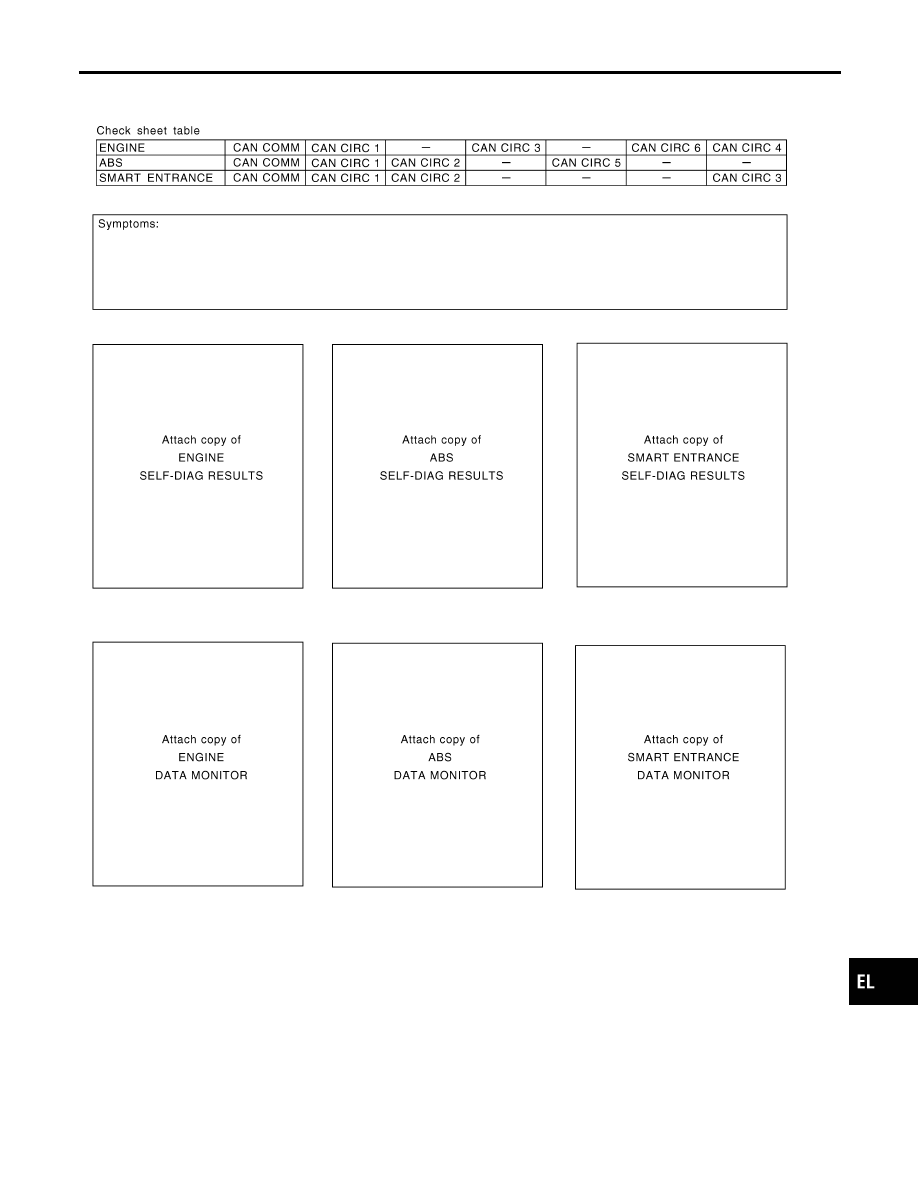

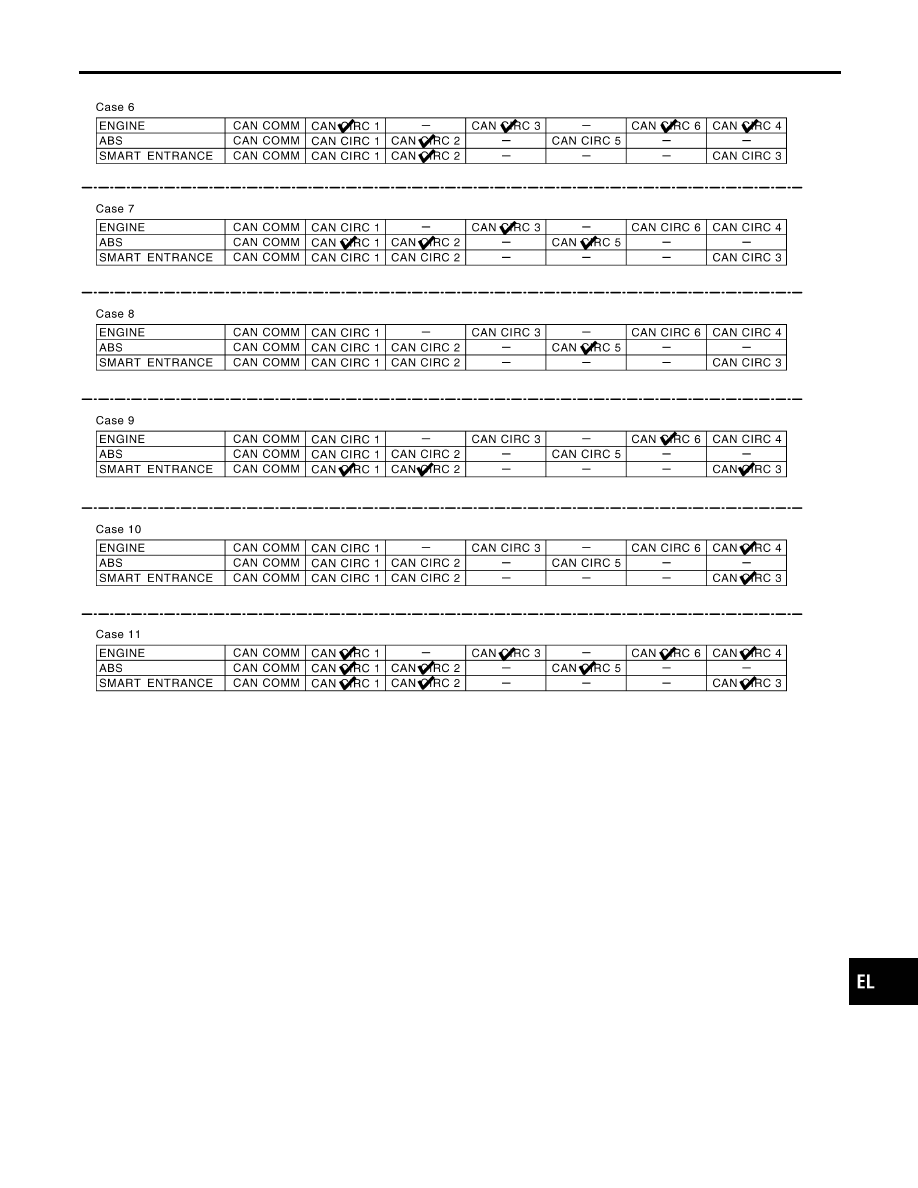

Trouble Diagnoses NLEL0646 WORK FLOW NLEL0646S01 1. Print all the data of “SELF-DIAG RESULTS” and “DATA MONITOR” for “ENGINE”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to the following. ‰ “DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for “ENGINE” ‰ “DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-651) for “ENGINE” ‰ “Inspection 13 CAN Communication System” (BR-140) for “ABS” ‰ “CAN Communication Line Check” (EL-351) for “SMART ENTRANCE” 2. Attach the printed sheet of “SELF-DIAG RESULTS” and “DATA MONITOR” onto the check sheet. Refer to “CHECK SHEET” (EL-497). 3. Based on the data monitor results, put “v” marks onto the items with “UNKWN” or “NG” in the check sheet table. Refer to “CHECK SHEET“ (EL-497). NOTE: (EXAMPLE)” (EL-498). CAN SYSTEM (TYPE 2) Trouble Diagnoses EL-496 |
