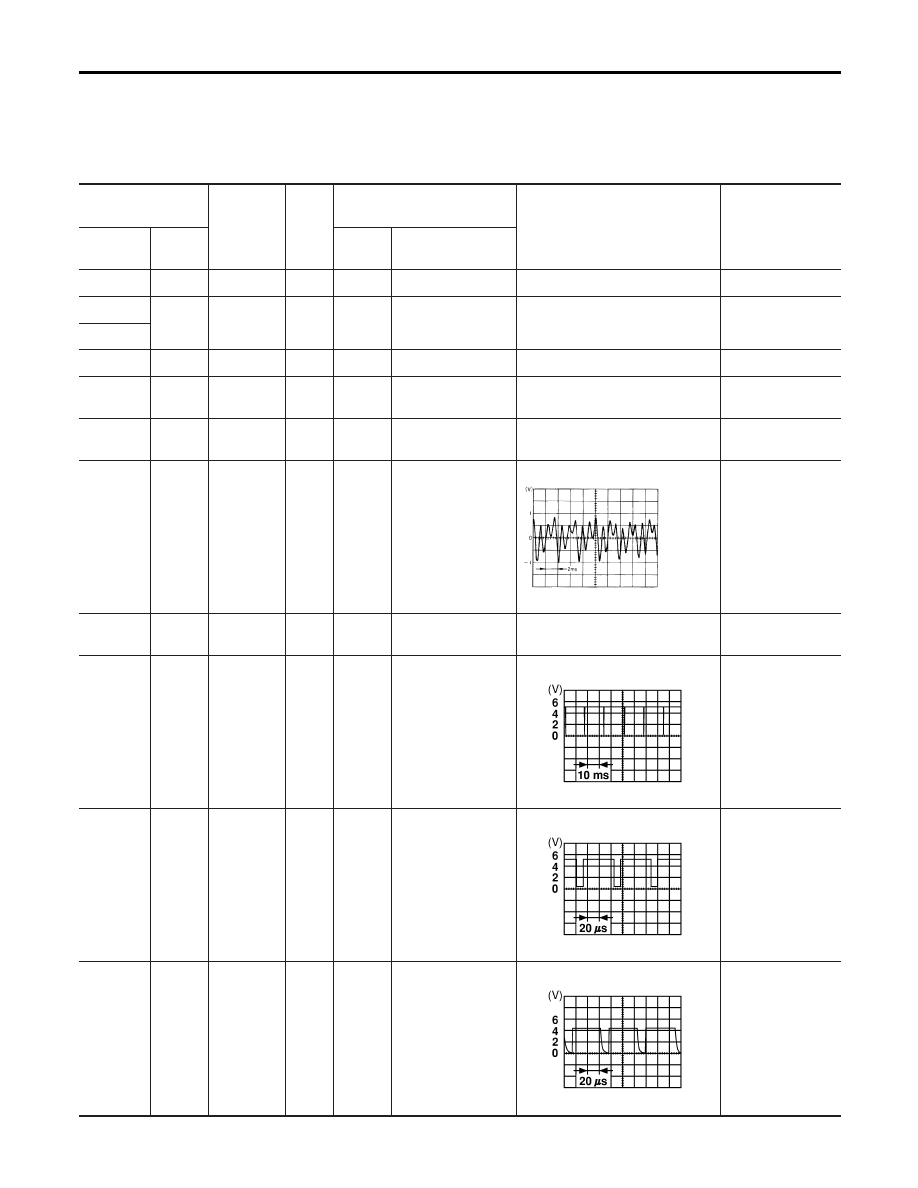

Terminals and Reference Value for AV and
NAVI Control Unit

NLEL0600

I

For measurements made with IGN switch ON, if possible, measure with engine running to prevent battery
discharge.

I

Use a circuit tester and oscilloscope or CONSULT-ll for measurement.

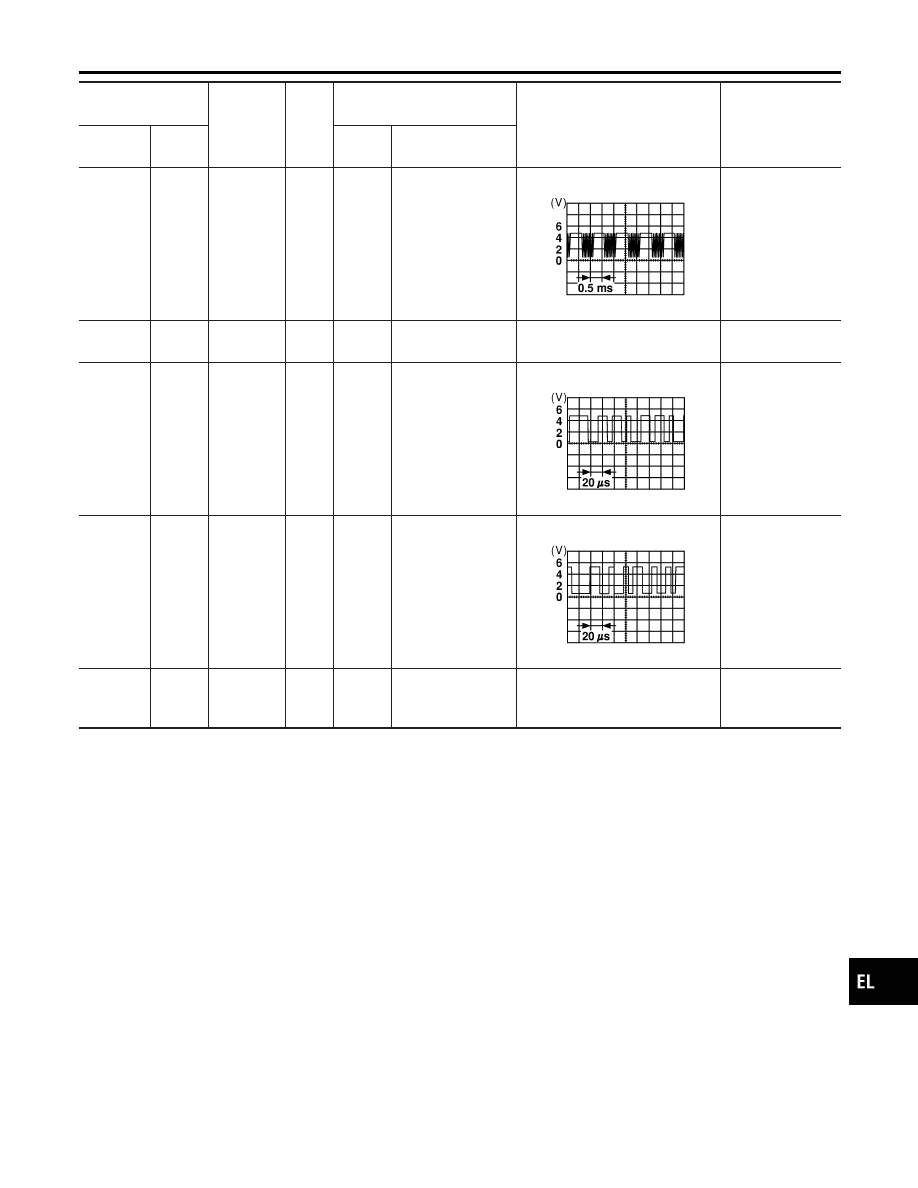

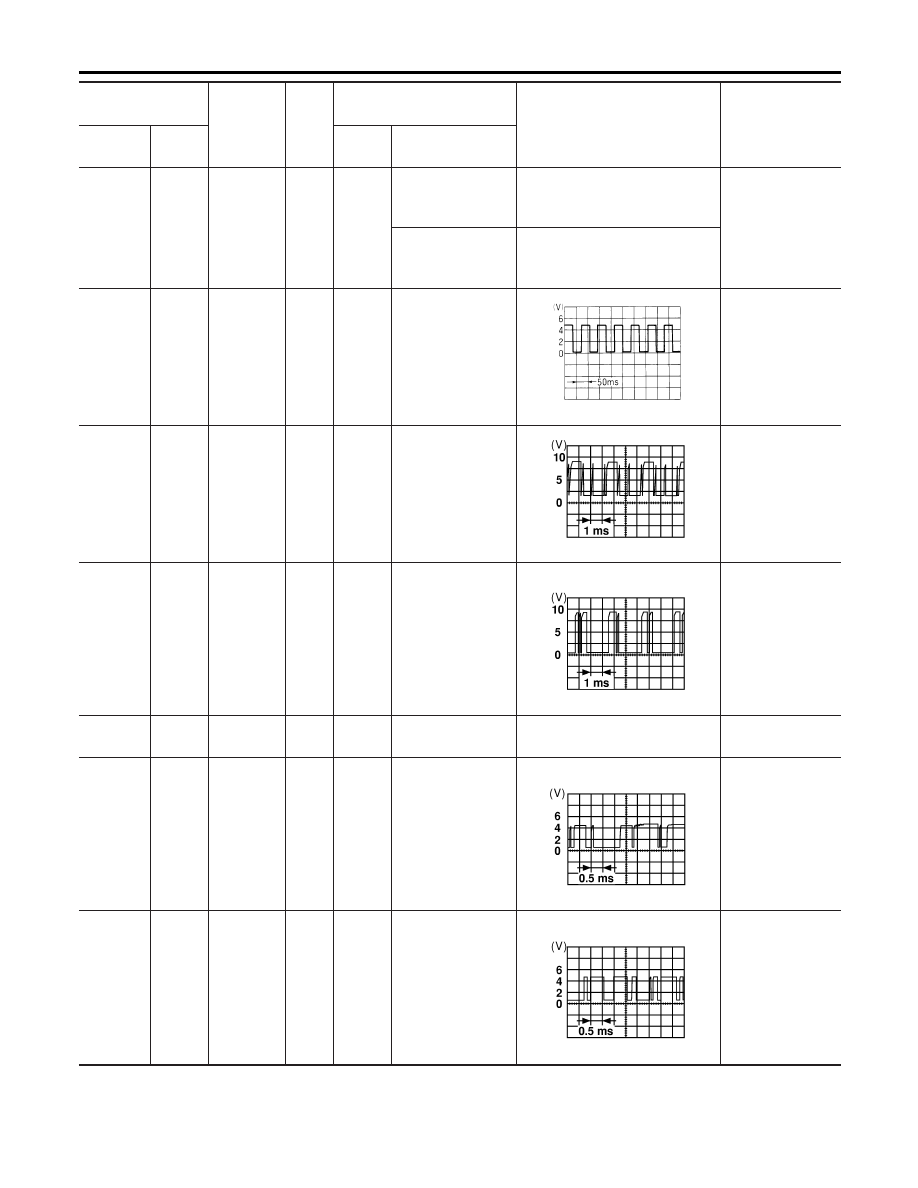

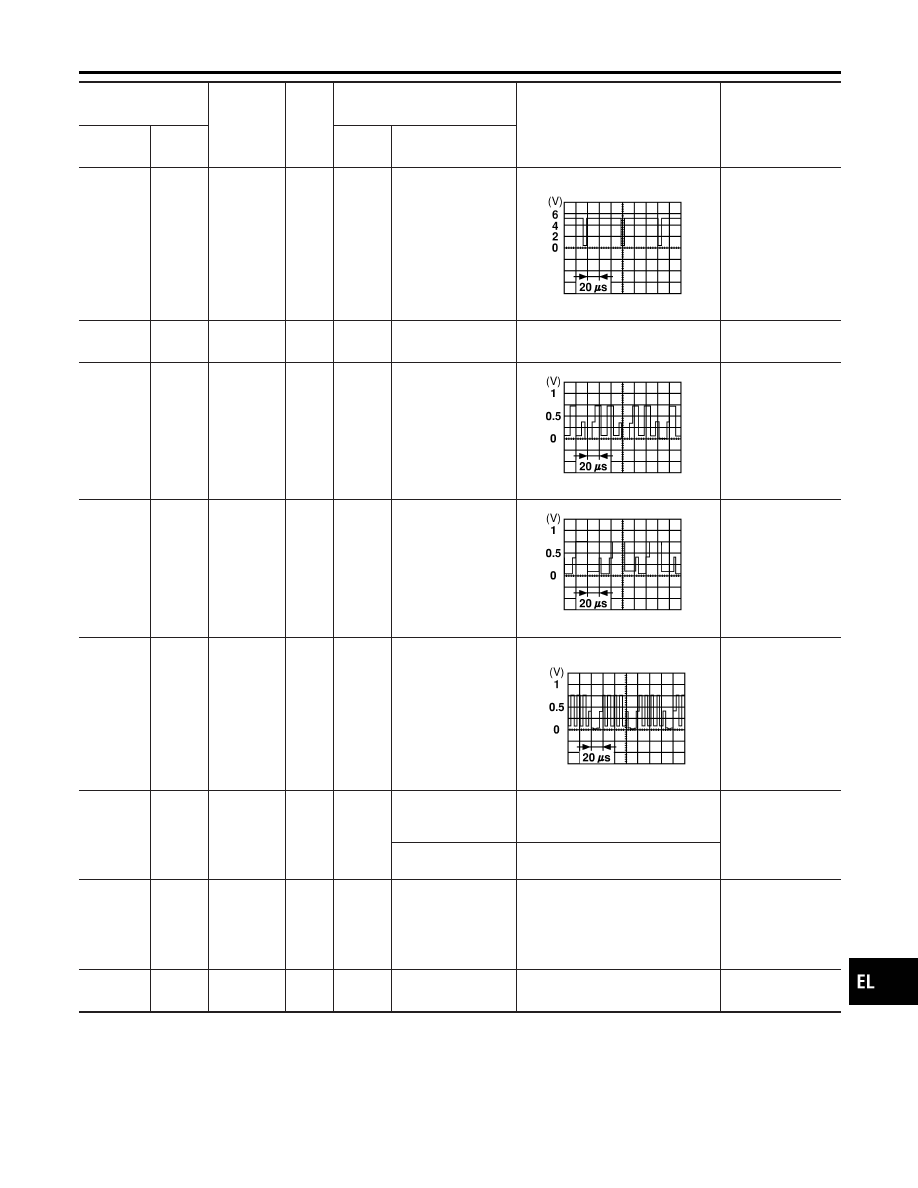

Terminal No. (wire

color)

Item

Signal

input/

output

Condition

Voltage

Example of symp-

tom

+

−

Ignition

switch

Operation

1 (B)

ground

Ground

—

ON

—

Approx. 0V

—

2 (Y)

ground

Battery

power

Input

OFF

—

Battery voltage

System does not

work properly.

3 (Y)

4 (B)

ground

Ground

—

ON

—

Approx. 0V

—

5 (BR)

ground

Illumination

ground

—

ON

—

Approx. 0V

—

6 (P)

ground

ACC signal

Input

ACC

—

Battery voltage

System does not

work properly.

7 (BR)

8 (Y)

voice guide

signal

Output

ON

Press the “voice”

switch.

SKIA0171J

Only route guide

and operation

guide are not

heard.

9(B)

—

Shield

ground

—

—

—

—

—

11 (B)

17

Vertical

synchroniz-

ing signal

Input

ON

—

SKIA0161E

Superimposed

screen is rolling.

12 (R)

17

RGB area

signal

Output

ON

Press the “info”s-

witch.

SKIA0162E

RGB screen is not

shown.

13 (BR)

17

Horizontal

synchroniz-

ing signal

Input

ON

Select“ Display” in

“Setting” mode and

display the rear-

view picture on the

screen.

SKIA0163E

Superimposed

screen is not

shown.

NAVIGATION SYSTEM

Terminals and Reference Value for AV and NAVI Control Unit

EL-400

Terminal No. (wire

color)

Item

Signal

input/

output

Condition

Voltage

Example of symp-

tom

+

−

Ignition

switch

Operation

15 (G)

17

RGB syn-

chronizing

signal

Output

ON

Press the “MAP”

switch.

SKIA0164E

RGB screen is

rolling.

17 (B)

ground

RGB

Ground

—

ON

—

Approx. 0V

—

18 (Y)

17

RGB signal

(R: red)

Output

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT

function.

SKIA0165E

RGB screen looks

bluish.

21 (W)

17

RGB signal

(G: green)

Output

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT

function.

SKIA0166E

RGB screen looks

reddish.

24 (L)

17

RGB signal

(B: blue)

Output

ON

Select “SCREEN

ADJUSTMENT” of

CONFIRMATION/

ADJUSTMENT

function.

SKIA0167E

RGB screen looks

yellowish.

25

LHD:

(R/G)
RHD:

(Y/R)

ground

Illumination

control sig-

nal

Input

ON

Lighting switch ON

(position 1)

Battery voltage

Screen does not

switch between

daytime mode and

nighttime mode.

Lighting switch OFF

Approx. 0

27 (Y/G)

ground

Ignition sig-

nal

Input

ON

—

Battery voltage

A/C operation is

not possible.

Vehicle informa-

tion setting is not

possible.

31 (B)

—

Shield

ground

—

—

—

—

—

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

NAVIGATION SYSTEM

Terminals and Reference Value for AV and NAVI Control Unit (Cont’d)

EL-401

Terminal No. (wire

color)

Item

Signal

input/

output

Condition

Voltage

Example of symp-

tom

+

−

Ignition

switch

Operation

32 (G/W)

ground

Reverse

signal

Input

ON

AT selector lever in

R-position

Battery voltage

The navigation

current-location

mark moves

strangely when

the vehicle is

moving back-

wards.

AT selector lever

not in R-position

Approx. 3.0V or less

33 (L/B)

ground

Vehicle

speed sig-

nal

(2-pulse)

Input

ON

When vehicle speed

is approx. 40 km/h

(25 MPH)

ELF1080D

Navigation cur-

rent-location mark

does not indicate

the correct posi-

tion.

34 (R)

ground

Communi-
cation sig-

nal (AV -

ME)

Output

ON

Display the vehicle

information screen.

SKIA0169E

Clock cannot be

adjusted.

Vehicle informa-

tion screen is not

shown.

35 (G)

ground

Communi-
cation sig-

nal (ME -

AV)

Input

ON

Perform various set-

tings on the vehicle

information screen.

SKIA0170E

Clock cannot be

adjusted.

Vehicle informa-

tion screen is not

shown.

40 (B)

—

Shield

ground

—

—

—

—

—

43 (L/R)

ground

A/C com-

munication

signal (AV -

AC)

Output

ON

—

SKIA0172E

A/C operation is

not possible.

44 (L/W)

ground

A/C com-

munication

signal (AV -

AC)

Input

ON

—

SKIA0173E

A/C status is not

indicated correctly.

NAVIGATION SYSTEM

Terminals and Reference Value for AV and NAVI Control Unit (Cont’d)

EL-402

Terminal No. (wire

color)

Item

Signal

input/

output

Condition

Voltage

Example of symp-

tom

+

−

Ignition

switch

Operation

45 (L)

ground

A/C clock

signal

Input

ON

—

SKIA0174E

A/C status is not

indicated correctly.

46 (B)

—

Shield

ground

—

—

—

—

—

47 (R)

ground

Communi-
cation sig-

nal (+)

Input/

output

ON

—

SKIA0175E

System does not

work properly.

48 (G)

ground

Communi-
cation sig-

nal (-)

Input/

output

ON

—

SKIA0176E

System does not

work properly.

66

67

GPS signal

Input

ON

Connector is not

connected.

Approx. 5 V

Navigation system

GPS correction is

not possible.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX
