EC-1114

[YD (WITH EURO-OBD)]

DTC P0336 CKP SENSOR

Diagnostic Procedure

EBS013CT

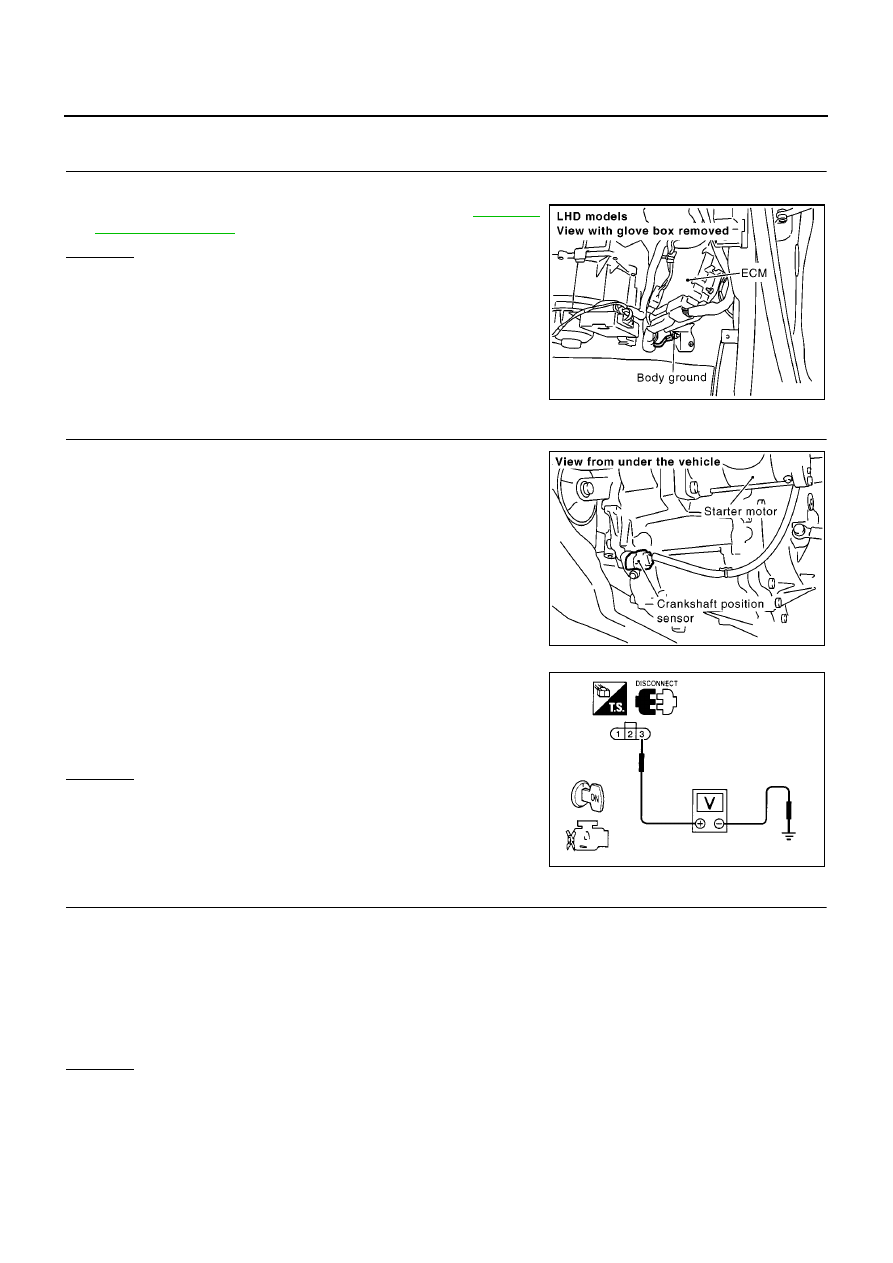

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten body ground screw. Refer to

EC-1010,

"Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connection.

2.

CHECK CKP SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect crankshaft position sensor harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between CKP sensor terminal 3 and ground with
CONSULT-II or tester.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

3.

CHECK CKP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 65 and CKP sensor terminal 2.
Refer to Wiring Diagram.

4.

Also check harness for and short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

MBIB0915E

MBIB0863E

Voltage: Approximately 5.3V

SEF646P

Continuity should exist.

DTC P0336 CKP SENSOR

EC-1115

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

CHECK CKP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 46 and CKP sensor terminal 1.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK CRANKSHAFT POSITION SENSOR

Refer to

EC-1115, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace crankshaft position sensor.

6.

CHECK GEAR TOOTH

Visually check for chipping signal plate gear tooth.

OK or NG

OK

>> GO TO 7.

NG

>> Replace the signal plate.

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-1002, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

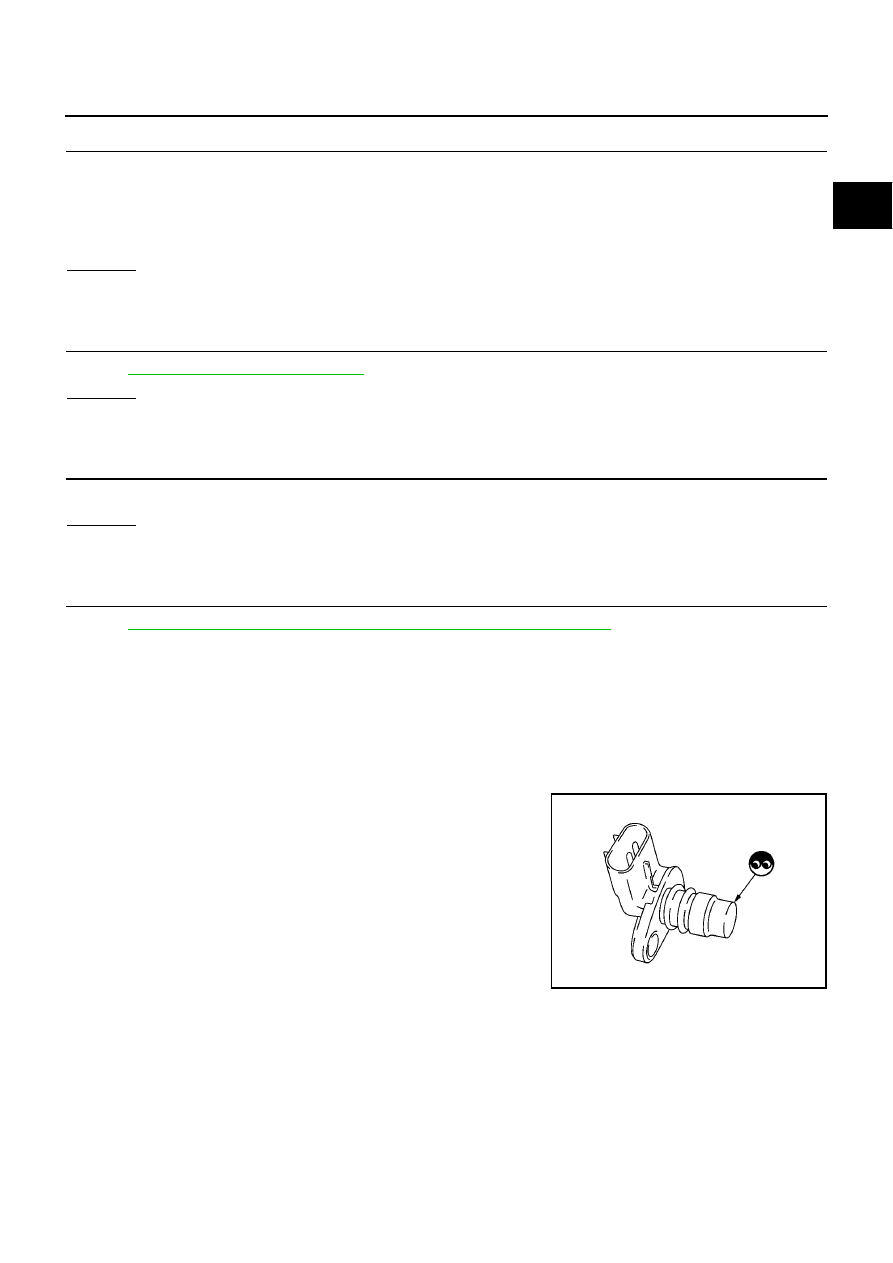

Component Inspection

EBS013CU

CRANKSHAFT POSITION SENSOR

1.

Loosen the fixing bolt of the sensor.

2.

Disconnect crankshaft position sensor harness connector.

3.

Remove the sensor.

4.

Visually check the sensor for chipping.

Continuity should exist.

MBIB0864E

EC-1116

[YD (WITH EURO-OBD)]

DTC P0336 CKP SENSOR

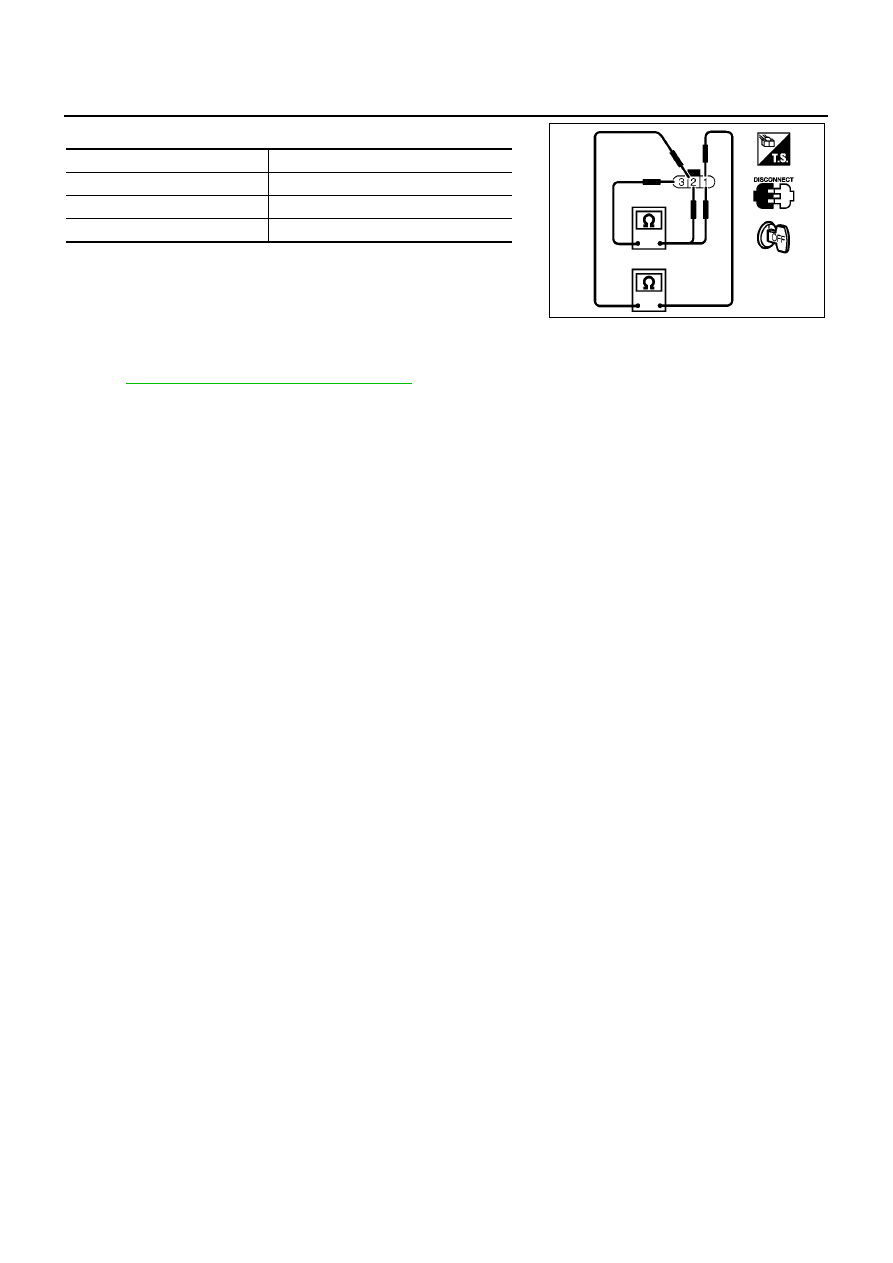

5.

Check resistance as shown in the figure.

6.

If NG, replace crankshaft position sensor.

Removal and Installation

EBS013CV

CRANKSHAFT POSITION SENSOR

Refer to

EM-137, "OIL PAN AND OIL STRAINER"

.

Terminal No. (Polarity)

Resistance

[at 25

°

C (77

°

F)]

3 (+) - 1 (-)

Except 0

3 (+) - 2 (-)

Except 0 or

2 (+) - 1 (-)

Except 0

MBIB0616E

DTC P0340 CMP SENSOR

EC-1117

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0340 CMP SENSOR

PFP:23731

Description

EBS013CW

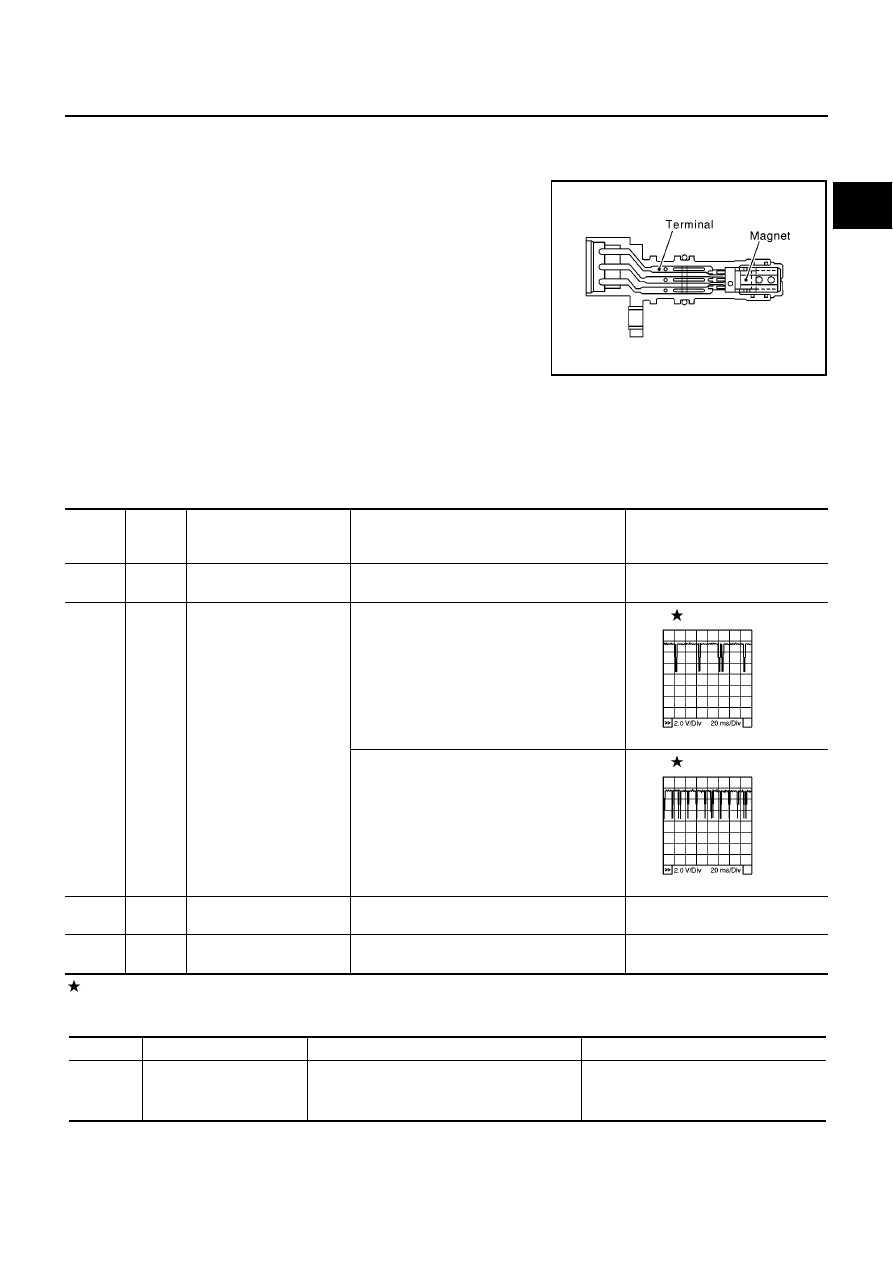

The camshaft position sensor identifies a particular cylinder by
means of signals from the sensing plate (with five protrusions)
installed to the camshaft. The datum signal output is detected 90

°

signal and sent to the ECM.

ECM Terminals and Reference Value

EBS013CX

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

On Board Diagnosis Logic

EBS013CY

MBIB0618E

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

45

R

Camshaft position sensor
power supply

[Ignition switch ON]

Approximately 5.3V

47

B

Camshaft position sensor

[Engine is running]

Warm-up condition

Idle speed

0 - 6V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0 - 6V

66

W

Camshaft position sensor
ground

[Ignition switch ON]

Approximately 0.3V

67

B

Sensor ground
(Sensors shield circuit)

[Ignition switch ON]

Approximately 0.3V

MBIB0877E

MBIB0878E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0340

Camshaft position sensor
circuit

Camshaft position sensor signal is not detect
by the ECM when engine is running.

Harness or connectors
(The sensor circuit is open or shorted.)

Camshaft position sensor
