DTC P1217 ENGINE OVER TEMPERATURE

*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to “Overheating Cause Analysis”, LC-20.

Component Inspection

EBS00R0B

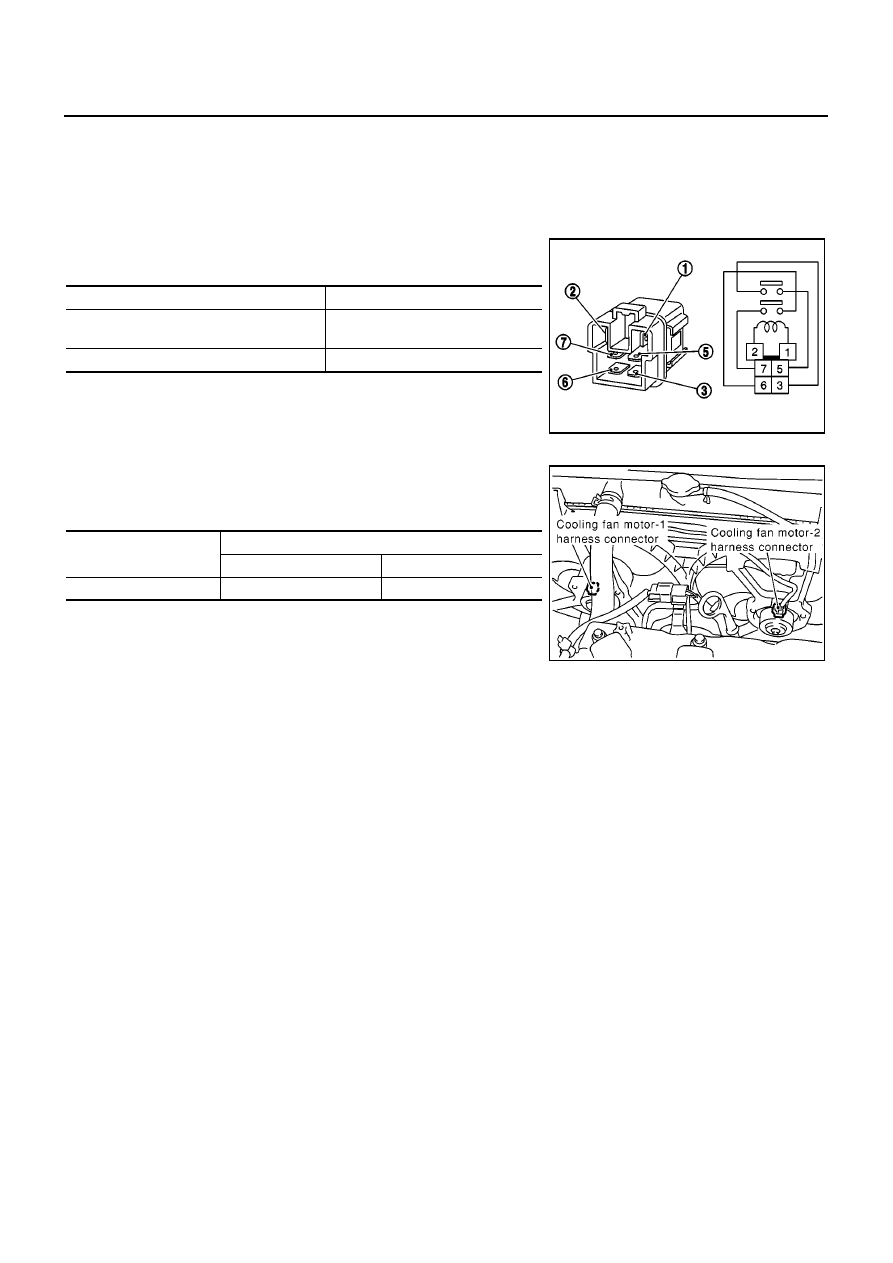

COOLING FAN RELAY-1

Apply 12V direct current between relay terminals 1 and 2.

Check continuity between relay terminals 3 and 5, 6 and 7.

If NG, replace cooling fan relay.

COOLING FAN MOTORS-1 AND -2

Disconnect cooling fan motor harness connectors.

Supply cooling fan motor terminals with battery voltage and
check operation.

Cooling fan motor should operate.
If NG, replace cooling fan motor.

Condition

Continuity

12V direct current supply between terminals
1 and 2

Yes

OFF

PBIB0077E

Terminals

(+)

(

−

)

Cooling fan motor

MBIB0109E

DTC P1223, P1224 TP SENSOR

EC-791

[QG (WITHOUT EURO-OBD)]

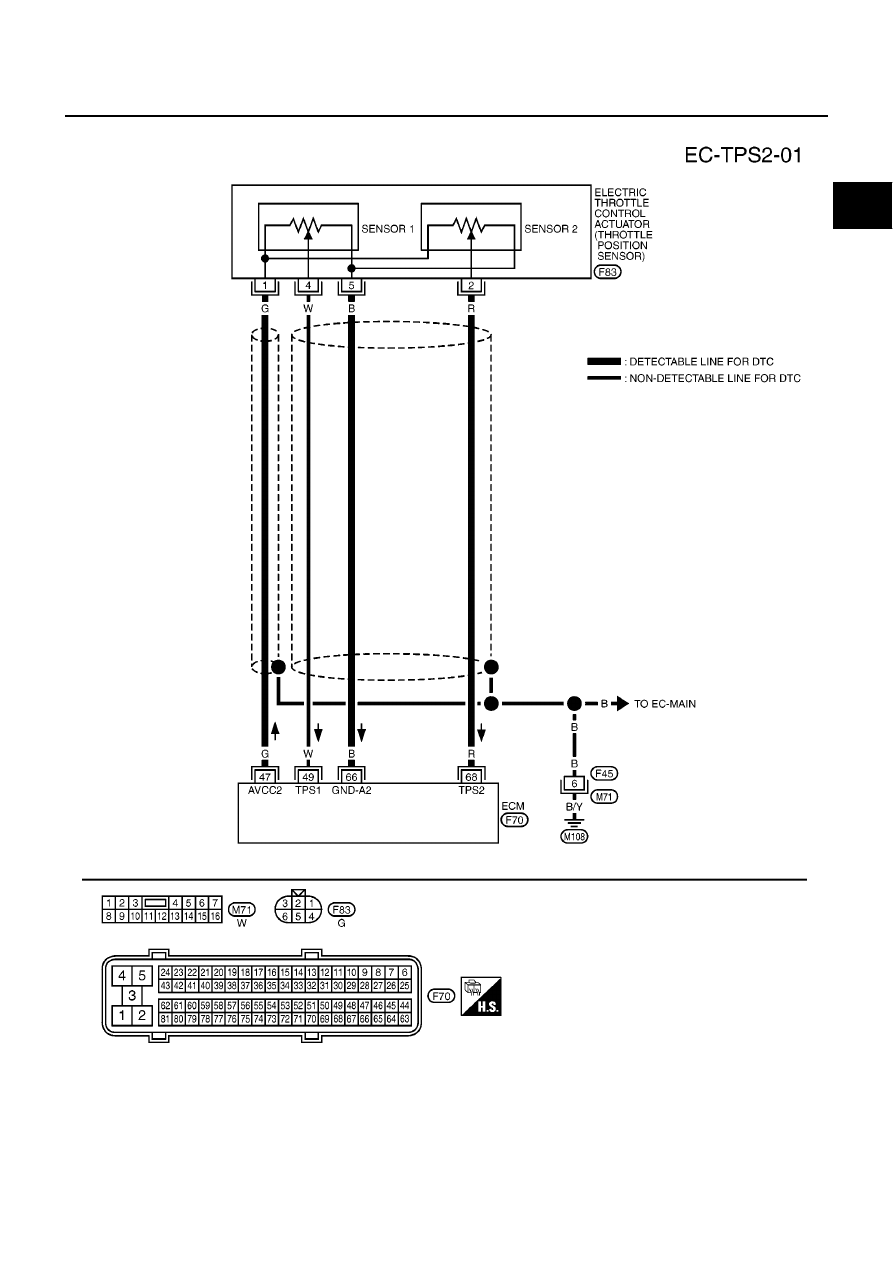

DTC P1223, P1224 TP SENSOR

PFP:16119

Component Description

EBS00R0C

Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.

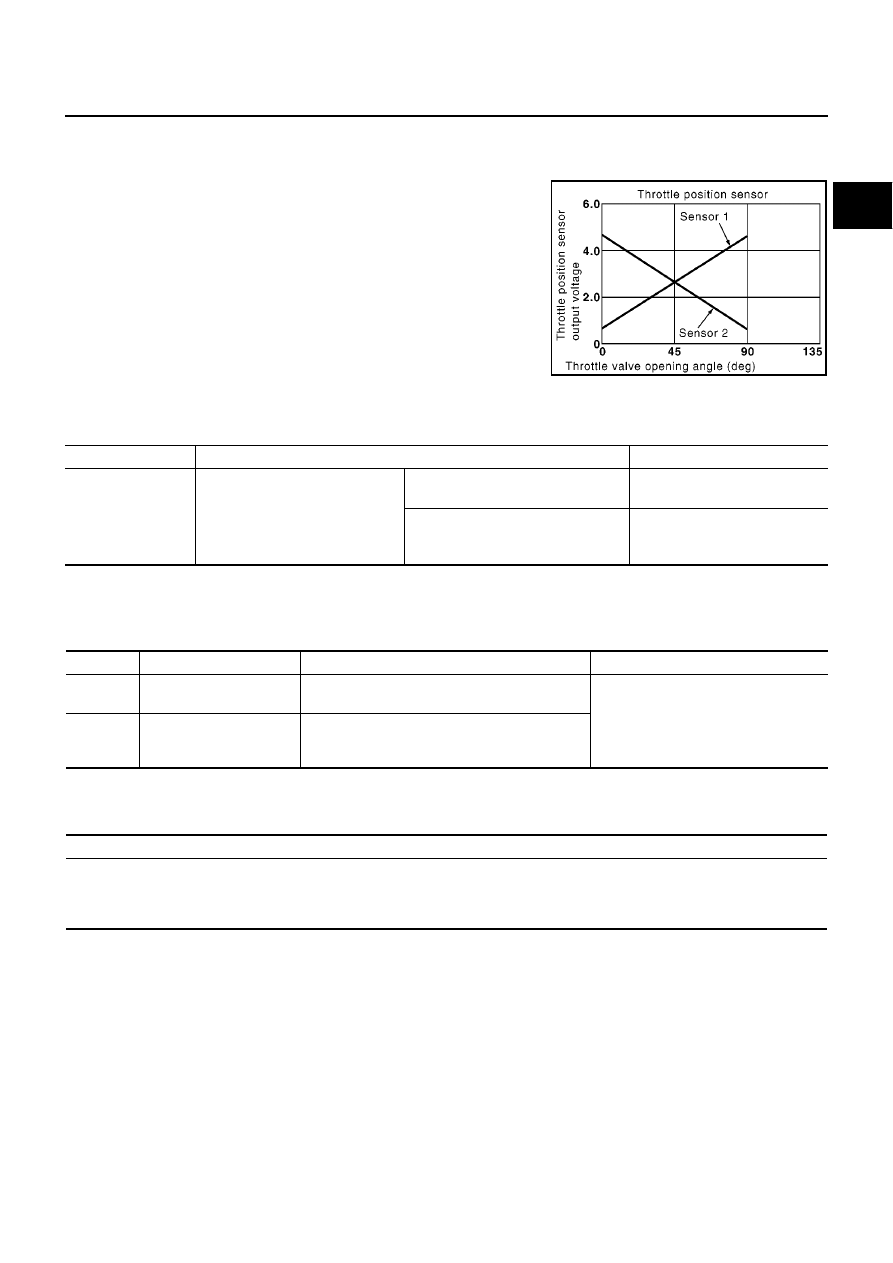

The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.

CONSULT-II Reference Value in Data Monitor Mode

EBS00R0D

Specification data are reference values.

*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

On Board Diagnosis Logic

EBS00R0E

These self-diagnoses have the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.

DTC Confirmation Procedure

EBS00R0F

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

PBIB0145E

MONITOR ITEM

CONDITION

SPECIFICATION

THRTL SEN1
THRTL SEN2*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

More than 0.36V

●

Shift lever:
D (A/T models)
1st (M/T models)

Accelerator pedal: Fully depressed

Less than 4.75V

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1223
1223

Throttle position sensor 2
circuit low input

An excessively low voltage from the TP sensor 2
is sent to ECM.

●

Harness or connectors
(The TP sensor 2 circuit is open or
shorted.)

●

Electric throttle control actuator
(TP sensor 2)

P1224
1224

Throttle position sensor 2
circuit high input

An excessively high voltage from the TP sensor 2
is sent to ECM.

Engine operation condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
