EC-462

[QG (WITH EURO-OBD)]

DTC P1147, P1167 HO2S2 (A/T MODELS)

Procedure for COND2

1.

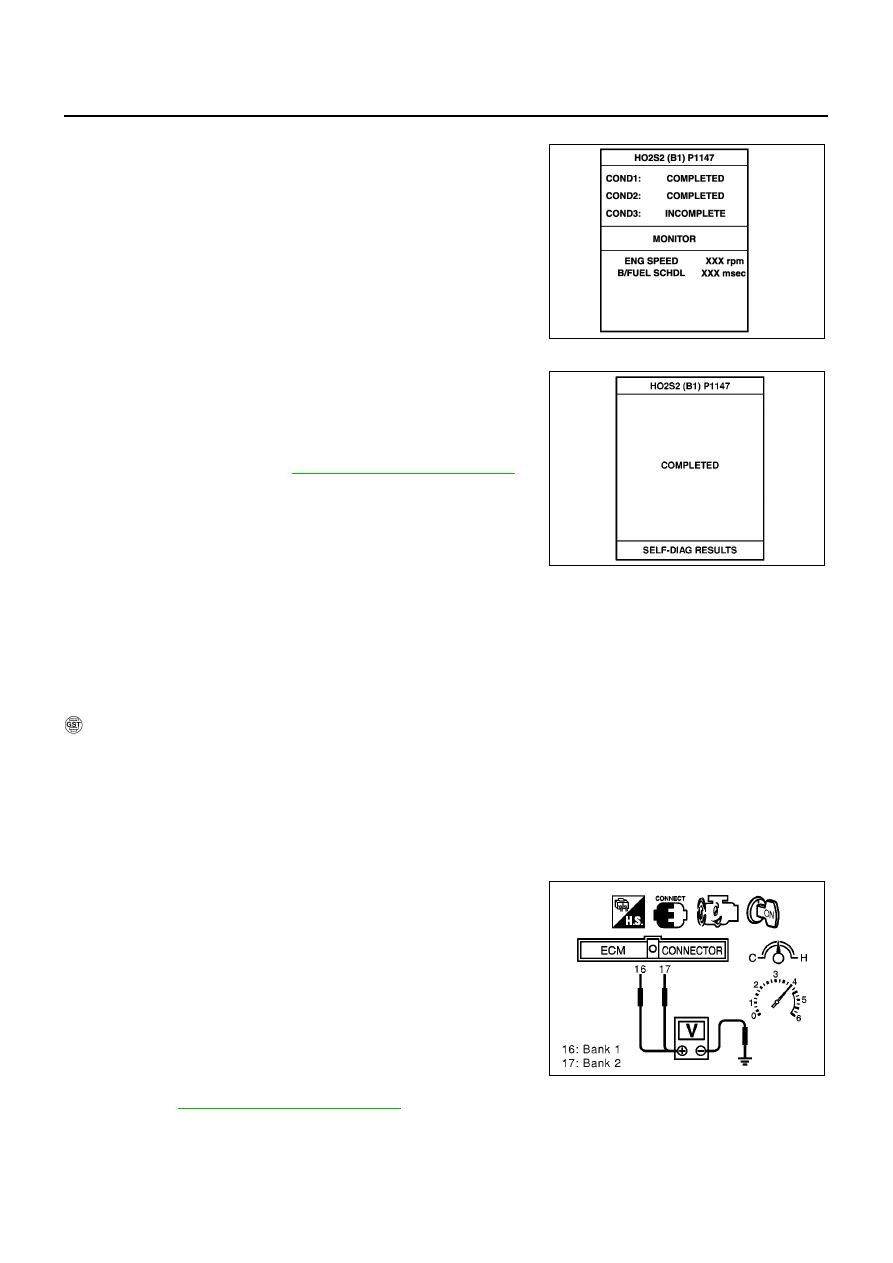

While driving, release accelerator pedal completed with “OD”
OFF from the above condition [step 9] until “INCOMPLETE” at
“COND2” on CONSULT-II screen has turned to “COMPLETED”
(It will take approximately 4 seconds.)

NOTE:
If “COMPLETE” already appears at “COND3” on CONSULT-
II screen before “Procedure for COND3” is conducted, it is
unnecessary to conduct step 1 in “Procedure for COND3”.

Procedure for COND3

1.

Stop vehicle and let it idle until “INCOMPLETE” of “COND3” on
CONSULT-II screen has turned to “COMPLETED”. (It will take a
maximum of approximately 6 minutes.)

2.

Make sure that “OK” is displayed after touching “SELF-DIAG
RESULTS”.
If “NG” is displayed, refer to

EC-466, "Diagnostic Procedure"

.

If “CAN NOT BE DIAGNOSED” is displayed, perform the follow-
ing.

a.

Turn ignition switch “OFF” and leave the vehicle in a cool place
(soak the vehicle).

b.

Turn ignition switch “ON” and select “COOLANTEMP/S” in
“DATA MONITOR” mode with CONSULT-II

c.

Start engine and warm it up while monitoring “COOLANTEMP/S” indication on CONSULT-II.

d.

When “COOLANTEMP/S” indication reaches to 70

°

C (158

°

F), go to “Procedure for COND 1” step 3.

Overall Function Check

EBS00QRE

Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a
DTC might not be confirmed.

WITH GST

1.

Start engine and warm it up to the normal operating temperature.

2.

Turn ignition switch “OFF” and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.

4.

Let engine idle for one minute.

5.

Set voltmeter probes between ECM terminal 16 [HO2S2 (B1) signal] or 17 [HO2S2 (B2) signal] and
engine ground.

6.

Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage can be confirmed in step 6, step 7 is not nec-
essary.

7.

Keep vehicle idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in “D”
position with “OD” OFF.
The voltage should be above 0.68V at least once during this
procedure.

8.

If NG, go to

EC-466, "Diagnostic Procedure"

.

PBIB0558E

SEC778C

MBIB0021E

DTC P1147, P1167 HO2S2 (A/T MODELS)

EC-463

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

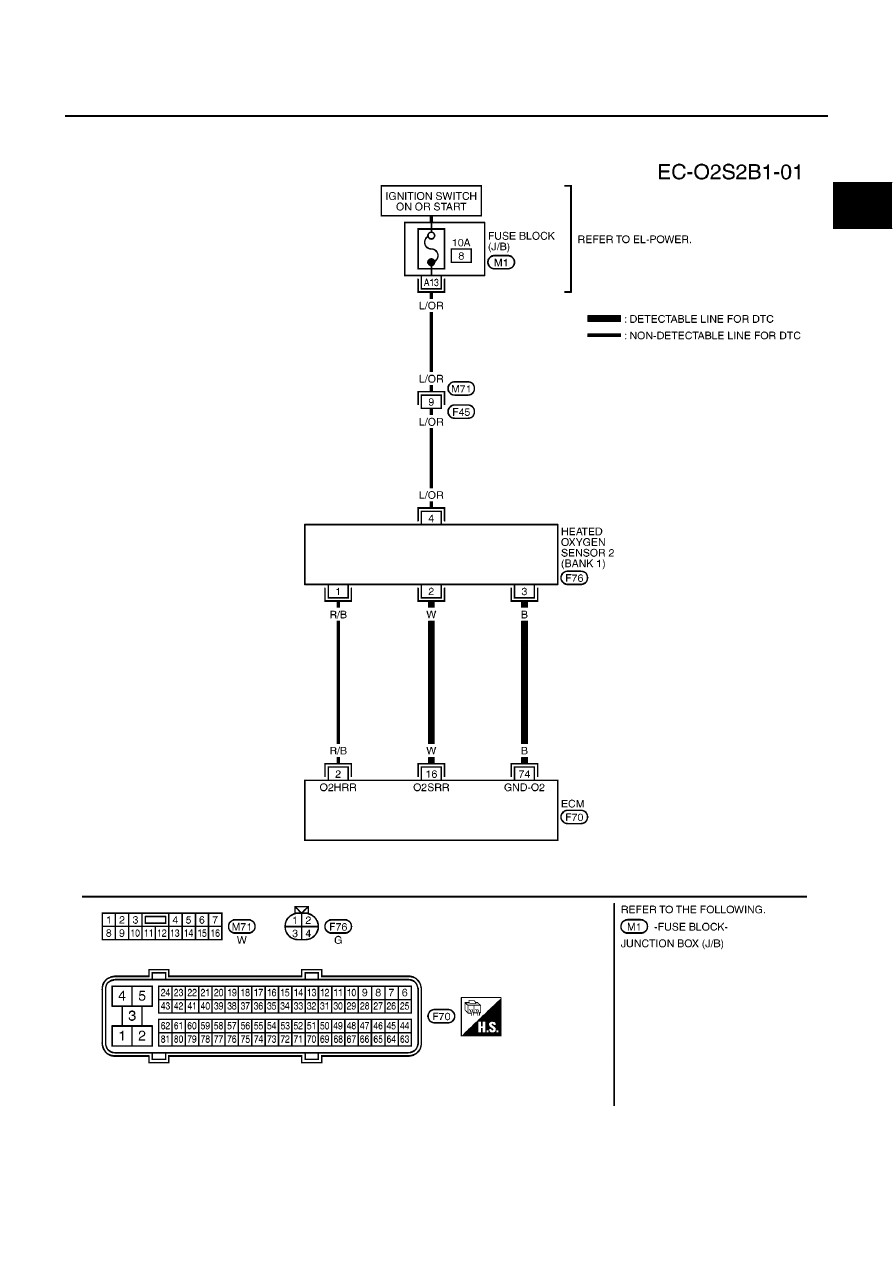

Wiring Diagram

EBS00QRF

BANK 1

YEC447A

EC-464

[QG (WITH EURO-OBD)]

DTC P1147, P1167 HO2S2 (A/T MODELS)

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

16

W

Heated oxygen sensor 2
(bank 1)

[Engine is running]

Warm-up condition

Engine speed is 3,000 rpm quickly after the fol-
lowing conditions are met.

Keeping the engine speed between 3,500 and
4,000 rpm for one minute and at idle for one
minute under no load

0 - Approximately 1.0V

74

B

Sensors' ground
(Heated oxygen sensor)

[Engine is running]

Idle speed

Approximately 0V

DTC P1147, P1167 HO2S2 (A/T MODELS)

EC-465

[QG (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

BANK 2

YEC448A
