TYPE 5/TYPE 6

=NLBR0227S04

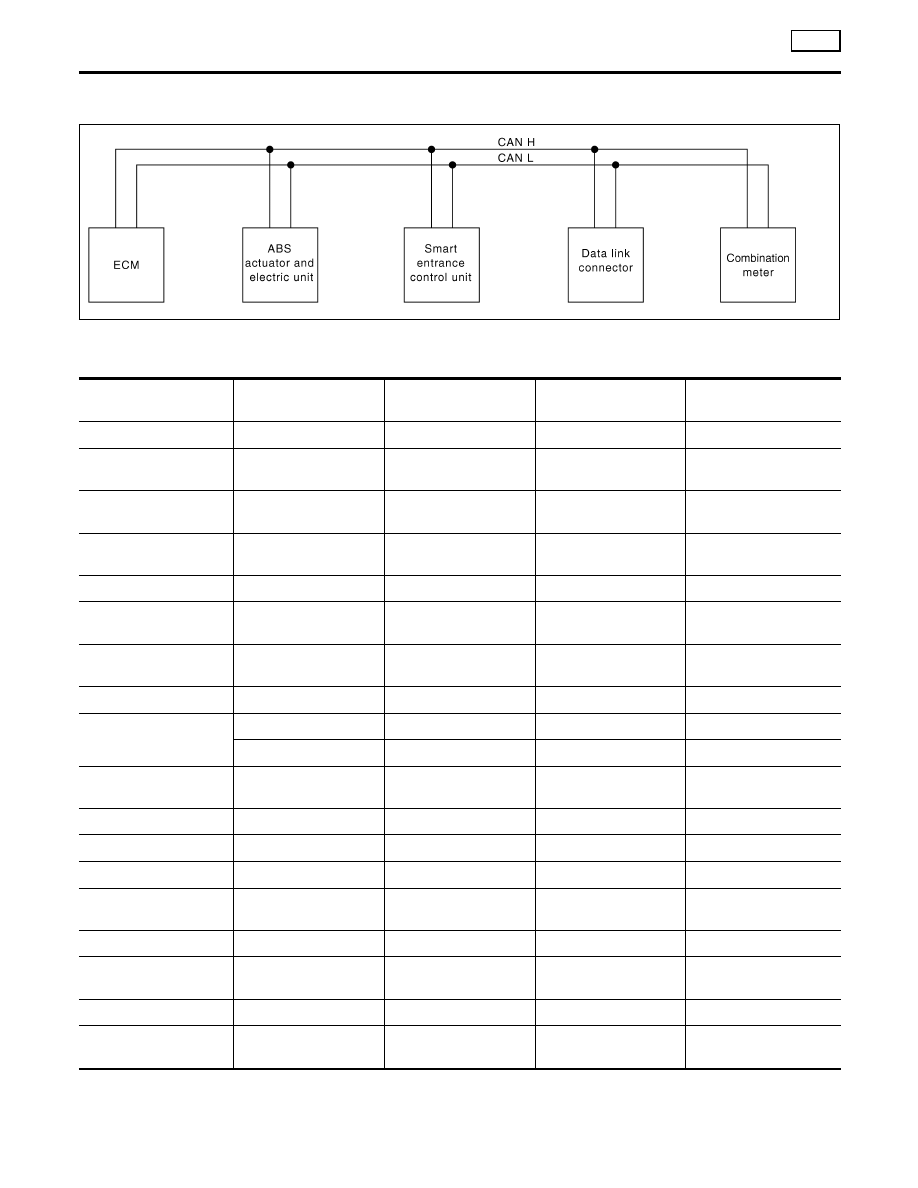

System Diagram

NLBR0227S0401

YEL469E

Input/Output Signal Chart

NLBR0227S0402

T: Transmit R: Receive

Signals

ECM

ABS actuator and elec-

tric unit (control unit)

Smart entrance control

unit

Combination meter

Engine speed signal

Rear window defogger
signal

Heater fan switch sig-
nal

Air conditioner switch
signal

MI signal

Glow indicator lamp sig-
nal

Engine coolant tempera-
ture signal

Fuel consumption signal

Vehicle speed signal

Seat belt reminder sig-
nal

Headlamp switch signal

Flashing indicator signal

Cooling fan speed signal

Door switches state sig-
nal

A/C compressor signal

A/C compressor feed-
back signal

ABS operation signal

ABS warning lamp sig-
nal

*1: For QG engine models
*2: For YD engine models

CAN COMMUNICATION

ABS

CAN Communication Unit (Cont’d)

BR-60

Trouble Diagnosis Chart by Symptom

NLBR0208

CHECK ITEMS LIST

NLBR0208S01

When ABS warning lamp illuminates, perform self-diagnosis.

Symptom

Condition

Check items

Reference page

ABS warning lamp does not illuminate with
ignition ON. (ABS warning lamp check)

IGN-ON

Blown ABS warning lamp bulb

Blown fuse between ignition and ABS
warning lamp.

Open circuit of wiring between ignition
and ABS warning lamp.

Malfunction in ABS system

BR-73

ABS warning lamp illuminates with ignition
ON, but does not illuminates off after a few
seconds. (ABS warning lamp has been illu-
minated.)

IGN-ON

ABS actuator and electric unit connector
disconnected

Malfunction in ABS system

BR-73

ABS actuator and electric unit Input/Output
Signal Standard

NLBR0209

SPECIFICATIONS DEFINED BY CONSULT-II

NLBR0209S01

Items to be monitored

Contents

Data monitor

(Reference)
Check points when
result was malfunction-
ing

Condition

Reference values in nor-
mal operation

Wheel sensor FR,
FL, RR, RL
[km/h (MPH)]

Vehicle wheel speed

When the vehicle is
stopped

0 km/h (0 MPH)

Wheel sensor and har-
ness

While driving (note:1)

Almost in accordance
with speedometer dis-
play (within

10%)

Stop lamp switch

Brake pedal status

Depress the brake
pedal.

Stop lamp switch and
path

Release brake pedal.

OFF

ENGINE RPM SIGNAL
[STOP/RUN]

With engine running

Engine RPM below 400
rpm

STOP

Engine RPM signal path

Engine RPM 400 rpm or
higher

RUN

ABS inlet S/V
FR, FL, RR, RL
(ON/OFF)

Solenoid valve operation

Actuator and electric
unit (solenoid valve) is
activated (by active test
mode of CONSULT-II) or
actuator relay is not acti-
vated (in fail-safe mode,
before starting engine)

ABS solenoid valve path

ABS outlet S/V
FR, FL, RR, RL
(ON/OFF)

Actuator and electric
unit (solenoid valve) is
not activated and actua-
tor relay is activated
(vehicle stopped with
engine running)

OFF

ABS actuator relay (ON/
OFF)

Actuator relay activated

Vehicle stopped
Ignition switch ON

OFF

ABS actuator relay and
harness

Vehicle stopped
Engine running

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

ABS

Trouble Diagnosis Chart by Symptom

BR-61

Items to be monitored

Contents

Data monitor

(Reference)
Check points when
result was malfunction-
ing

Condition

Reference values in nor-
mal operation

ABS motor relay
(ON/OFF)

Motor relay and motor
activated

(Ignition switch ON or
engine is running): ABS
inactive

OFF

ABS motor and motor
relay harness

(Ignition switch ON or
engine is running): ABS
active

Warning lamp
(ON/OFF)

ABS warning lamp ON
condition (Note 2)

ABS warning lamp ON

ABS warning lamp and
path

ABS warning lamp OFF
condition

OFF

POWER VOLTAGE (V)

Battery voltage supplied
to control module

Ignition switch ON

Approx. 10 - 16V

Control unit power sup-
ply circuit

CAN COMM

CAN communications
condition

CAN communication
normal

CAN communication

CAN communication
error

CAN CIRC 1

CAN communications
condition

CAN communication
normal

CAN communication
error

UNKWN

CAN CIRC 2

CAN communications
condition

CAN communication
normal

CAN communication
error

UNKWN

NOTE:
1) Check air pressure of tire under normal condition.
2) ABS warning lamp ON/OFF timing

ON: When ignition switch is turned ON (before engine starts) or when malfunction is detected
OFF: After engine is started (When the system is in normal condition)

CONSULT-II Functions

NLBR0210

CONSULT-II FUNCTION APPLICATION TABLE

NLBR0210S01

Item

Self-diagnosis

Data monitor

Active test

FR RH SENSOR

FR LH SENSOR

RR RH SENSOR

RR LH SENSOR

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

ABS

ABS actuator and electric unit Input/Output Signal Standard (Cont’d)

BR-62

Item

Self-diagnosis

Data monitor

Active test

Speed sensor

Stop lamp switch

FR RH IN ABS SOL

FR RH OUT ABS SOL

FR LH IN ABS SOL

FR LH OUT ABS SOL

RR RH IN ABS SOL

RR RH OUT ABS SOL

RR LH IN ABS SOL

RR LH OUT ABS SOL

ABS ACTUATOR RELAY

ABS MOTOR RELAY

ABS warning lamp

Battery voltage

CAN communication

—

Control module

: Applicable

–: Not applicable

SELF-DIAGNOSIS

NLBR0210S02

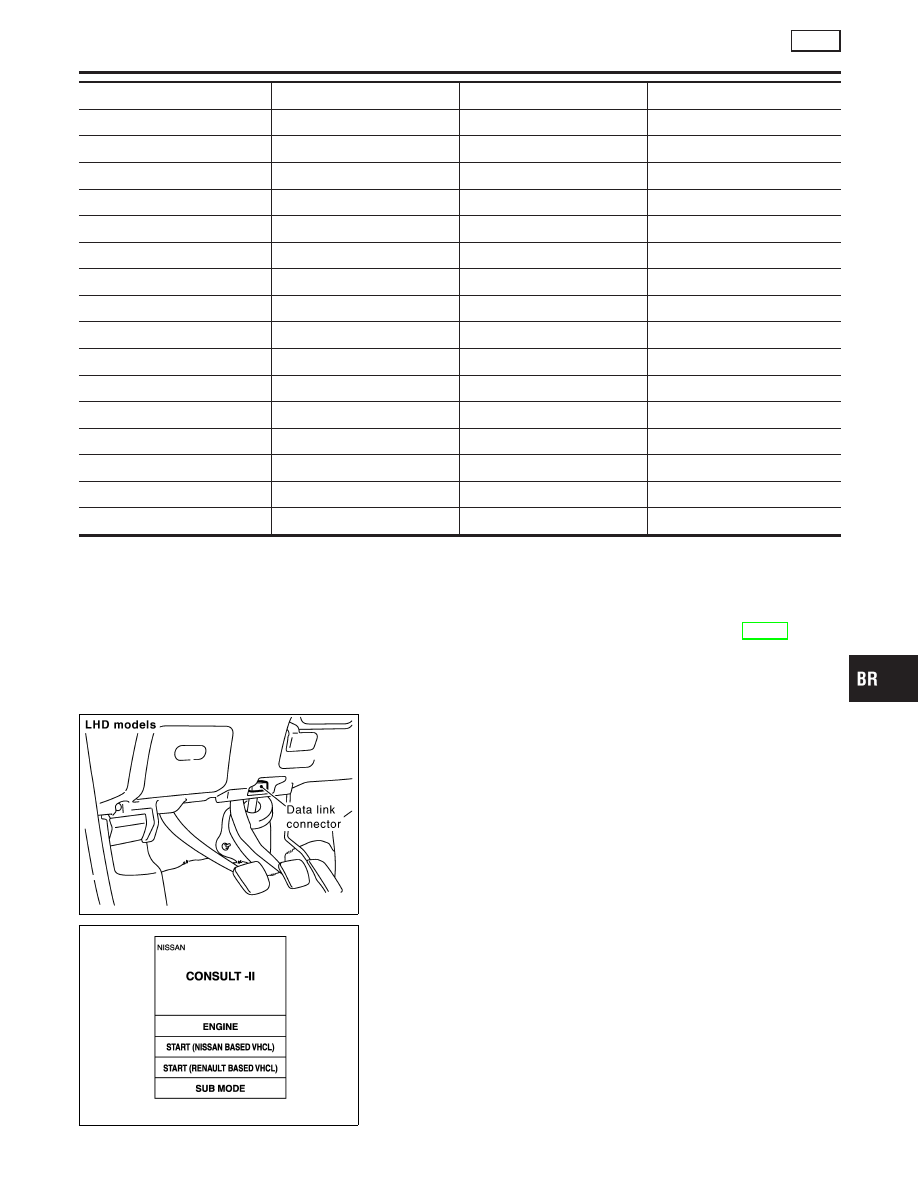

Operation Procedure

NLBR0210S0201

After obtaining customer’s information, perform BR-70, “Basic
inspection”.

MBIB0906E

After turning ignition switch OFF, connect CONSULT-II connec-
tor to data link connector on vehicle.

Start engine and drive at Approx. 30 km/h (19 MPH) for
Approx. 1 minute.

MBIB0233E

Stop vehicle. With engine at idle, touch “START (NISSAN
BASED VHCL)”, “ABS” and “SELF-DIAG RESULTS” on CON-
SULT-II screen in this order.

CAUTION:

“ABS” may not be displayed on the system selection screen
in the following case: When “START (NISSAN BASED VHCL)”
was touched just after engine is started or ignition switch is
turned to ON. In this case, repeat procedure from step 2.
5.

Self-diagnosis result is displayed. (If necessary, touch “PRINT”
to print self-diagnosis result.)

If “NO MALFUNCTION” is displayed, check ABS warning
