ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

DATA MONITOR MODE (A/T)

Item

Display

Mover to center Monitor items

Description

Remarks

TCM
Input

signals

CAN

comm

sig-

nals

Main

signals

Selection

from

menu

Vehicle speed
sensor 1 (A/T)
(Revolution sen-
sor)

VHCL/S SE·A/T
[km/h] or [mph]

X

—

—

●

Vehicle speed com-
puted from signal of
revolution sensor is
displayed.

When racing engine in N
or P with vehicle station-
ary, CONSULT-II data
may not indicate 0 km/h
(0 mph).

Vehicle speed
sensor 2
(Meter)

VHCL/S
SE·MTR
[km/h] or [mph]

X

—

—

●

Vehicle speed com-
puted from signal of
vehicle speed sensor is
displayed.

Vehicle speed display
may not be accurate
under approx. 10 km/h
(6 mph). It may not indi-
cate 0 km/h (0 mph)
when vehicle is station-
ary.

Throttle position
sensor

THRTL POS
SEN
[V]

X

—

—

●

Throttle position sensor
signal voltage is dis-
played.

This sensor means
accelerator pedal posi-
tion(APP)sensor.

A/T fluid tempera-
ture sensor

FLUID TEMP SE
[V]

X

—

—

●

A/T fluid temperature
sensor signal voltage is
displayed.

●

Signal voltage lowers
as fluid temperature
rises.

Battery voltage

BATTERY VOLT
[V]

X

—

—

●

Source voltage of TCM
is displayed.

Engine speed

ENGINE SPEED
[rpm]

X

—

X

●

Engine speed, com-
puted from engine
speed signal, is dis-
played.

Engine speed display
may not be accurate
under approx. 800 rpm.
It may not indicate 0 rpm
even when engine is not
running.

Overdrive control
switch

OVERDRIVE
SW
[ON/OFF]

X

—

—

●

ON/OFF state com-
puted from signal of
overdrive control SW is
displayed.

PN position (PNP)
switch

PN POSI SW
[ON/OFF]

X

—

—

●

ON/OFF state com-
puted from signal of PN
position SW is dis-
played.

R position switch

R POSITION SW
[ON/OFF]

X

—

—

●

ON/OFF state com-
puted from signal of R
position SW is dis-
played.

D position switch

D POSITION SW
[ON/OFF]

X

—

—

●

ON/OFF state com-
puted from signal of D
position SW is dis-
played.

2 position switch

2 POSITION SW
[ON/OFF]

X

—

—

●

ON/OFF status, com-
puted from signal of 2
position SW, is dis-
played.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

AT-45

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

1 position switch

1 POSITION SW
[ON/OFF]

X

—

—

●

ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.

Kickdown switch

KICKDOWN SW
[ON/OFF]

X

—

—

●

ON/OFF status, com-
puted from signal of
kick down SW, is dis-
played.

●

This is displayed even
when no kick down
switch is equipped.

Gear position

GEAR

—

—

X

●

Gear position data
used for computation
by TCM, is displayed.

Selector lever
position

SLCT LVR POSI

—

—

X

●

Selector lever position
data, used for compu-
tation by TCM, is dis-
played.

●

A specific value used
for control is displayed
if fail-safe is activated
due to error.

Vehicle speed

VEHICLE
SPEED
[km/h] or [mph]

—

—

X

●

Vehicle speed data,
used for computation
by TCM, is displayed.

Torque converter
slip ratio

TC SLIP
RATIO
[0.000]

—

—

—

●

Ratio of engine revolu-
tion to input shaft revo-
lution of torque
converter

Torque converter
slip speed

TC SLIP
SPEED
[rpm]

—

—

—

Difference in revolution
between input shaft revo-
lution and input shaft rev-
olution of torque
converter

Display doesn't indicate
o rpm even if engine is
stopped.
But this isn't malfunc-
tion.

can communica-
tion

CAN COMM
[OK/UNKWN]

—

X

—

CAN circuit 1

CAN CIRC 1
[OK/UNKWN]

—

X

—

CAN circuit 2

CAN CIRC 2
[OK/UNKWN]

—

X

—

CAN circuit 3

CAN CIRC 3
[OK/UNKWN]

—

X

—

CAN circuit 4

CAN CIRC 4
[OK/UNKWN]

—

X

—

CAN circuit 5

CAN CIRC 5
[OK/UNKWN]

—

X

—

Throttle position

THROTTLE
POSI
[/8]

—

—

X

●

Throttle position data,
used for computation
by TCM, is displayed.

●

A specific value used
for control is displayed
if fail-safe is activated
due to error.

Stop lamp switch

BRAKE SW
[ON/OFF]

X

—

—

●

ON/OFF status is dis-
played.
ON... Brake pedal is
depressed.
OFF... Brake pedal is
released.

Item

Display

Mover to center Monitor items

Description

Remarks

TCM
Input

signals

CAN

comm

sig-

nals

Main

signals

Selection

from

menu

AT-46

[EURO-OBD]

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

X: Applicable

—: Not applicable

: Option

Line pressure duty

LINE PRES DTY
[%]

—

—

X

●

Control value of line
pressure solenoid
valve, computed by
TCM from each input
signal, is displayed.

Torque converter
clutch solenoid
valve duty

TCC S/V DUTY
[%]

—

—

X

●

Control value of torque
converter clutch sole-
noid valve, computed
by TCM from each
input signal, is dis-
played.

Shift solenoid
valve A

SHIFT S/V A
[ON/OFF]

—

—

X

●

Control value of shift
solenoid valve A, com-
puted by TCM from
each input signal, is
displayed.

Control value of sole-
noid is displayed even if
solenoid circuit is dis-
connected.
The OFF signal is dis-
played if solenoid circuit
is shorted.

Shift solenoid
valve B

SHIFT S/V B
[ON/OFF]

—

—

X

●

Control value of shift
solenoid valve B, com-
puted by TCM from
each input signal, is
displayed.

Overrun clutch
solenoid valve

OVERRUN/C S/
V
[ON/OFF]

—

—

X

●

Control value of over-
run clutch solenoid
valve computed by
TCM from each input
signal is displayed.

Self-diagnosis dis-
play lamp
(O/D OFF indica-
tor lamp)

SELF-D DP LMP
[ON/OFF]

—

—

X

●

Control status of O/D
OFF indicator lamp is
displayed.

Voltage [V]

—

—

—

Value measured by voltage probe is displayed.

Frequency [Hz]

—

—

—

Value measured by pulse probe is displayed. If mea-
surement is impossible, “#” sign is displayed. “#” sign
is also displayed at the final data value until the mea-
surement result is obtained.

DUTY-HI

—

—

—

Duty cycle value for measurement probe is dis-
played.

DUTY-LOW

—

—

—

PLS WIDTH-HI

—

—

—

Measured pulse width of measurement probe is dis-
played.

PLS WIDTH-LOW

—

—

—

Item

Display

Mover to center Monitor items

Description

Remarks

TCM
Input

signals

CAN

comm

sig-

nals

Main

signals

Selection

from

menu

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

AT-47

[EURO-OBD]

D

E

F

G

H

I

J

K

L

M

A

B

AT

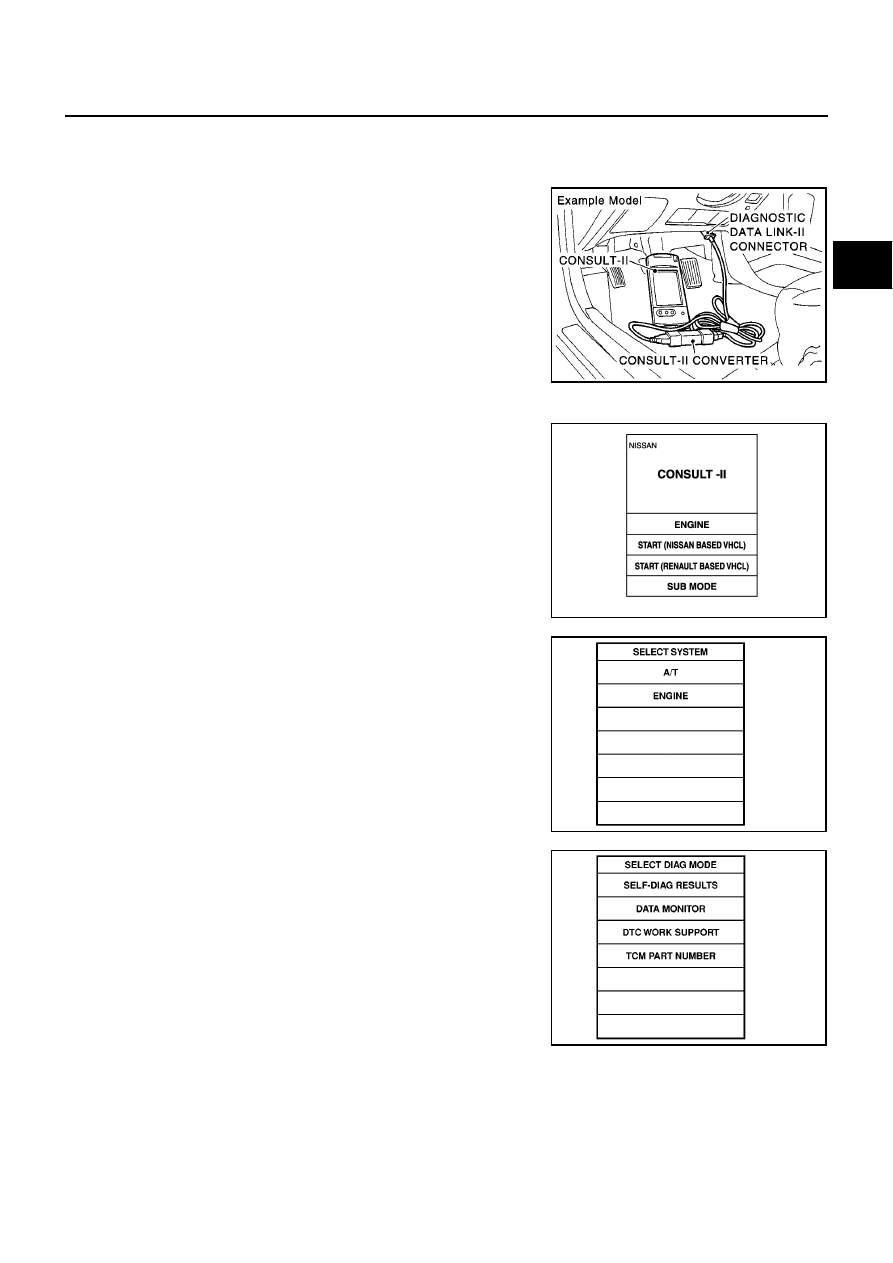

DTC WORK SUPPORT MODE WITH CONSULT-II
CONSULT-II Setting Procedure

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II to data link connector which is located in
left or right side lower dash panel.

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

5.

Touch “A/T”.

6.

Touch “DTC WORK SUPPORT”.

PAIA0070E

MBIB0233E

SAT014K

SAT971J
