Nissan GT-R (2007-2014 year). VENTILATION SYSTEM / WARNING CHIME SYSTEM / WIPER & WASHER. Service Manual - part 5

WW-14

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009161863

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009161864

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precaution for Battery Service

INFOID:0000000009161865

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

PIIB3706J

2014 GT-R

WASHER TANK

WW-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REMOVAL AND INSTALLATION

WASHER TANK

Exploded View

INFOID:0000000009161866

Removal and Installation

INFOID:0000000009161867

REMOVAL

1.

Remove the clip (A)

2.

Pull out the washer tank inlet from the washer tank.

3.

Remove the front bumper fascia. Refer to

EXT-14, "Exploded

View"

.

4.

Disconnect the washer pump connector.

5.

Disconnect the washer level switch connector.

6.

Disconnect the front washer tube.

7.

Remove the washer tank mounting bolts.

8.

Remove the washer tank from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Add water up to the top of the washer tank inlet after installing. Check that there in no leakage.

1.

Washer tank inlet

2.

Washer tank

NNLIA0042ZZ

: Vehicle front

NNLIA0043ZZ

2014 GT-R

WW-16

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

Exploded View

INFOID:0000000009161868

Removal and Installation

INFOID:0000000009161869

REMOVAL

1.

Remove the fender protector LH (front). Refer to

EXT-29, "FENDER PROTECTOR : Exploded View"

.

2.

Disconnect the washer pump connector.

3.

Disconnect the front washer tube.

4.

Remove the washer pump from the washer tank.

5.

Remove the packing from the washer tank.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the washer pump.

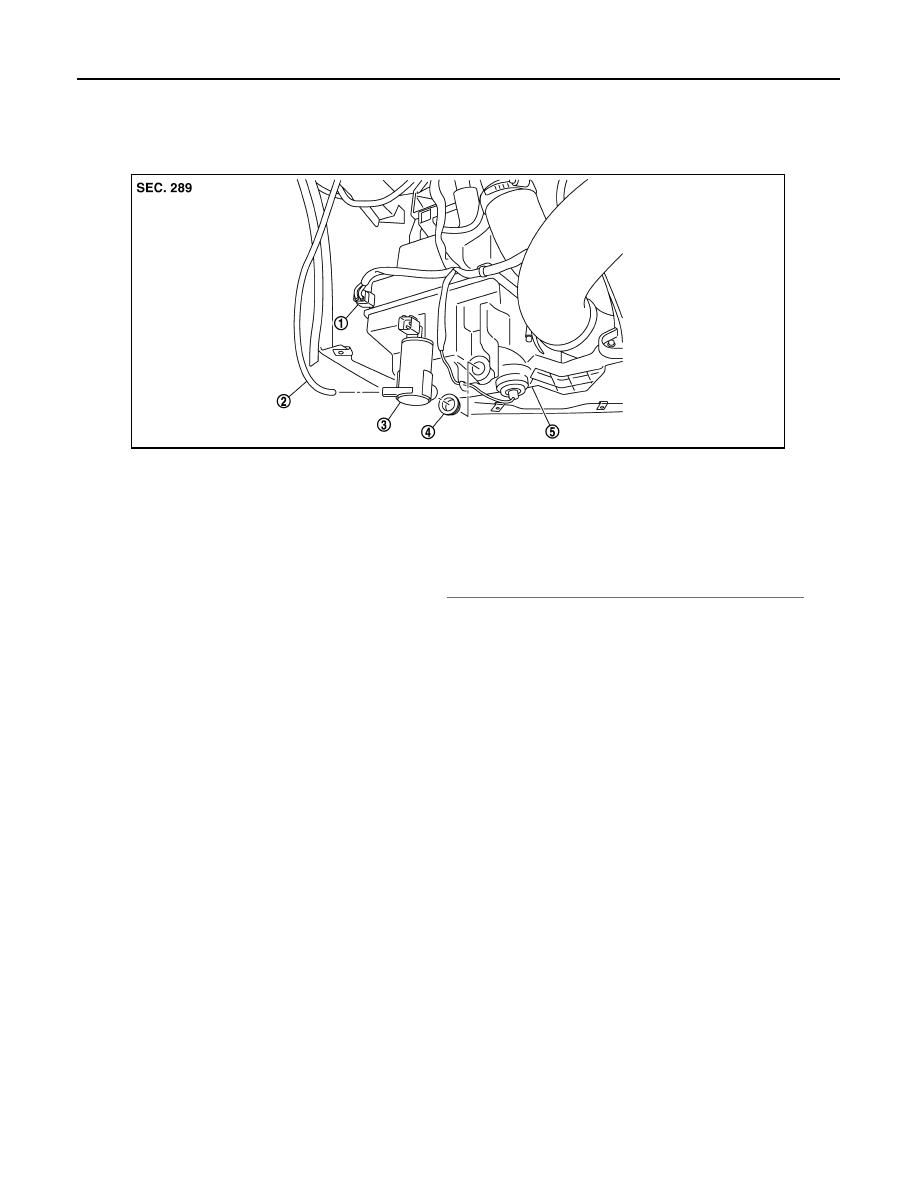

1.

Washer pump connector

2.

Front washer tube

3.

Washer pump

4.

Packing

5.

Washer tank

NNLIA0044ZZ

2014 GT-R

WASHER LEVEL SWITCH

WW-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000009161870

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-15,

"Removal and Installation"

.

2014 GT-R

WW-18

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000009161871

Removal and Installation

INFOID:0000000009161872

FRONT WASHER NOZZLE

The front washer nozzle must be replaced together with the front wiper arm as an assembly. Refer to

WW-21,

"Exploded View"

.

CAUTION:

Never remove/install the front washer nozzle from the front wiper arm assembly.

FRONT WASHER JOINT

1.

Remove upwards while pressing pawl (A) on reverse side.

2.

Disconnect front washer tube.

Inspection and Adjustment

INFOID:0000000009161873

INSPECTION

Check valve Inspection

1.

Front washer nozzle

2.

Front washer joint

3.

Washer tank

4.

Front washer tube

5.

Check valve

Clip A

Clip B

JPLIA1175ZZ

NNLIA0045ZZ

2014 GT-R

FRONT WASHER NOZZLE AND TUBE

WW-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Front Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure. Remove the wiper motor connector to
ensure front wiper arms do not move.

JPLIA0428ZZ

JPLIA1176ZZ

2014 GT-R

WW-20

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

Unit: mm (in)

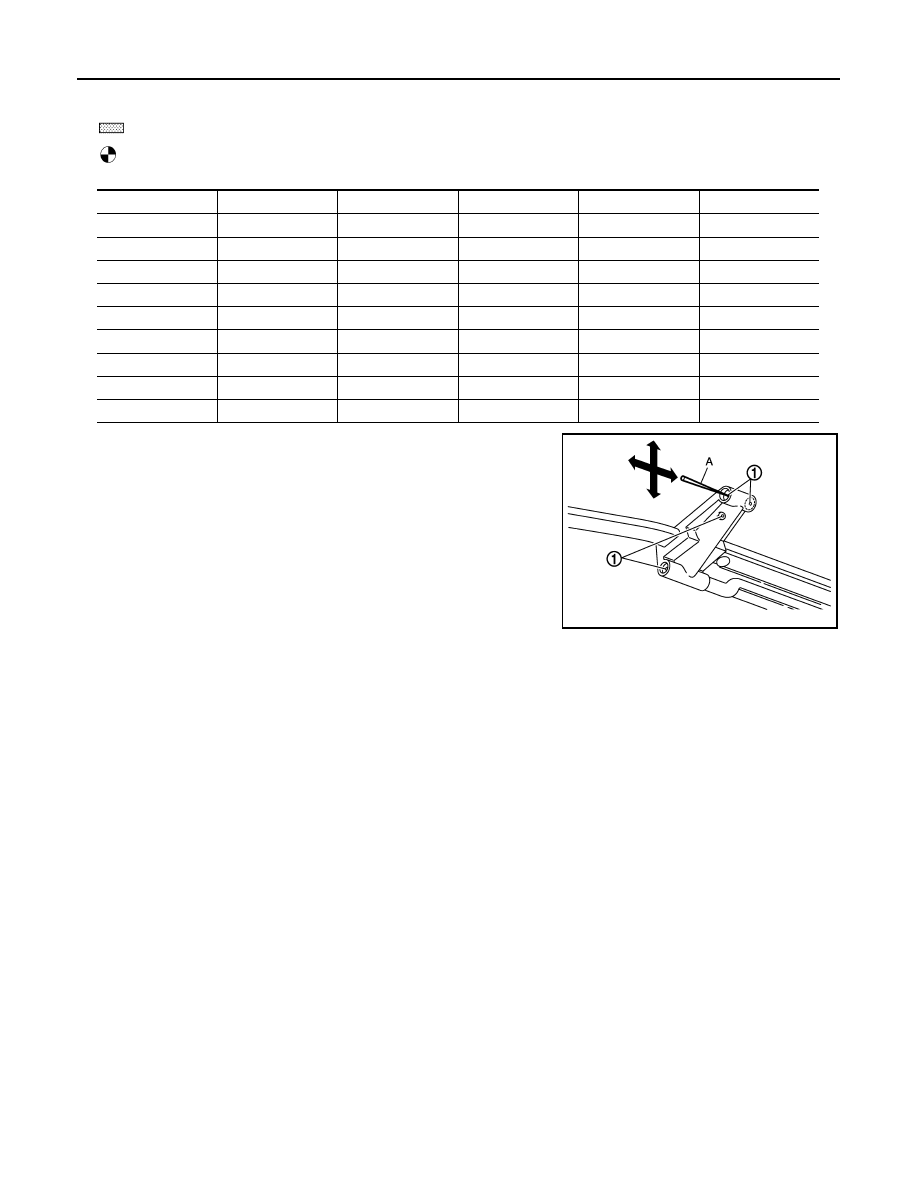

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

1.

Front washer nozzle

2.

Passenger side blade rubber end

3.

Driver side blade rubber end

: Spray area

: Target spray position

Spray position

T

L

X

Y

S

A

29 (1.14)

448 (17.64)

20 (0.79)

50 (1.97)

25 (0.98)

B

34 (1.34)

235 (9.25)

20 (0.79)

20 (0.79)

10 (0.39)

C

−

18 (

−

0.71)

112 (4.41)

20 (0.79)

20 (0.79)

10 (0.39)

D

29 (1.14)

115 (4.53)

20 (0.79)

20 (0.79)

10 (0.39)

E

30 (1.18)

304 (11.97)

20 (0.79)

30 (1.18)

15 (0.59)

F

−

40 (

−

1.57)

237 (9.33)

20 (0.79)

60 (2.36)

30 (1.18)

G

35 (1.38)

197 (7.76)

20 (0.79)

30 (1.18)

15 (0.59)

H

30 (1.18)

73 (2.87)

20 (0.79)

20 (0.79)

10 (0.39)

I

−

17 (

−

0.67)

68 (2.68)

20 (0.79)

20 (0.79)

10 (0.39)

NNLIA0046ZZ

2014 GT-R

FRONT WIPER ARM

WW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER ARM

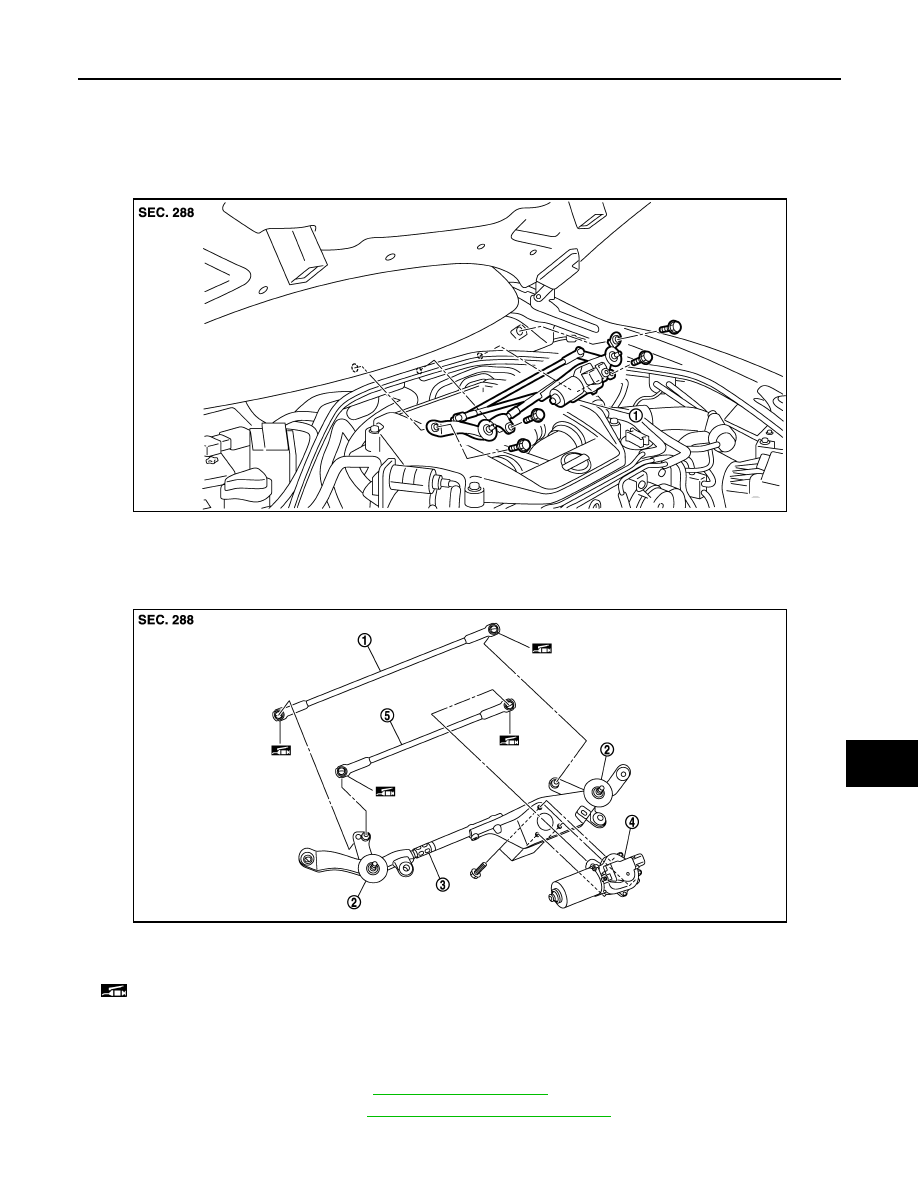

Exploded View

INFOID:0000000009161874

Removal and Installation

INFOID:0000000009161875

REMOVAL

1.

Operate the front wiper to move it to the auto stop position.

2.

Open the hood.

3.

Remove the front wiper arm caps.

4.

Remove the front wiper arm mounting nuts.

5.

Disconnect the front washer tube from the front washer joint.

6.

Raise front wiper arm, and remove front wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nuts
from being loosened.

2.

Operate the front wiper motor to move the front wiper to the auto stop position.

3.

Adjust the front wiper blade position. Refer to

WW-22, "Adjustment"

.

4.

Install the front wiper arm by tightening the mounting nuts.

5.

Connect the front washer tube to the front washer joint.

6.

Inject the washer fluid.

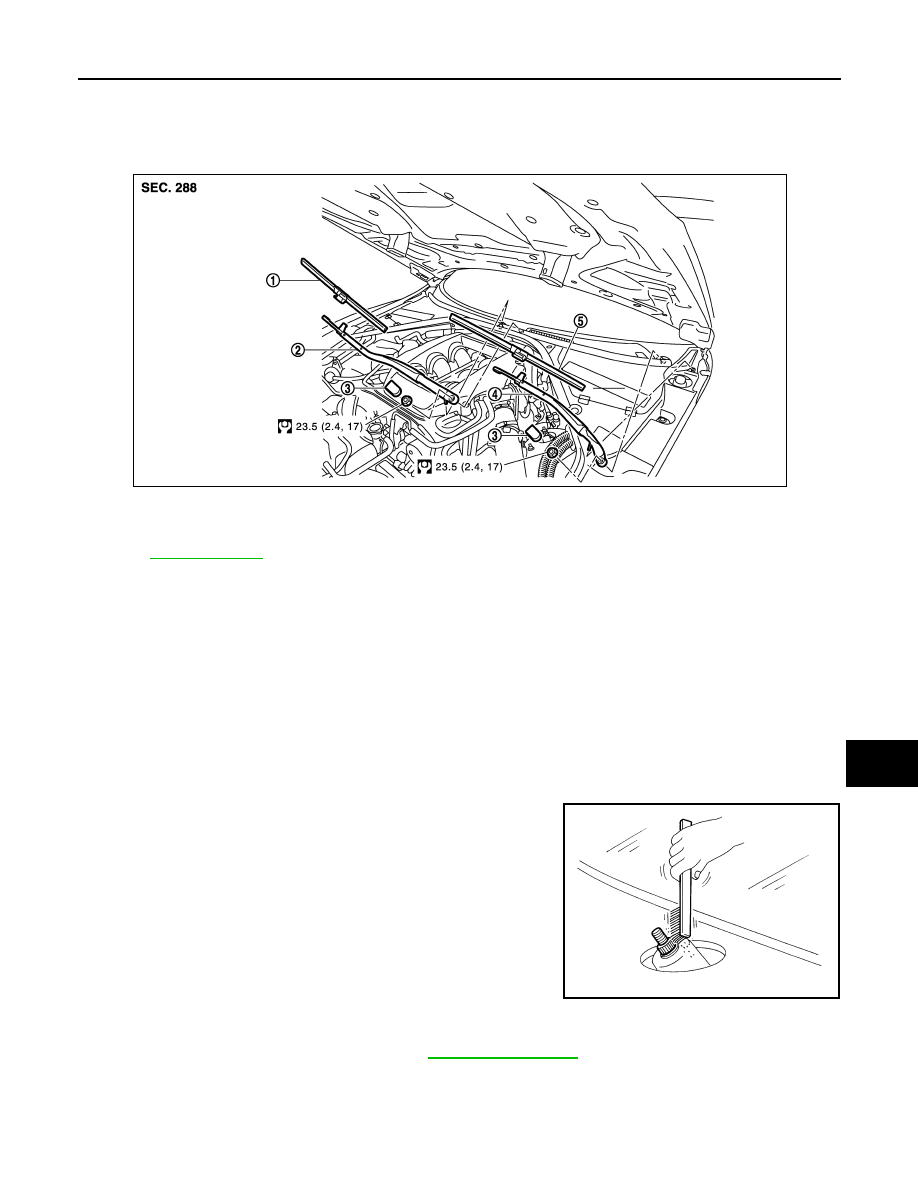

1.

Front wiper blade (RH)

2.

Front wiper arm (RH)

3.

Front wiper arm cap

4.

Front wiper arm (LH)

5.

Front wiper blade (LH)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA1178GB

ELH0717D

2014 GT-R

WW-22

< REMOVAL AND INSTALLATION >

FRONT WIPER ARM

7.

Operate the front wiper to move it to the auto stop position.

8.

Check that the front wiper blades stop at the specified position.

9.

Install the front wiper arm caps.

Adjustment

INFOID:0000000009161876

WIPER BLADE POSITION ADJUSTMENT

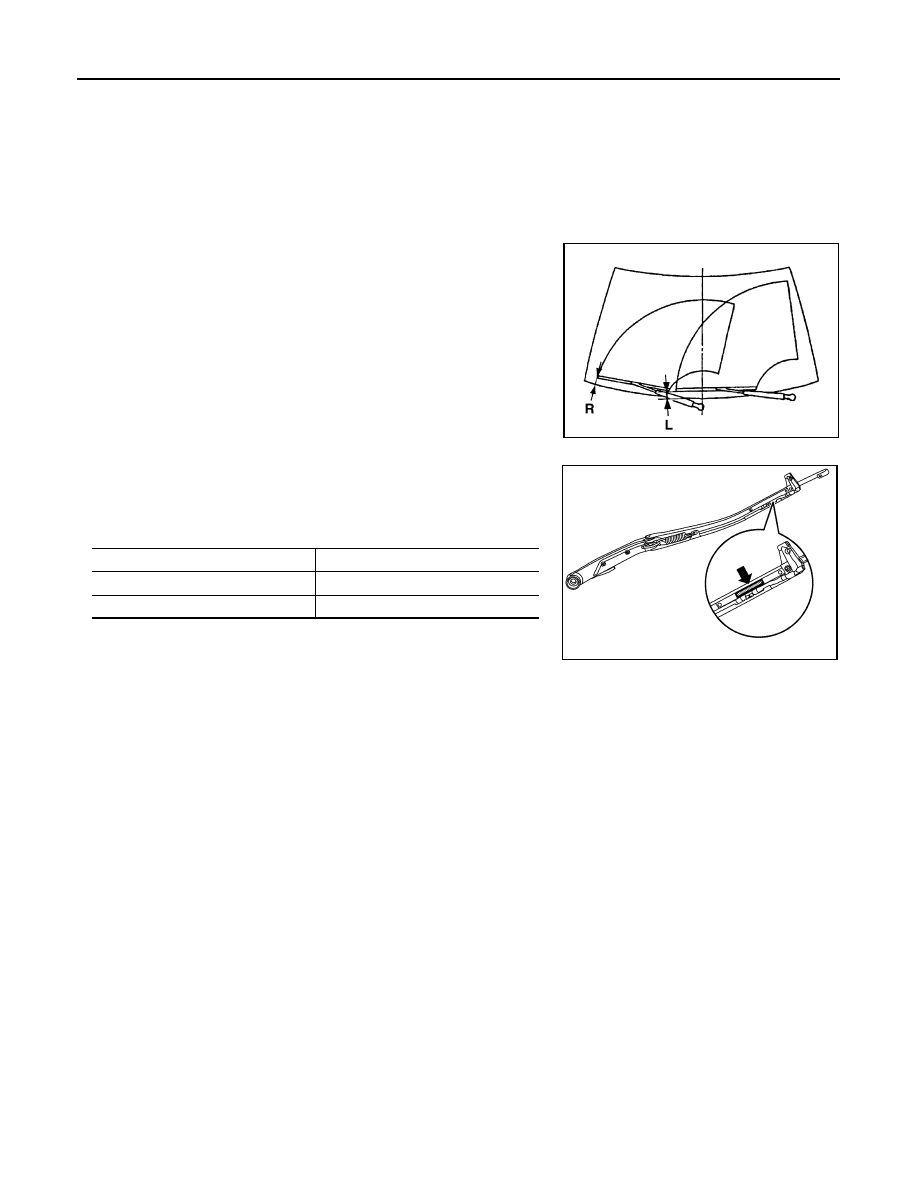

Clearance between the end of cowl top cover and the top of wiper blade center

Standard clearance

NOTE:
For the passenger side wiper arm the corresponding parts differ
according to the length of the wiper blade, and are distinguished by
the beginning number identification stamped on the portion indicated
by the arrow as shown in the figure.

R

: 35.1

±

7.5 mm (1.382

±

 0.295 in)

L

: 46.9

±

7.5 mm (1.846

±

 0.295 in)

JPLIA0082ZZ

Wiper blade

Beginning number

475 mm (18.70 in)

—

525 mm (20.67 in)

39

JMLIA3778ZZ

2014 GT-R

WIPER BLADE

WW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER BLADE

Exploded View

INFOID:0000000009161877

Removal and Installation

INFOID:0000000009161878

REMOVAL

Remove the wiper blade from the wiper arm.

INSTALLATION

Install the front wiper blade to the wiper arm.

Replacement

INFOID:0000000009161879

1.

Hold the rip of old wiper refill (1) at the rear end of the wiper
blade with long-nose pliers, and pull out the wiper refill to the
direction (A).

2.

Insert the tip of new wiper refill (1) into the rear end of wiper
blade. Slide the wiper refill to the direction (A) while pressing the
wiper refill onto the wiper blade rear end.
NOTE:
• Insert the wiper refill to be held securely by tab (B) of wiper

blade.

• After the wiper refill is fully inserted, remove the holder

*

 (2).

*

: Attached to service parts.

1.

Wiper refill

2.

Wiper blade

3.

Wiper arm

A.

Wiper blade end

B.

Wiper blade tip

JPLIA1587ZZ

JPLIA1583ZZ

JPLIA1584ZZ

2014 GT-R

WW-24

< REMOVAL AND INSTALLATION >

WIPER BLADE

3.

Insert the wiper refill until the stopper at the rear end of wiper
refill fits in the tab. Check that “LOCK” mark on wiper refill is
aligned with “ ” mark on wiper blade.

4.

Untwist the twisted wiper refill (

) at the rear end of wiper

blade, if any.

5.

Check the following items after replacing wiper refill.
• Wiper refill is not twisted at all.
• Wiper refill thoroughly fits in the tab on wiper blade.
• Wiper refill is inserted from the proper direction.

NOTE:

When the vertebra is detached.

• Insert the vertebra (1) into the wiper blade to the same bending

direction.

• If a vertebra has a notch, fit it to a protrusion inside the wiper refill.

NOTE:
For the passenger side wiper blade there are two length types. They
can be identified by the arrow as shown in the figure.

JPLIA1585ZZ

JPLIA1586ZZ

Red paint mark

Without paint mark

475 mm (18.70 in)

525 mm (20.67 in)

JMLIA3779ZZ

2014 GT-R

FRONT WIPER DRIVE ASSEMBLY

WW-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER DRIVE ASSEMBLY

Exploded View

INFOID:0000000009161880

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009161881

REMOVAL

1.

Remove the front wiper arm. Refer to

WW-21, "Exploded View"

.

2.

Remove the cowl top cover. Refer to

EXT-27, "Removal and Installation"

.

3.

Remove the font wiper drive assembly mounting bolts.

1.

Front wiper drive assembly

JPLIA1179ZZ

1.

Front wiper linkage 1

2.

Shaft seal

3.

Front wiper frame

4.

Front wiper motor

5.

Front wiper linkage 2

: Multi

−

purpose grease or an equivalent.

JPLIA1180ZZ

2014 GT-R

WW-26

< REMOVAL AND INSTALLATION >

FRONT WIPER DRIVE ASSEMBLY

4.

Disconnect the front wiper motor connector.

5.

Remove the front wiper drive assembly from the vehicle.

INSTALLATION

1.

Install the front wiper drive assembly to the vehicle.

2.

Connect the front wiper motor connector.

3.

Operate the front wiper to move it to the auto stop position.

4.

Install the cowl top cover. Refer to

EXT-27, "Removal and Installation"

.

5.

Install the front wiper arms. Refer to

WW-21, "Exploded View"

.

Disassembly and Assembly

INFOID:0000000009161882

DISASSEMBLY

1.

Remove the front wiper linkage 1 and 2 from the front wiper drive assembly.

CAUTION:

Never bend the linkage or damage the plastic part of the ball joint when removing the wiper link-
age.

2.

Remove the front wiper motor mounting screws, and then remove the front wiper motor from the front
wiper frame.

ASSEMBLY

1.

Connect the front wiper motor connector.

2.

Operate the front wiper to move it to the auto stop position.

3.

Disconnect the front wiper motor connector.

4.

Install the front wiper motor to the front wiper frame.

5.

Install the front wiper linkage 2 to the front wiper motor and the front wiper frame.

6.

Install the front wiper linkage 1 to the front wiper frame.

CAUTION:

• Never drop front wiper motor or cause it to come into contact with other parts.
• Be careful for the grease condition at the front wiper motor and front wiper linkage joint

(retainer). Apply Multi

−

purpose grease or an equivalent if necessary.

2014 GT-R

WIPER AND WASHER SWITCH

WW-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER AND WASHER SWITCH

Exploded View

INFOID:0000000009161883

Refer to

BCS-21, "Exploded View"

.

2014 GT-R
