WASHER LEVEL SWITCH SIGNAL CIRCUIT

MWI-49

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NO

>> Replace the washer level switch.

Revision: 2012 November

2014 GT-R

MWI-50

< DTC/CIRCUIT DIAGNOSIS >

A/C AUTO AMP. CONNECTION RECOGNITION SIGNAL CIRCUIT

A/C AUTO AMP. CONNECTION RECOGNITION SIGNAL CIRCUIT

Description

INFOID:0000000009189350

A/C auto amp. transmit the A/C auto amp. connection recognition signal to the combination meter.

Diagnosis Procedure

INFOID:0000000009189351

1.

CHECK A/C AUTO AMP. CONNECTION RECOGNITION SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between combination meter harness connector terminal and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK A/C AUTO AMP. CONNECTION RECOGNITION SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and A/C auto amp. connector.

3.

Check continuity between combination meter harness connector terminal and A/C auto amp. harness
connector terminal.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Terminals

Voltage

(Approx.)

(+)

(-)

Combination meter

Ground

Connector

Terminal

M53

7

5 V

Combination meter

A/C auto amp.

Continuity

Connector

Terminal

Connector

terminal

M53

7

M66

34

Existed

Combination meter

Ground

Continuity

Connector

Terminal

M53

7

Not existed

Revision: 2012 November

2014 GT-R

MWI

COMBINATION METER

MWI-51

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000009189352

TERMINAL LAYOUT

INPUT/OUTPUT SIGNAL STANDARD

JSNIA0096ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(V)

Ground

Battery power supply

Input

Igni-

tion

switch

OFF

—

Battery voltage

2

(W)

Ground

Ignition power supply

Input

Igni-

tion

switch

ON

—

Battery voltage

3

(B)

Ground

Ground

—

Igni-

tion

switch

ON

—

0  V

5

(B)

Ground

Ground

—

Igni-

tion

switch

ON

—

0  V

6

(W)

Ground

Meter control switch
ground

—

Igni-

tion

switch

ON

—

0  V

7

(Y)

Ground

A/C auto amp. connection
recognition signal

Input

Igni-

tion

switch

ON

—

5  V

8

(SB)

Ground

Ambient sensor ground

—

Igni-

tion

switch

ON

—

0  V

9

(P)

Ground

Ambient sensor

Input

Igni-

tion

switch

ON

—

This work is recommended to be

performed by NHPC.

Revision: 2012 November

2014 GT-R

MWI-52

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

12

(L)

Ground

Vehicle speed signal (2-
pulse)

Output

Igni-

tion

switch

ON

Vehicle speed is approxi-
mately 40 km/h (25 MPH)

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

13

(V)

Ground

Vehicle speed signal (8-
pulse)

Output

Igni-

tion

switch

ON

Vehicle speed is approxi-
mately 40 km/h (25 MPH)

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

14

(B)

Ground

Oil pressure sensor
ground

—

Igni-

tion

switch

ON

—

0  V

15

(R)

Ground

Air bag signal

Input

Igni-

tion

switch

ON

Air bag warning lamp ON

5 V

Air bag warning lamp OFF

0 V

18

(L)

Ground

Fuel level sensor signal
ground

—

Igni-

tion

switch

ON

—

0  V

19

(R)

Ground

Oil level sensor ground

—

Igni-

tion

switch

ON

—

0  V

20

(W)

Ground

Oil level sensor signal

Input

Igni-

tion

switch

ON

—

This work is recommended to be
performed by NHPC.

21

(L)

Ground

CAN-H

—

Igni-

tion

switch

ON

—

—

22

(P)

Ground

CAN-L

—

Igni-

tion

switch

ON

—

—

23

(LG)

6

(W)

Illumination control switch
signal (–)

Input

Igni-

tion

switch

ON

When

switch

is

pressed

0 V

Other than the above

5 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0015GB

JSNIA0012GB

Revision: 2012 November

2014 GT-R

MWI

COMBINATION METER

MWI-53

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

24

(BR)

6

(W)

Illumination control switch
signal (+)

Input

Igni-

tion

switch

ON

When

 switch is

pressed

0 V

Other than the above

5 V

25

(G)

6

(W)

Trip A/B reset switch signal

Input

Igni-

tion

switch

ON

When trip A/B reset switch
is pressed

0 V

Other than the above

5 V

26

(O)

6

(W)

Enter switch signal

Input

Igni-

tion

switch

ON

When enter switch is
pressed

0 V

Other than the above

5 V

27

(SB)

6

(W)

Select switch signal

Input

Igni-

tion

switch

ON

When select switch is
pressed

0 V

Other than the above

5 V

28

(BR)

Ground

Alternator signal

Input

Igni-

tion

switch

ON

Charging warning lamp
ON

0 V

Charging warning lamp
OFF

12 V

29

(G)

Ground

Seat belt buckle switch sig-
nal (passenger side)

Input

Igni-

tion

switch

ON

• When getting in the pas-

senger seat

• When passenger seat

belt is fastened.

12 V

• When getting in the pas-

senger seat

• When passenger seat

belt is unfastened

0 V

30

(LG)

Ground

Seat belt buckle switch sig-
nal (driver side)

Input

Igni-

tion

switch

ON

When driver seat belt is
fastened

12 V

When driver seat belt is
unfastened

0 V

31

(V)

Ground

Parking brake switch sig-
nal

Input

Igni-

tion

switch

ON

Parking brake applied

0 V

Parking brake released

5 V

32

(V)

Ground

Brake fluid level switch sig-
nal

Input

Igni-

tion

switch

ON

Brake fluid level is normal

0 V

Brake fluid level is MIN lev-
el or less

5 V

33

(L)

Ground

Washer level switch signal

Input

Igni-

tion

switch

ON

Low washer fluid warning
display ON

0 V

Low washer fluid warning
display OFF

5 V

34

(GR)

Ground

Oil pressure sensor power

Output

Igni-

tion

switch

ON

—

5  V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

Revision: 2012 November

2014 GT-R

MWI-54

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

35

(W)

Ground

Oil pressure sensor signal

Input

Igni-

tion

switch

ON

—

Refer to

MWI-45, "Component

Inspection"

.

38

(O)

Ground

Fuel level sensor signal

Input

Igni-

tion

switch

ON

—

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

NNNIA0108ZZ

Revision: 2012 November

2014 GT-R

MWI

COMBINATION METER

MWI-55

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

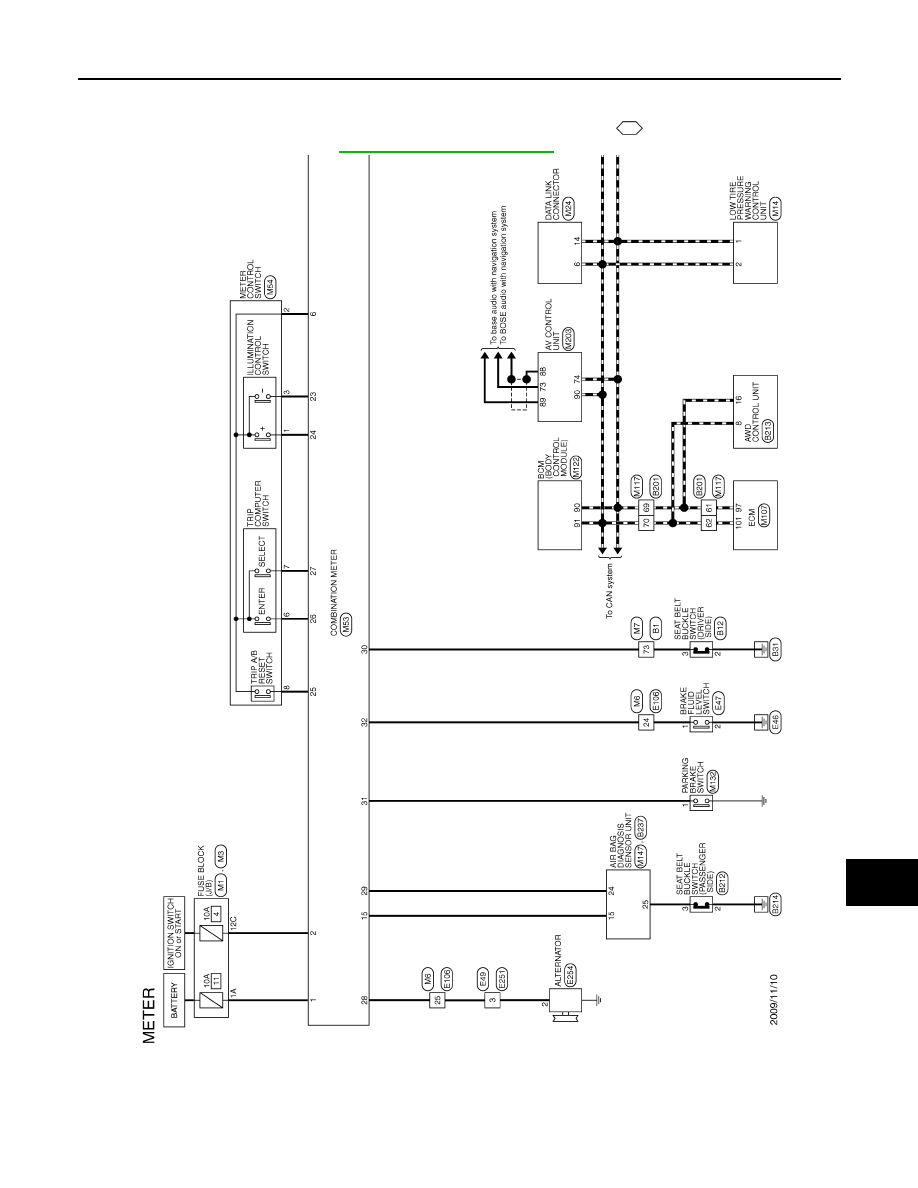

Wiring Diagram - METER -

INFOID:0000000009189353

For connector terminal arrangements, harness layouts, and alphabets in a

 (option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCNWA3092GB

Revision: 2012 November

2014 GT-R

MWI-56

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

Fail-safe

INFOID:0000000009189354

FAIL-SAFE

If the CAN communication with each unit is activates, the combination meter broken the fail-safe control.

JCNWA3093GB

Revision: 2012 November

2014 GT-R

MWI

COMBINATION METER

MWI-57

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

System

Processing

Speedometer

Returns to zero when communication is
blocked.

Tachometer

Engine coolant temperature gauge

Meter illumination control

Shifts to night mode when communication is
blocked.

Shift position indicator

Turned OFF when communication is blocked.

Information display

Door open warning

Indication is turned OFF when communication
is blocked.

Trunk open warning

Parking brake release warning

Shift “ P ” warning

Transmission system check

Shift lever position warning

Transmission clutch high temperature warning

Transmission oil high temperature warning

Transmission system warning

Run-flat tire warning

Low tire pressure warning

Tire pressure monitoring system warning

AWD clutch high temperature warning

Front/rear tire size discrepancy warning

AWD system warning

Anti-lock braking system (ABS) warning

Vehicle dynamic control (VDC) system warning

Engine system warning

CRUISE control system warning

CRUISE control system status

Vehicle speed display

0 km/h (0 MPH) is indicated when communi-
cation is blocked.

Possible driving distance

Displays the last calculation result calculated
under a normal status when communication is
blocked.

Average fuel consumption

Instantaneous fuel consumption

Average vehicle speed

Warning buzzer

Warning is turned OFF when communication
is blocked.

Revision: 2012 November

2014 GT-R

MWI-58

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

Warning lamp/indicator
lamp

ABS warning lamp

Turned ON when communication is broken.

VDC warning lamp

Brake warning lamp

AWD warning lamp

Malfunction indicator lamp (MIL)

Tire pressure warning lamp

Blinks first, then illuminates after approxi-
mately 1 minute.

High beam indicator lamp

Turned OFF when communication is broken.

Turn signal indicator lamp

Tail lamp indicator lamp

CRUISE indicator lamp

SET indicator lamp

KEY warning lamp

Up-shift indicator (green)

Up-shift indicator (yellow)

Up-shift indicator (red)

Transmission check warning lamp

VDC OFF indicator lamp

System

Processing

Revision: 2012 November

2014 GT-R

MWI

THE METER CONTROL SWITCH IS INOPERATIVE

MWI-59

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYMPTOM DIAGNOSIS

THE METER CONTROL SWITCH IS INOPERATIVE

Description

INFOID:0000000009189357

If any of the following malfunctions are found for the meter control switch operation

• All switches are inoperative
• The specified switch cannot be operated

Diagnosis Procedure

INFOID:0000000009189358

1.

CHECK METER CONTROL SWITCH SIGNAL CIRCUIT

Perform the meter control switch signal circuit inspection. Refer to

MWI-43, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the harnesses or connectors.

2.

CHECK METER CONTROL SWITCH

Perform the unit inspection of meter control switch. Refer to

MWI-44, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> Replace the meter control switch.

Revision: 2012 November

2014 GT-R

MWI-60

< SYMPTOM DIAGNOSIS >

THE OIL PRESSURE WARNING LAMP DOES NOT TURN ON OR OFF

THE OIL PRESSURE WARNING LAMP DOES NOT TURN ON OR OFF

Description

INFOID:0000000009189359

Oil pressure warning lamp does not illuminate when ignition switch turns ON, or oil pressure warning lamp
stays illuminated while engine is running (when oil pressure is normal).

Diagnosis Procedure

INFOID:0000000009189360

1.

CHECK COMBINATION METER INPUT SIGNAL

Connect CONSULT, and perform the combination meter input signal inspection. (This work is recommended
to be performed by NHPC.)

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> GO TO 2.

2.

CHECK OIL PRESSURE SENSOR SIGNAL CIRCUIT

Perform the oil pressure sensor signal circuit inspection. Refer to

MWI-45, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK OIL PRESSURE SENSOR

Perform the unit inspection of oil pressure sensor. Refer to

MWI-45, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> Replace the oil pressure sensor.

Revision: 2012 November

2014 GT-R

MWI

THE PARKING BRAKE RELEASE WARNING CONTINUES DISPLAYING, OR

DOES NOT DISPLAY

MWI-61

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE PARKING BRAKE RELEASE WARNING CONTINUES DISPLAYING,
OR DOES NOT DISPLAY

Description

INFOID:0000000009189361

• The parking brake warning is displayed during vehicle travel even though the parking brake is released
• The parking brake warning is not displayed even though the vehicle is being driven with the parking brake

applied

Diagnosis Procedure

INFOID:0000000009189362

1.

BRAKE WARNING LAMP OPERATION CHECK

1.

Start the engine.

2.

Operate the parking brake, then check the illumination status of brake warning lamp.

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> GO TO 2.

2.

CHECK PARKING BRAKE SWITCH SIGNAL CIRCUIT

Perform the parking brake switch signal circuit inspection. Refer to

MWI-46, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK PARKING BRAKE SWITCH

Perform the unit inspection of parking brake switch. Refer to

MWI-46, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> Replace the parking brake switch.

Parking brake applied

:ON

Parking brake released

:OFF

Revision: 2012 November

2014 GT-R

MWI-62

< SYMPTOM DIAGNOSIS >

THE LOW WASHER FLUID WARNING CONTINUES DISPLAYING, OR DOES

NOT DISPLAY

THE LOW WASHER FLUID WARNING CONTINUES DISPLAYING, OR
DOES NOT DISPLAY

Description

INFOID:0000000009189363

• Low washer fluid warning is still displayed even after washer fluid is added.
• Low washer fluid warning is not displayed even when washer fluid is not filled.

Diagnosis Procedure

INFOID:0000000009189364

1.

CHECK WASHER LEVEL SWITCH SIGNAL CIRCUIT

Check the washer level switch signal circuit. Refer to

MWI-48, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the harnesses or connectors.

2.

CHECK WASHER LEVEL SWITCH COMPONENT PARTS

Perform the inspection of washer level switch component parts. Refer to

MWI-48, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> Replace the washer level switch. Refer to

WW-17, "Removal and Installation"

.

Revision: 2012 November

2014 GT-R

MWI

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

MWI-63

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

Description

INFOID:0000000009189365

• The displayed ambient air temperature is higher than the actual temperature.
• The displayed ambient air temperature is lower than the actual temperature.

Diagnosis Procedure

INFOID:0000000009189366

NOTE:
Before starting diagnosis, check if the symptom is applicable to the “Symptom by normal operation”. Refer to

MWI-64, "INFORMATION DISPLAY : Description"

.

1.

CHECK A/C AUTO AMP. CONNECTION RECOGNITION SIGNAL CIRCUIT

Perform the A/C auto amp. connection recognition signal circuit inspection. Refer to

MWI-50,

"Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the harnesses or connectors.

2.

CHECK AMBIENT SENSOR SIGNAL CIRCUIT

Perform the ambient sensor signal circuit inspection. (This work is recommended to be performed by NHPC.)
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK AMBIENT SENSOR

Perform the unit inspection of ambient sensor. (This work is recommended to be performed by NHPC.)

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> Replace the ambient sensor.

Revision: 2012 November

2014 GT-R

MWI-64

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

INFORMATION DISPLAY

INFORMATION DISPLAY : Description

INFOID:0000000009189367

OIL LEVEL DISPLAY

After mounting/removing of battery or combination meter, the combination meter power supply is cut off tem-
porarily. Therefore, the engine oil amount data may be erased from the combination meter, causing the oil
level to be not displayed. Refer to

MWI-26, "INFORMATION DISPLAY : System Description"

 for the condition

that the combination meter reads the resistance of oil level sensor.

AMBIENT AIR TEMPERATURE

For the ambient air temperature display, the value is displayed on the information display after the signal from
ambient sensor is corrected by the combination meter. Therefore, the indication value may not match the
actual ambient air temperature. Refer to

MWI-26, "INFORMATION DISPLAY : System Description"

 for details

on the correction process.

POSSIBLE DRIVING DISTANCE

The calculated distance to empty may differ from the actual distance to empty if the refueling amount is
approximately 15  (4 US gal, 3-1/4 lmp gal) or less. This is because the refuel control (moves the fuel gauge
needle quicker than normal judging that the driver is refueling the vehicle) is not performed in such a case.

Revision: 2012 November

2014 GT-R
